Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

28 part groups · 17 illustrations

Illustrations

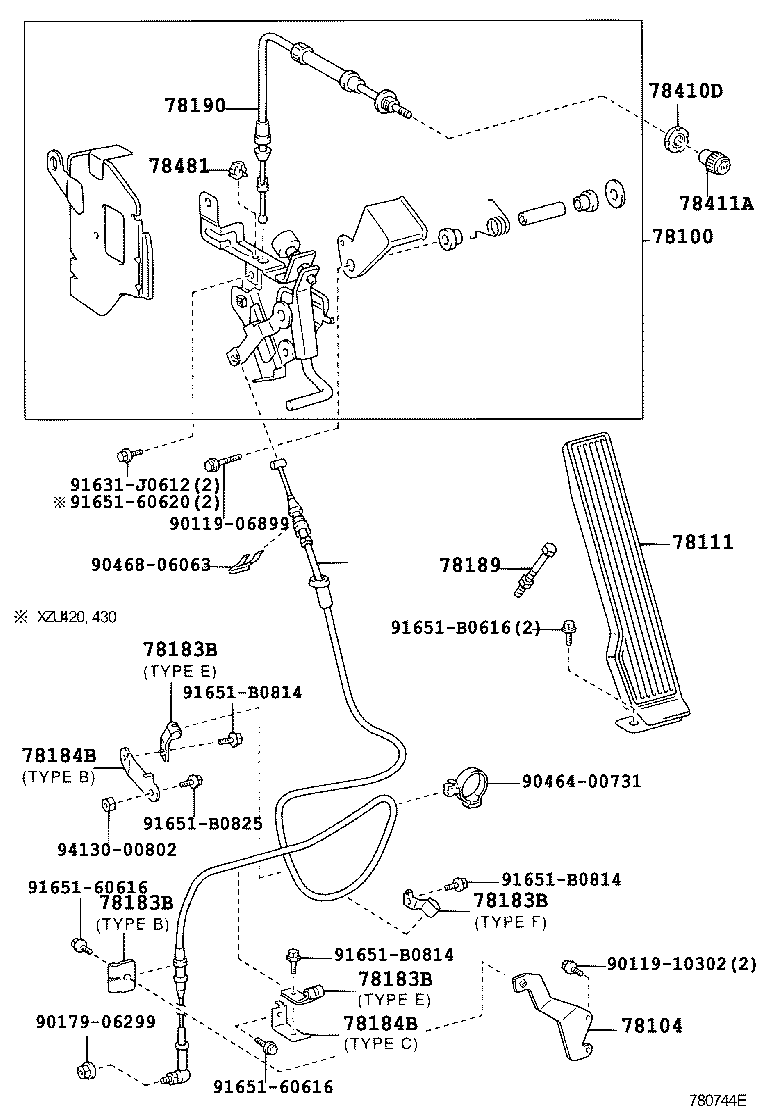

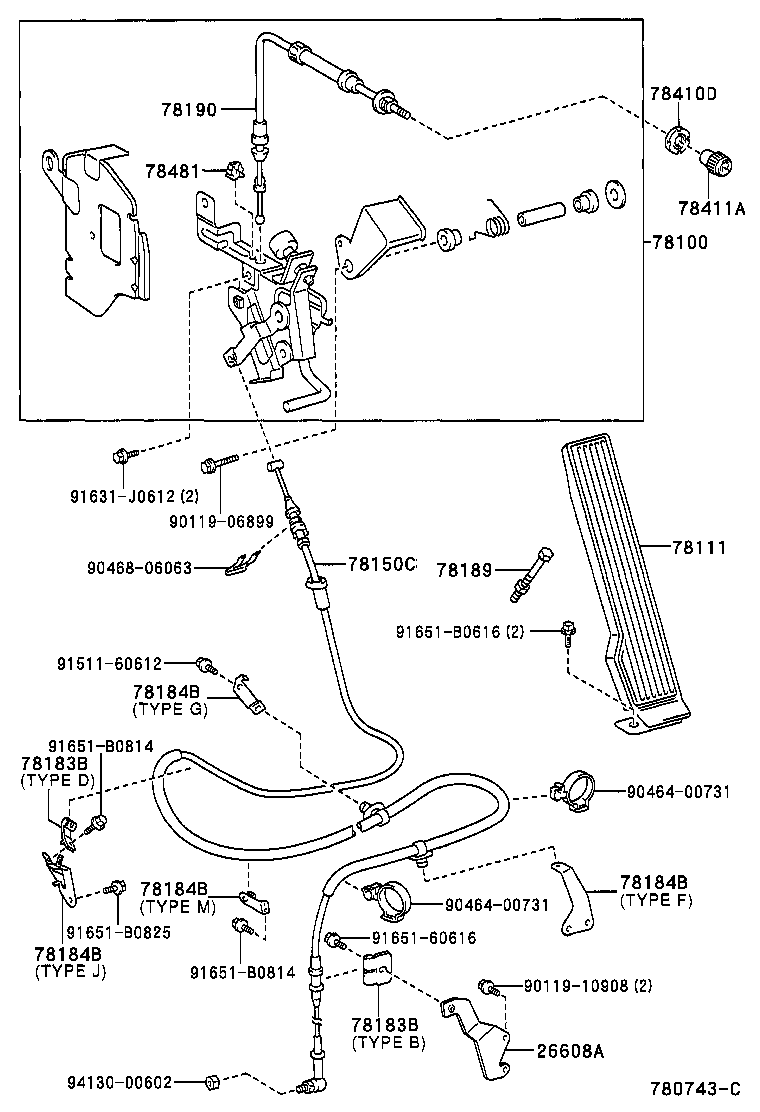

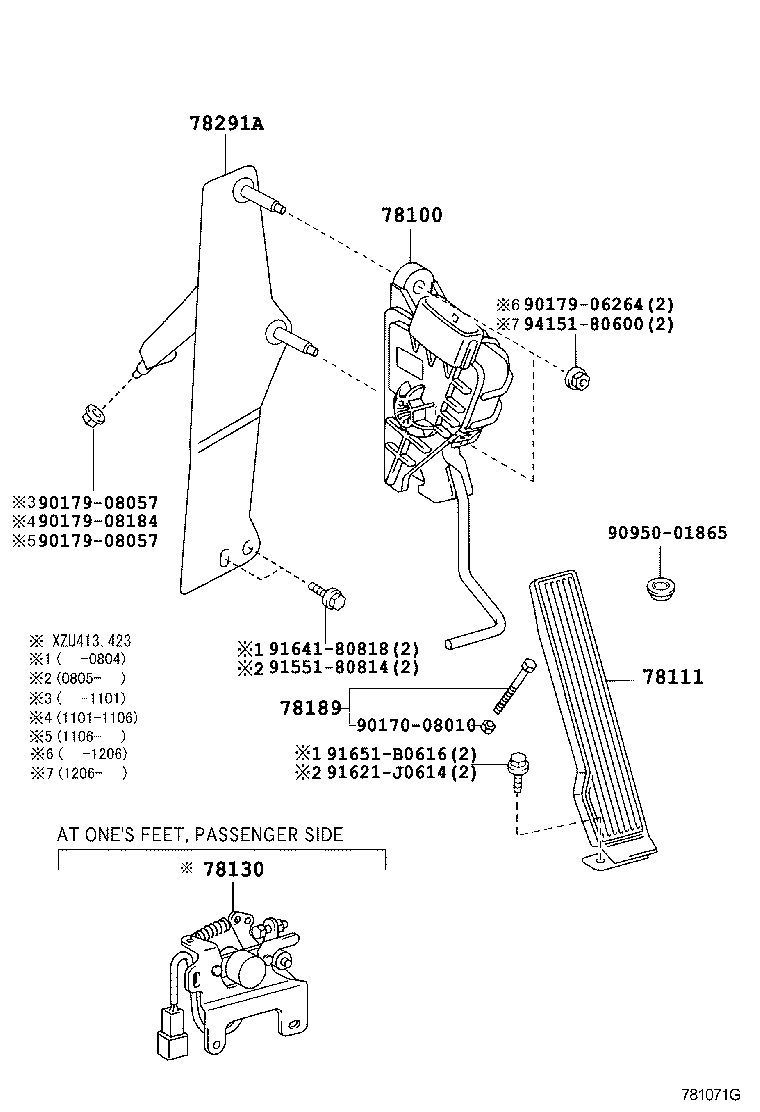

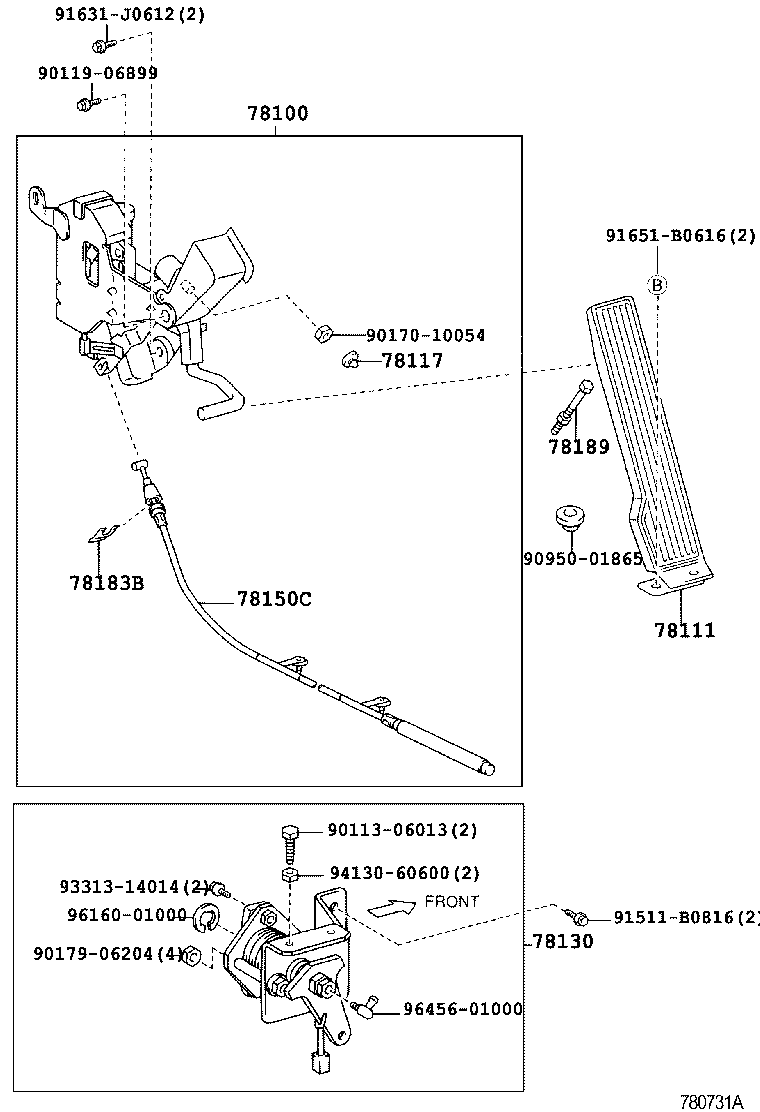

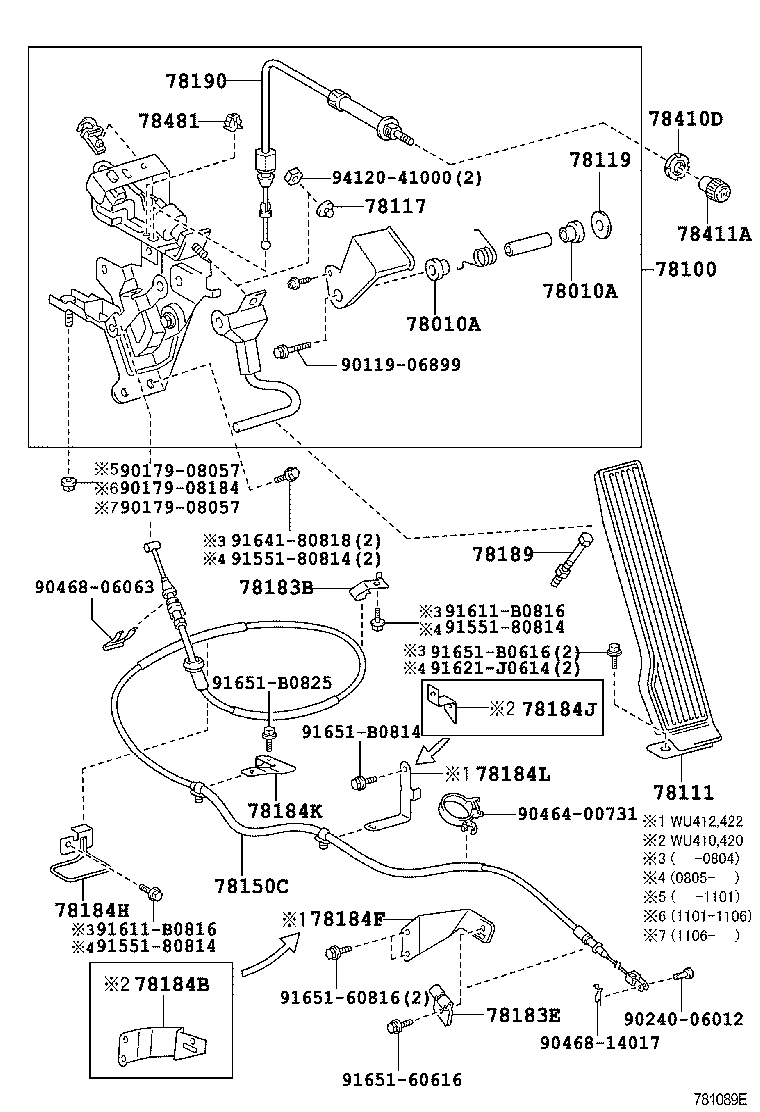

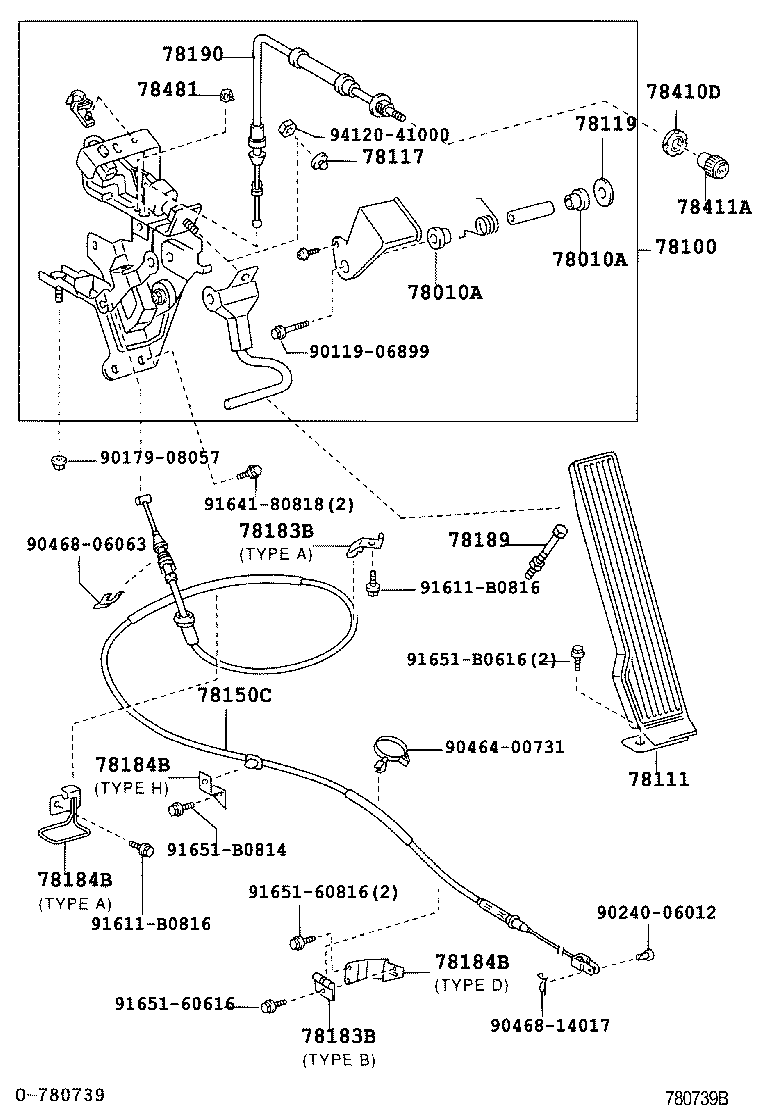

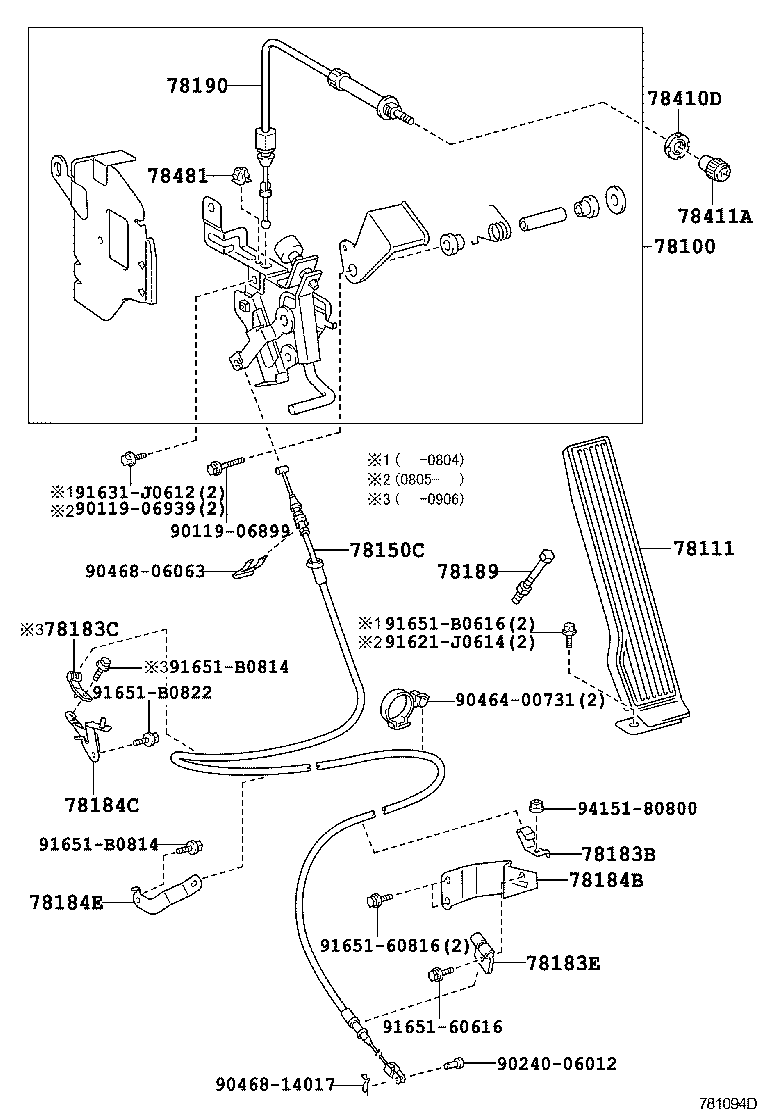

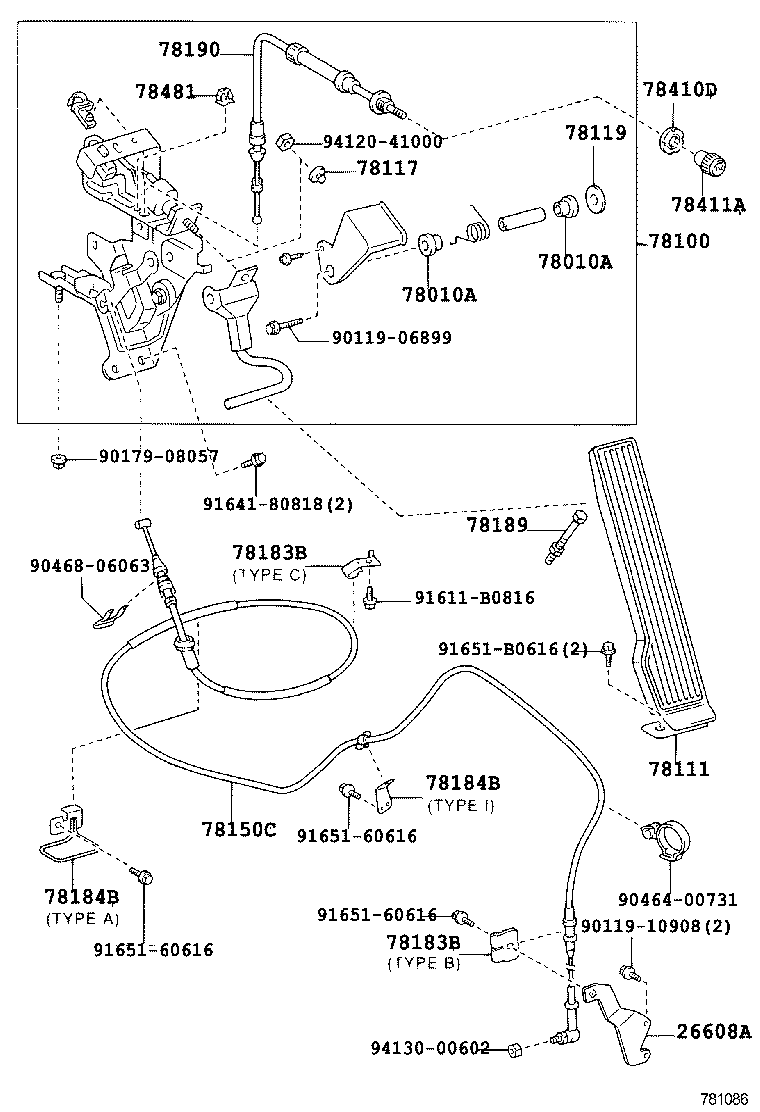

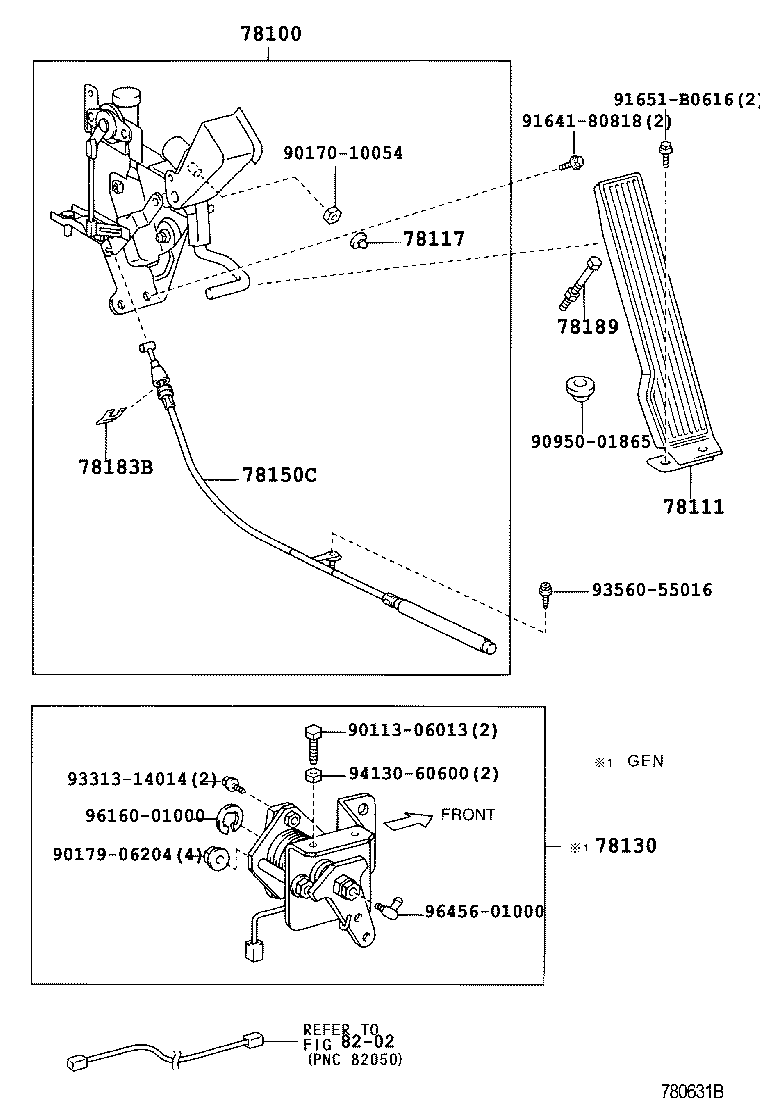

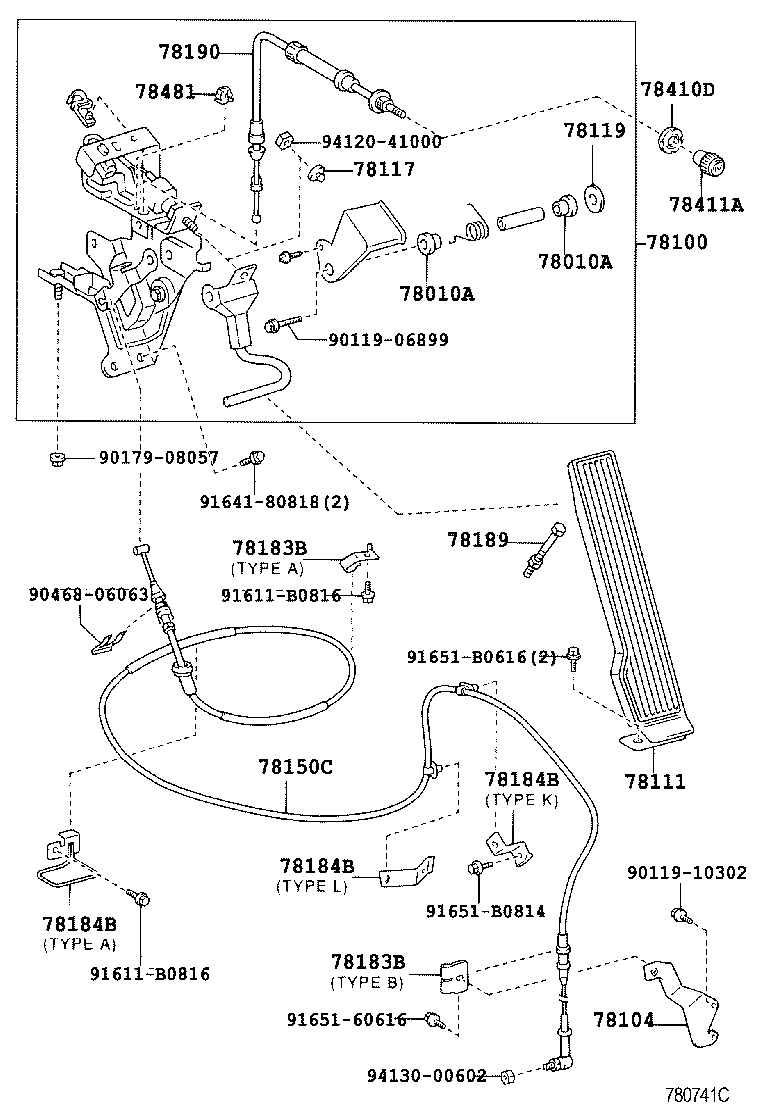

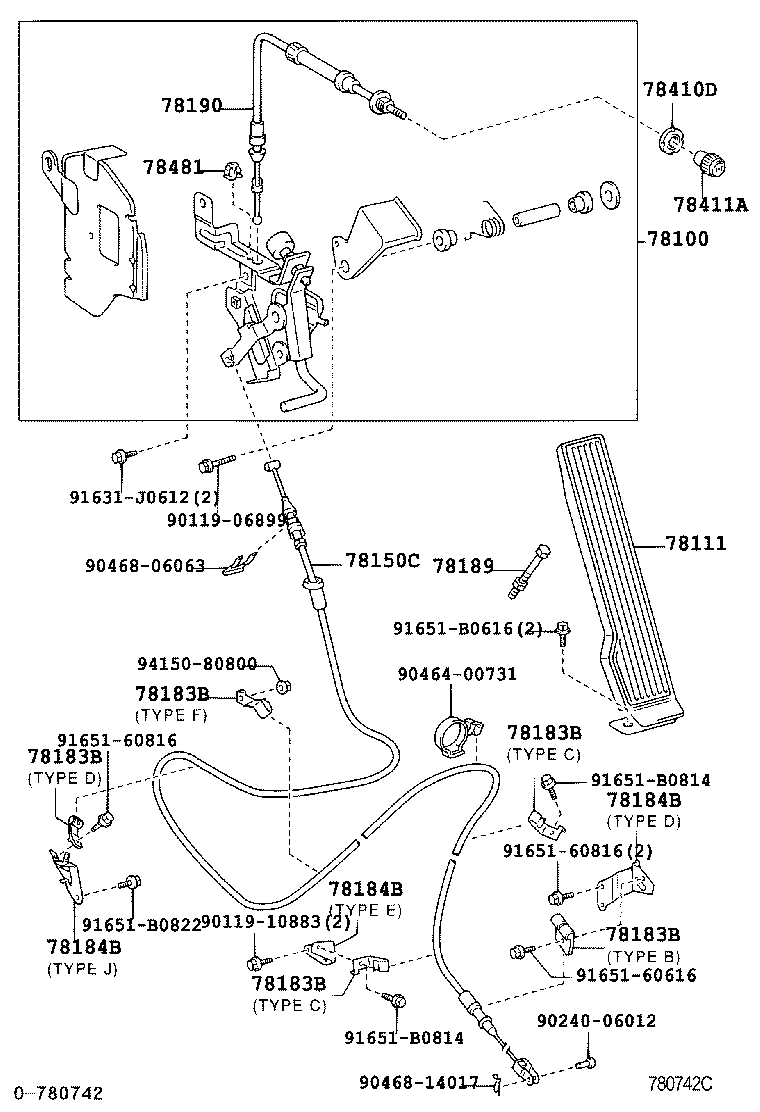

Figure 780630A 780630A 2001-10 → 2002-12 Figure 780631B 780631B 2001-10 → — Figure 780731A 780731A 2002-12 → — Figure 780739B 780739B 2002-12 → 2006-10 Figure 781086 781086 2002-12 → 2006-10 Figure 781086 781086 2006-10 → — Figure 780741C 780741C 2002-12 → 2006-10 Figure 780742C 780742C 2002-12 → 2006-10 Figure 780742C 780742C 2003-04 → 2008-01 Figure 780742C 780742C 2008-01 → — Figure 780743C 780743C 2002-12 → 2006-10 Figure 780744E 780744E 2002-12 → — Figure 781071G 781071G 2006-08 → — Figure 781094D 781094D 2006-10 → — Figure 781094D 781094D 2008-01 → — Figure 781089E 781089E 2006-10 → — Figure 781194A 781194A 2008-01 → —

Part groups

PNCDescription
26608A Bracket Sub-assy, Accelerator Wire
78010A Bush (FOR ACCELERATOR LINK)
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78117 Cushion (FOR ACCELERATOR ROD)
78118B Stopper, Accelerator Pedal
78119 Stopper, Accelerator Pedal Rod
78120G Rod Assy, Accelerator Pedal
78130 Bellcrank Assy, Accelerator
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183E Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78184E Bracket, Accelerator Control Cable
78184F Bracket, Accelerator Control Cable
78184H Bracket, Accelerator Control Cable
78184J Bracket, Accelerator Control Cable
78184K Bracket, Accelerator Control Cable
78184L Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78190 Cable Assy, Accel Control W/Throttle
78291A Bracket, Accelerator Link
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
