Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 2 illustrations

Illustrations

Figure 811952L

811952L 2001-10 → —

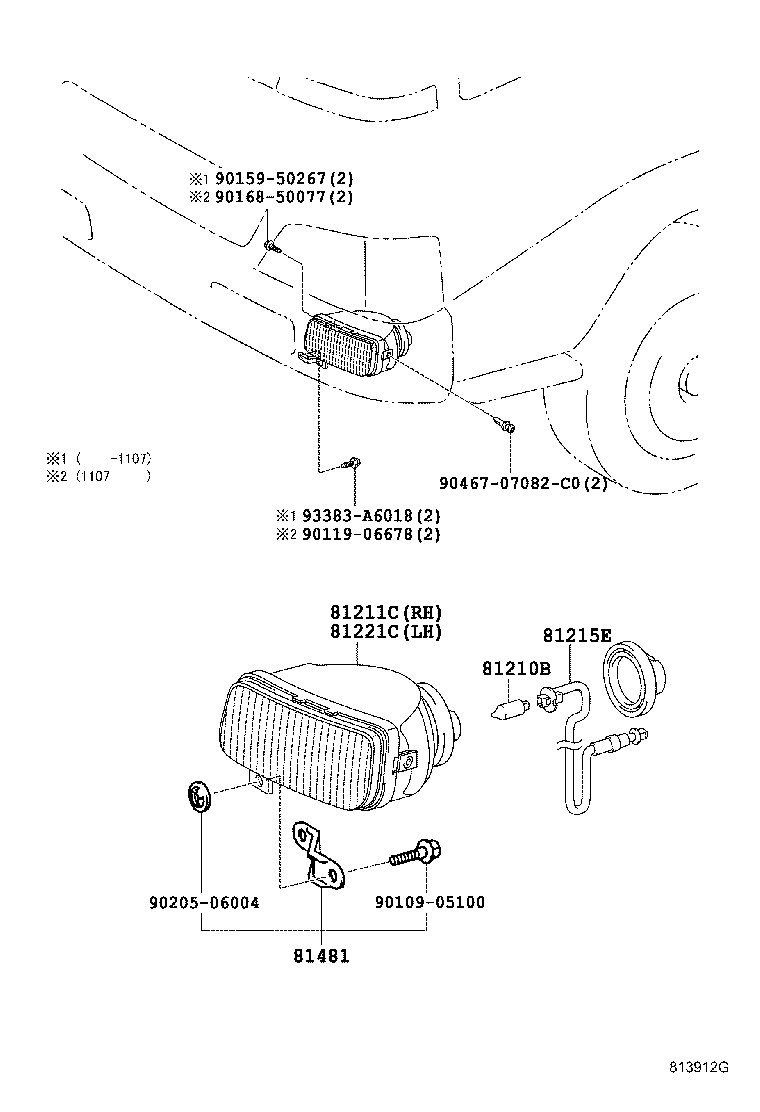

Figure 813912G

813912G 2006-10 → —

Part groups

PNC	Description
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81215D	Fog Lamp Socket Plug Assy
81215E	Cord, Fog Lamp
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81481	Bracket, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
