Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

24 part groups · 3 illustrations

Illustrations

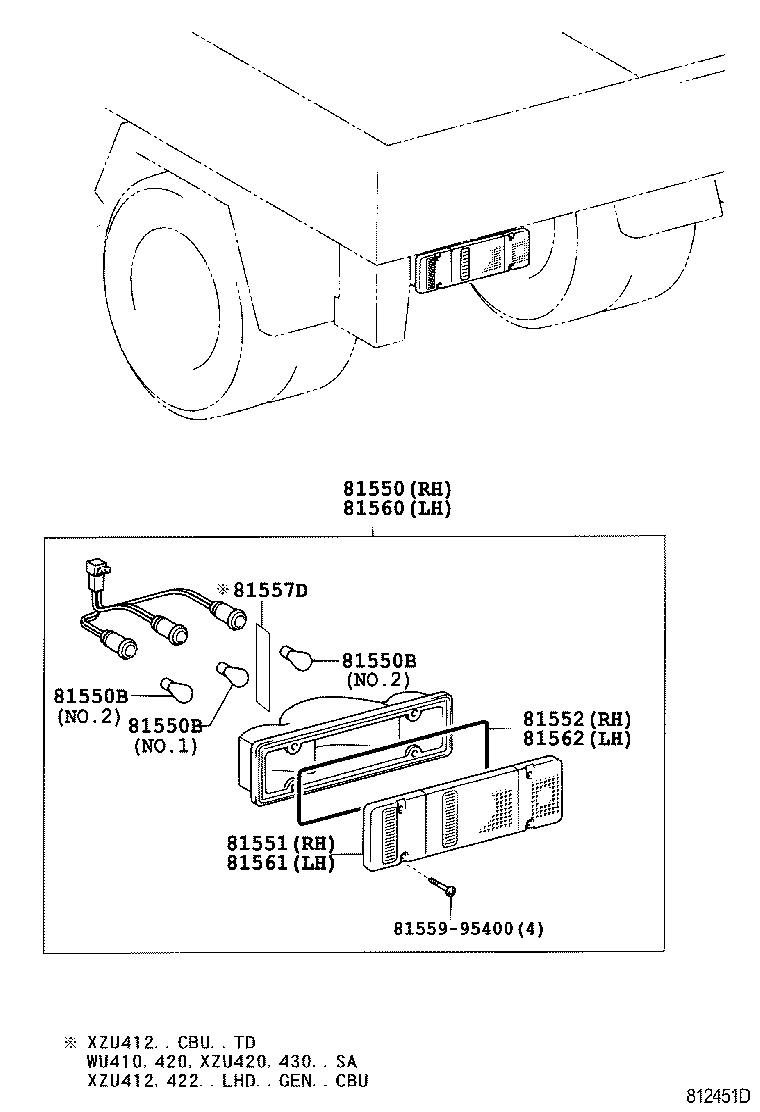

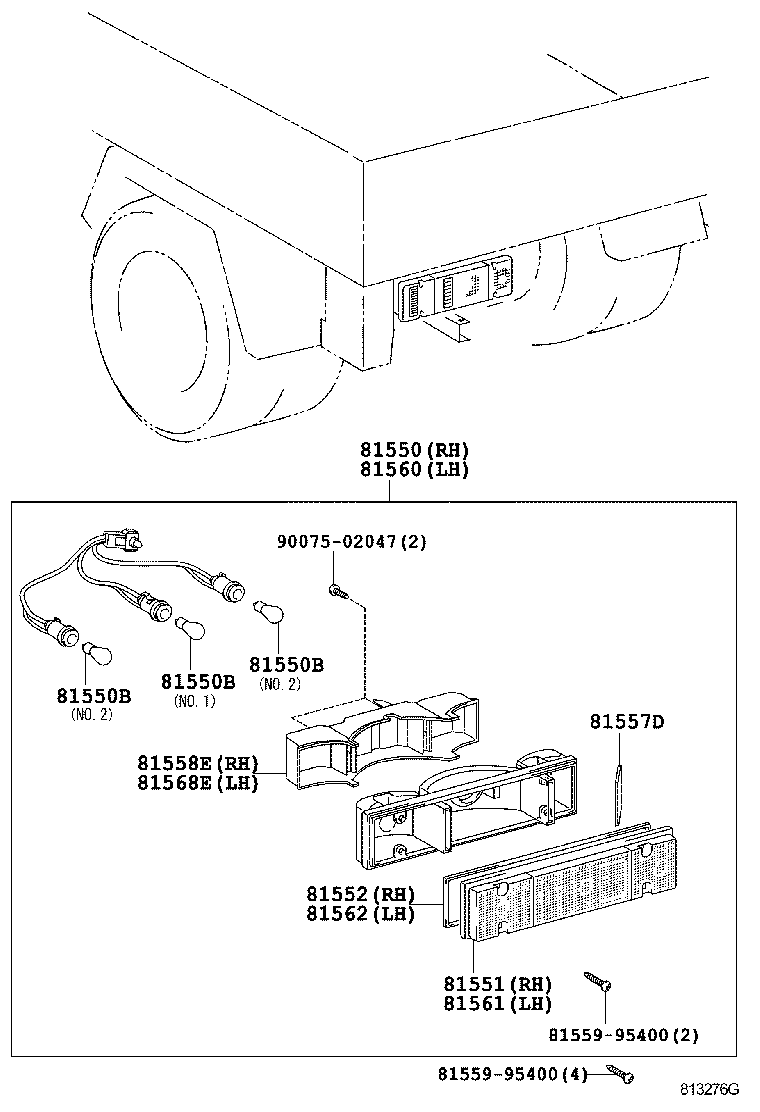

Figure 811944E 811944E 2001-10 → — Figure 812451D 812451D 2002-12 → 2005-05 Figure 813276G 813276G 2005-05 → —

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81537 Lens, Rear Combination Lamp, NO.3 RH
81538B Gasket, Rear Combination Lamp, NO.3 RH
81547 Lens, Rear Combination Lamp, NO.3 LH
81548B Gasket, Rear Combination Lamp, NO.3 LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81551A Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81553C Body, Rear Combination Lamp, RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81557D Reflector, Rear Combination Lamp
81557E Lens, Rear Combination Lamp, RH NO.2
81558E Cover, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81561A Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81563C Body, Rear Combination Lamp, LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81567E Lens, Rear Combination Lamp, LH NO.2
81568E Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
