Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

7 part groups · 7 illustrations

Illustrations

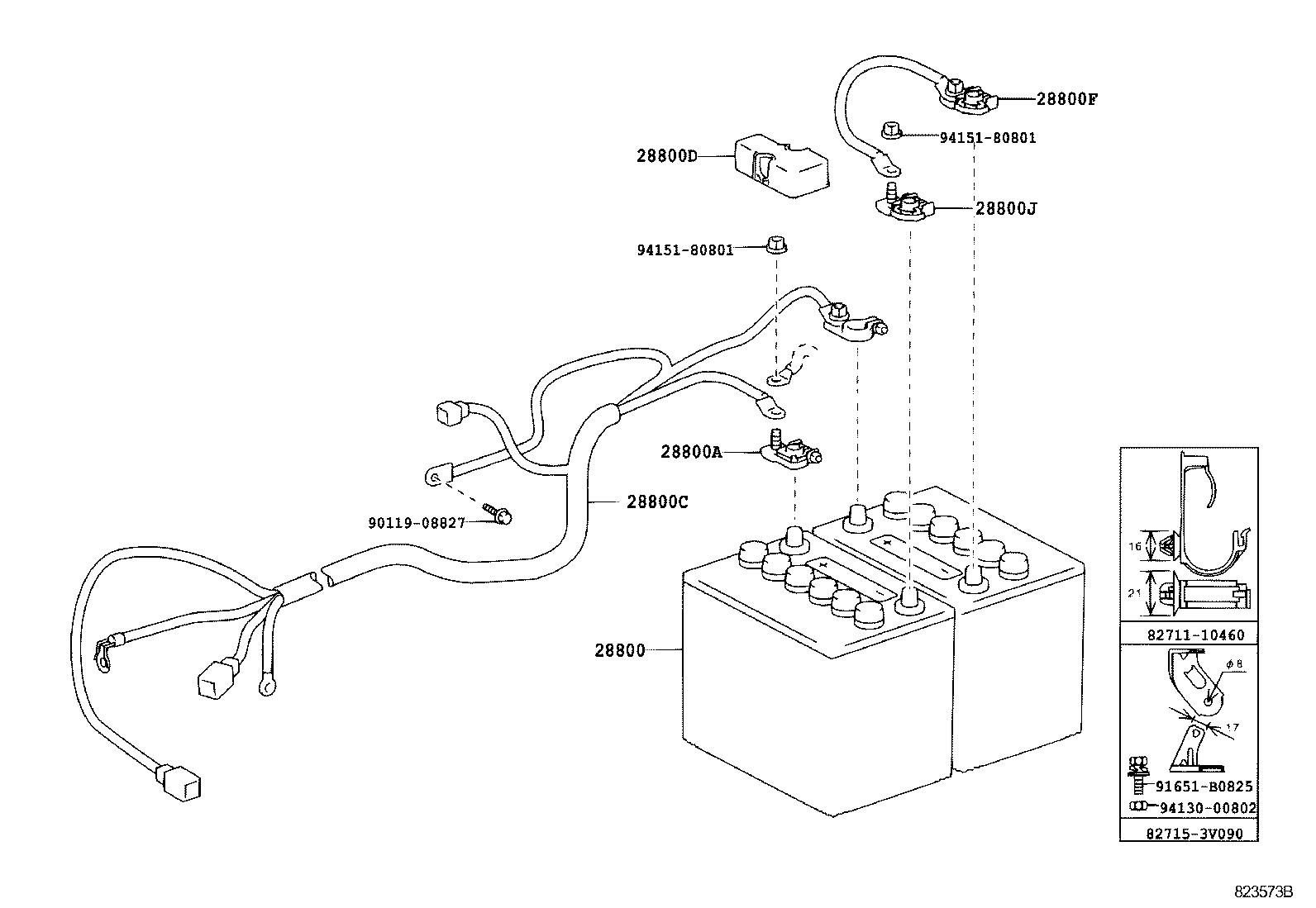

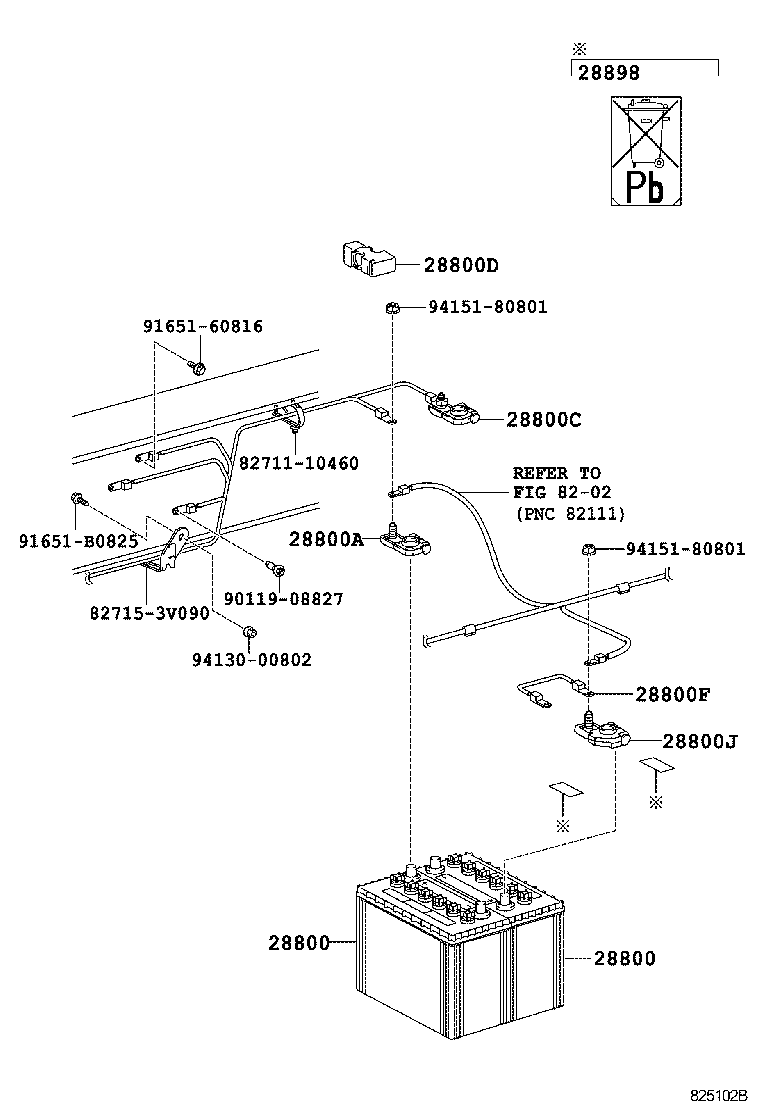

Figure 822858D 822858D 2001-10 → 2008-02 Figure 822858D 822858D 2002-12 → 2006-10 Figure 822858D 822858D 2003-04 → 2008-02 Figure 823573B 823573B 2004-11 → 2007-01 Figure 824963B 824963B 2006-08 → 2007-08 Figure 825102B 825102B 2006-10 → — Figure 825102B 825102B 2008-02 → 2008-12

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800C Cable, Battery TO Starter(FOR BATTERY TO MAIN SWITCH)
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800F Cable, Battery TO Battery
28800J Terminal, Battery Negative
28898 Plate, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
