Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 30 illustrations

Illustrations

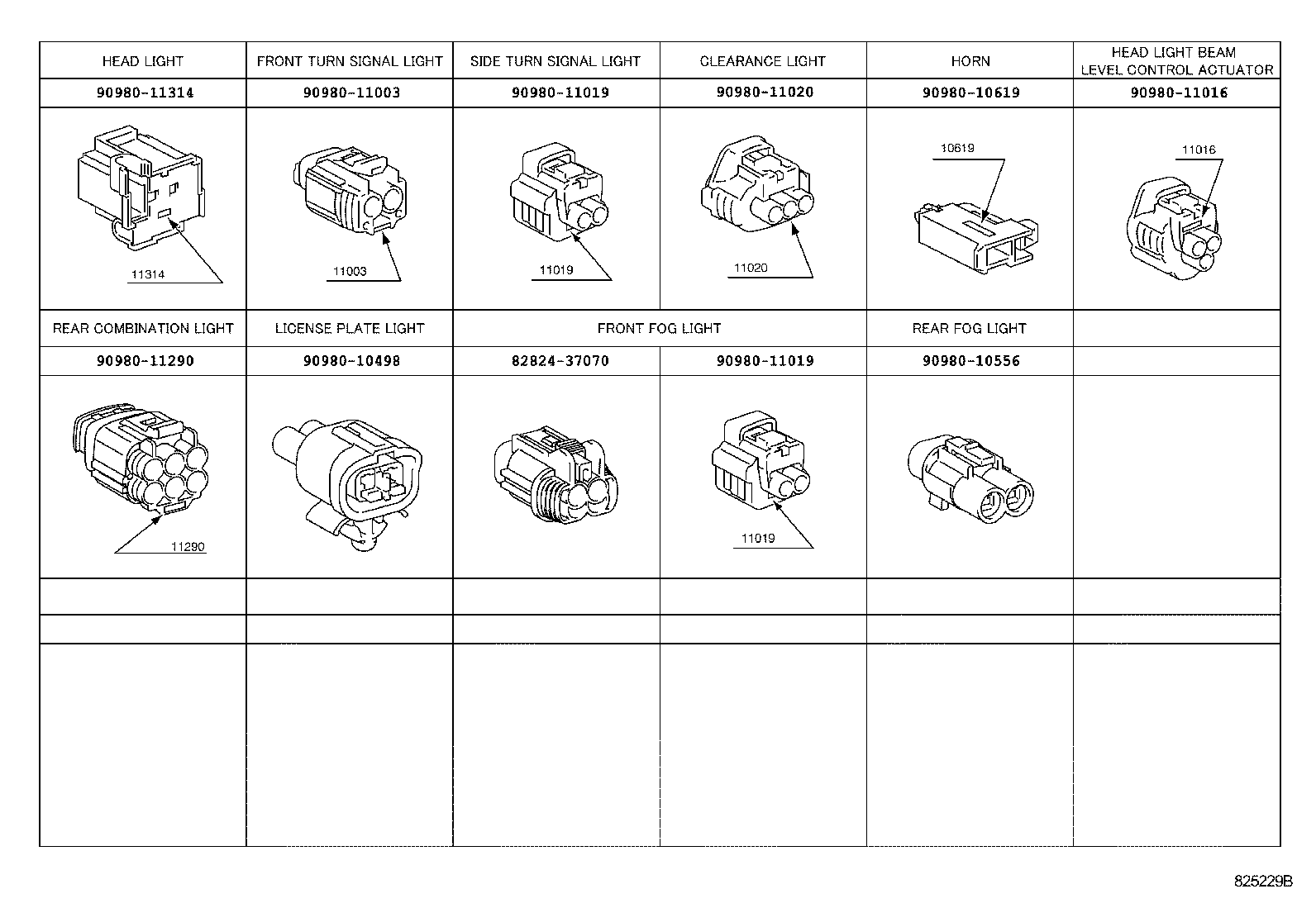

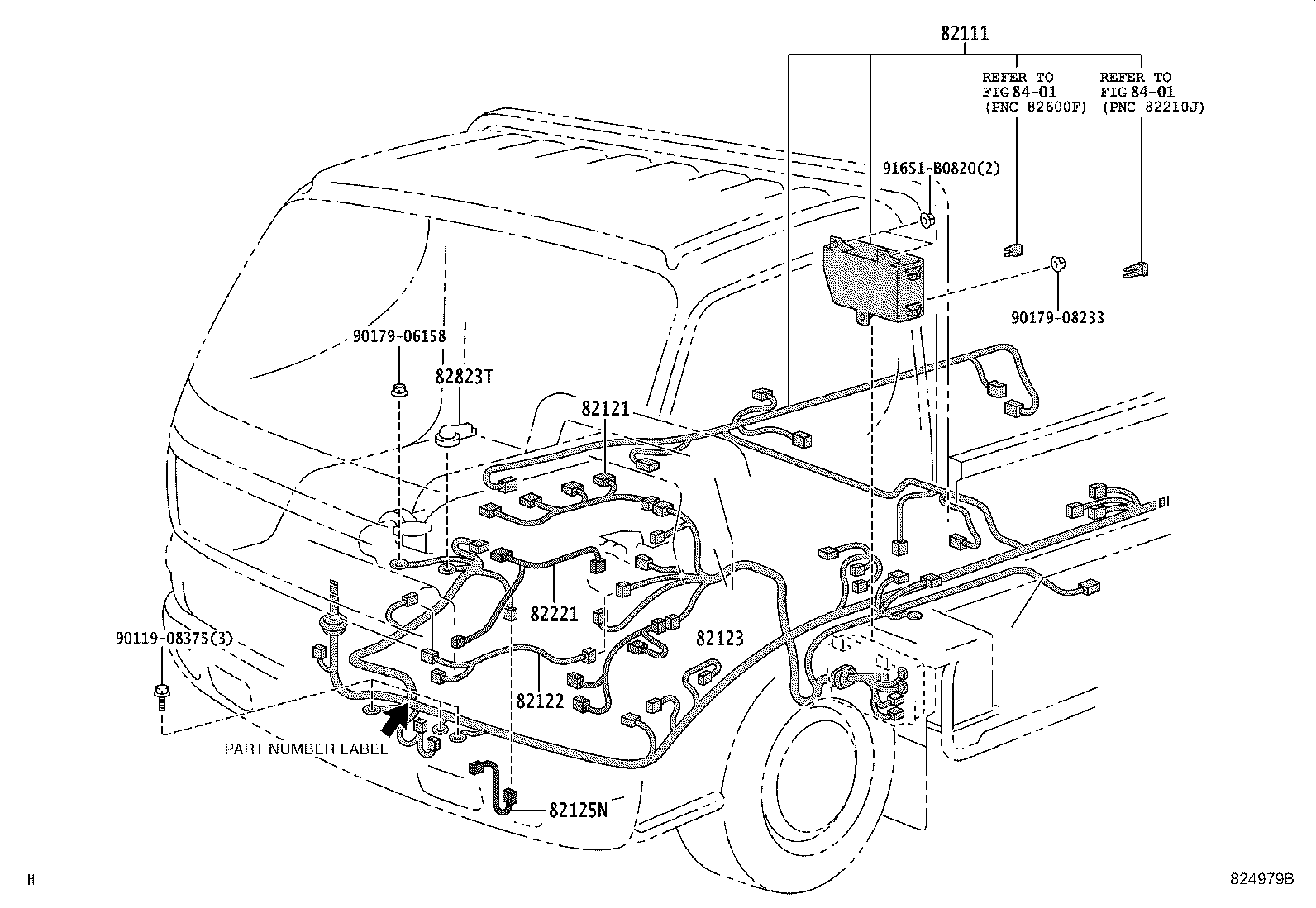

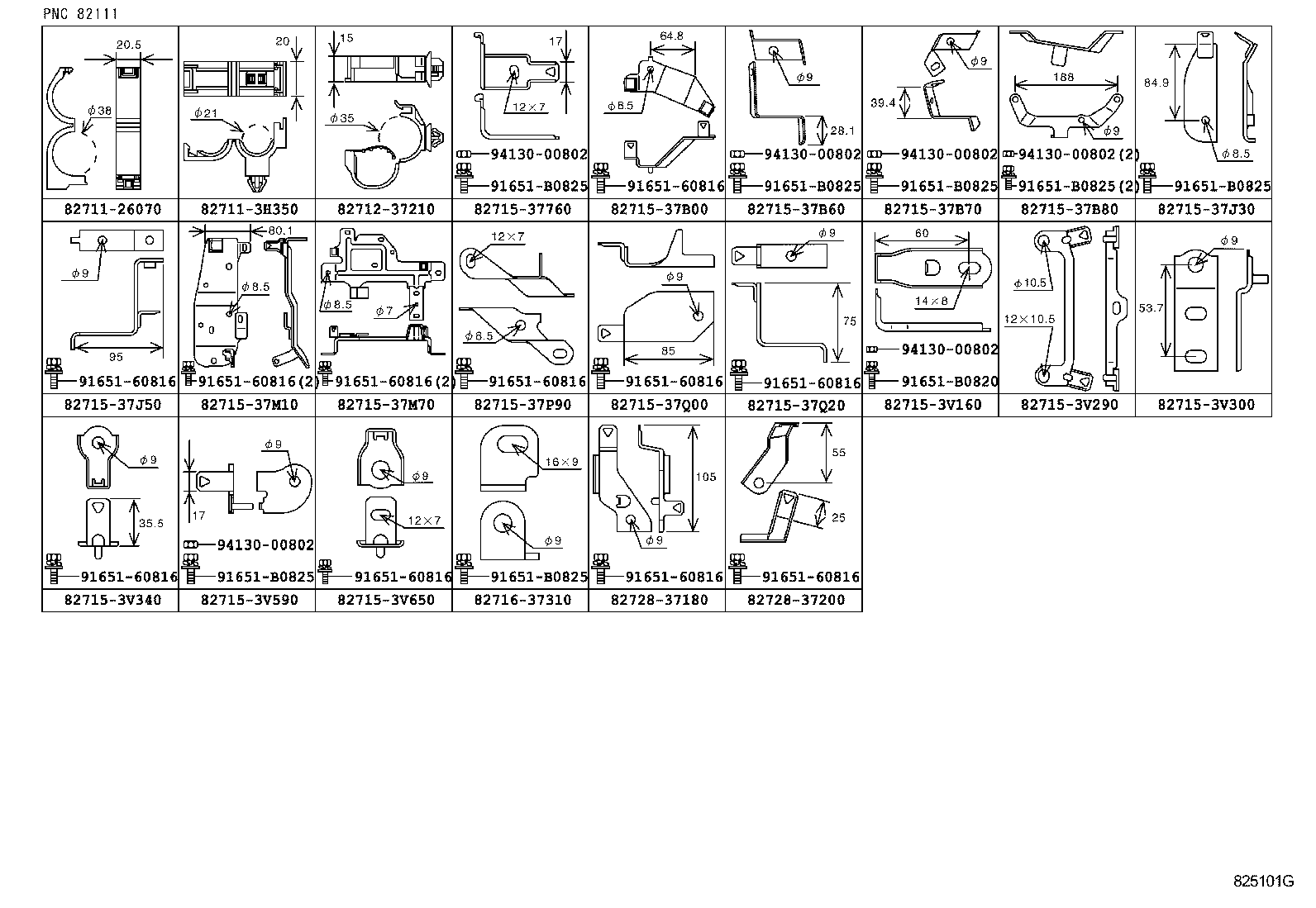

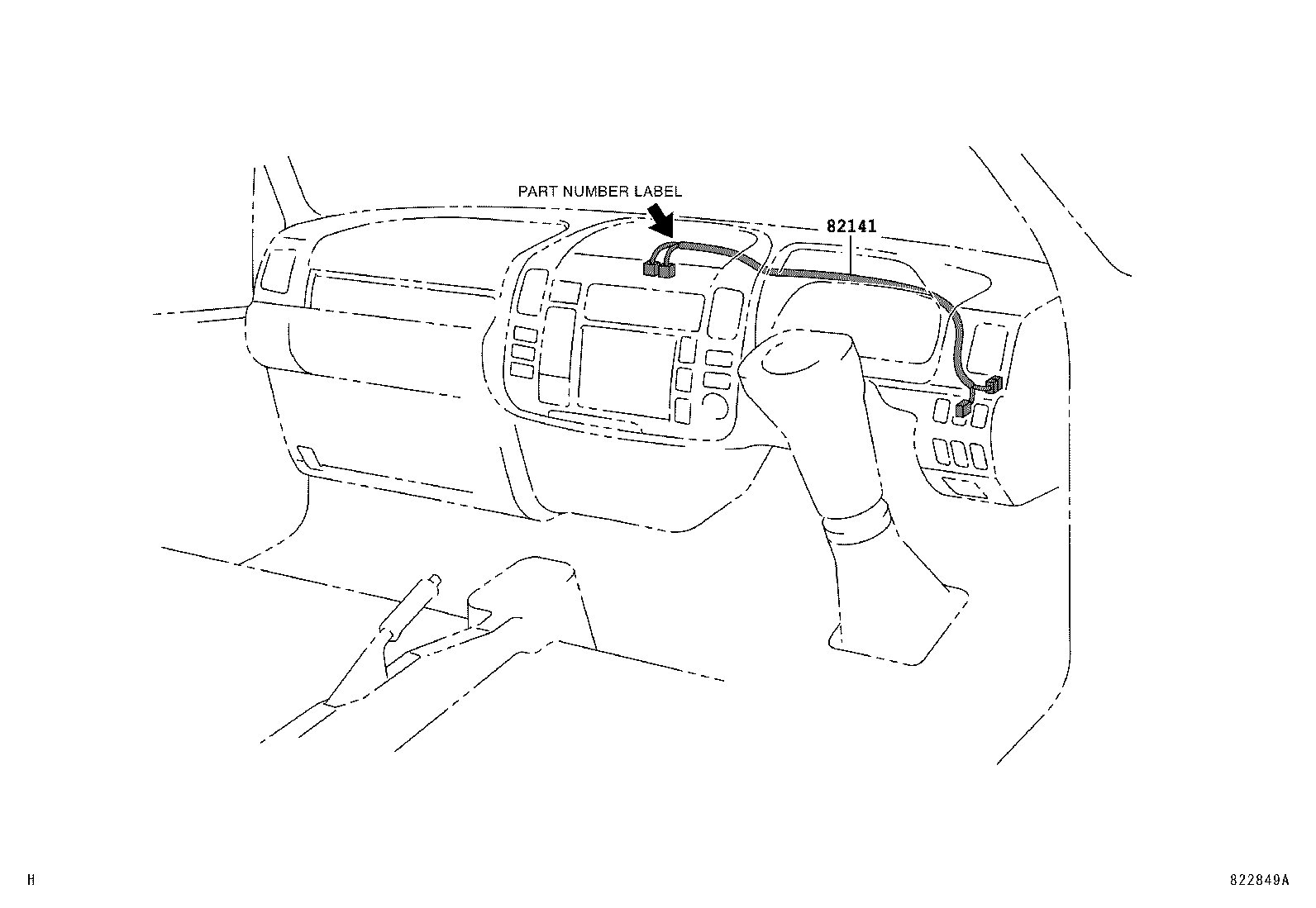

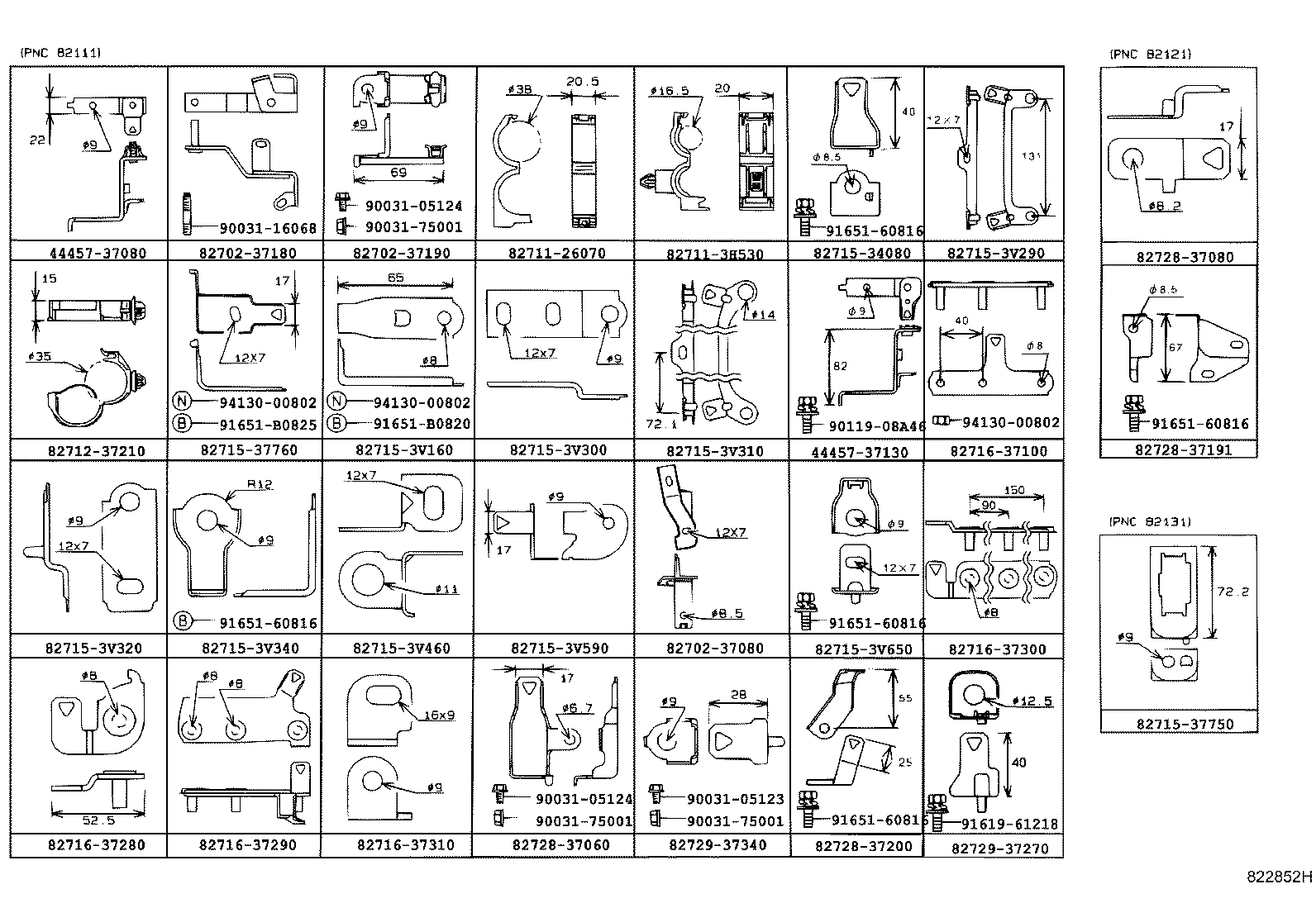

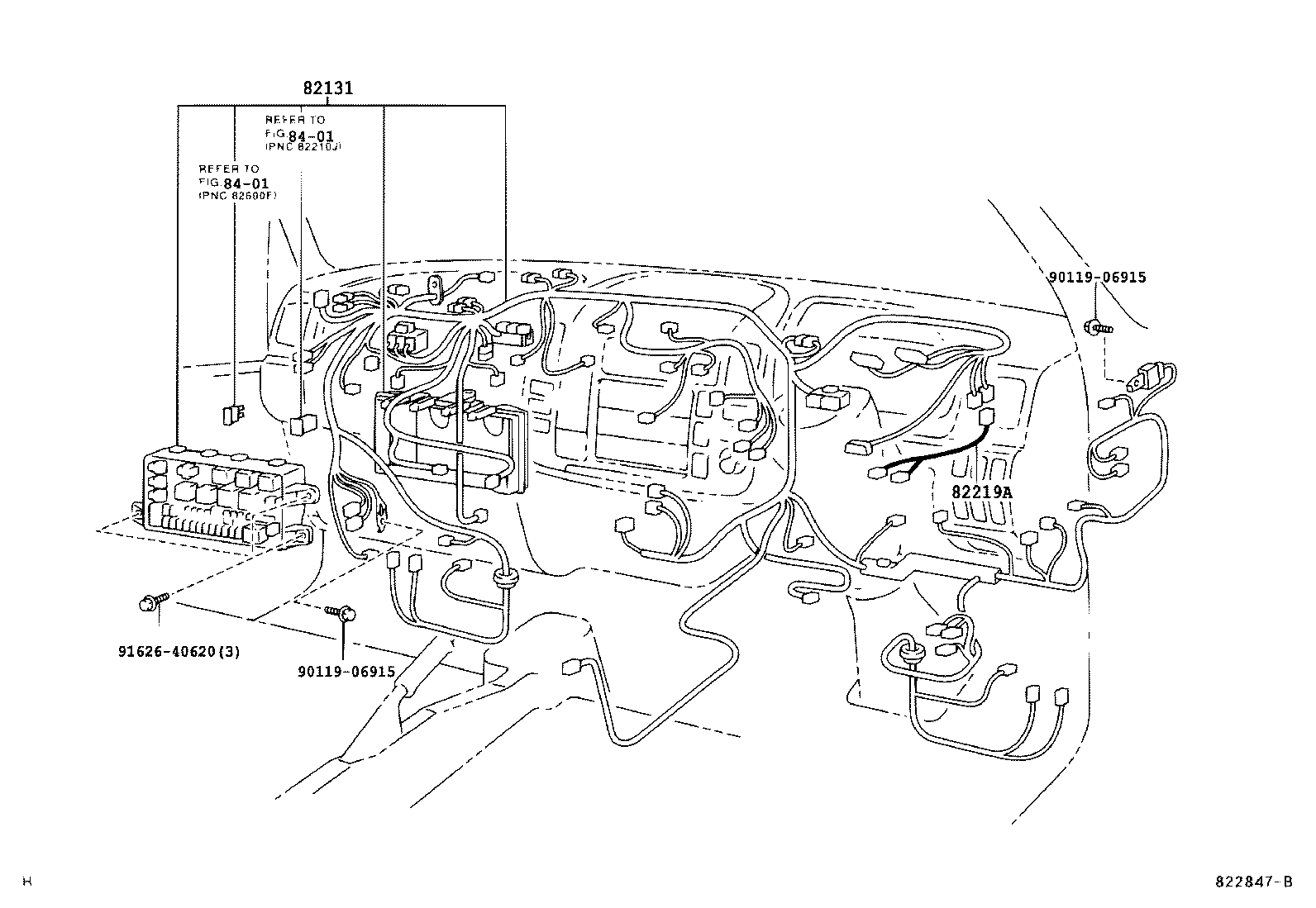

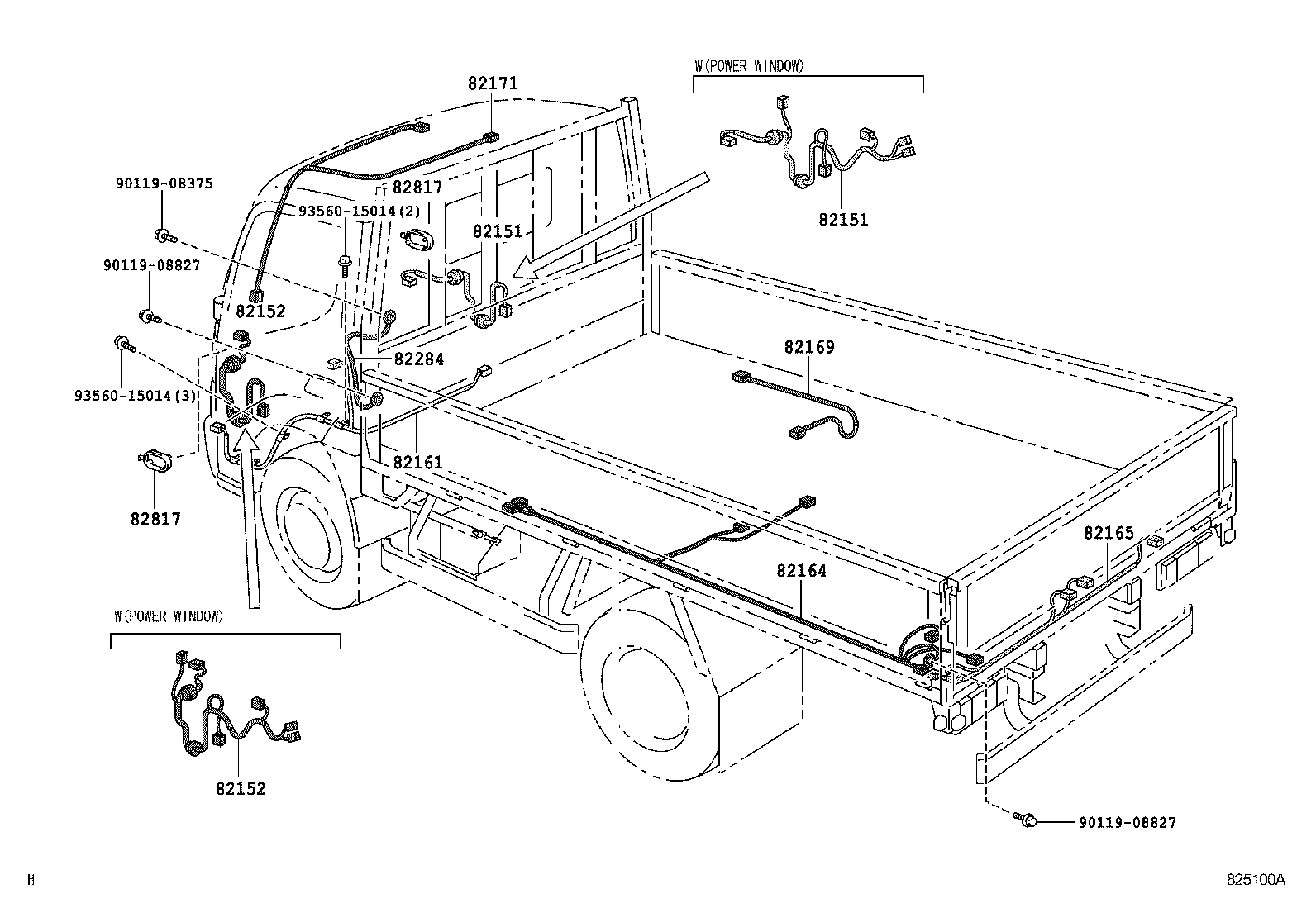

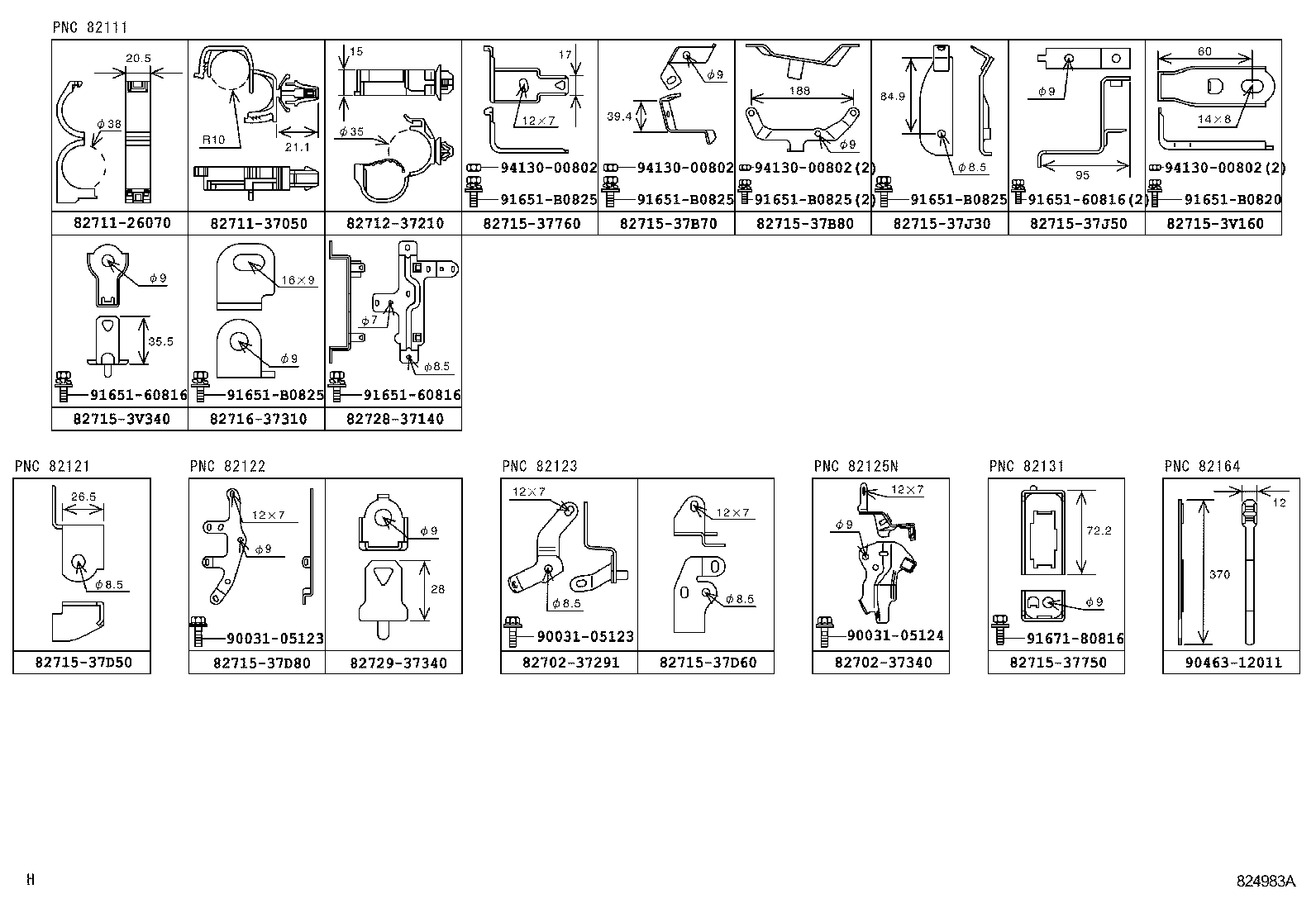

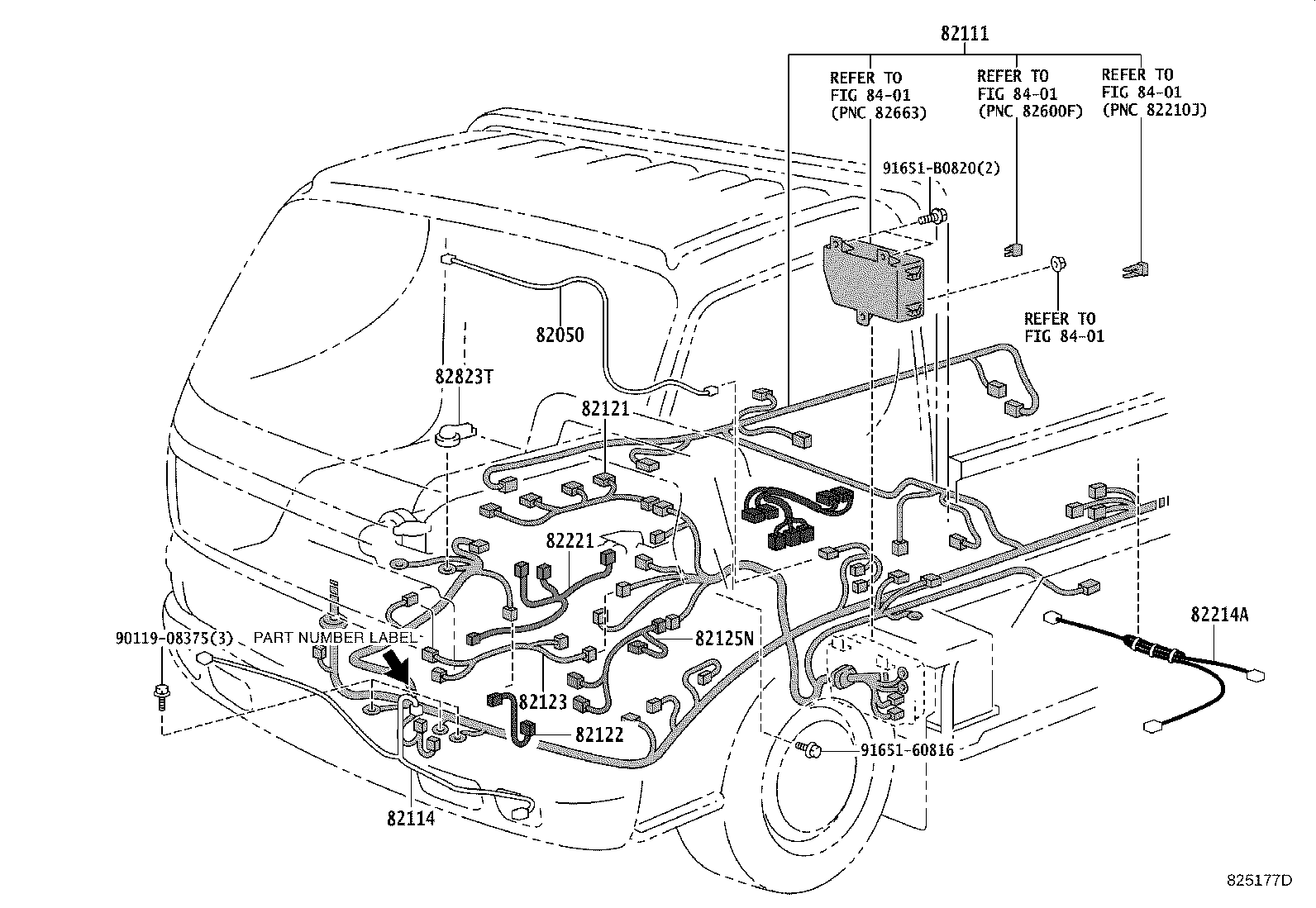

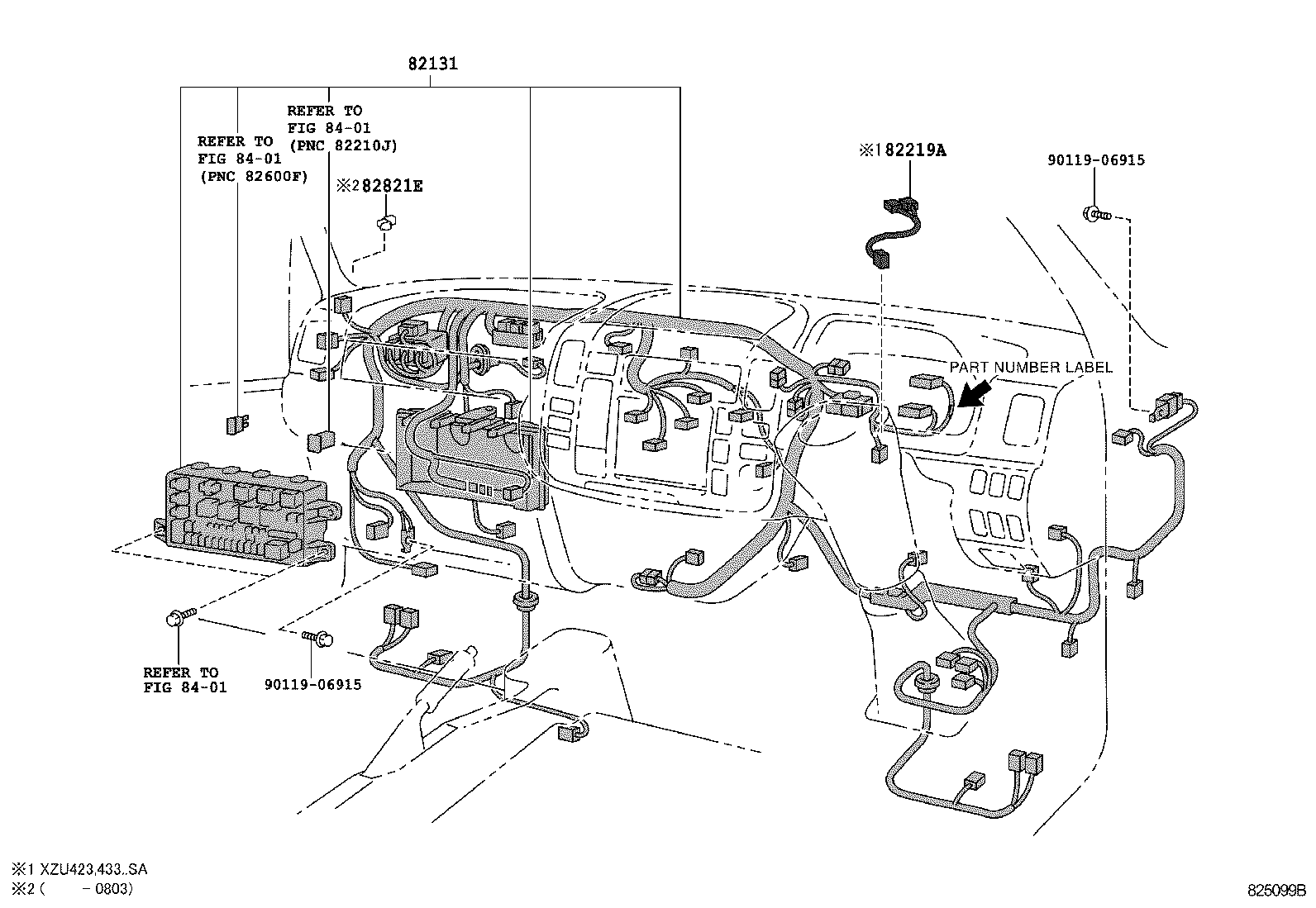

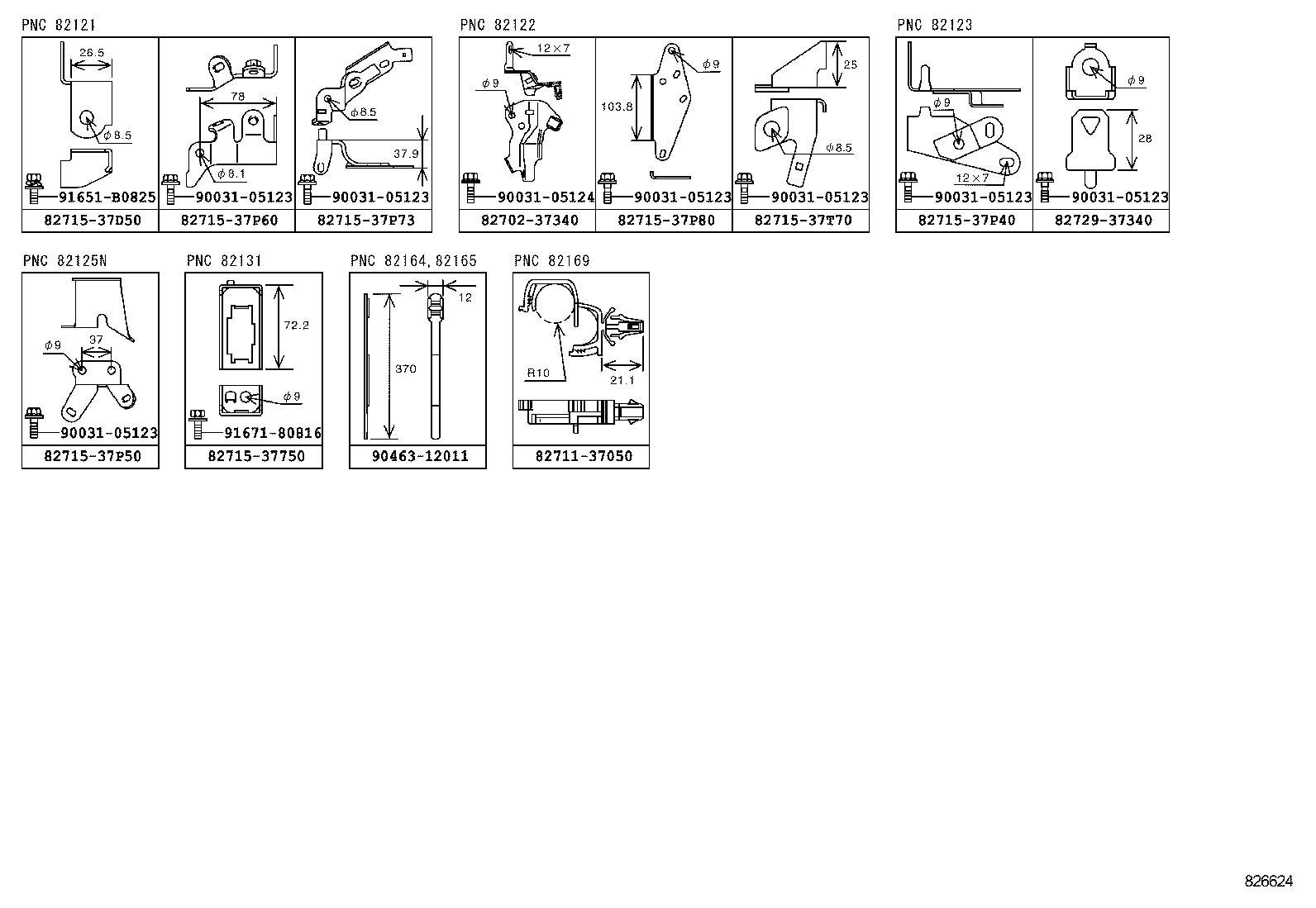

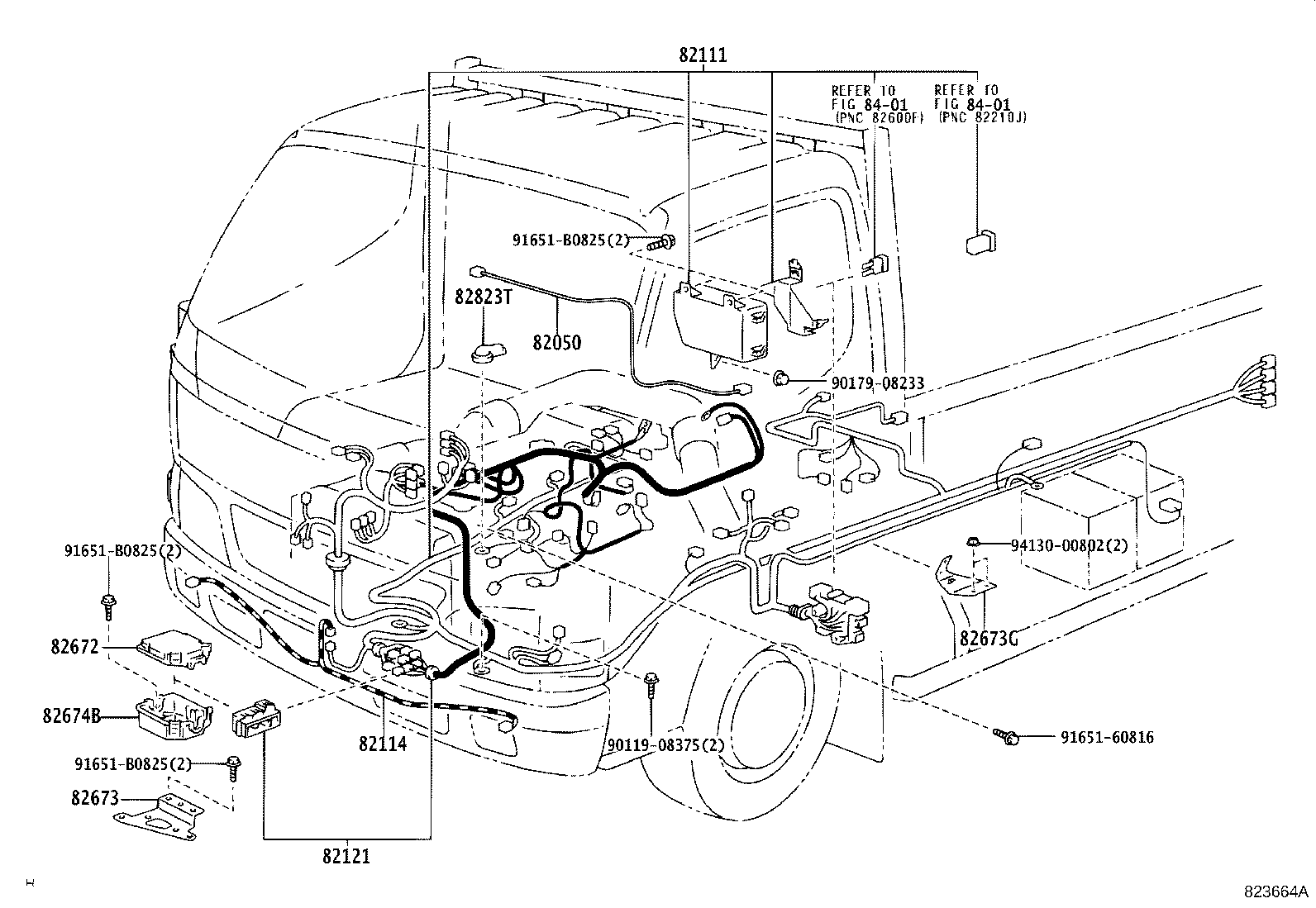

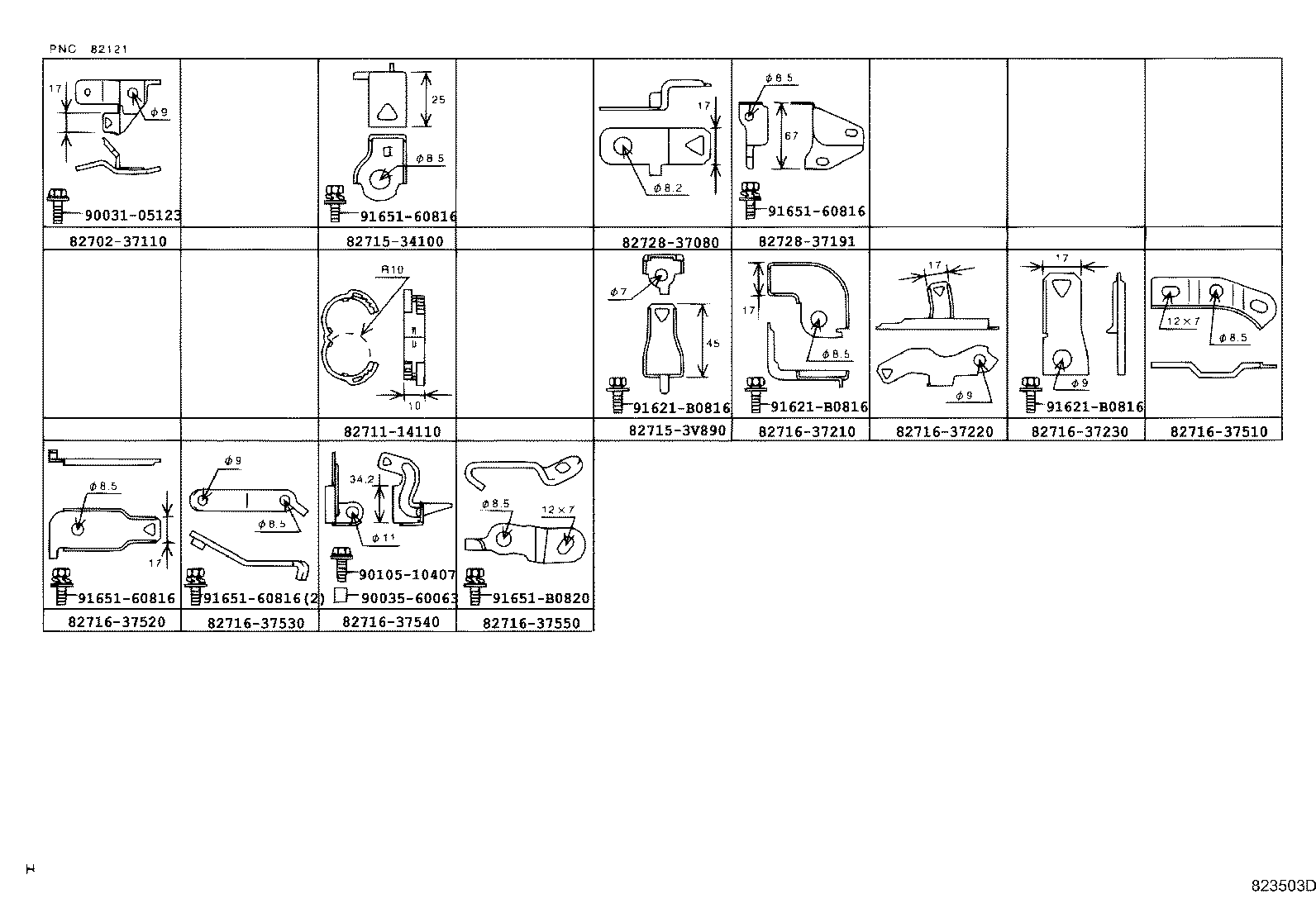

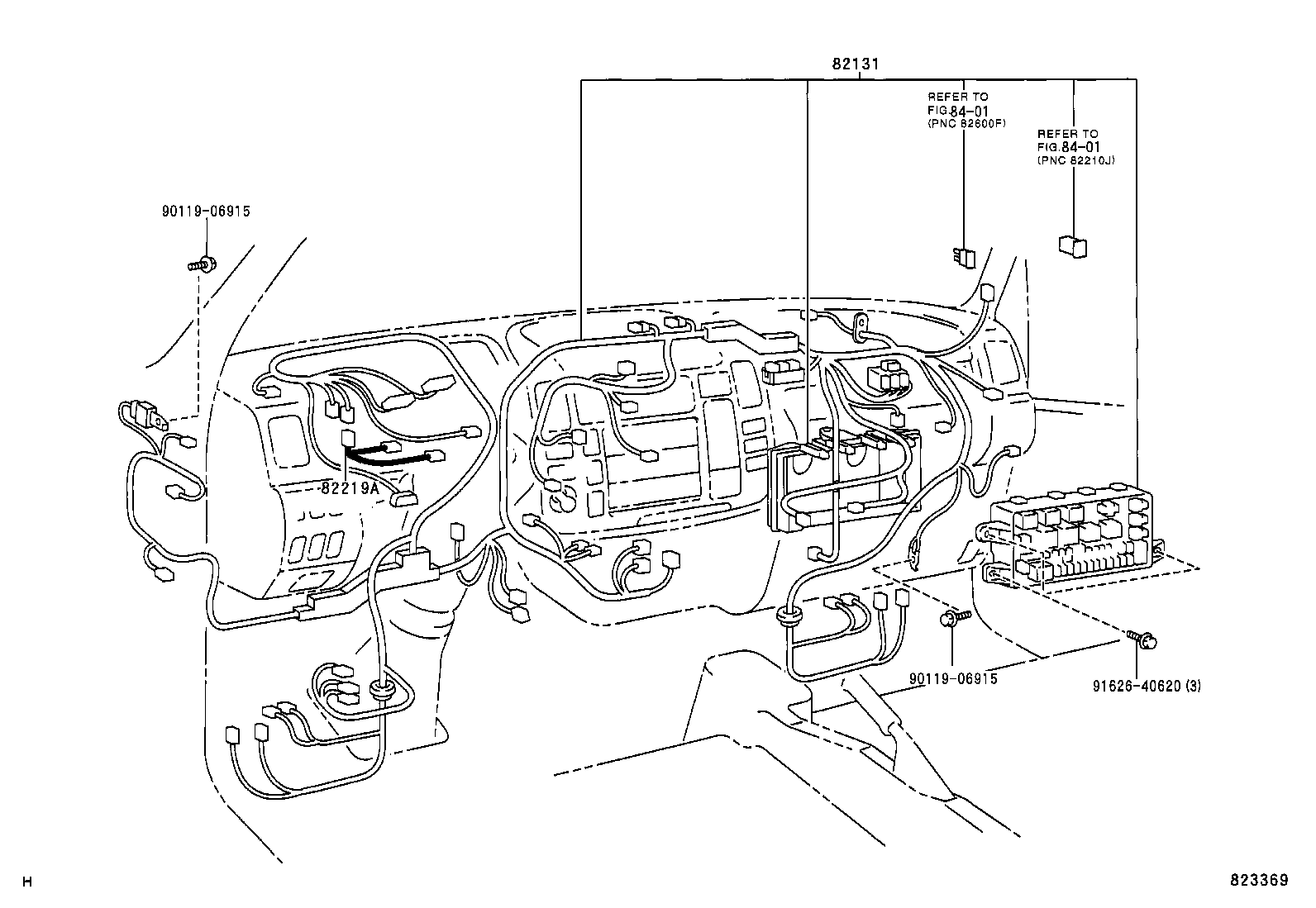

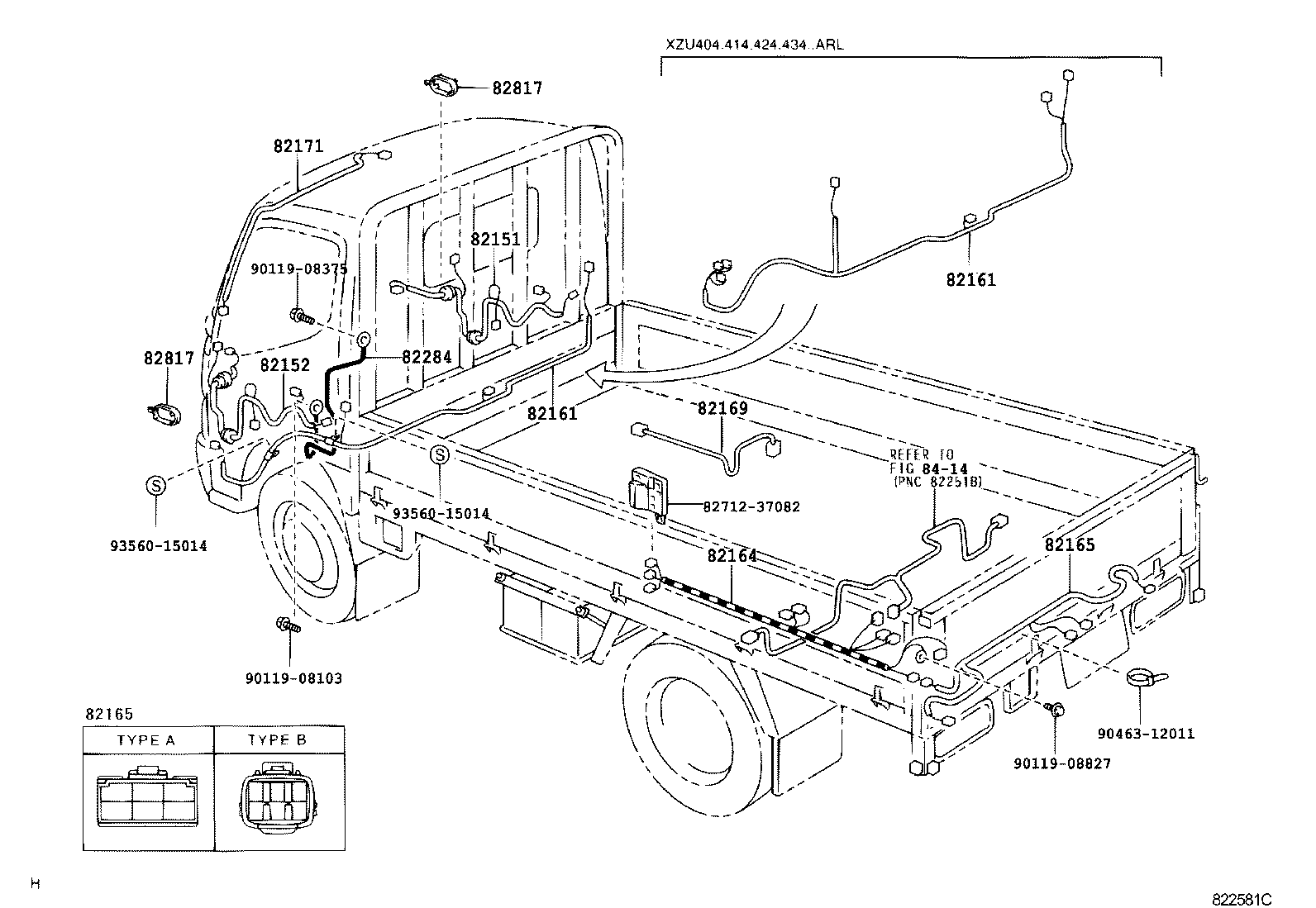

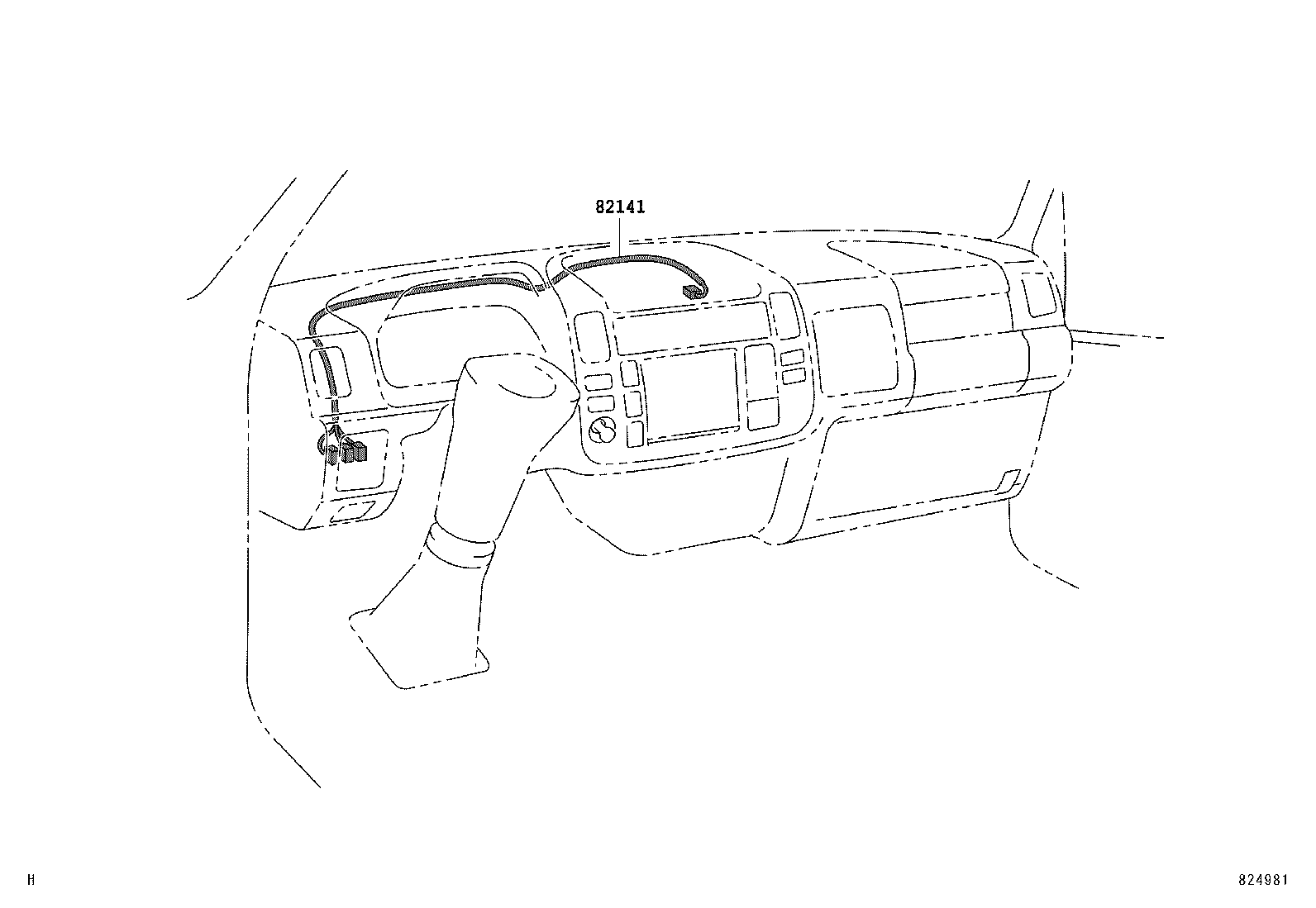

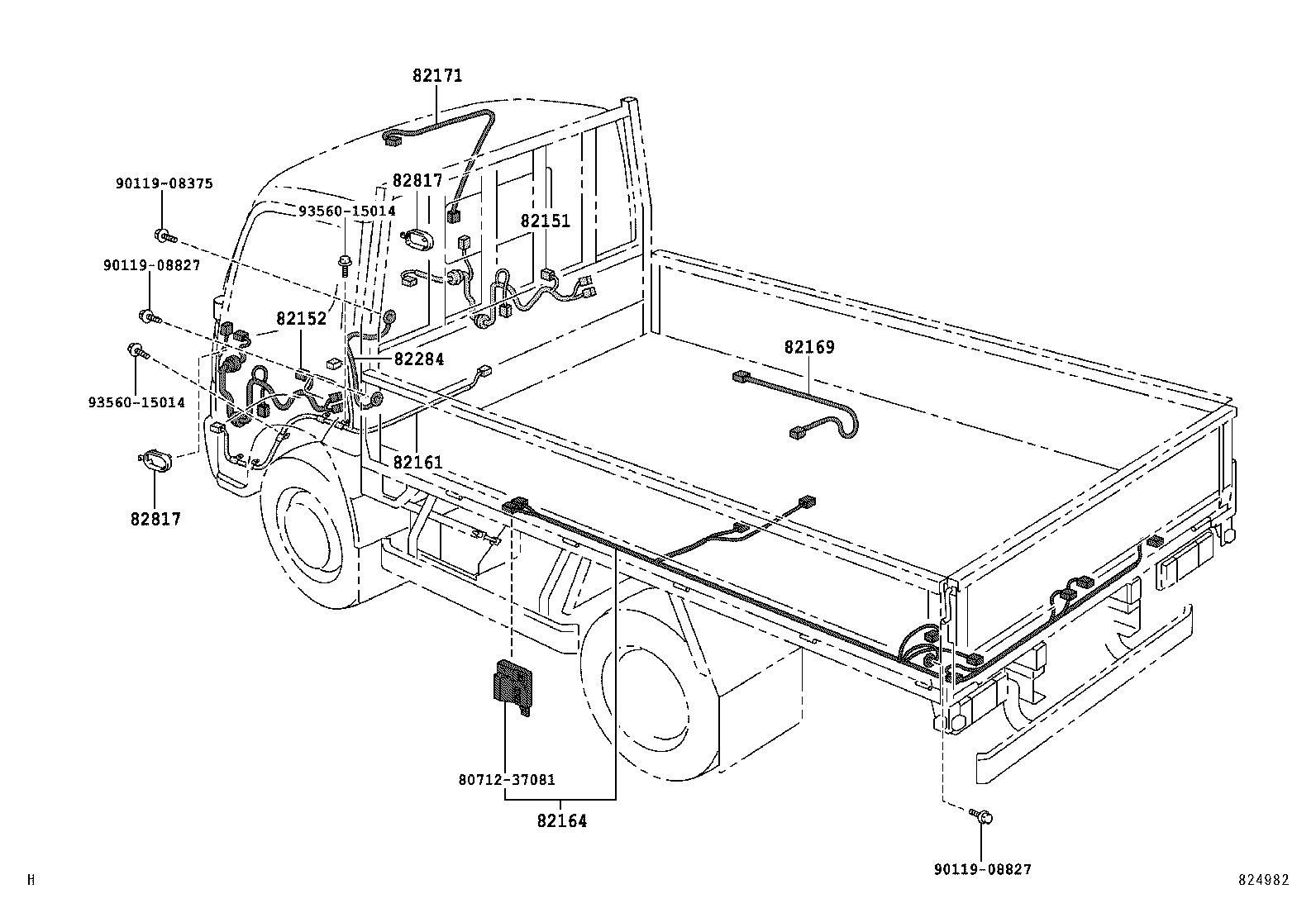

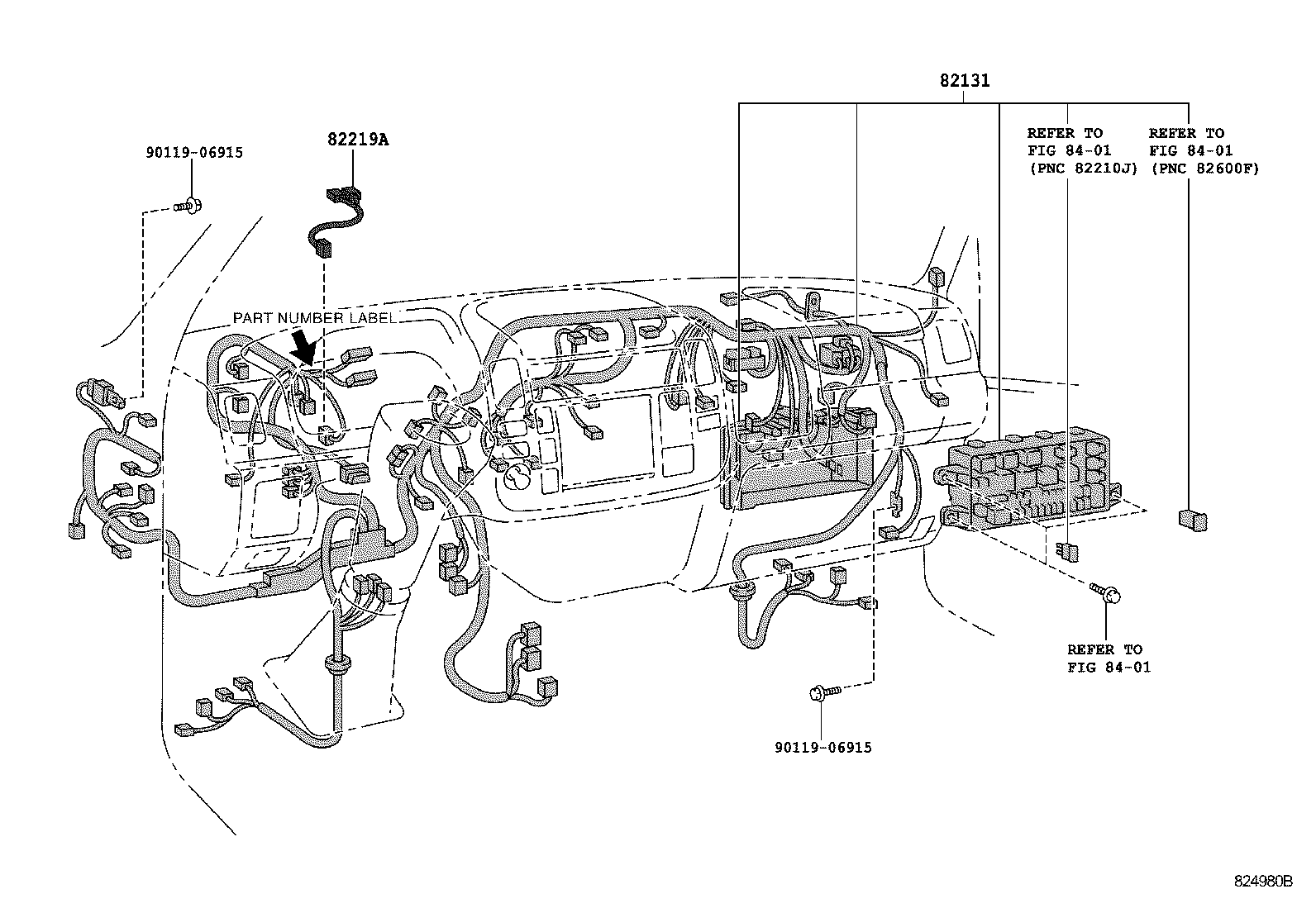

Figure 823793A 823793A 2001-10 → — Figure 823793A 823793A 2002-12 → 2006-10 Figure 823793A 823793A 2003-04 → — Figure 823664A 823664A 2003-08 → — Figure 824979B 824979B 2006-08 → — Figure 825177D 825177D 2006-10 → — Figure 823369 823369 2001-10 → — Figure 823369 823369 2002-12 → 2006-10 Figure 822847B 822847B 2001-10 → — Figure 822847B 822847B 2002-12 → 2006-10 Figure 822847B 822847B 2003-04 → — Figure 824980B 824980B 2006-08 → — Figure 825099B 825099B 2006-10 → — Figure 824981 824981 2001-10 → — Figure 822849A 822849A 2001-10 → — Figure 822851C 822851C 2001-10 → — Figure 822851C 822851C 2002-12 → 2006-10 Figure 822851C 822851C 2003-04 → — Figure 824982 824982 2006-08 → — Figure 825100A 825100A 2006-10 → — Figure 822852H 822852H 2001-10 → — Figure 822852H 822852H 2002-12 → 2006-10 Figure 822852H 822852H 2003-04 → — Figure 823503D 823503D 2001-10 → — Figure 823503D 823503D 2002-12 → 2006-10 Figure 823503D 823503D 2003-04 → — Figure 824983A 824983A 2006-08 → — Figure 825101G 825101G 2006-10 → — Figure 826624 826624 2006-10 → — Figure 825229B 825229B 2001-10 → —

Part groups

PNCDescription
82050 Wire Assy, Engine
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82214A Wire, Lamp
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82284 Wire, Earth
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82673G Bracket, Junction Block
82674B Cover, Junction Block, Lower
82817 Protector, Wiring Harness, NO.1
82821E Cover, Connector
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
