Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

94 part groups · 36 illustrations

Illustrations

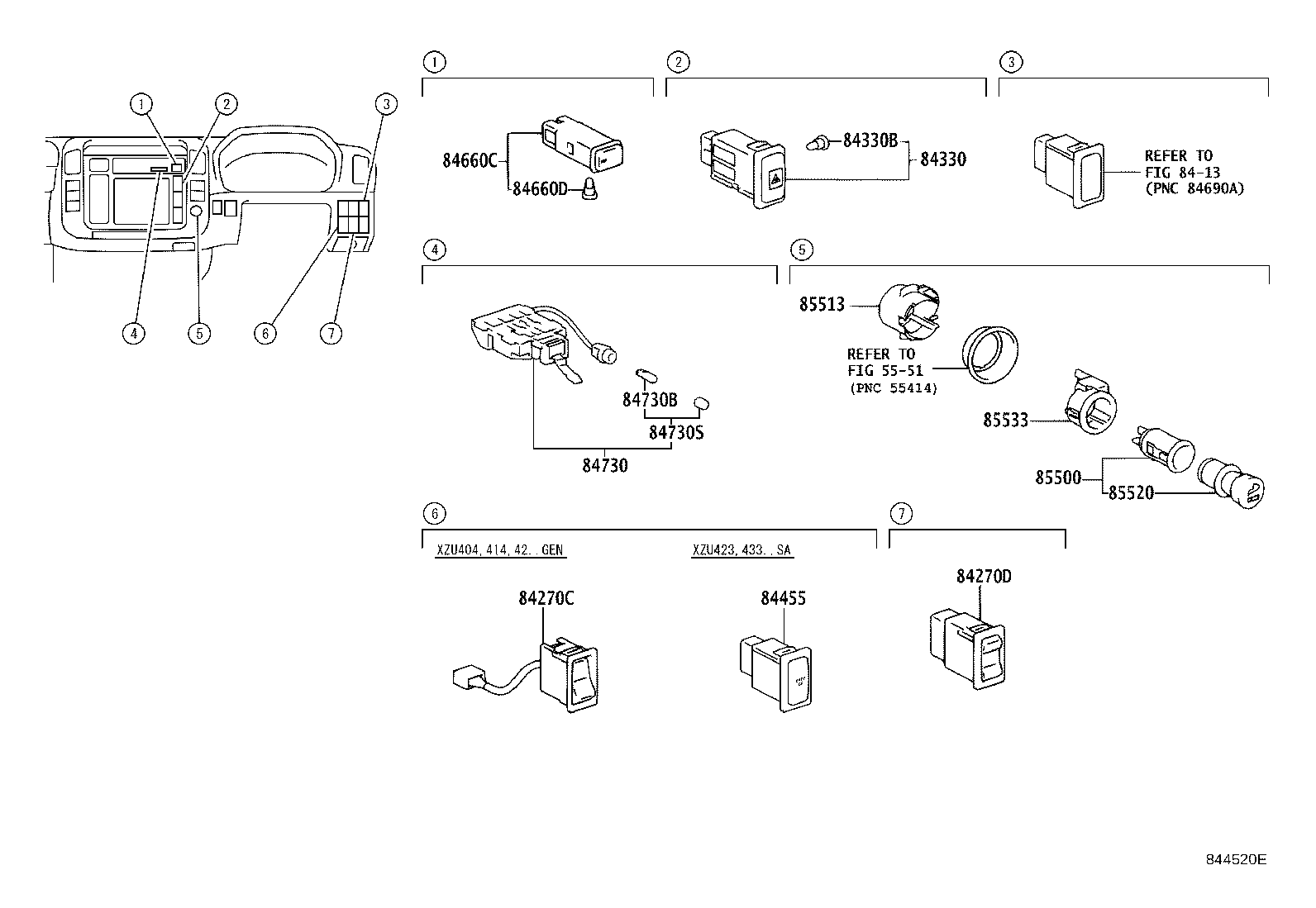

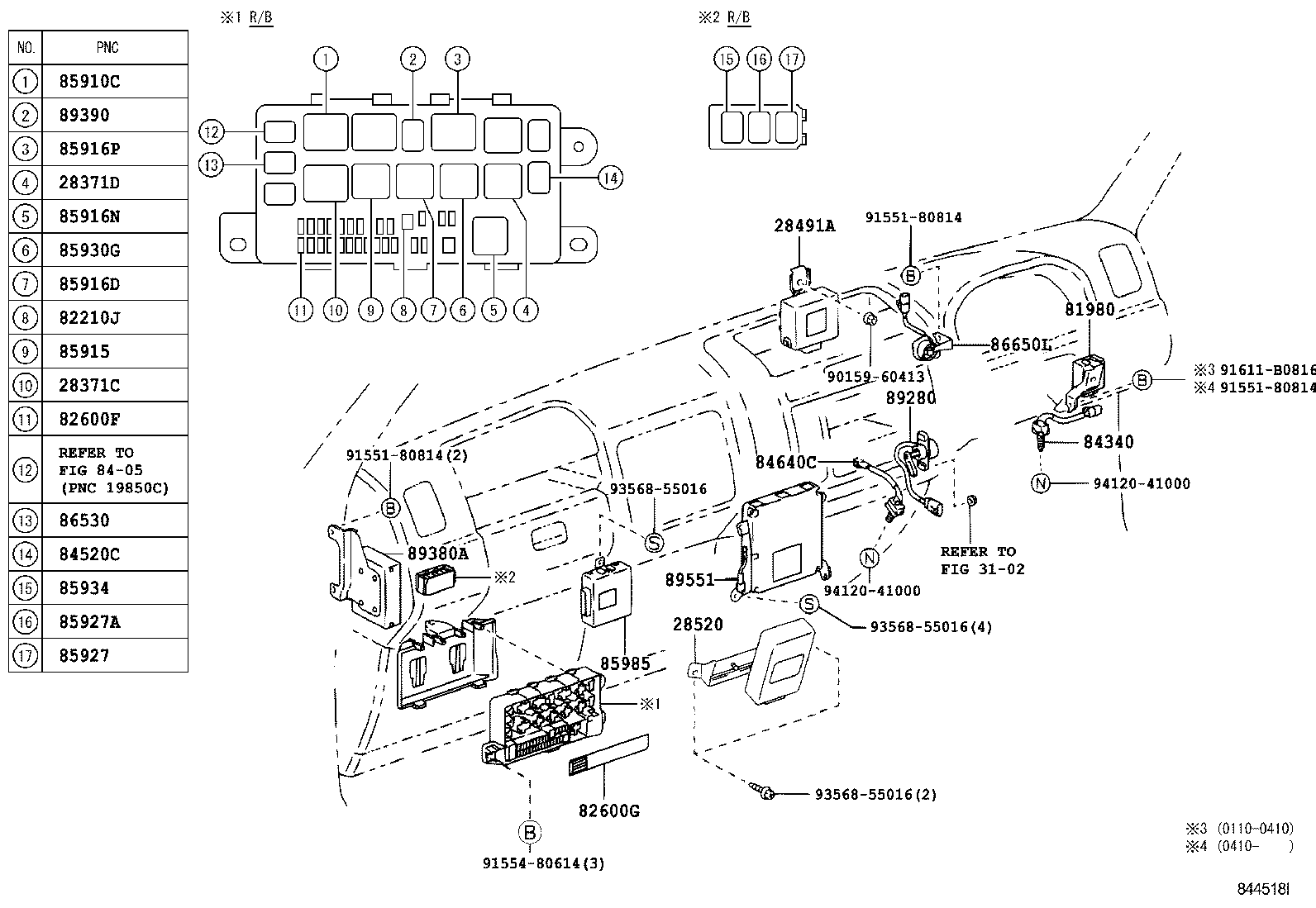

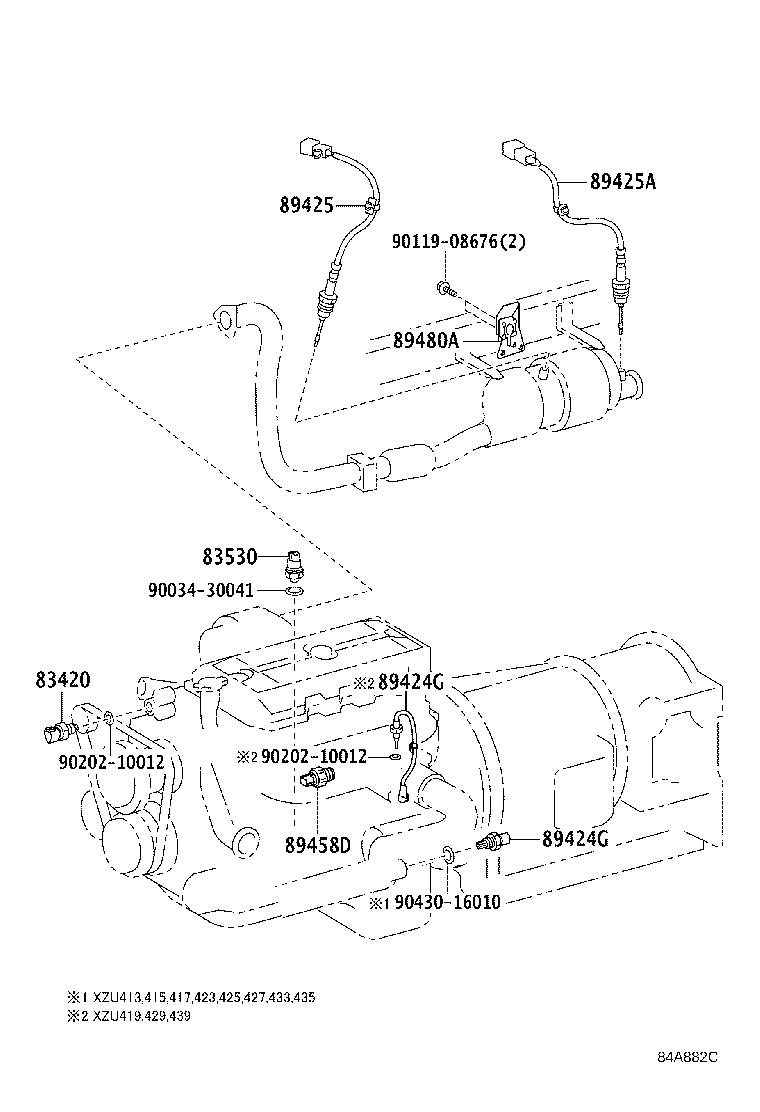

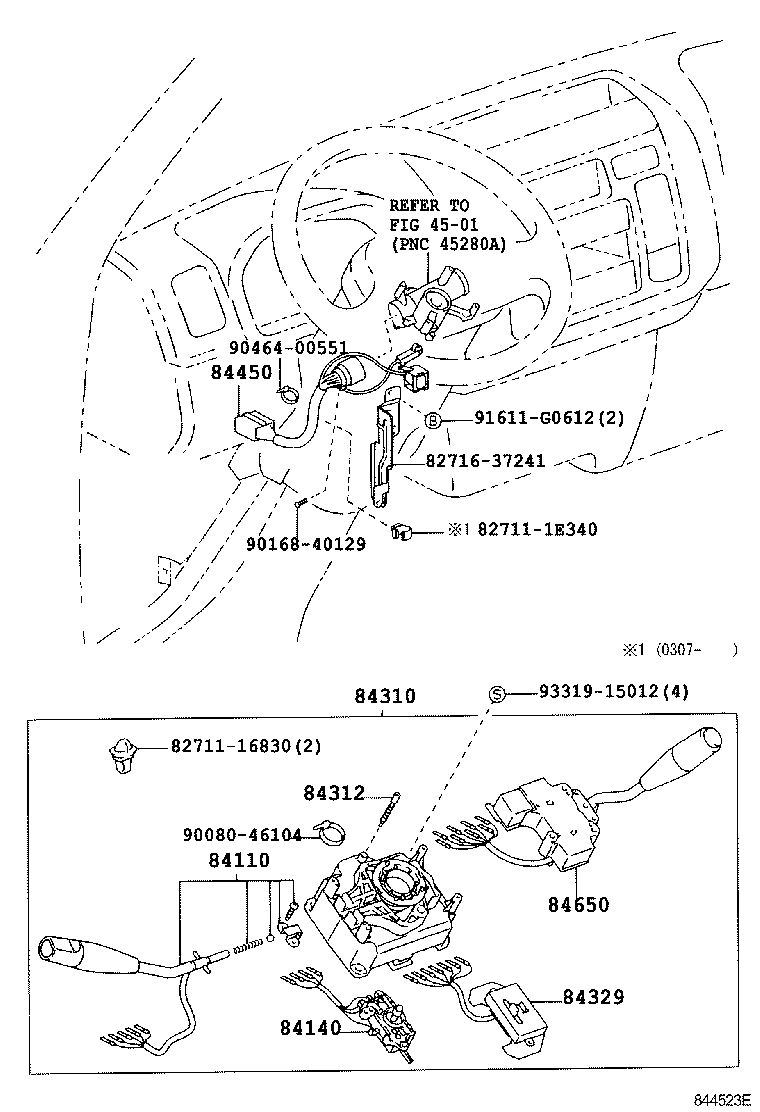

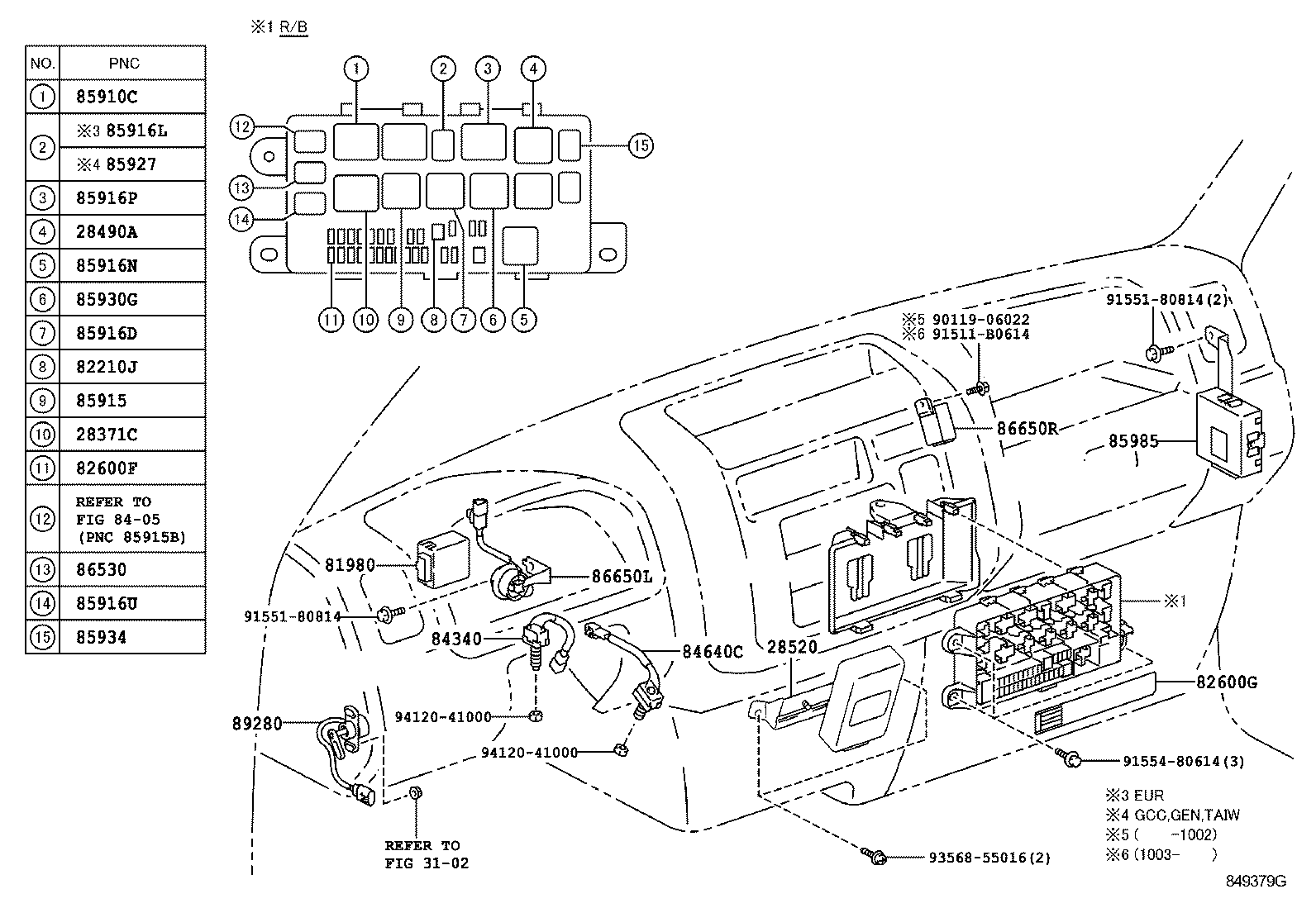

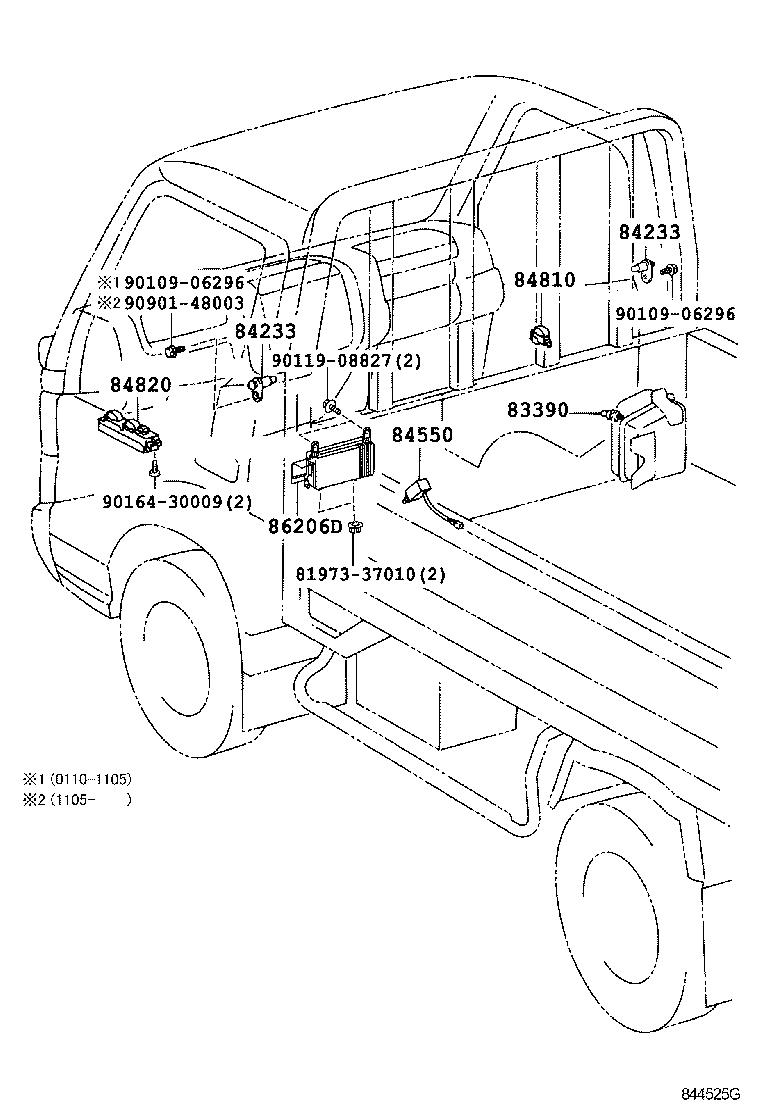

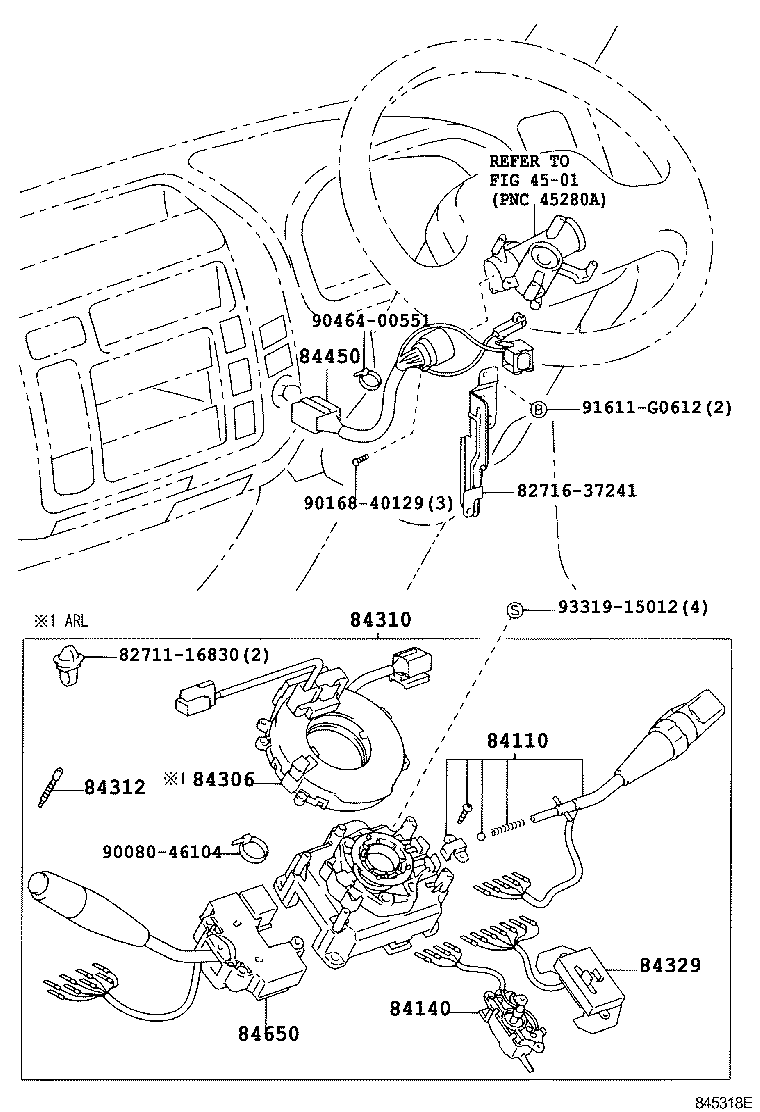

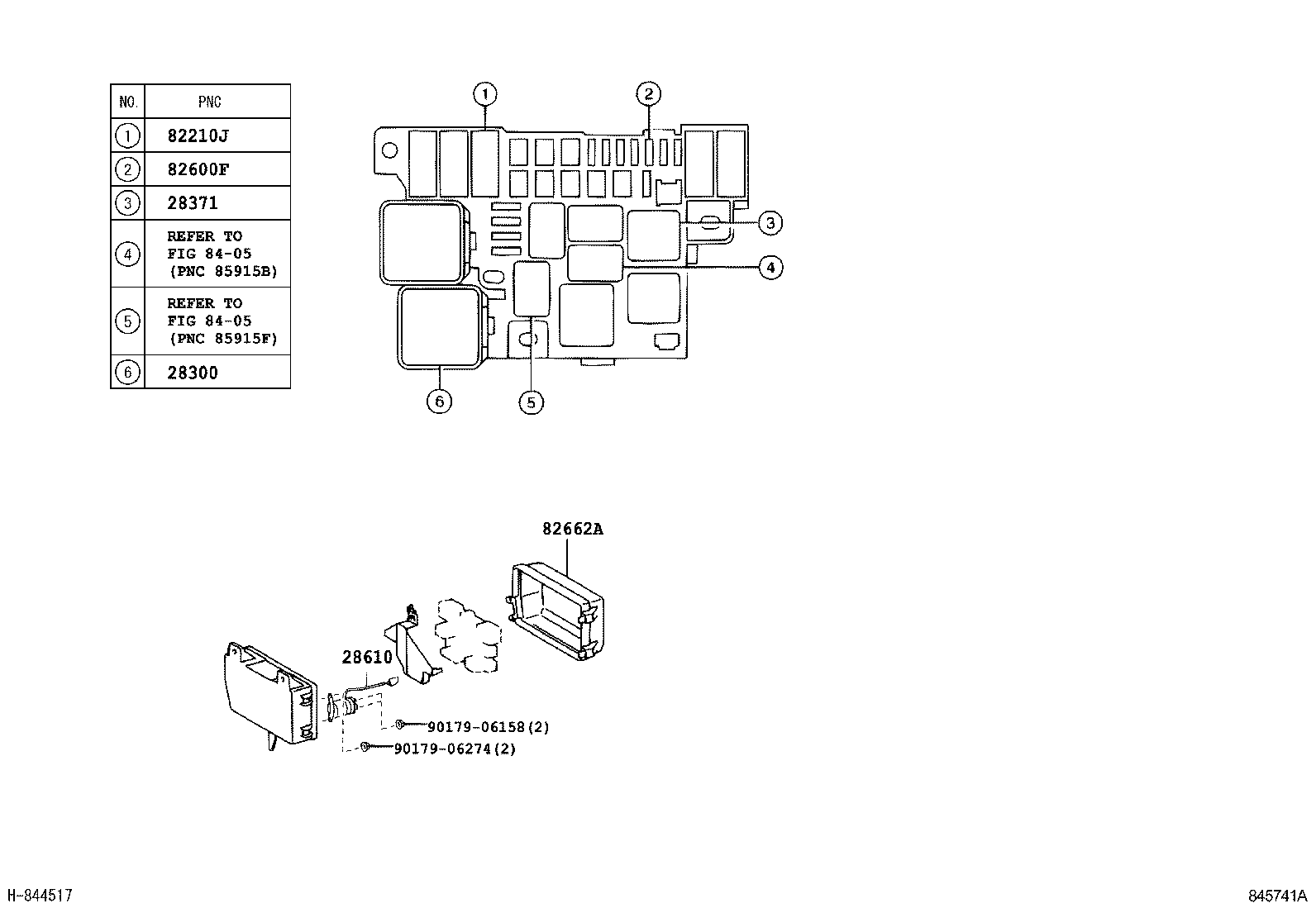

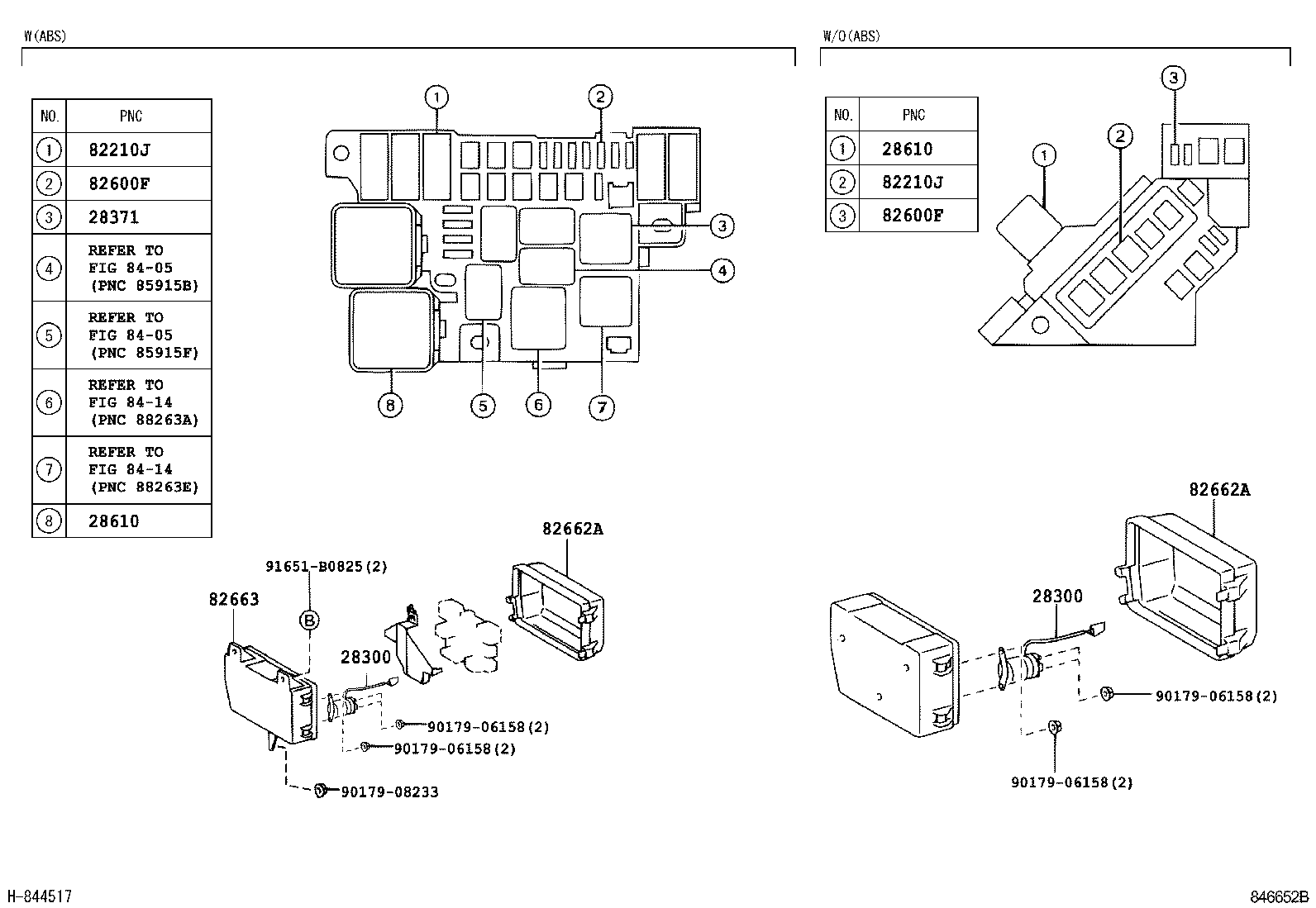

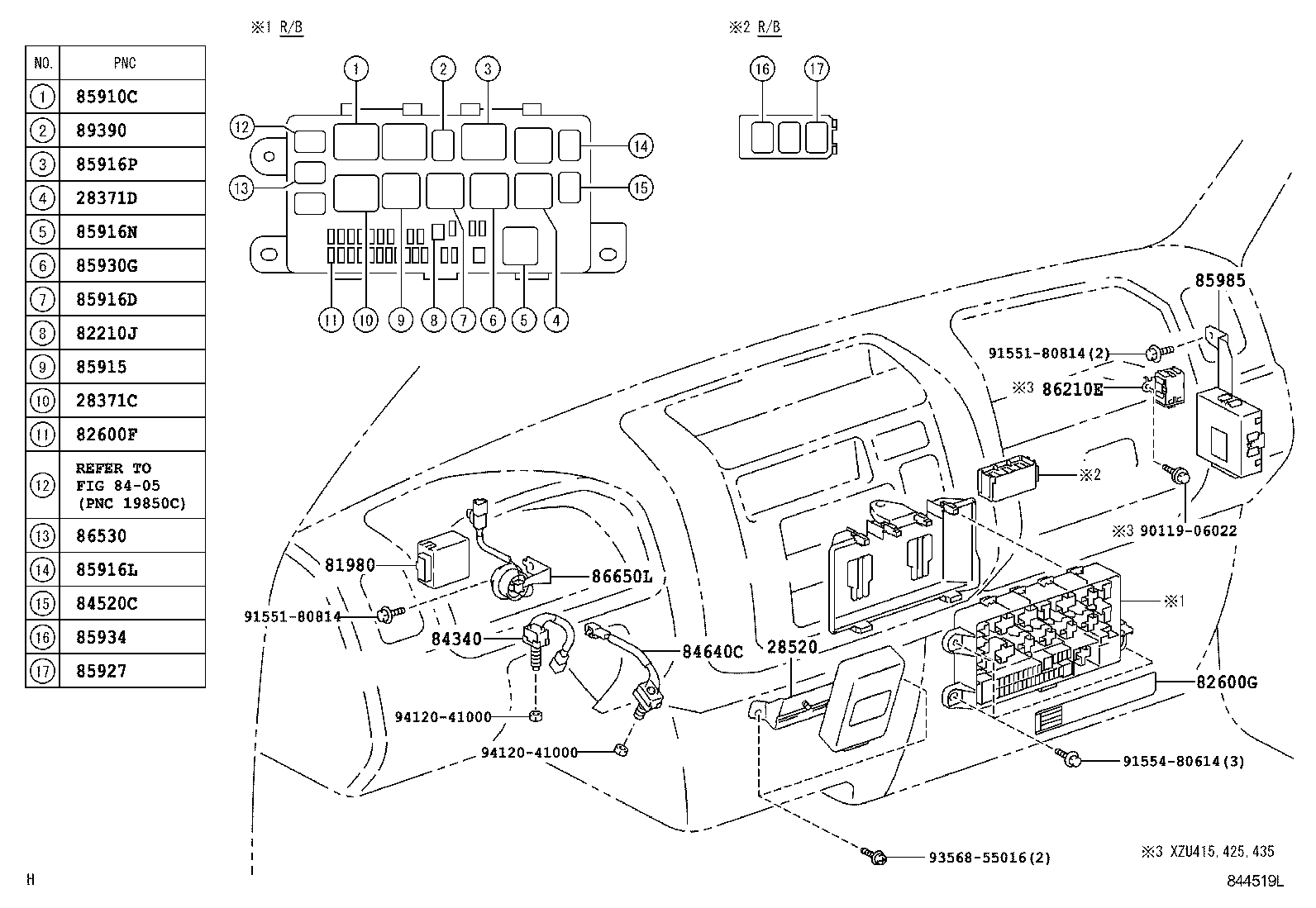

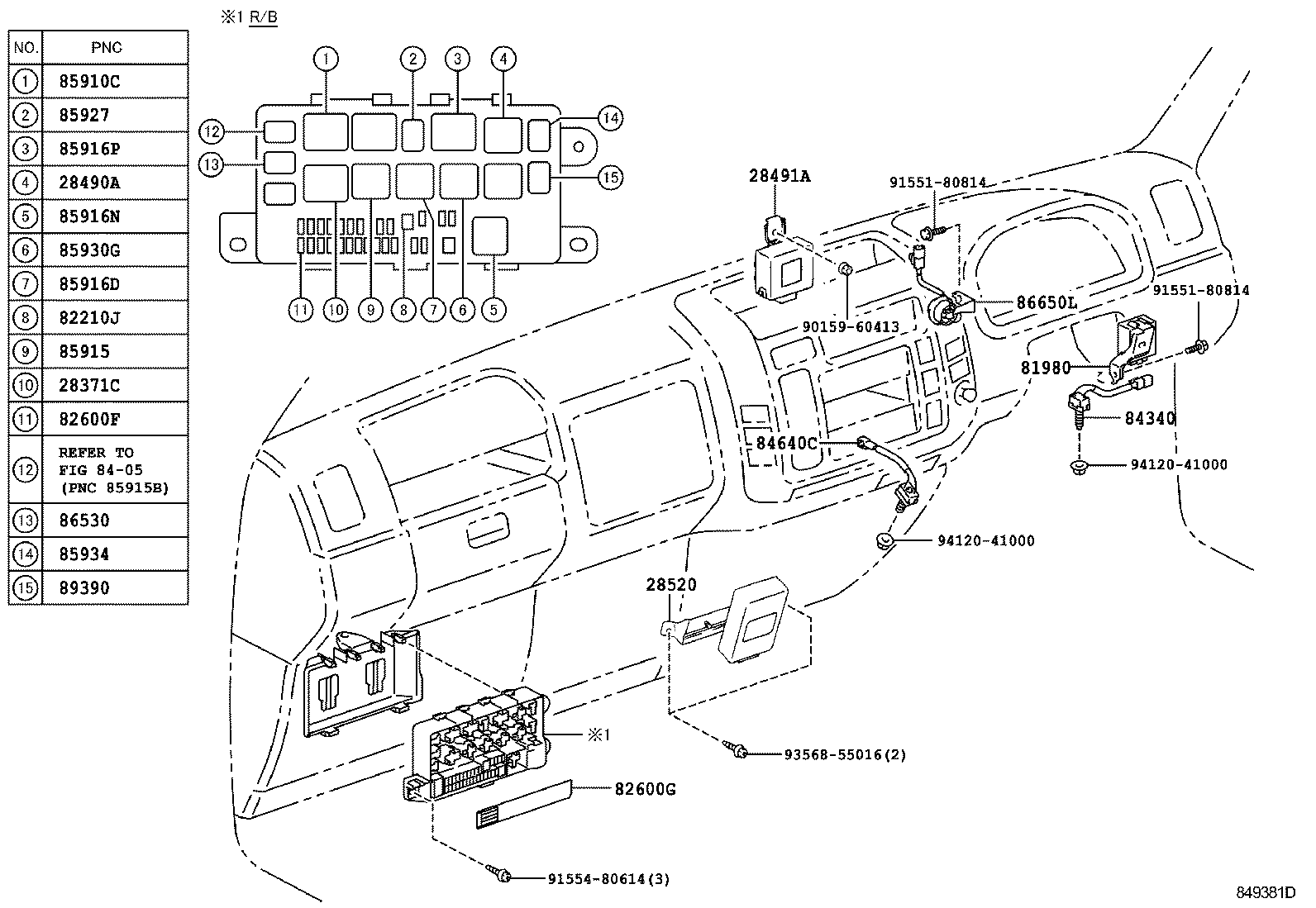

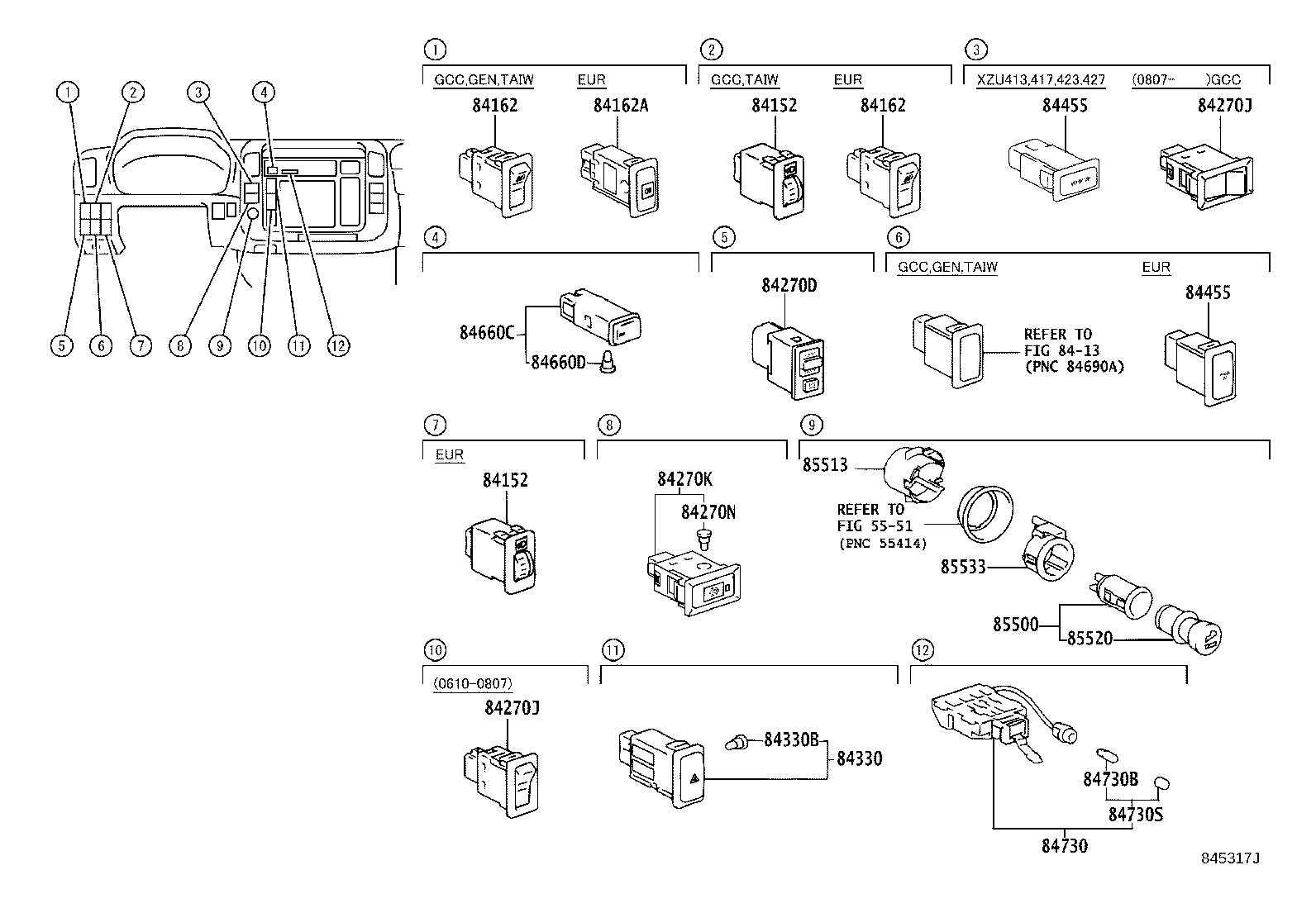

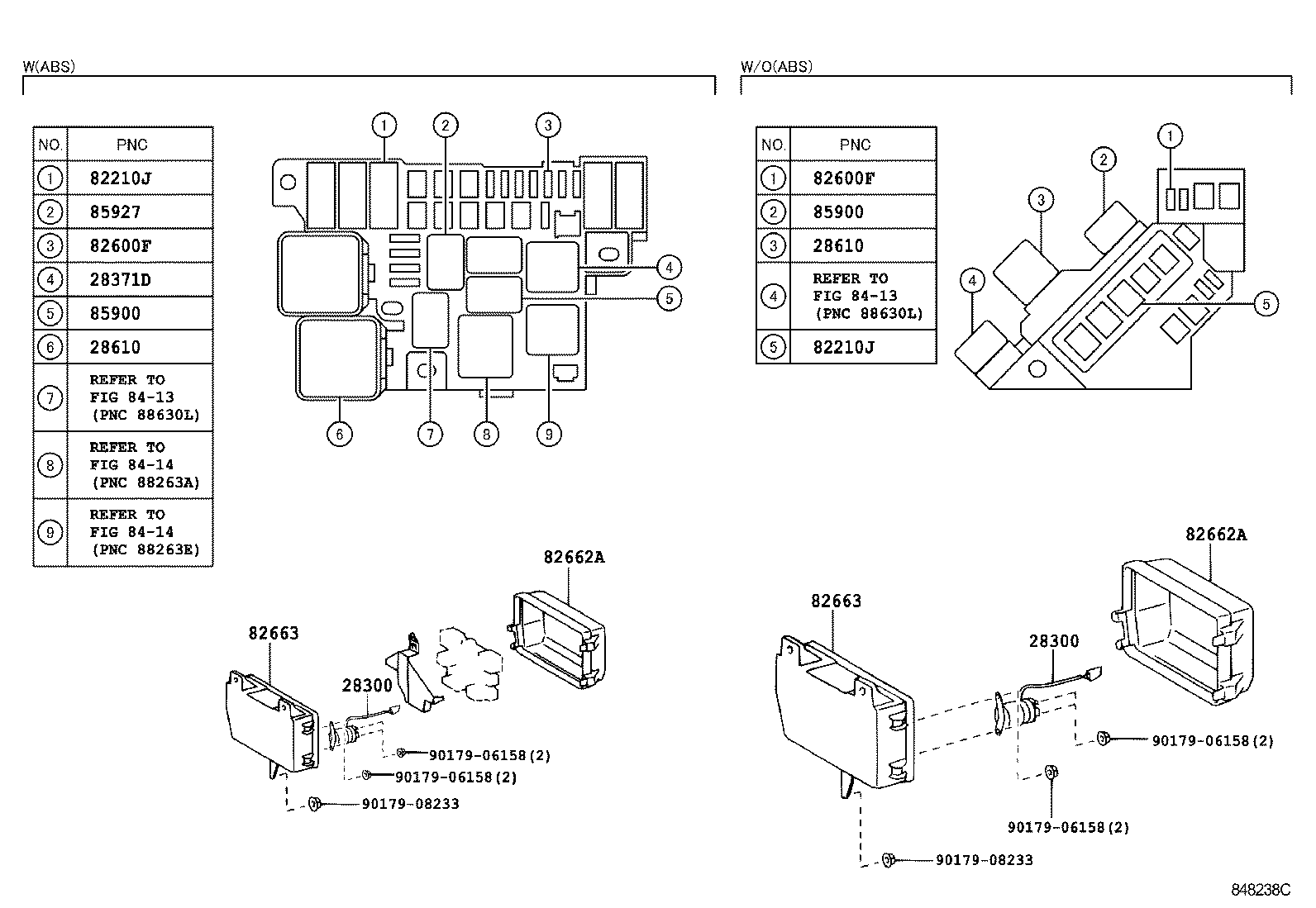

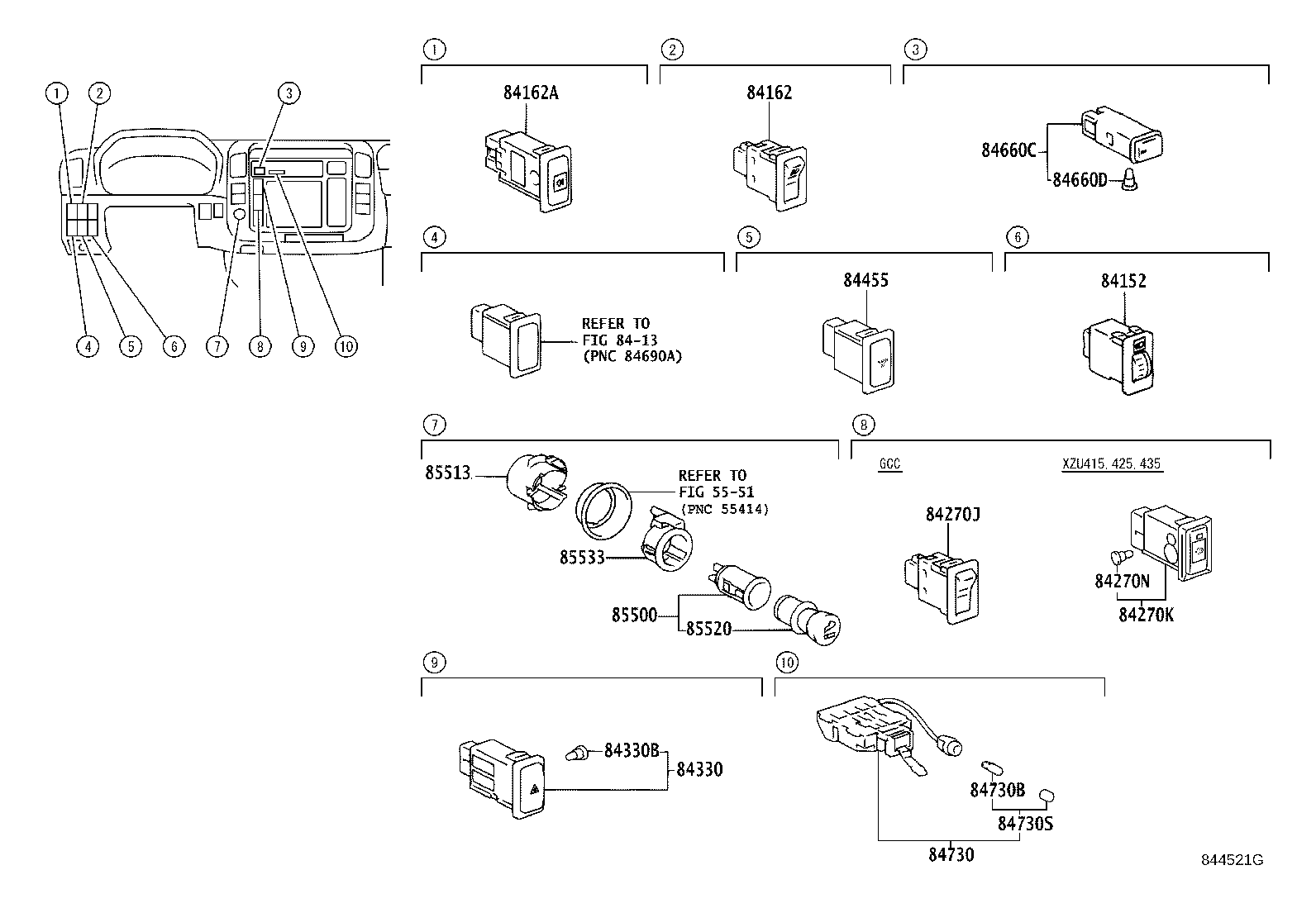

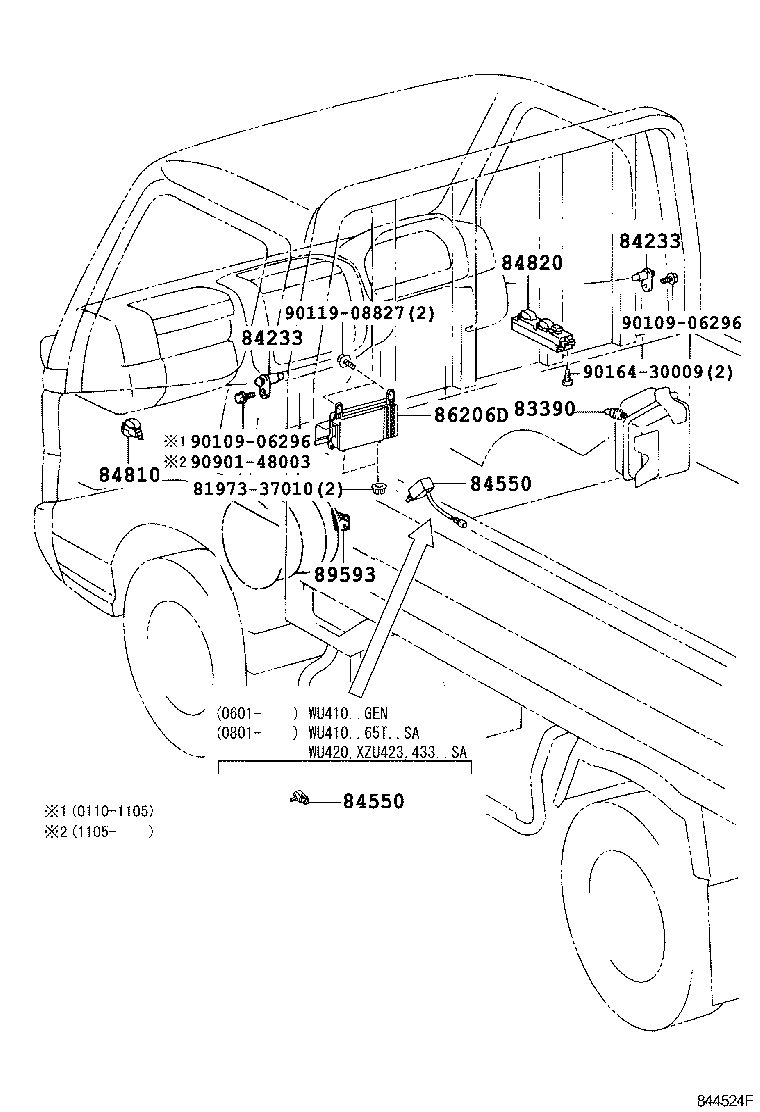

Figure 846651A 846651A 2001-10 → 2008-02 Figure 845313D 845313D 2002-12 → — Figure 845743 845743 2004-11 → 2007-01 Figure 84A882B 84A882B 2006-08 → — Figure 845742 845742 2001-10 → — Figure 846068A 846068A 2004-01 → — Figure 848400A 848400A 2006-08 → — Figure 848231A 848231A 2006-10 → — Figure 845744 845744 2004-11 → 2007-01 Figure 846652B 846652B 2001-10 → 2006-10 Figure 846652B 846652B 2001-10 → 2007-08 Figure 846652B 846652B 2002-12 → 2006-10 Figure 846652B 846652B 2003-04 → 2008-02 Figure 846652B 846652B 2004-01 → 2008-02 Figure 845741A 845741A 2004-11 → 2007-01 Figure 848238C 848238C 2006-10 → — Figure 848238C 848238C 2008-02 → — Figure 844518I 844518I 2001-10 → 2006-10 Figure 844518I 844518I 2003-04 → 2008-02 Figure 844519L 844519L 2001-10 → 2008-02 Figure 844519L 844519L 2002-12 → 2006-10 Figure 849381D 849381D 2006-10 → — Figure 849381D 849381D 2008-02 → — Figure 849379G 849379G 2006-10 → — Figure 844520E 844520E 2001-10 → — Figure 844521G 844521G 2001-10 → 2008-02 Figure 844521G 844521G 2002-12 → 2006-10 Figure 845317J 845317J 2006-10 → — Figure 845318E 845318E 2001-10 → — Figure 844523E 844523E 2001-10 → — Figure 844524F 844524F 2001-10 → — Figure 844525G 844525G 2001-10 → — Figure 844527C 844527C 2001-10 → 2003-11 Figure 844527C 844527C 2001-10 → 2006-10 Figure 844527C 844527C 2006-10 → — Figure 844526A 844526A 2001-10 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28371D Relay, Ignition, NO.3
28490A Relay Assy, Exhaust Retarder
28491A Computer, Exhaust Retarder
28520 Timer Assy, Preheating
28610 Relay Assy, Intake Heater OR Glow Plug
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
83180B Detector Assy, Revolution
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84110 Switch Assy, Light Control, NO.1
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84210 Switch Assy, Back-up Lamp
84225A Switch, Shift Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84270C Switch Assy, ES Start Main
84270D Switch Assy, ES Start Timing
84270J Switch Assy, Parking Lamp
84270K Switch Assy, Dpr
84270N Bulb, Dpr Swich Assy
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84512 Switch, Tilt Cab Control
84520C Relay, Neutral Signal Reverse
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730S Bulb, Heater Blower Switch
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85900 Relay Assy, Control Unit
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85915 Relay, Main
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916U Relay, Headlamp, NO.2
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85930G Relay, Acc
85934 Relay, Magnet-clutch
85985 Relay, Key Reminder
86206D Converter Sub-assy, Voltage
86210E Converter Assy, Voltage
86530 Relay Assy, Horn
86650B Buzzer Assy, Reverse Warning
86650L Buzzer Assy, Vacuum Warning
86650R Buzzer Assy, ES Start
89280 Sensor Assy, Clutch Pedal Stroke
89380A Computer Assy, ES Start
89390 Relay, Brake Warning
89421D Sensor, Turbo Pressure
89422A Sensor, Water Temperature
89424G Sensor, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89438 Switch, Power Steering Oil Pressure
89454C Sensor, Fuel Gas Temperature
89458D Sensor, Fuel Pressure
89480A Sensor Assy, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89551 Computer, Emission Control
89593 Sensor, Air Cleaner Warning
