Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

16 part groups · 5 illustrations

Illustrations

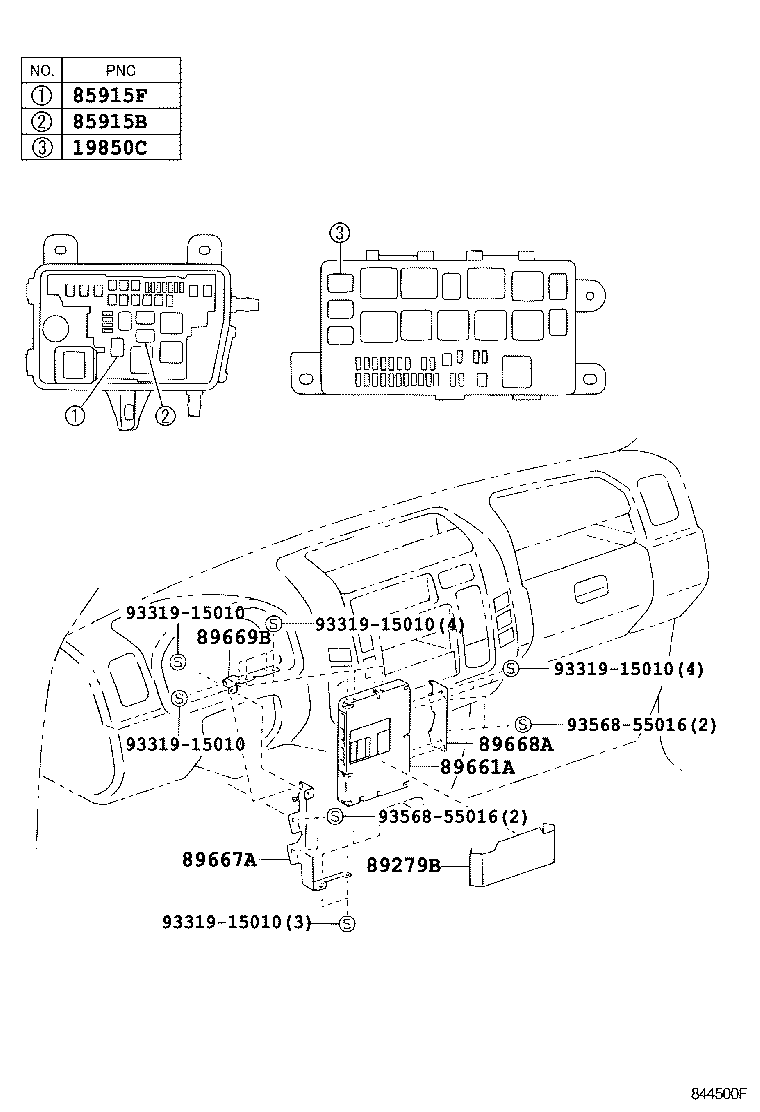

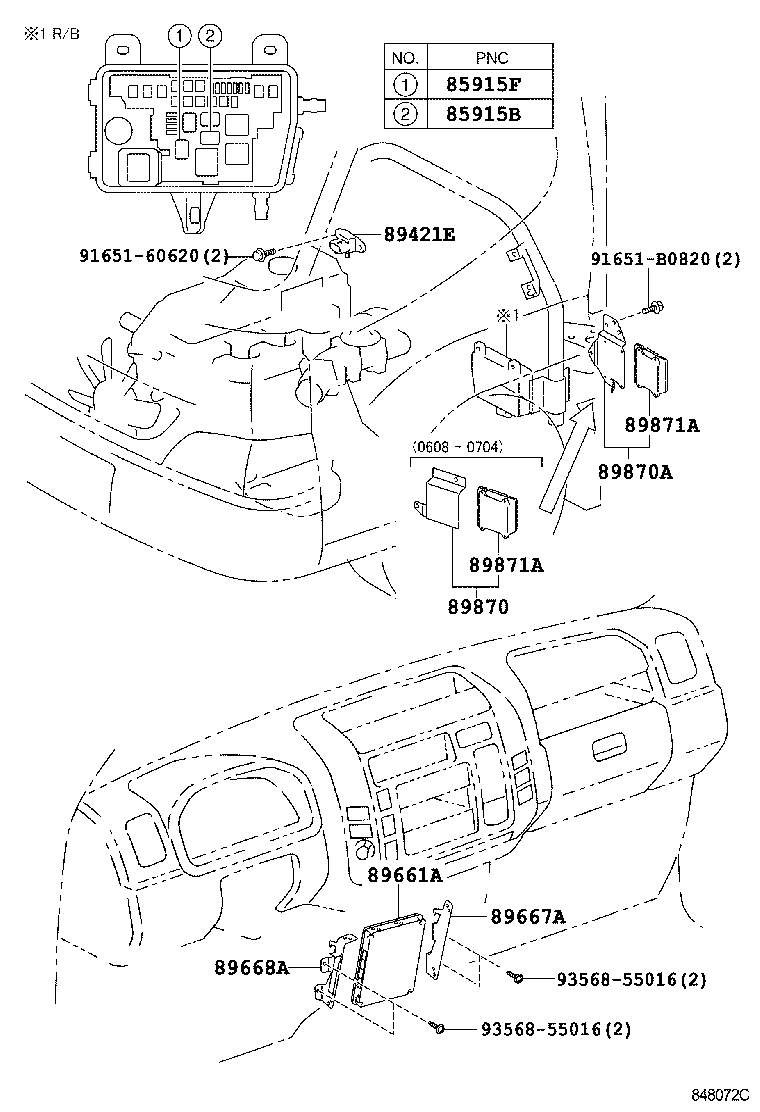

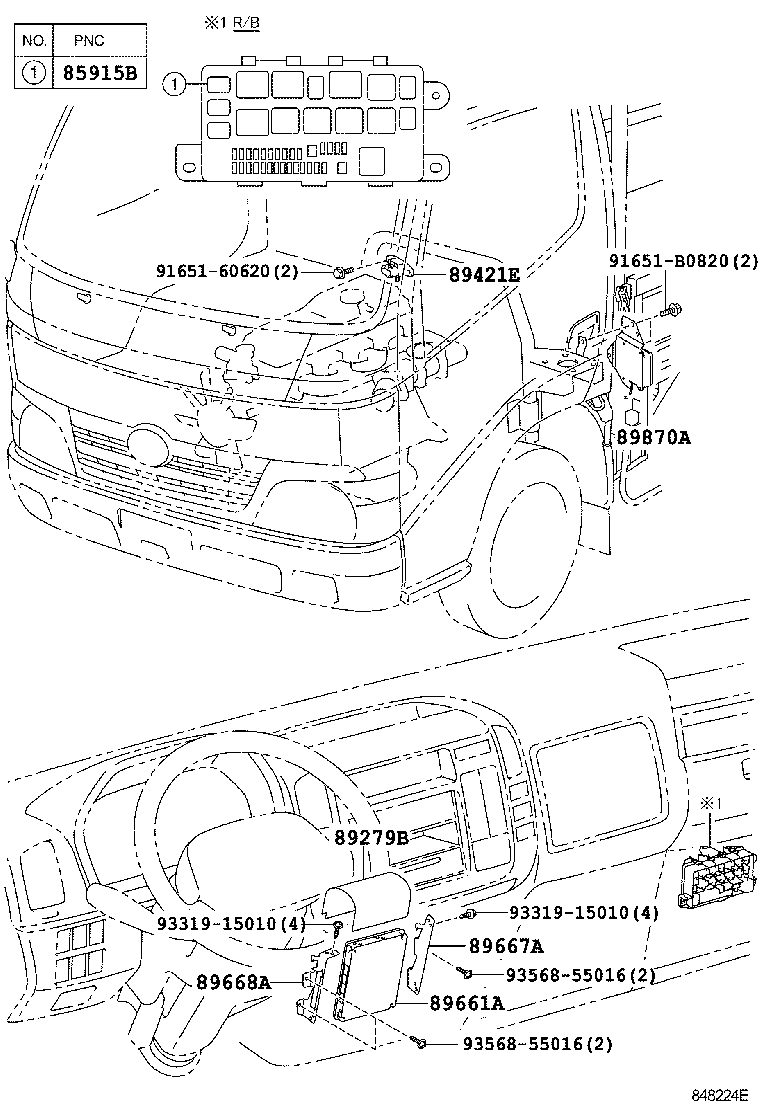

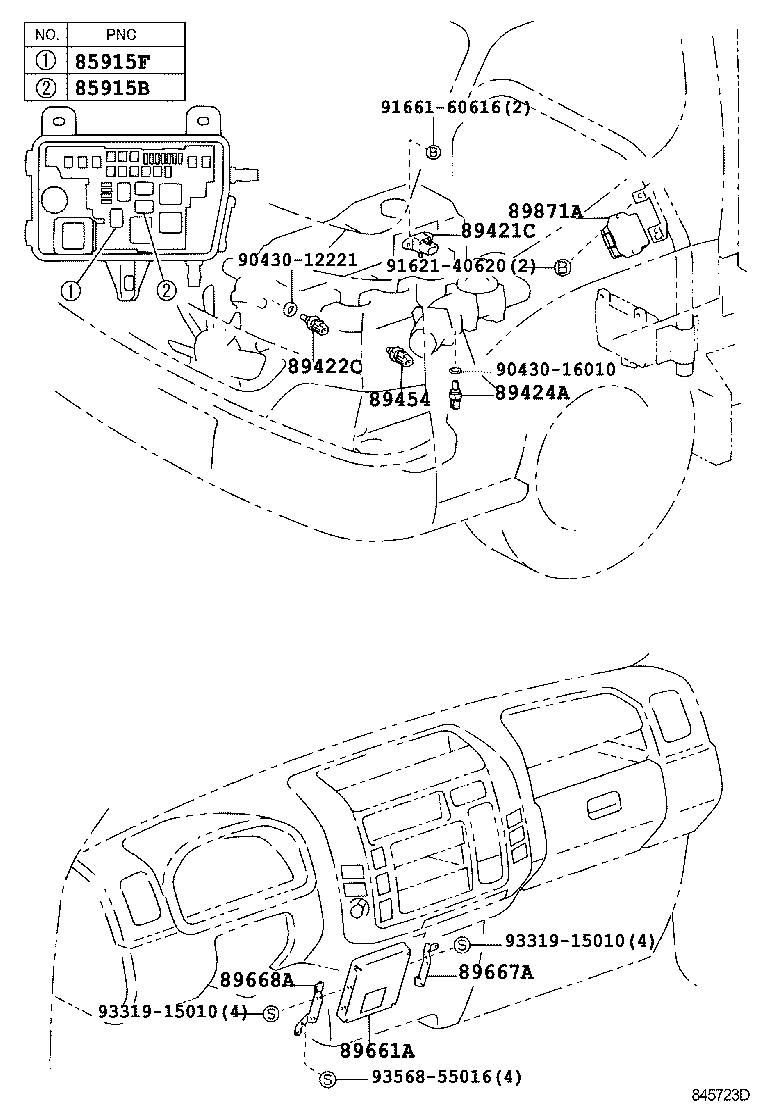

Figure 844499D 844499D 2001-10 → 2006-10 Figure 844500F 844500F 2001-10 → 2006-10 Figure 845723D 845723D 2004-11 → 2007-01 Figure 848072C 848072C 2006-08 → — Figure 848224E 848224E 2006-10 → —

Part groups

PNCDescription
19850C Glow Plug Relay
85915B Relay, Main (FOR DIESEL TURBO)
85915F Relay, Spill Valve
89279B Cover, Diesel Engine Control Computor
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89421E Sensor, Vacuum
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89454 Sensor, Fuel Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89669B Bracket, Engine Control Computer, NO.3
89870 Driver Assy, Spill Valve Control
89870A Driver Assy, Injector
89871A Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
