Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Control

5 part groups · 6 illustrations

Illustrations

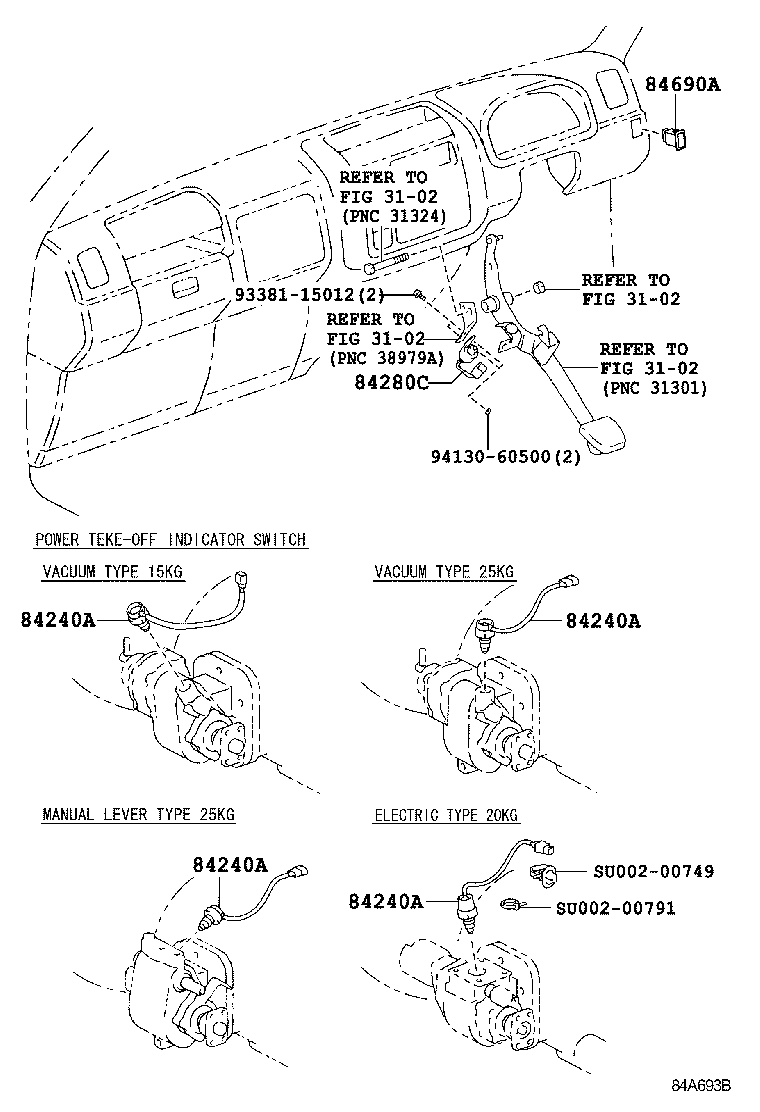

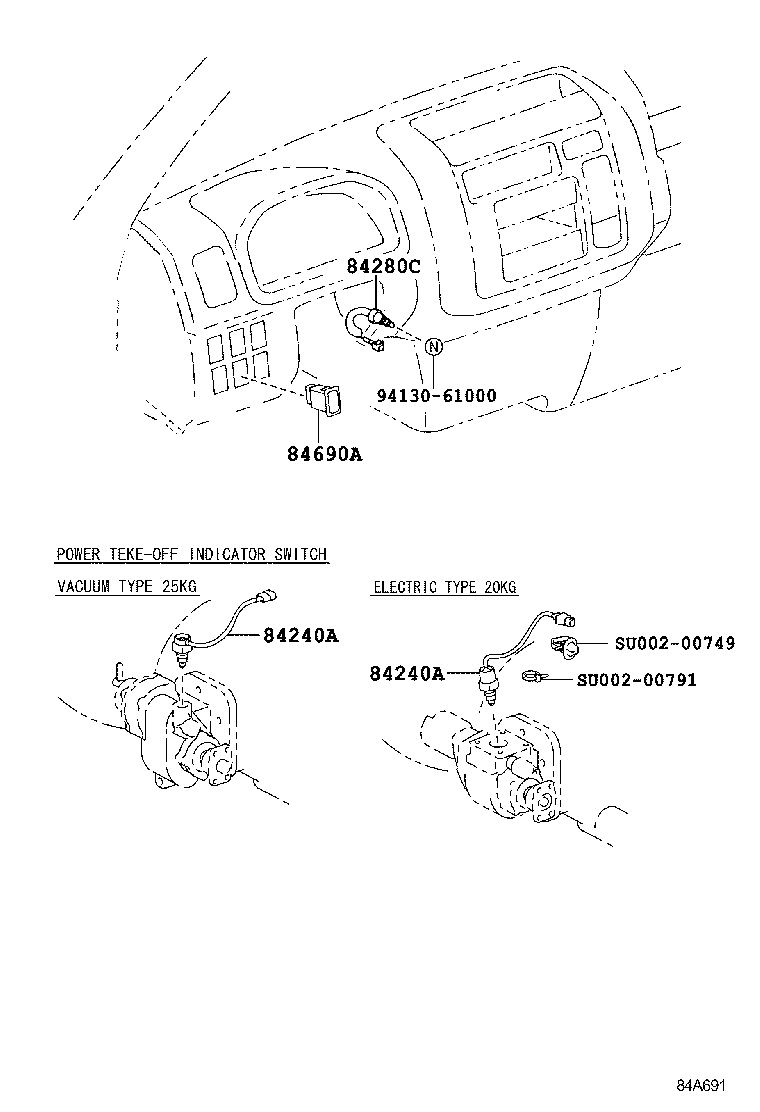

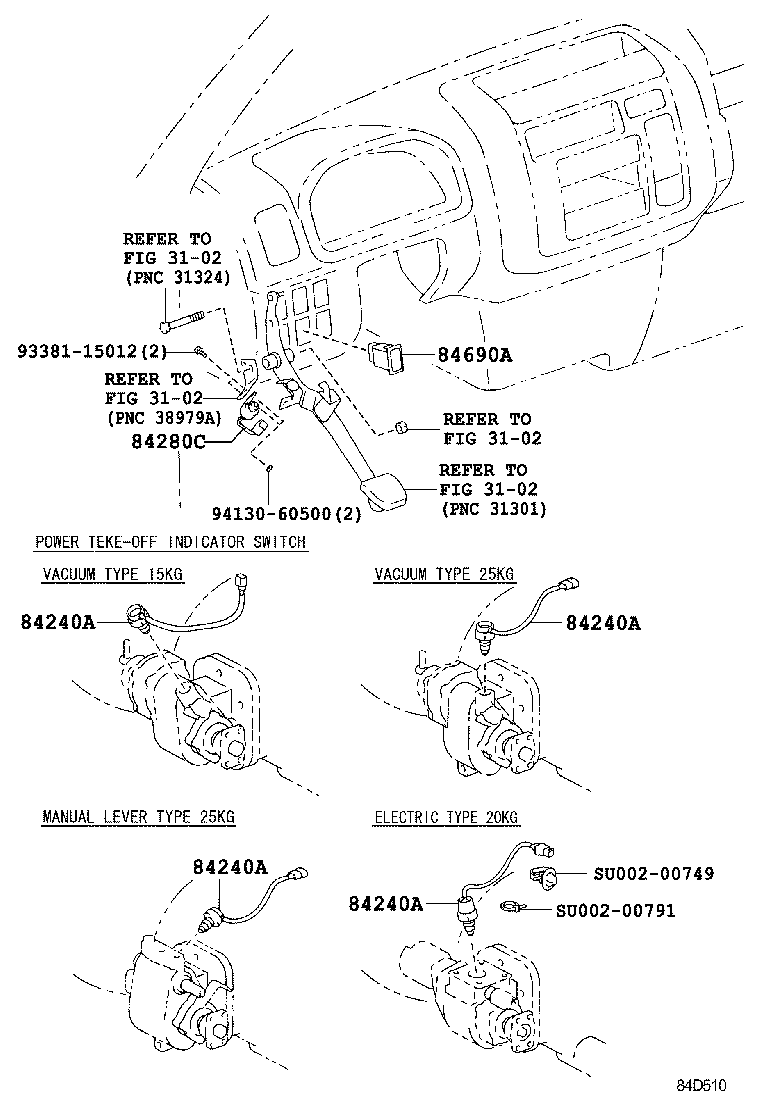

Figure 84A692A 84A692A 2001-10 → 2006-10 Figure 84A693B 84A693B 2002-12 → — Figure 84D510 84D510 2002-12 → — Figure 84A691 84A691 2004-11 → 2007-01 Figure 84A691 84A691 2007-01 → — Figure 848272B 848272B 2006-10 → —

Part groups

PNCDescription
84240A Switch Assy, Power Take-off Indicator
84280C Switch Assy, Power Take-off Clutch
84690A Switch Assy, Power Take-off Indicator
85900B Relay Assy, Control Unit
88630L Relay, Power Take-off Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
