Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

12 part groups · 9 illustrations

Illustrations

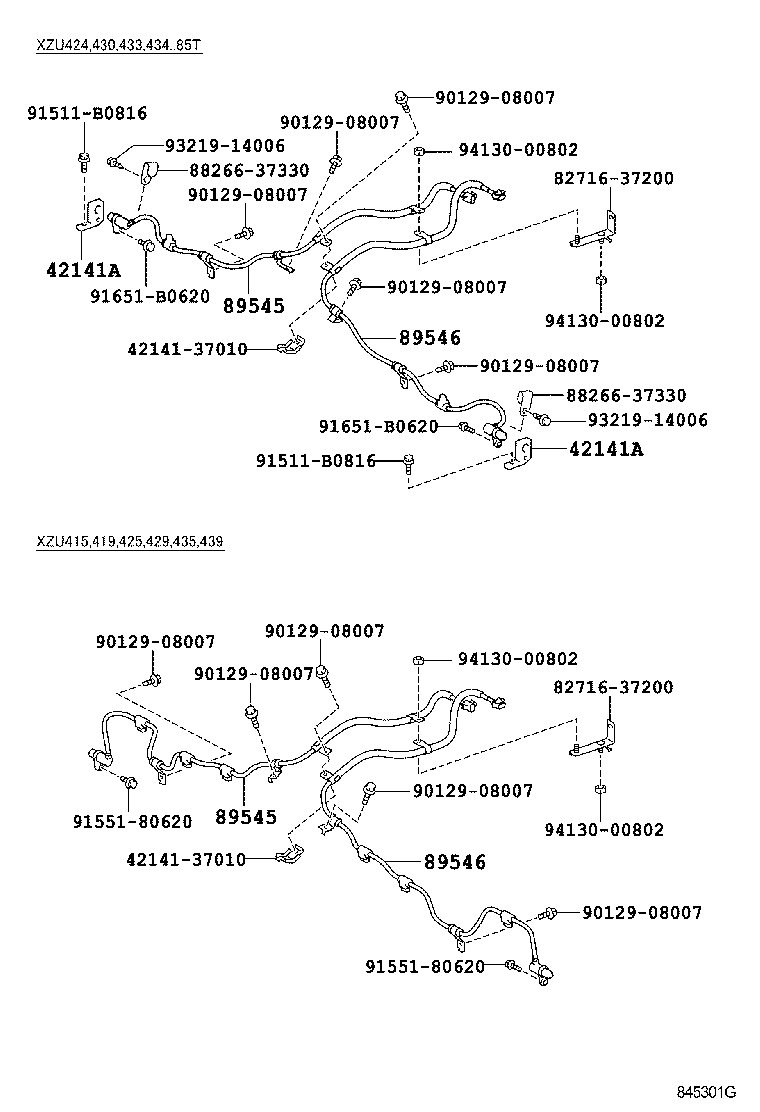

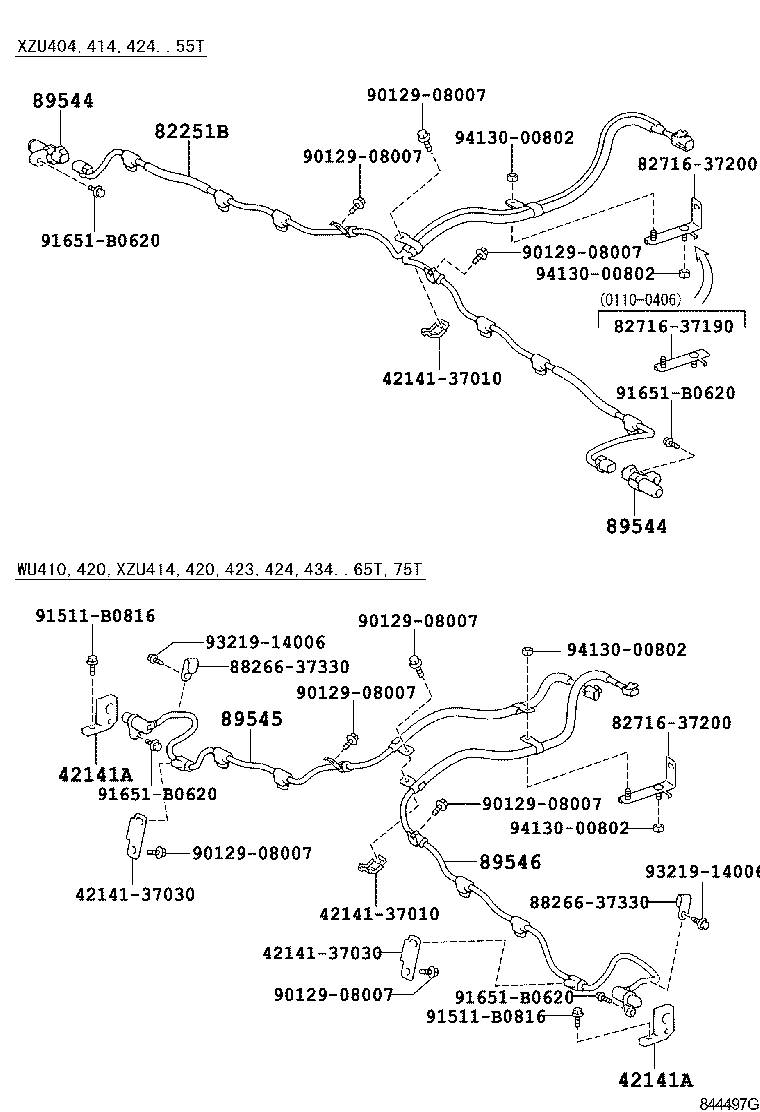

Figure 844494H 844494H 2001-10 → 2006-08 Figure 844494H 844494H 2001-10 → 2006-10 Figure 844494H 844494H 2001-10 → — Figure 844495E 844495E 2001-10 → 2006-08 Figure 844495E 844495E 2001-10 → 2006-10 Figure 844495E 844495E 2001-10 → — Figure 844497G 844497G 2001-10 → — Figure 845301G 845301G 2002-12 → — Figure 845301G 845301G 2006-08 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
82251B Wire, Speed Sensor, Rear
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89421F Sensor, Vacuum (FOR SKID CONTROL)
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
