Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

10 part groups · 2 illustrations

Illustrations

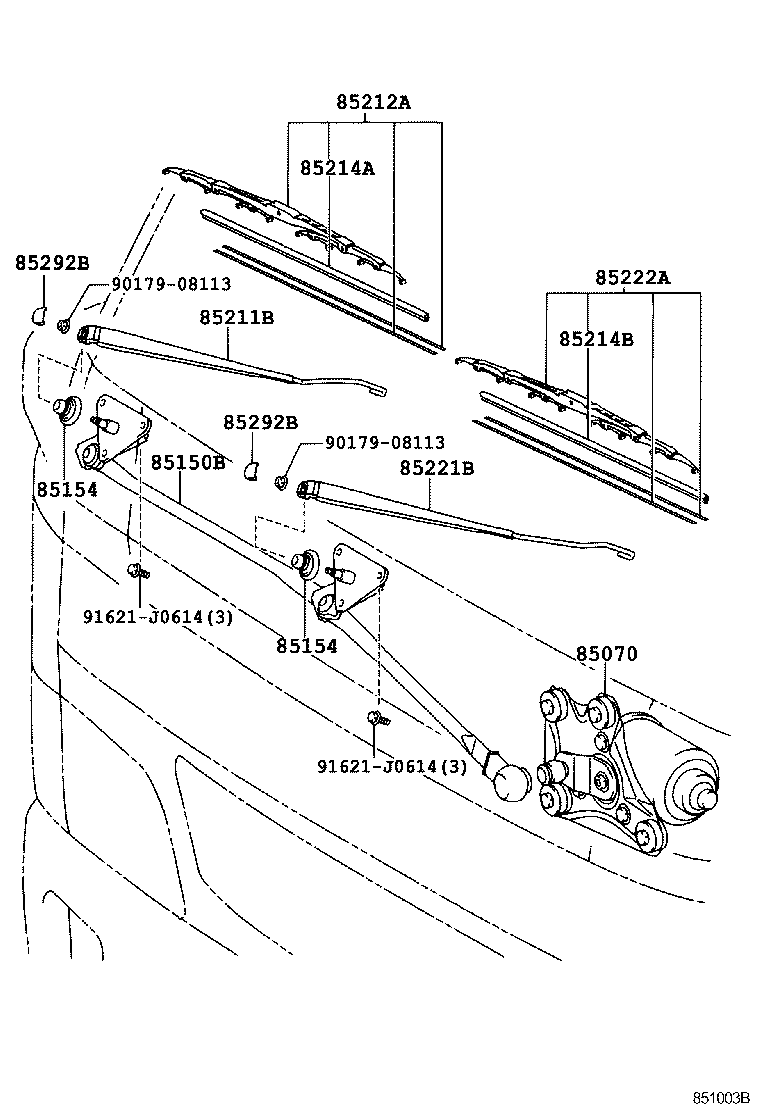

Figure 851004B 851004B 2001-10 → — Figure 851003B 851003B 2001-10 → —

Part groups

PNCDescription
85070 Motor & Bracket Assy, Front Wiper
85150B Link Assy, Wiper
85154 Packing, Front Wiper Shaft
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85292B Cap, Front Wiper Arm Head
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
