Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

16 part groups · 2 illustrations

Illustrations

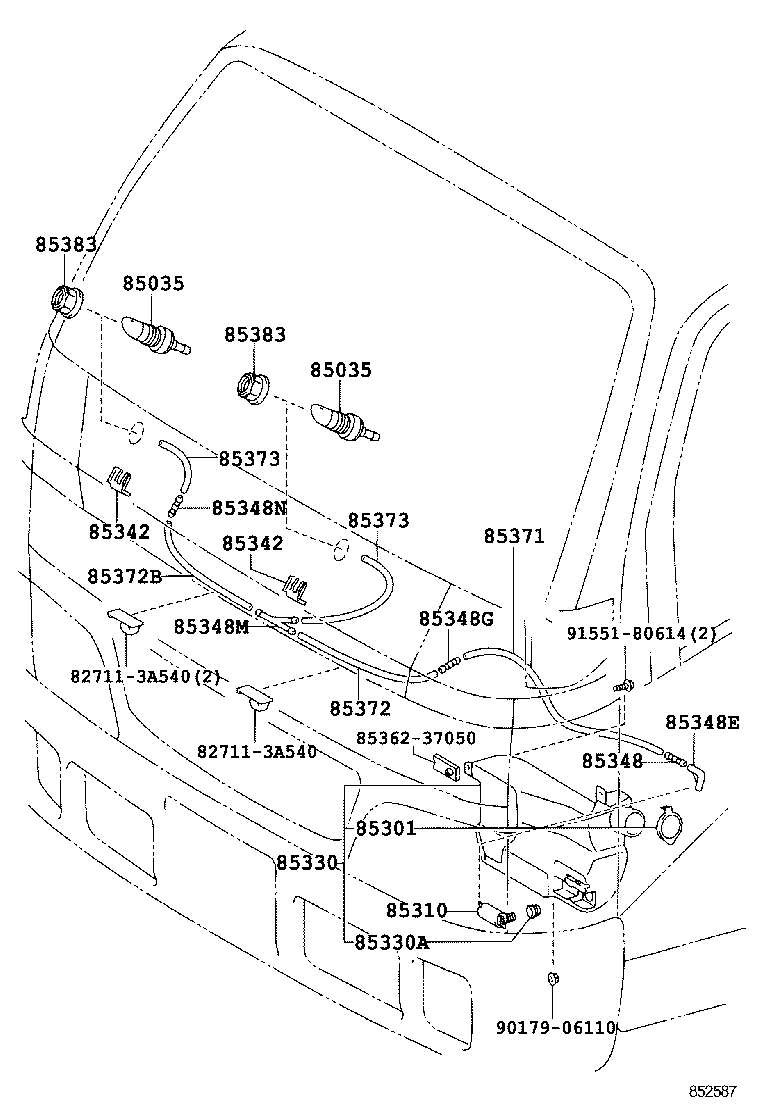

Figure 852586 852586 2001-10 → — Figure 852587 852587 2001-10 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85342 Holder, Washer Nozzle
85348 Joint, Windshield Washer Hose, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85348N Joint, Windshield Washer Hose, NO.4
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85383 Holder, Front Washer Nozzle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
