Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

Figure 861529D

861529D 2001-10 → —

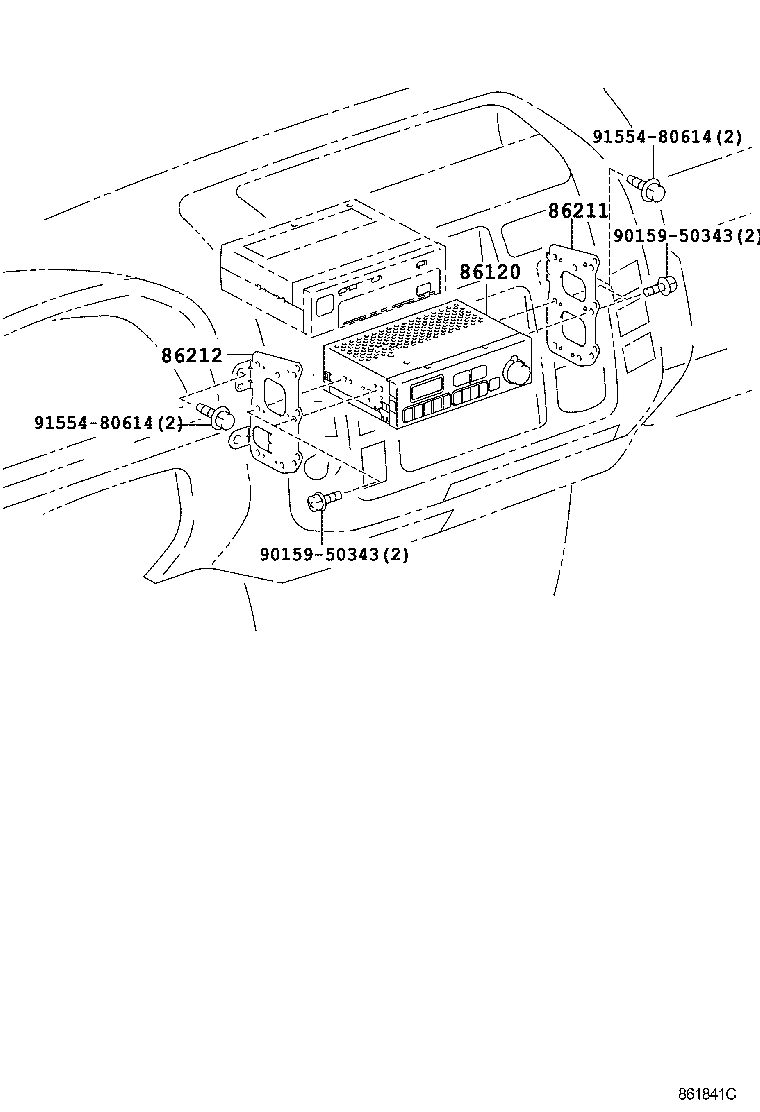

Figure 861841C

861841C 2002-12 → —

Figure 861844D

861844D 2001-10 → —

Part groups

PNC	Description
86120	Receiver Assy, Radio
86206	Converter Sub-assy, Voltage
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86245	Bracket, Voltage Converter
86270A	Disc Player Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
