Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

2 part groups · 9 illustrations

Illustrations

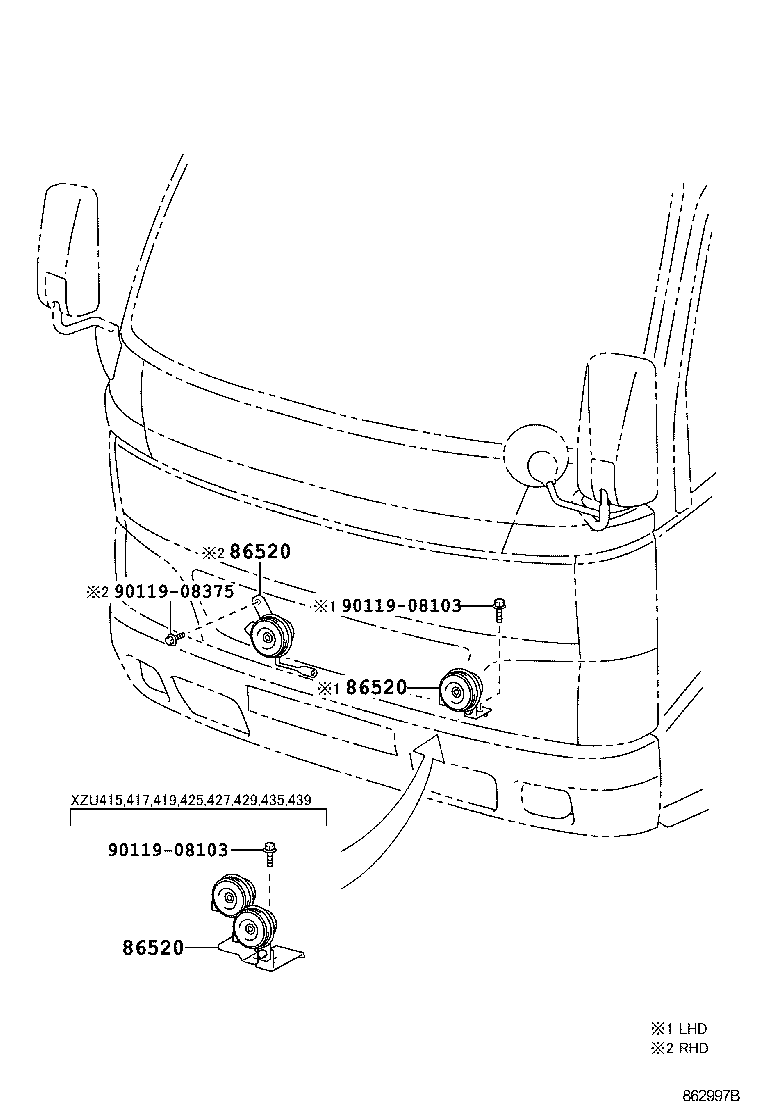

Figure 861523C 861523C 2001-10 → 2006-08 Figure 861523C 861523C 2001-10 → 2006-10 Figure 861523C 861523C 2002-12 → 2006-10 Figure 861523C 861523C 2003-04 → 2008-02 Figure 861523C 861523C 2004-01 → 2008-02 Figure 861523C 861523C 2004-11 → 2007-01 Figure 862997B 862997B 2006-08 → — Figure 862997B 862997B 2006-10 → — Figure 862997B 862997B 2008-02 → —

Part groups

PNCDescription
86510 Horn Assy, High Pitched
86520 Horn Assy, Low Pitched
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
