Heating & Air Conditioning - Cooler Unit

15 part groups · 7 illustrations

Illustrations

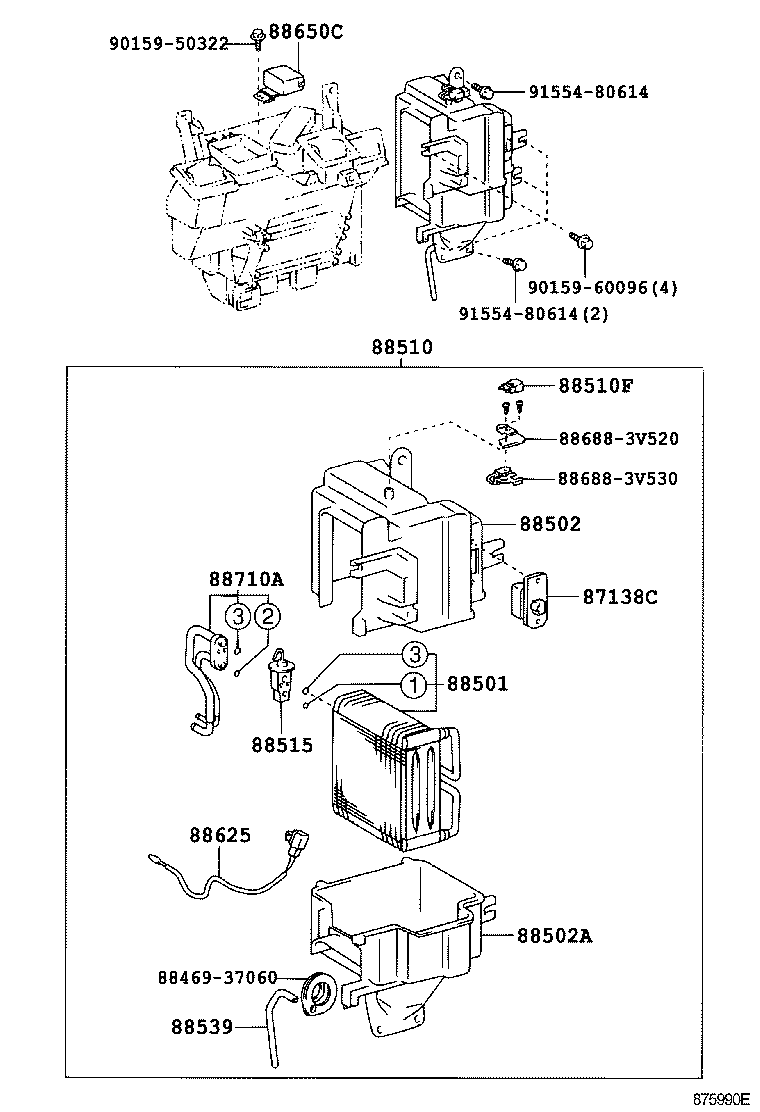

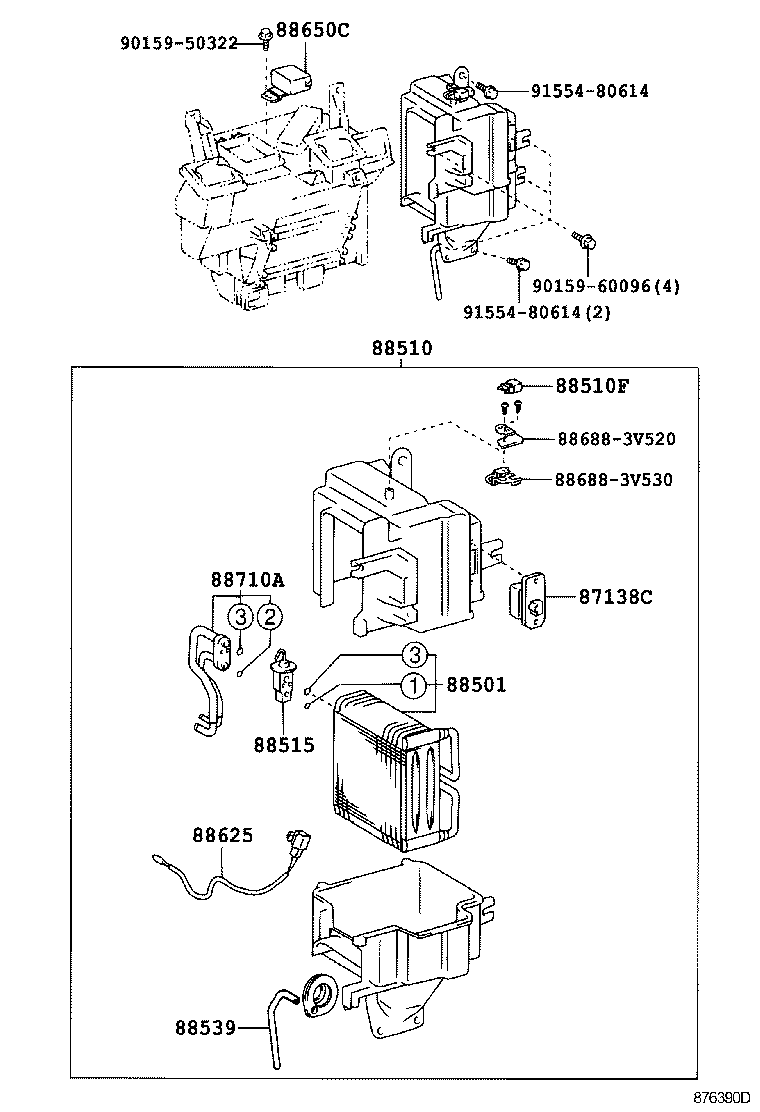

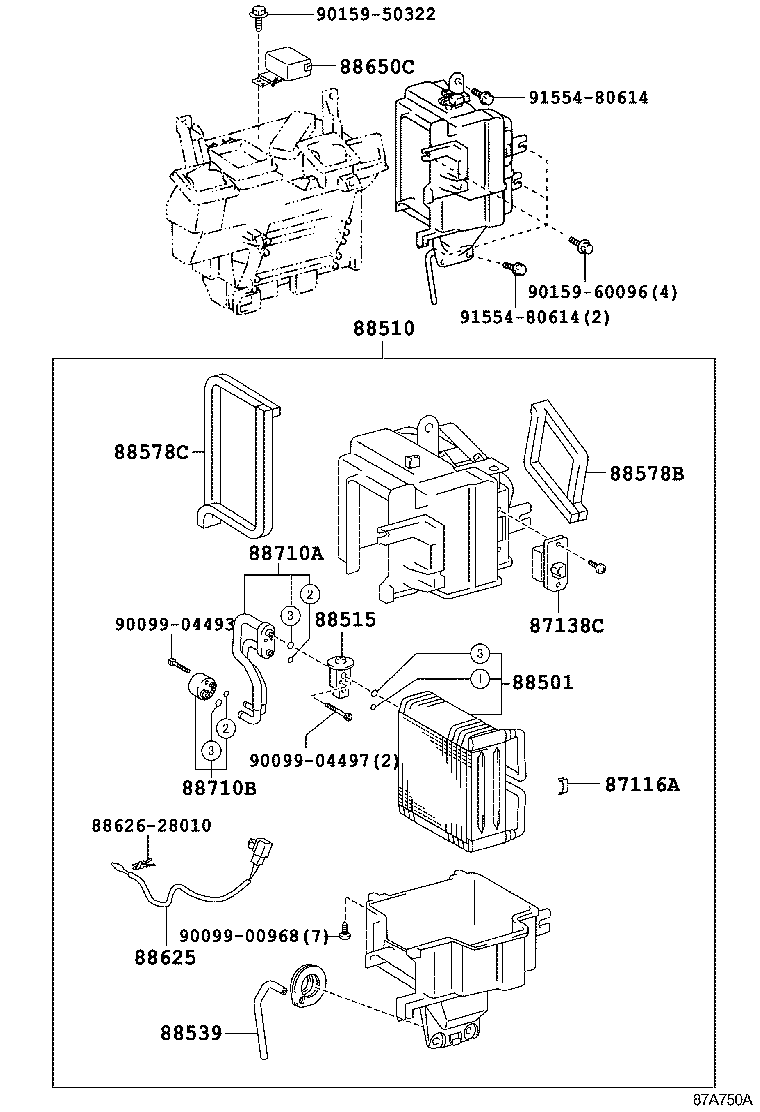

Figure 875201I 875201I 2001-10 → — Figure 875990E 875990E 2002-12 → 2008-09 Figure 875990E 875990E 2002-12 → — Figure 876390D 876390D 2004-01 → — Figure 876390D 876390D 2004-11 → 2007-01 Figure 87A750A 87A750A 2008-09 → — Figure 874869 874869 2001-10 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88502A Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510F Holder, Fuse
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88650C Amplifier Sub-assy, Airconditioner
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
