Heating & Air Conditioning - Water Piping

9 part groups · 12 illustrations

Illustrations

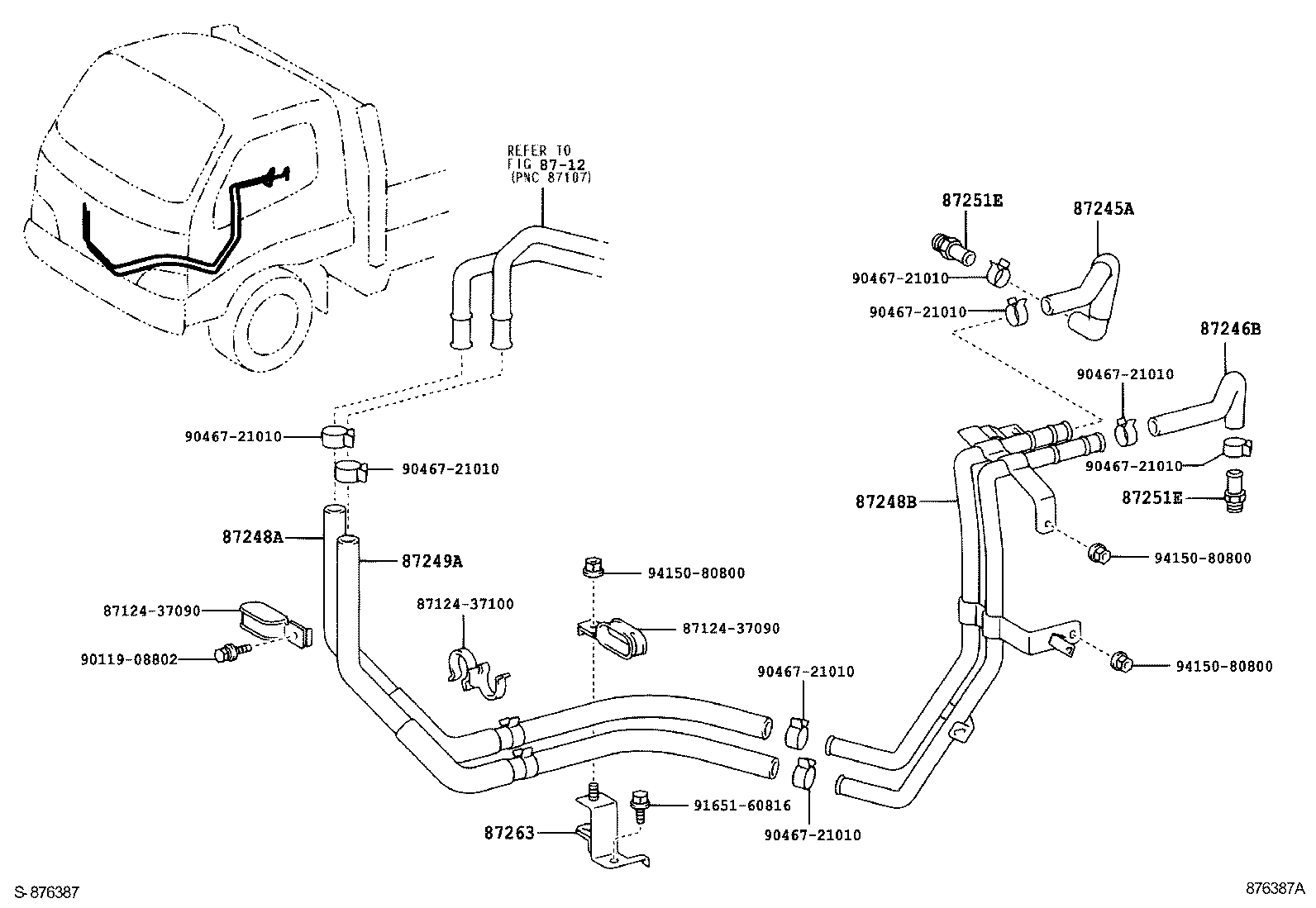

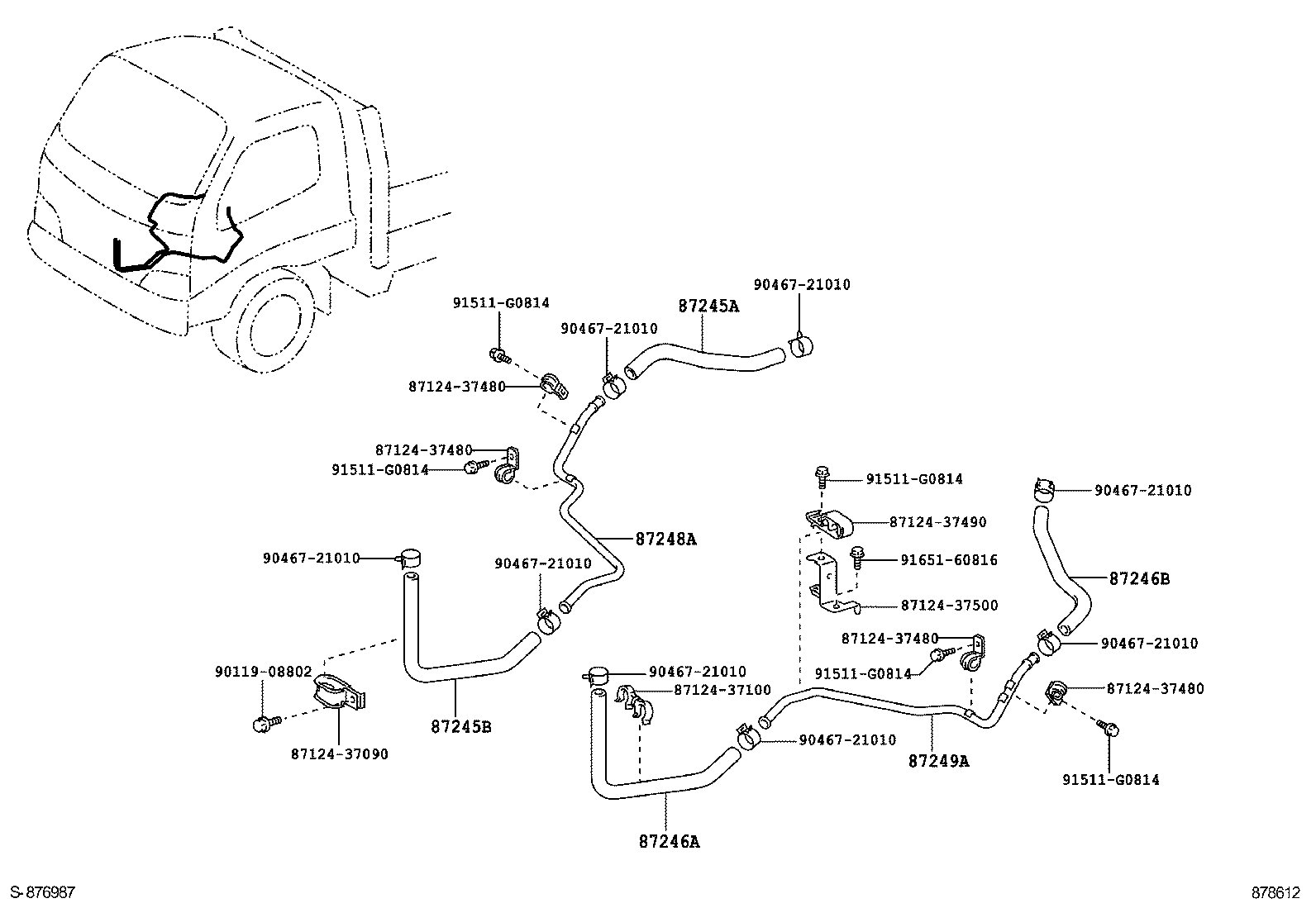

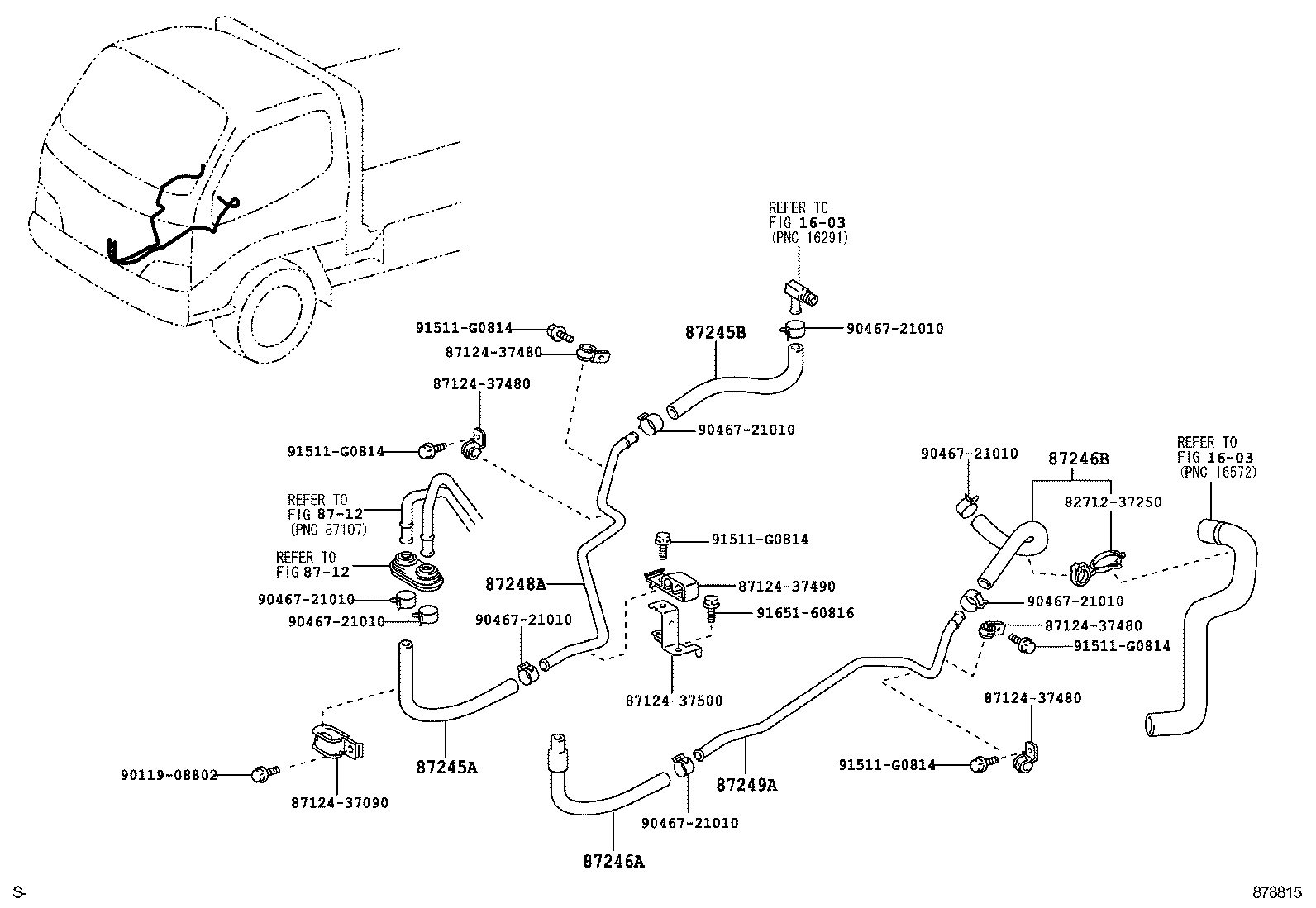

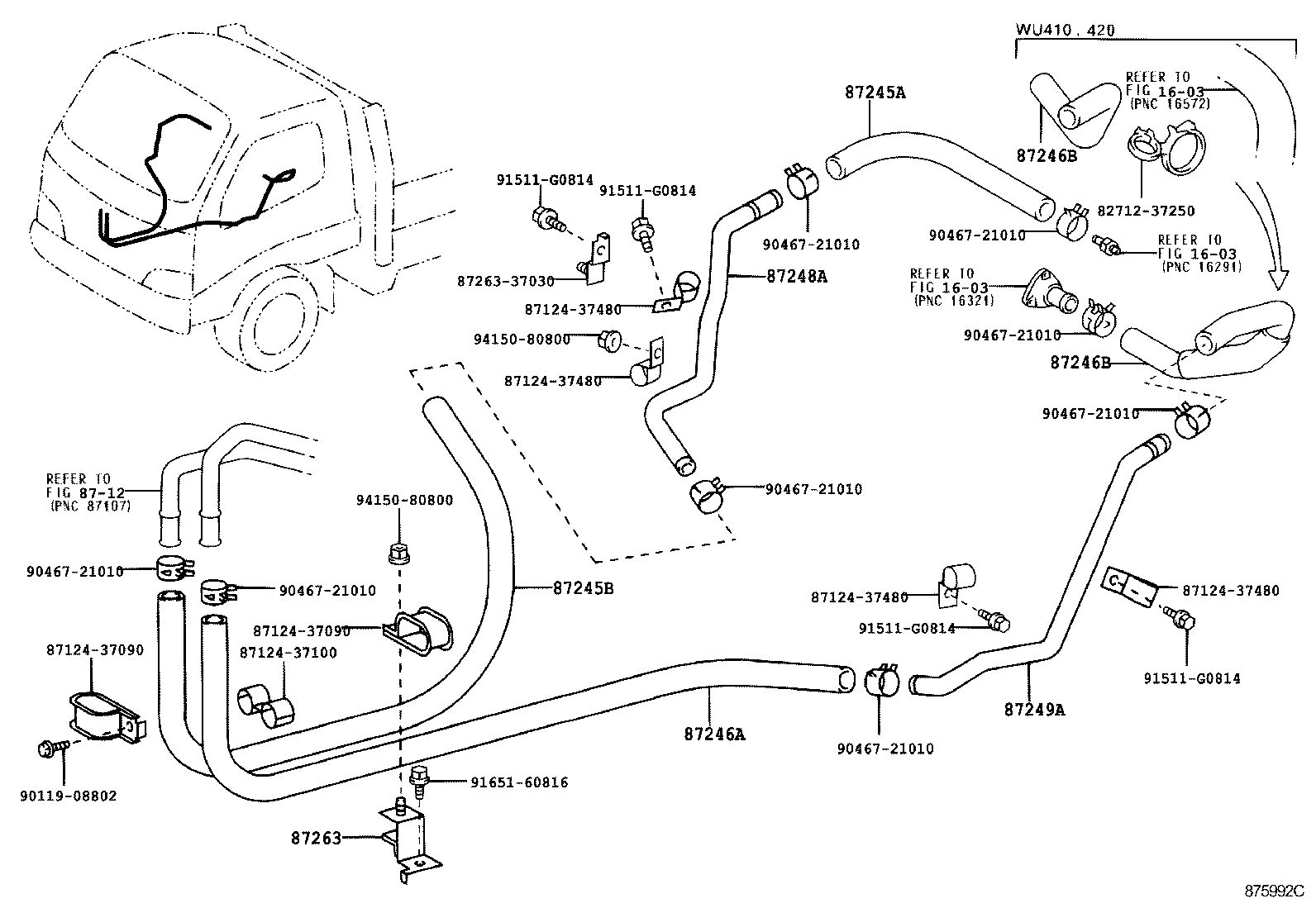

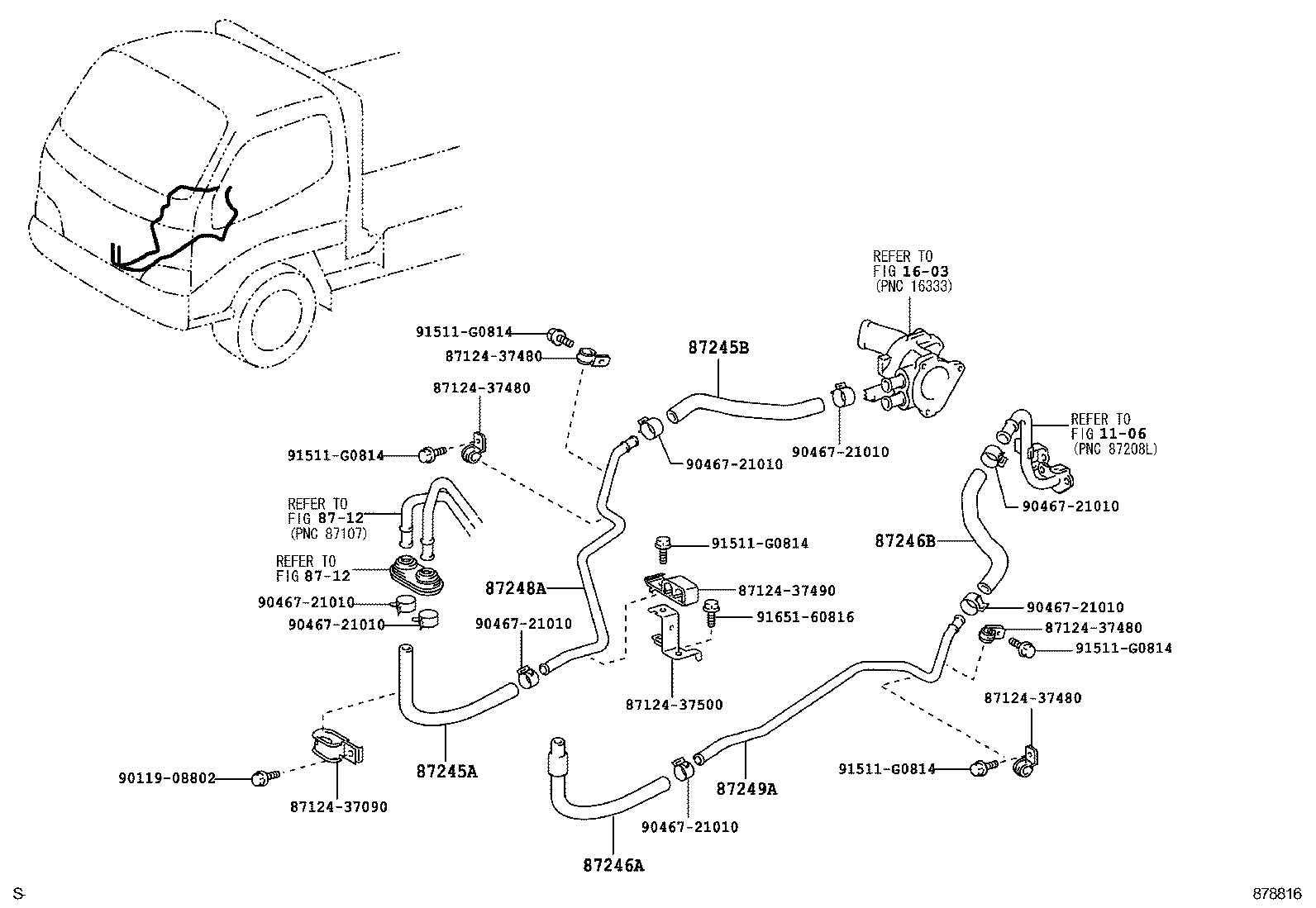

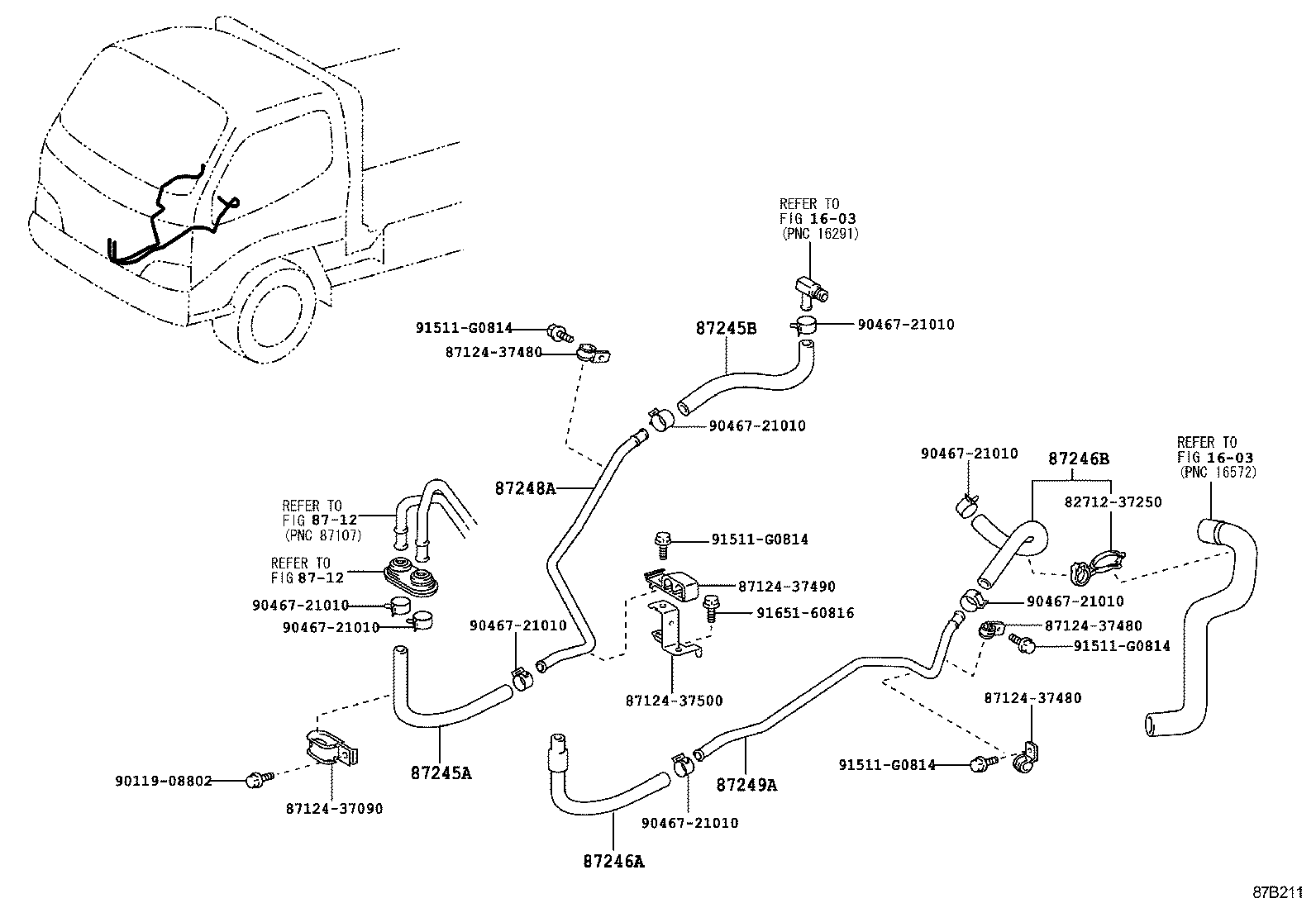

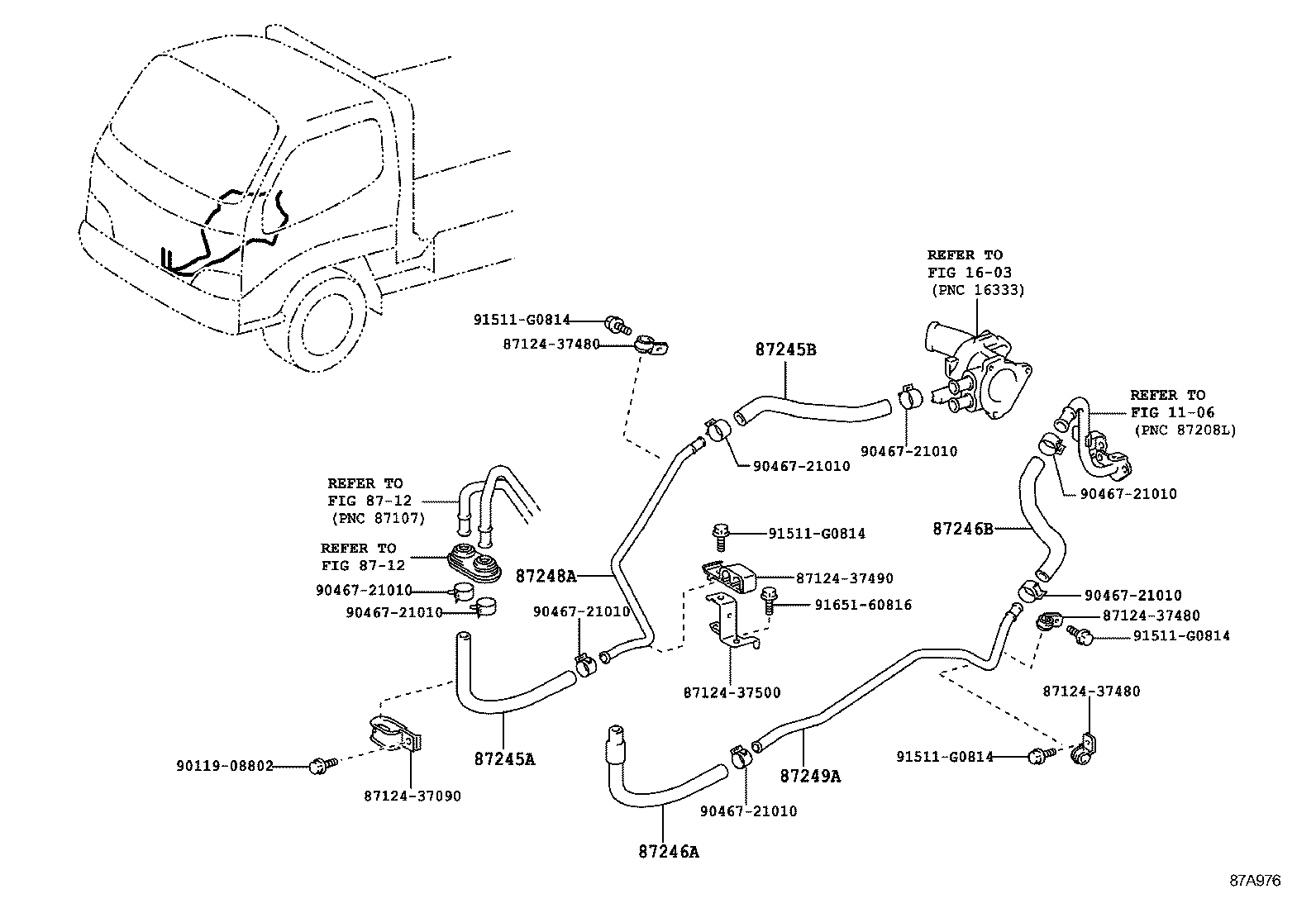

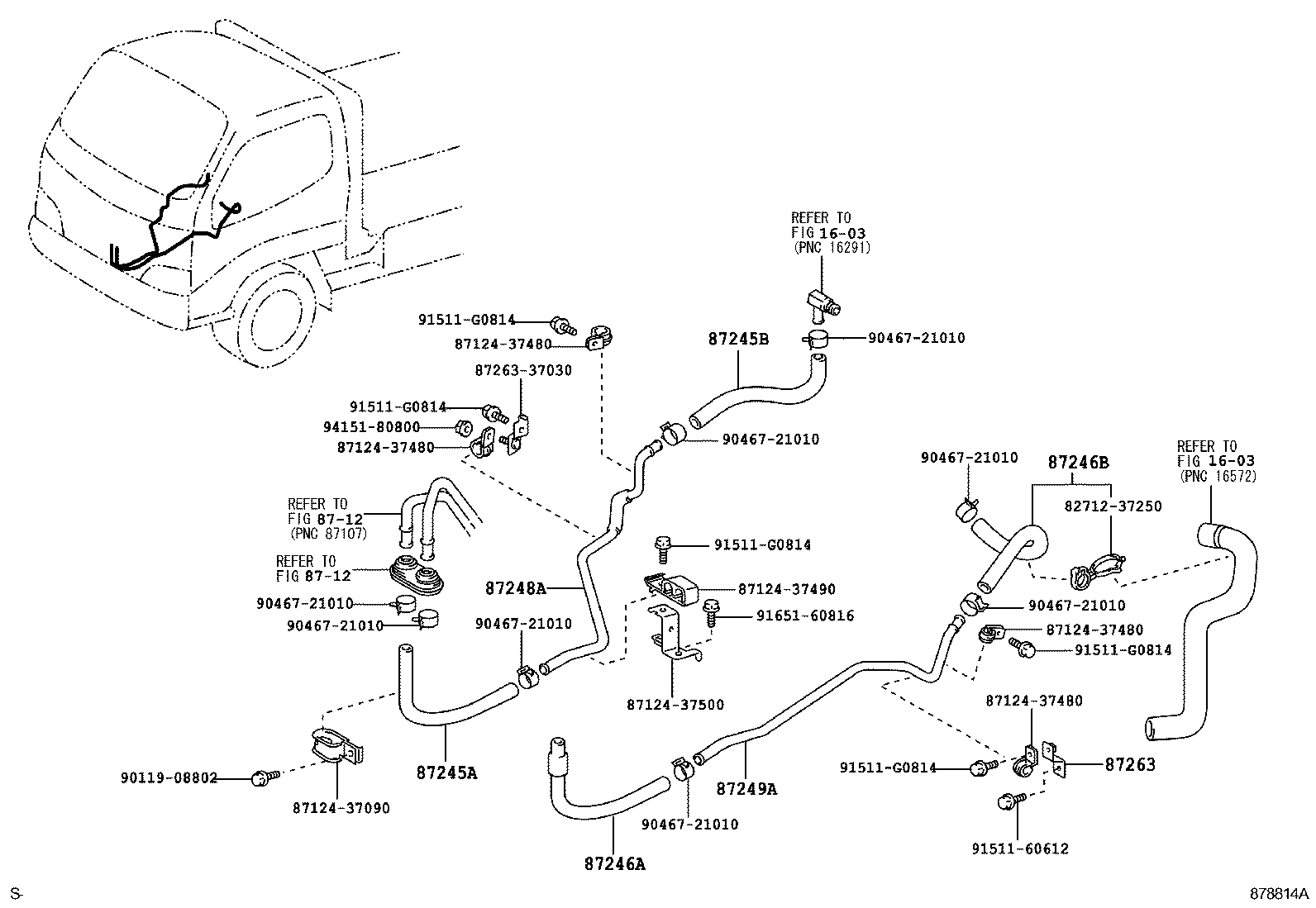

Figure 875209G 875209G 2001-10 → 2006-08 Figure 875209G 875209G 2001-10 → 2006-10 Figure 875209G 875209G 2002-12 → 2006-10 Figure 875992C 875992C 2002-12 → 2006-10 Figure 875992C 875992C 2003-04 → — Figure 876387A 876387A 2004-11 → 2007-01 Figure 878612 878612 2006-08 → — Figure 878814A 878814A 2006-10 → — Figure 878815 878815 2006-10 → 2010-06 Figure 87B211 87B211 2010-06 → — Figure 878816 878816 2006-10 → — Figure 87A976 87A976 2009-08 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87251E Joint, Water, NO.2
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
