Toyota Dyna

2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe

Discontinued model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 24 illustrations

Illustrations

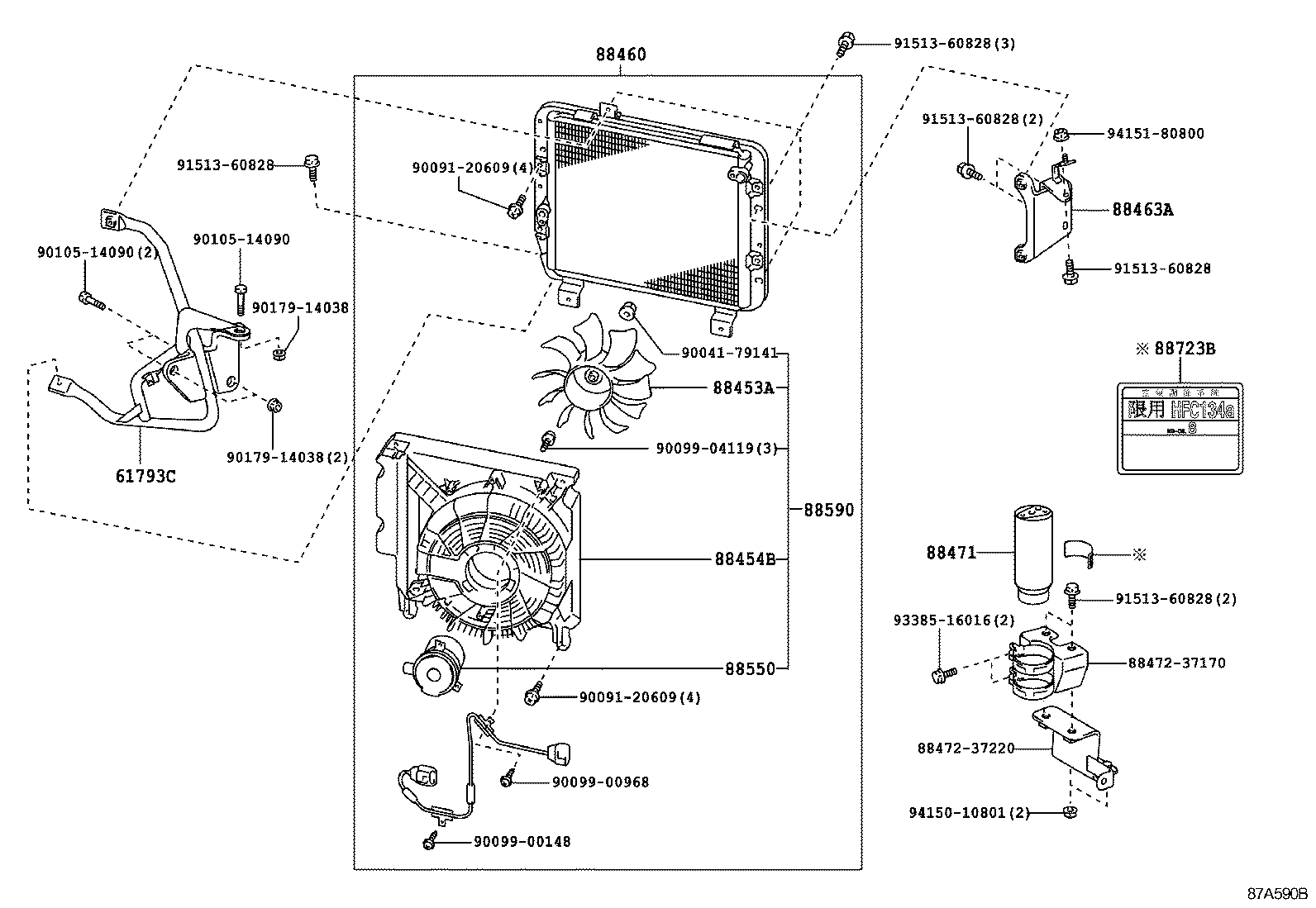

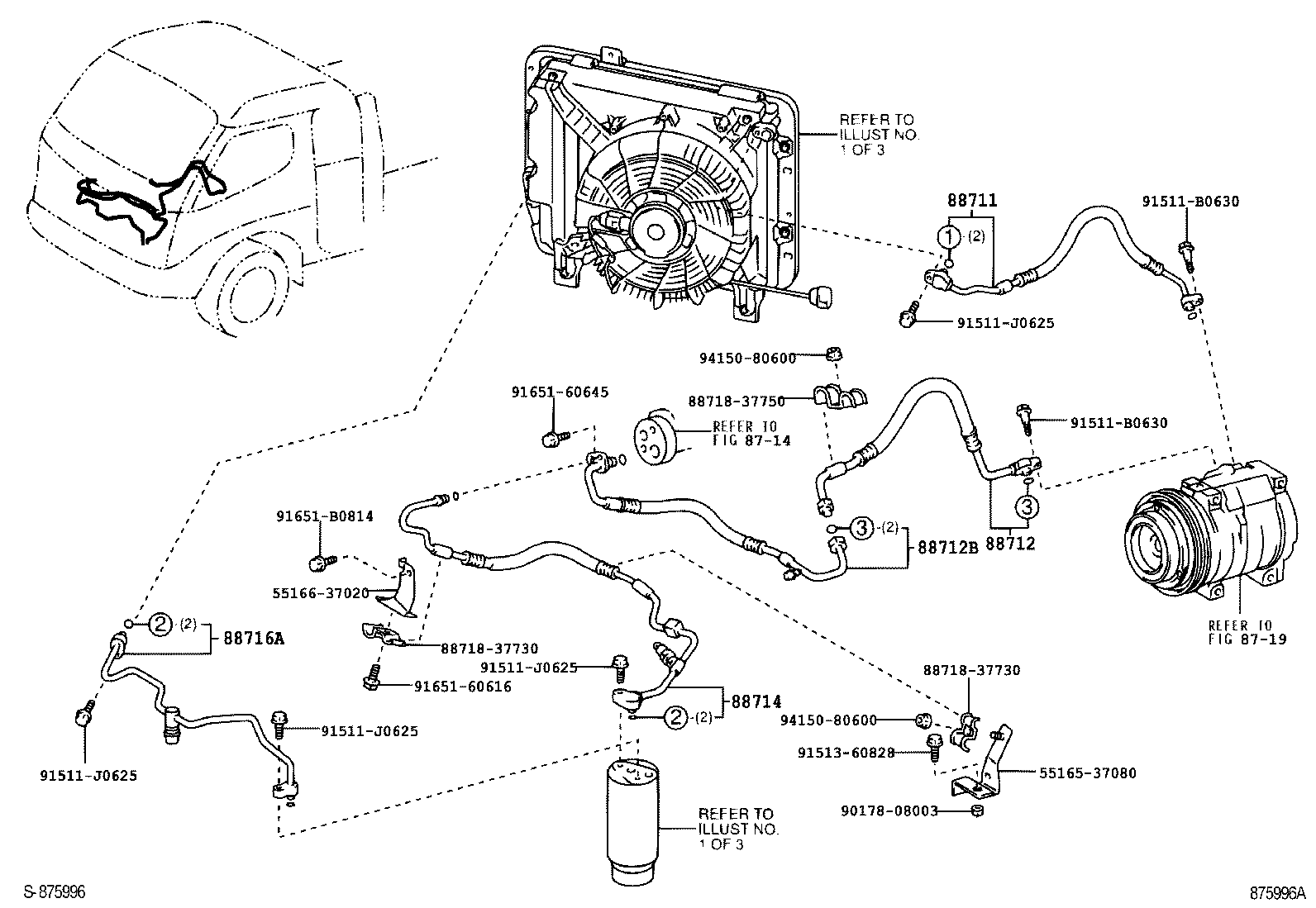

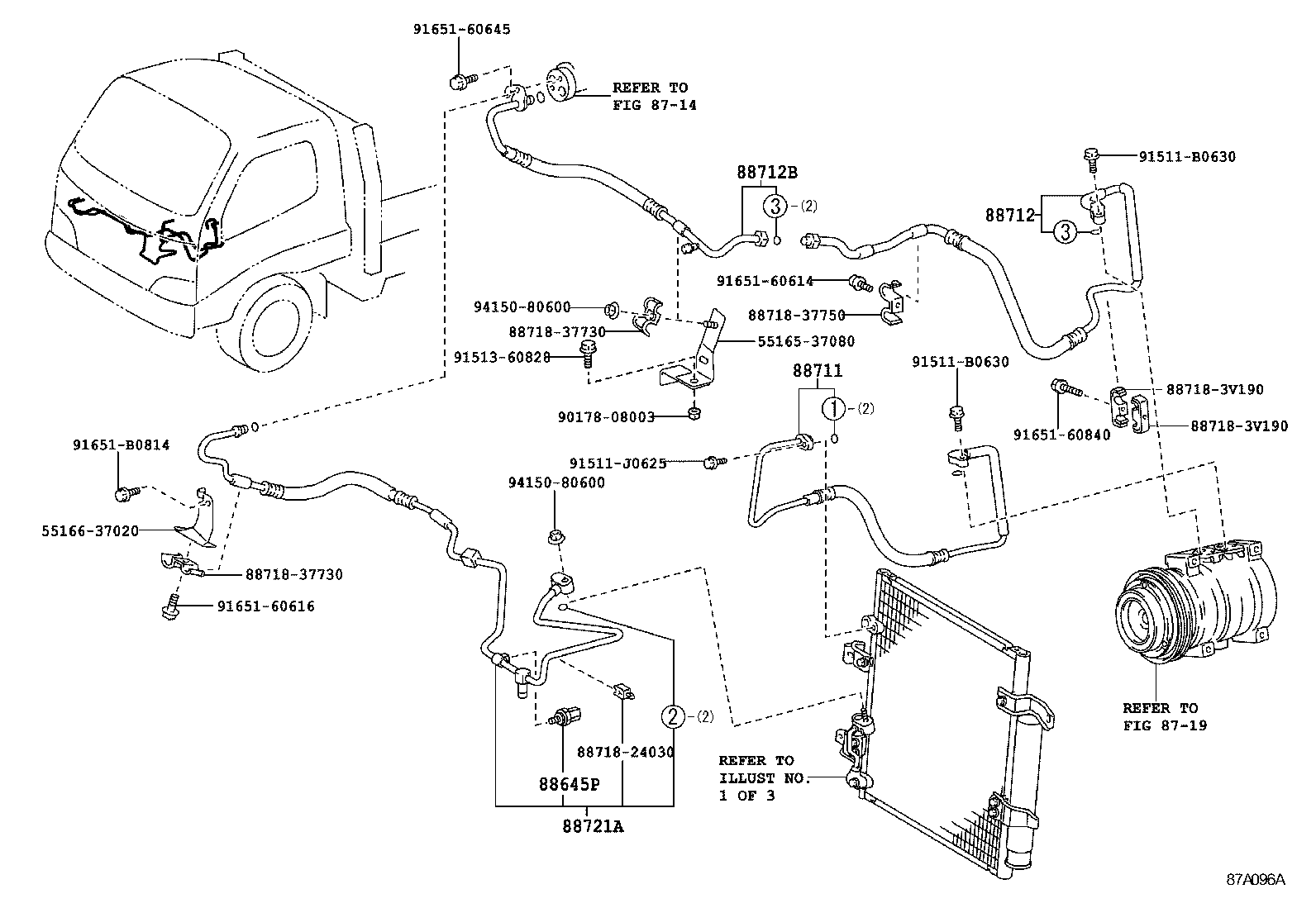

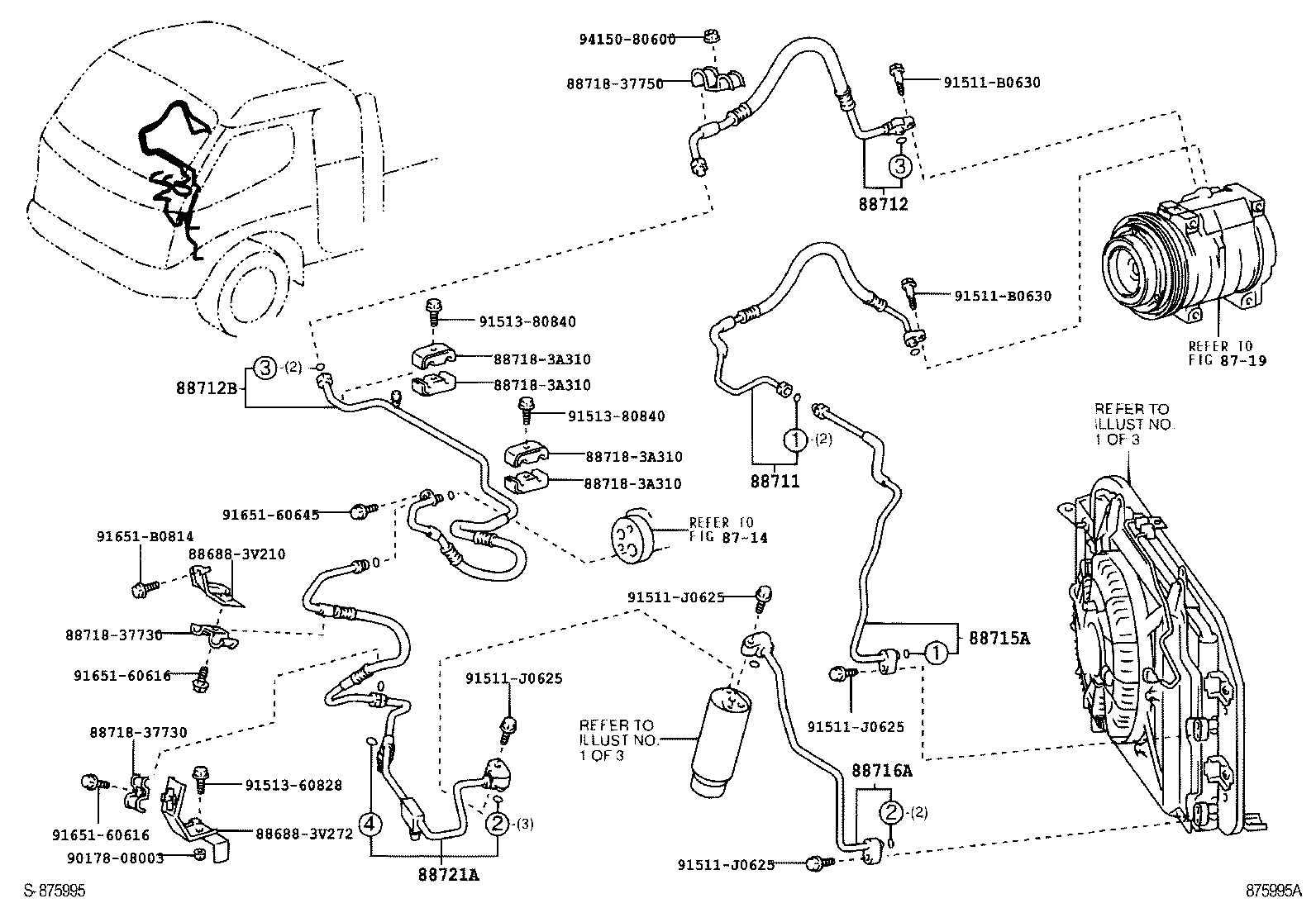

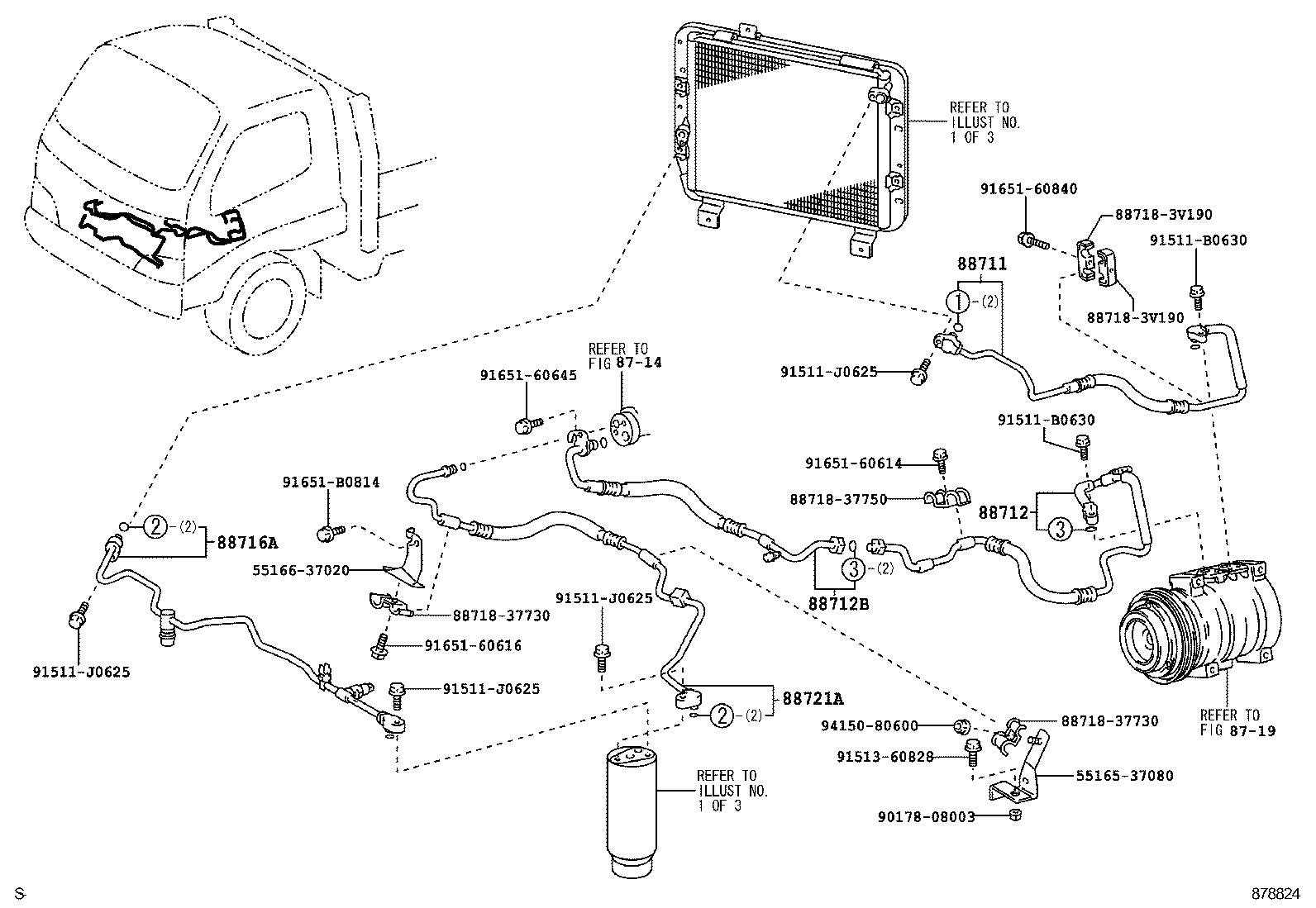

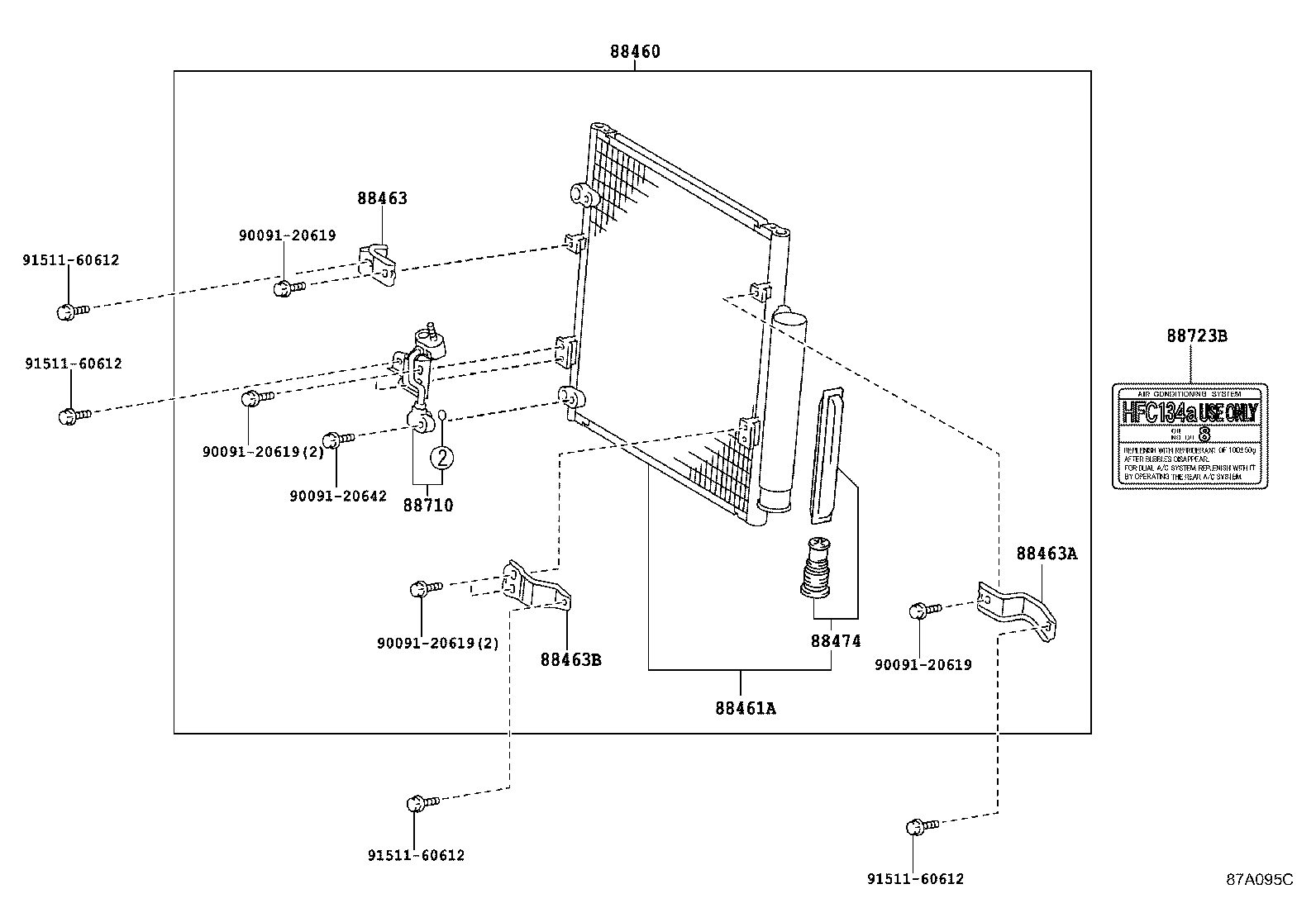

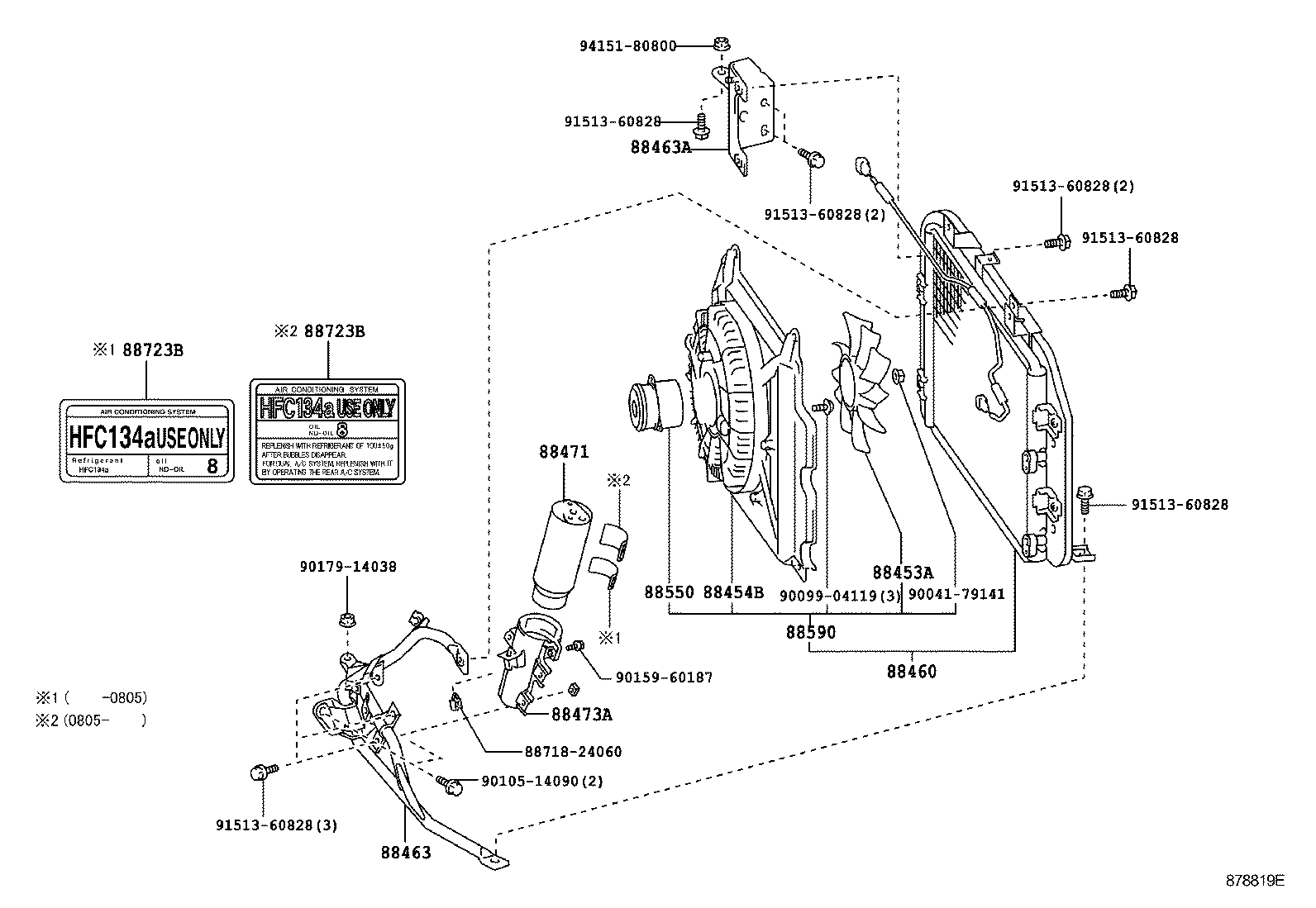

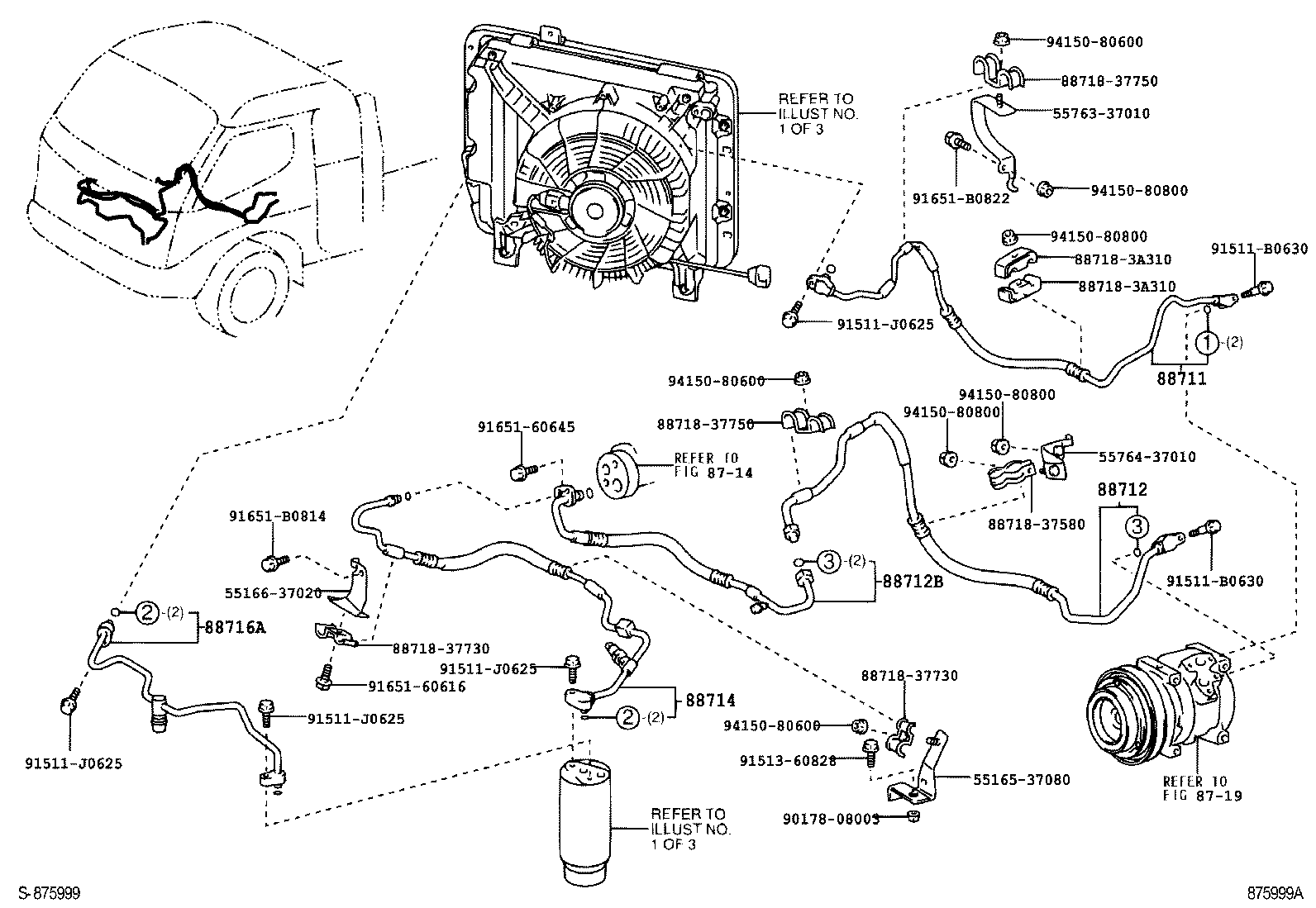

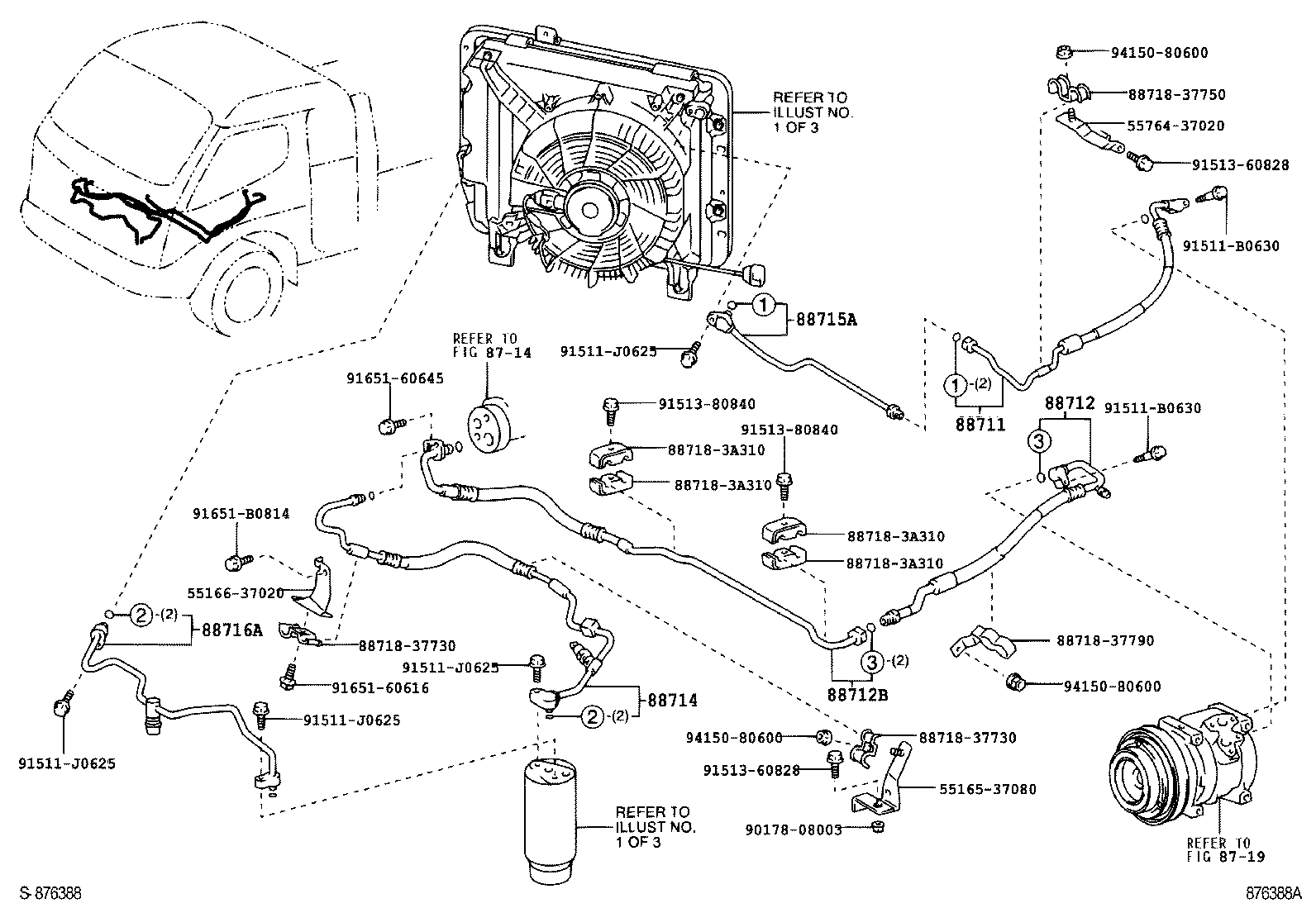

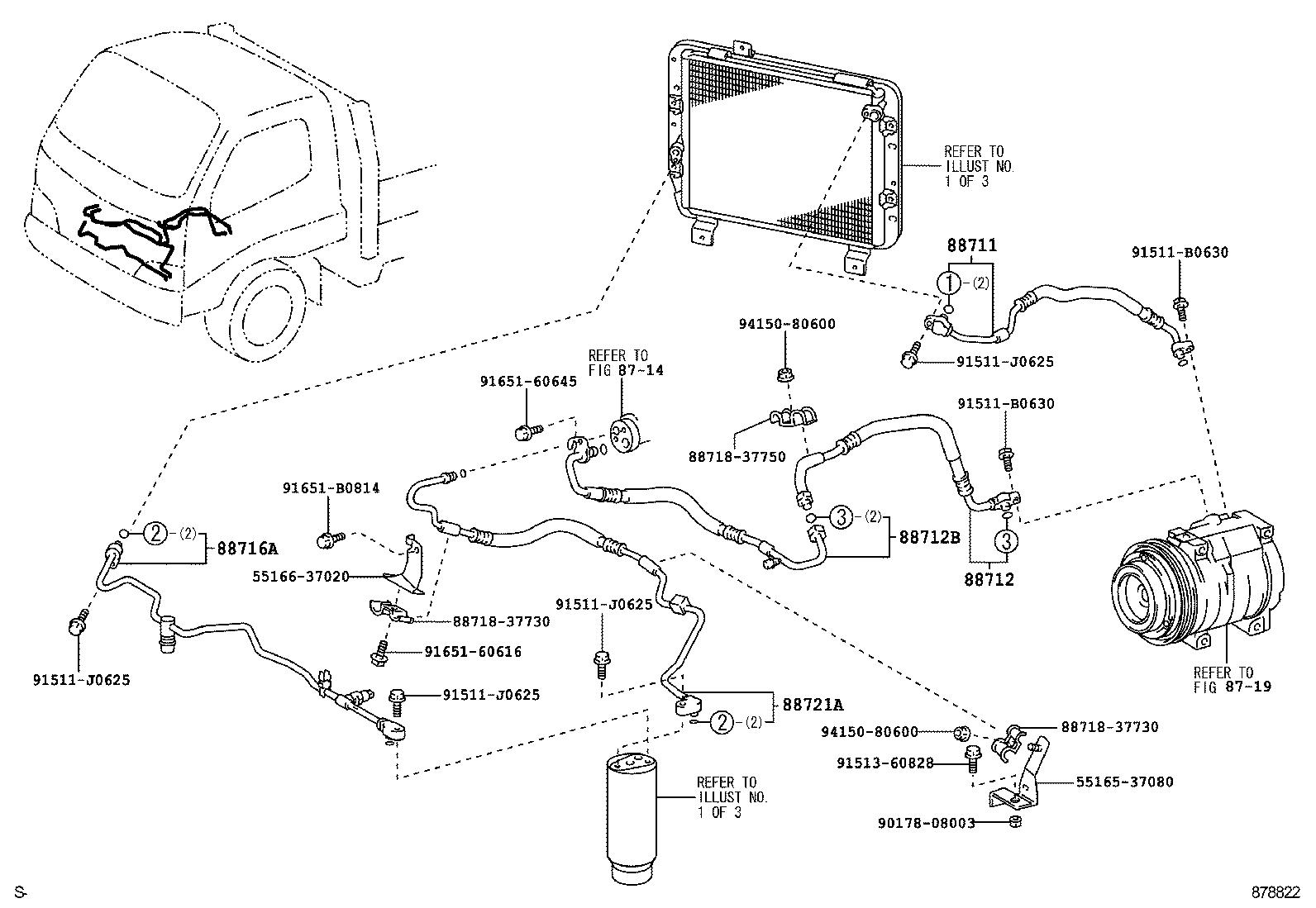

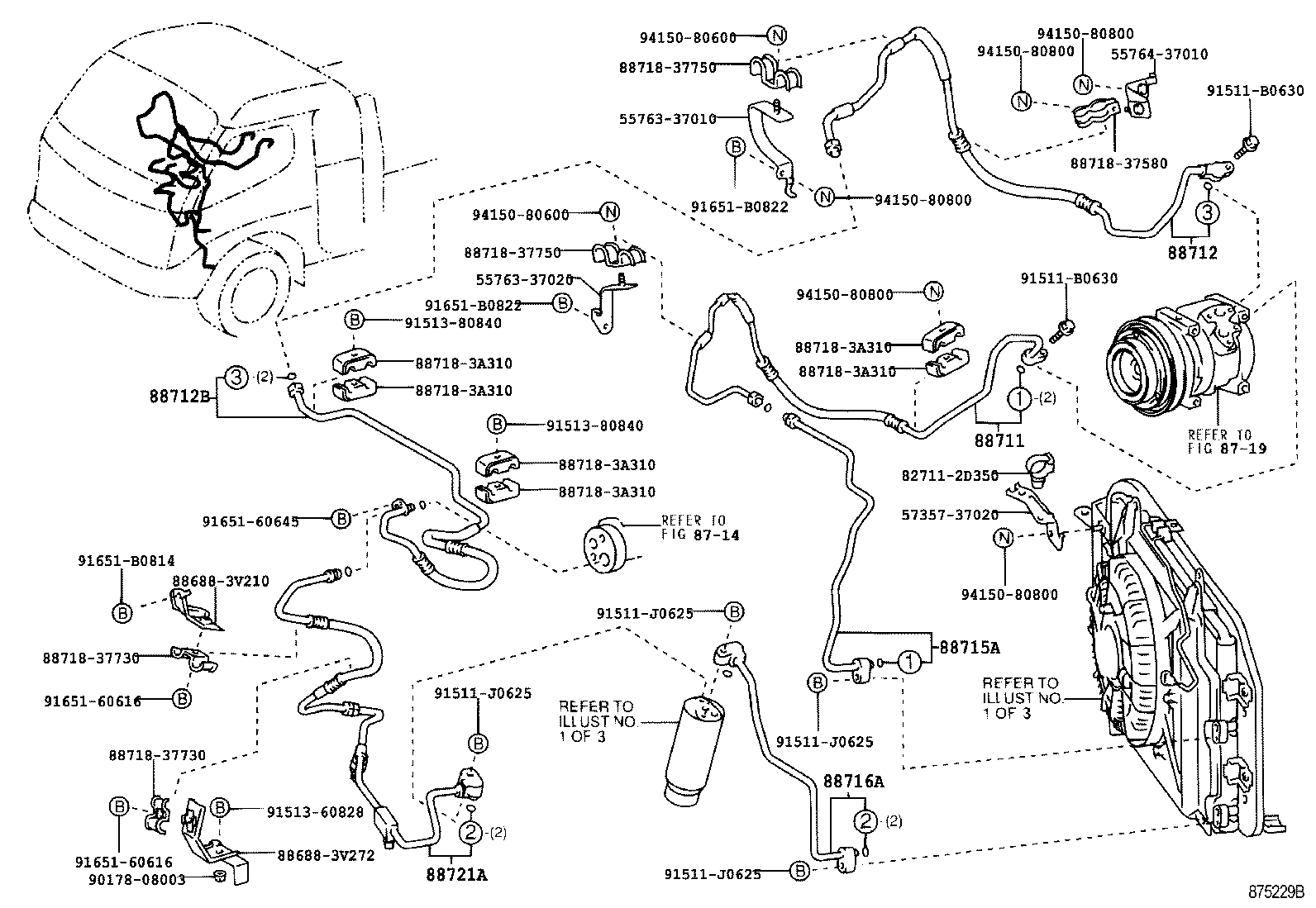

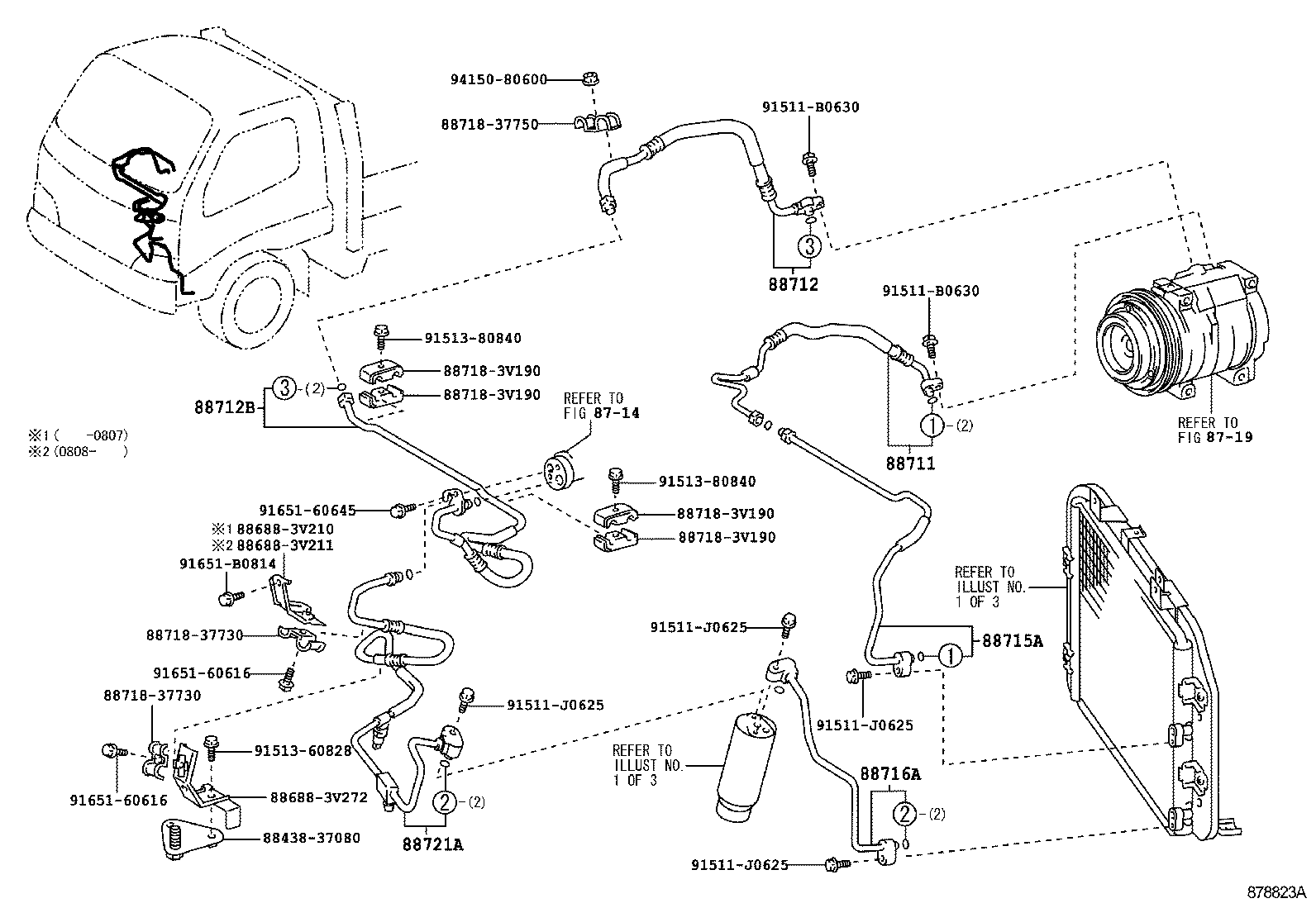

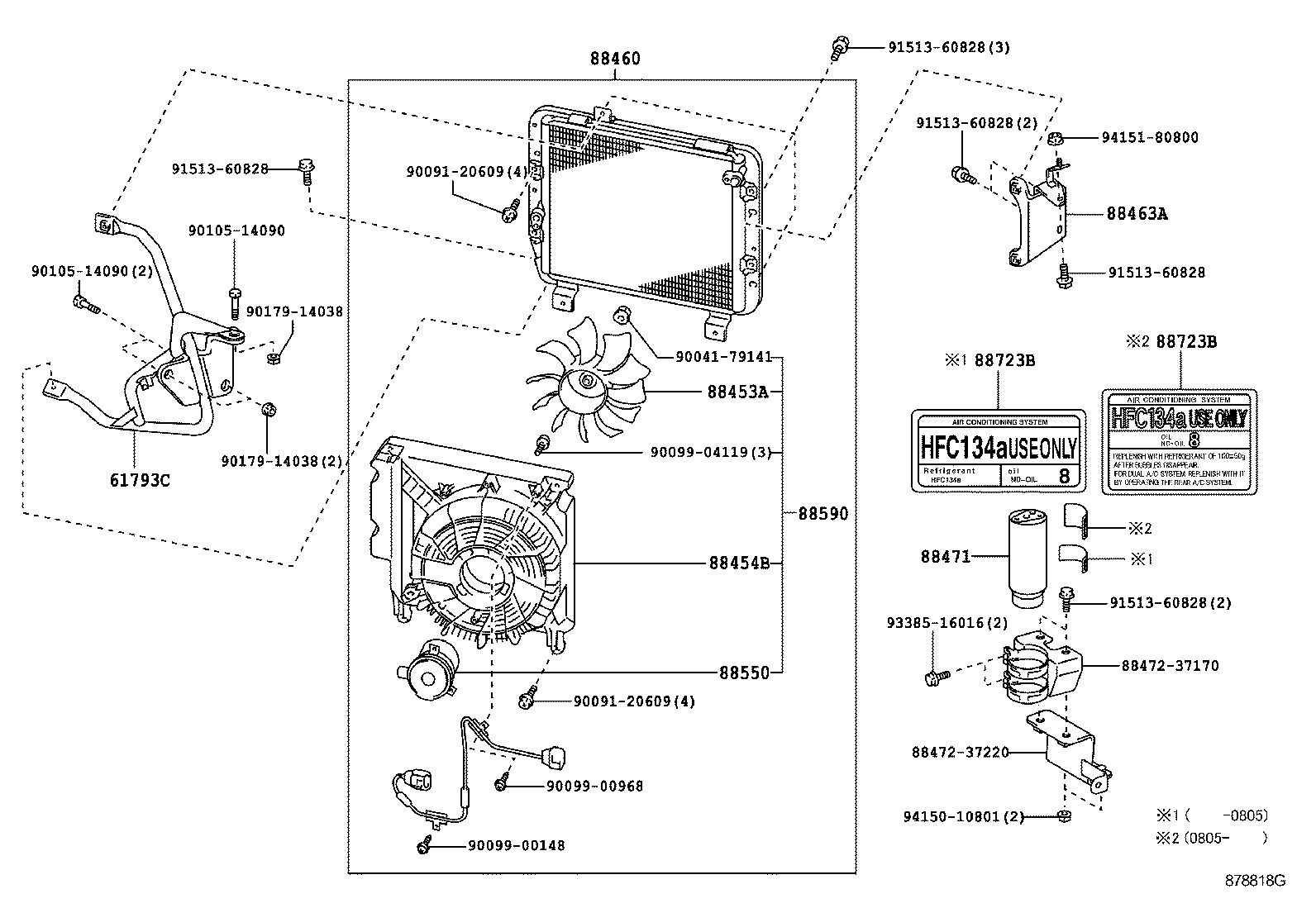

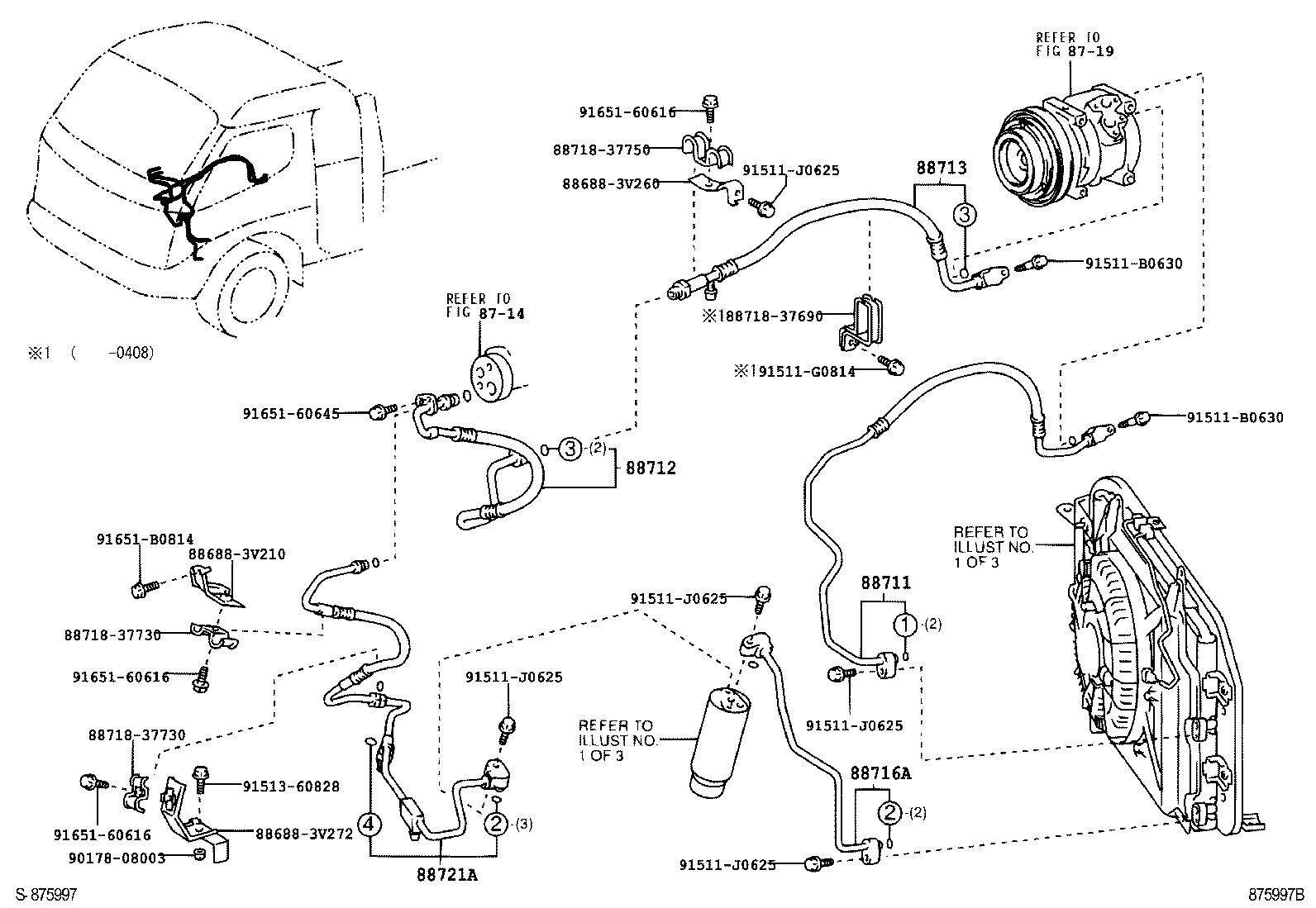

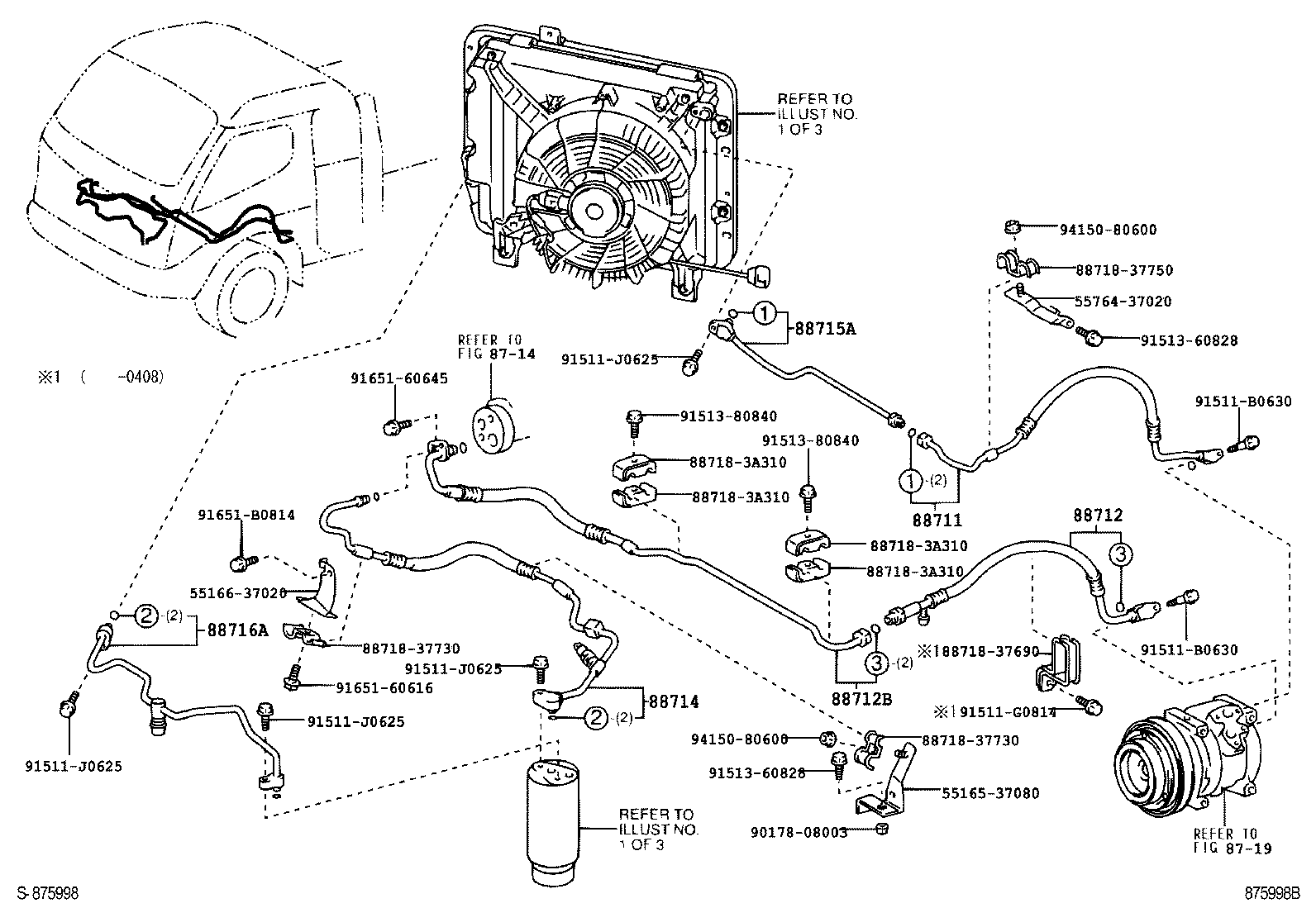

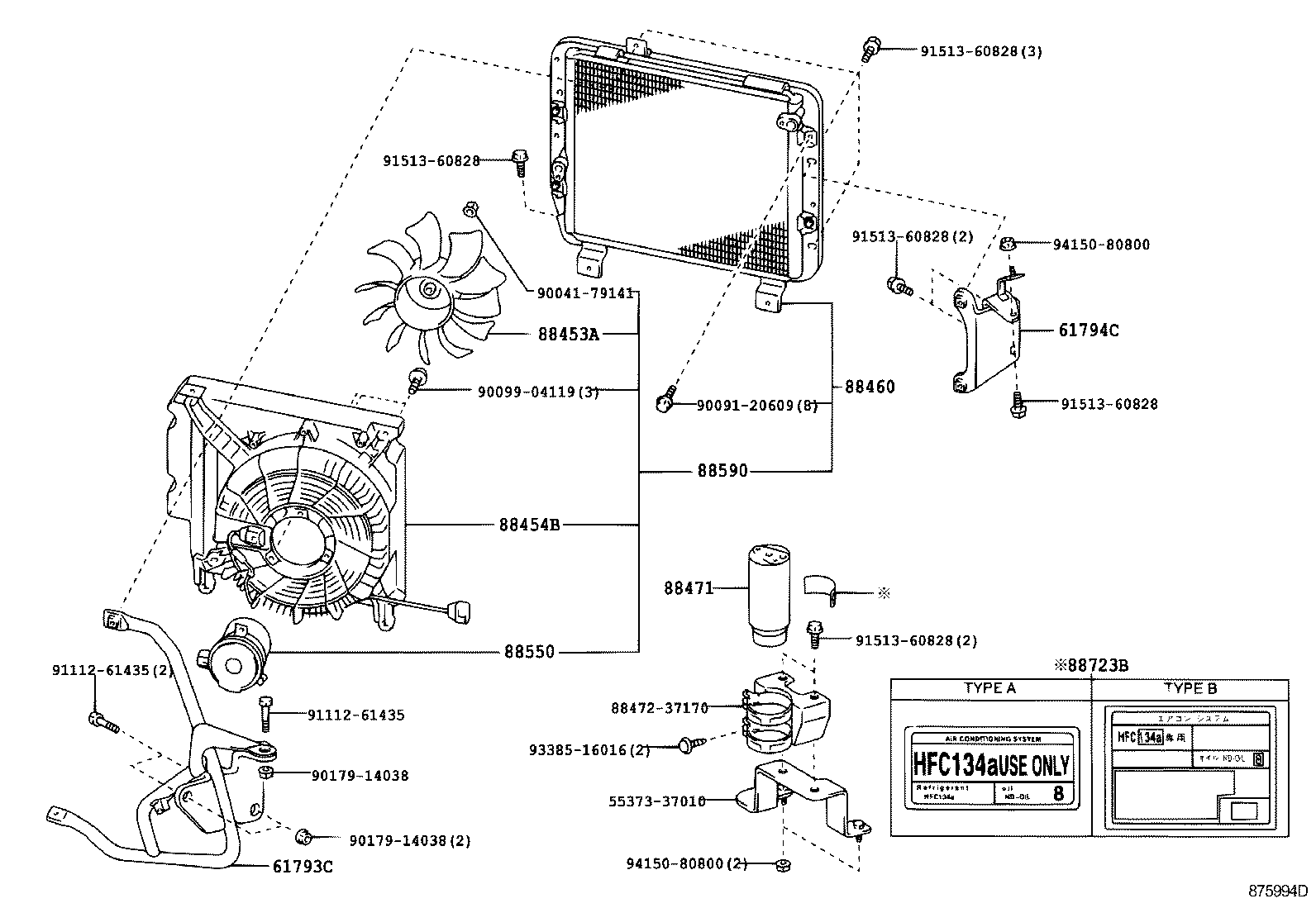

Figure 875213C 875213C 2001-10 → 2006-10 Figure 875213C 875213C 2002-12 → 2006-10 Figure 875994D 875994D 2002-12 → 2007-01 Figure 875994D 875994D 2002-12 → — Figure 878818G 878818G 2006-10 → 2008-05 Figure 878818G 878818G 2006-10 → — Figure 878818G 878818G 2007-01 → 2008-10 Figure 878819E 878819E 2006-10 → — Figure 87A095C 87A095C 2008-05 → — Figure 87A590B 87A590B 2008-10 → — Figure 875229B 875229B 2001-10 → 2006-10 Figure 875229B 875229B 2002-12 → 2006-10 Figure 875996A 875996A 2002-12 → 2006-10 Figure 875995A 875995A 2002-12 → 2006-10 Figure 875999A 875999A 2002-12 → — Figure 875998B 875998B 2002-12 → 2006-10 Figure 875997B 875997B 2002-12 → 2006-10 Figure 876388A 876388A 2004-11 → 2007-01 Figure 878822 878822 2006-10 → — Figure 878823A 878823A 2006-10 → — Figure 878824 878824 2006-10 → 2008-05 Figure 878824 878824 2006-10 → — Figure 87A096A 87A096A 2008-05 → — Figure 874869 874869 2001-10 → —

Part groups

PNCDescription
61793C Bracket, Cooler Condenser, NO.1
61794C Bracket, Cooler Condenser, NO.2
88453A Fan, Cooling
88454B Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645P Switch, Pressure, NO.3
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
