Toyota Dyna
2001-10 → 2012-08 · chassis BU4##,WU4##,XZU4## · catalogue 771240 · Europe
Discontinued model
Data version 2013-04

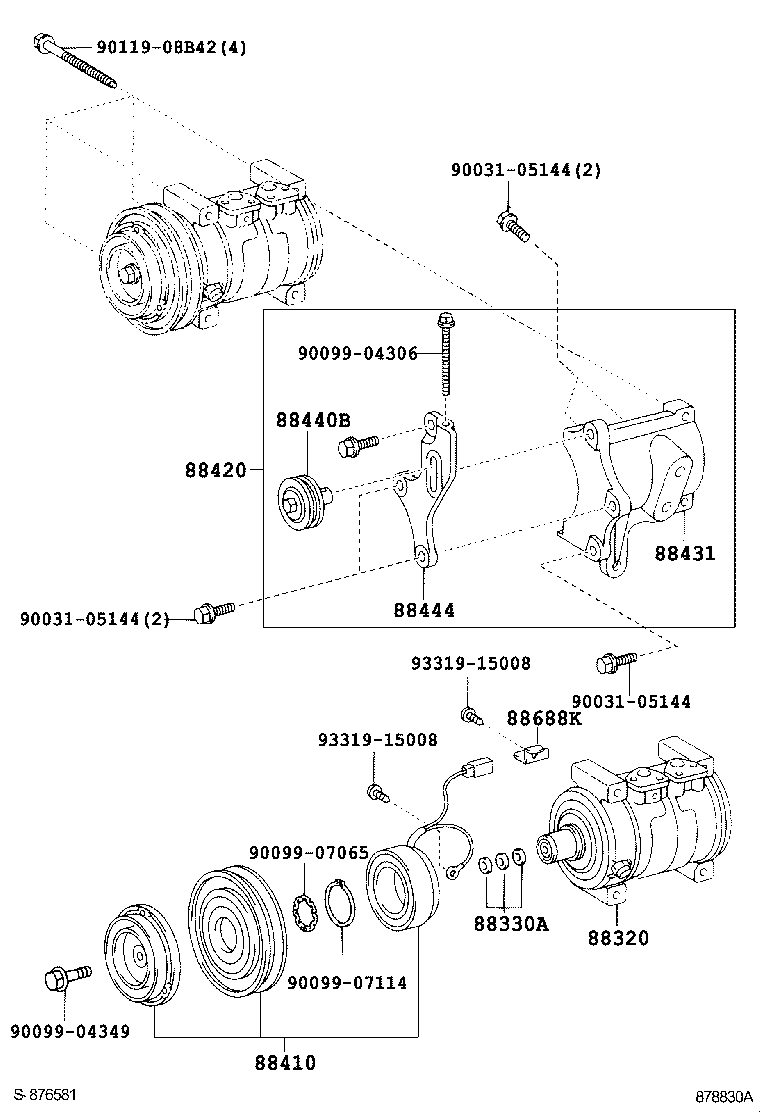

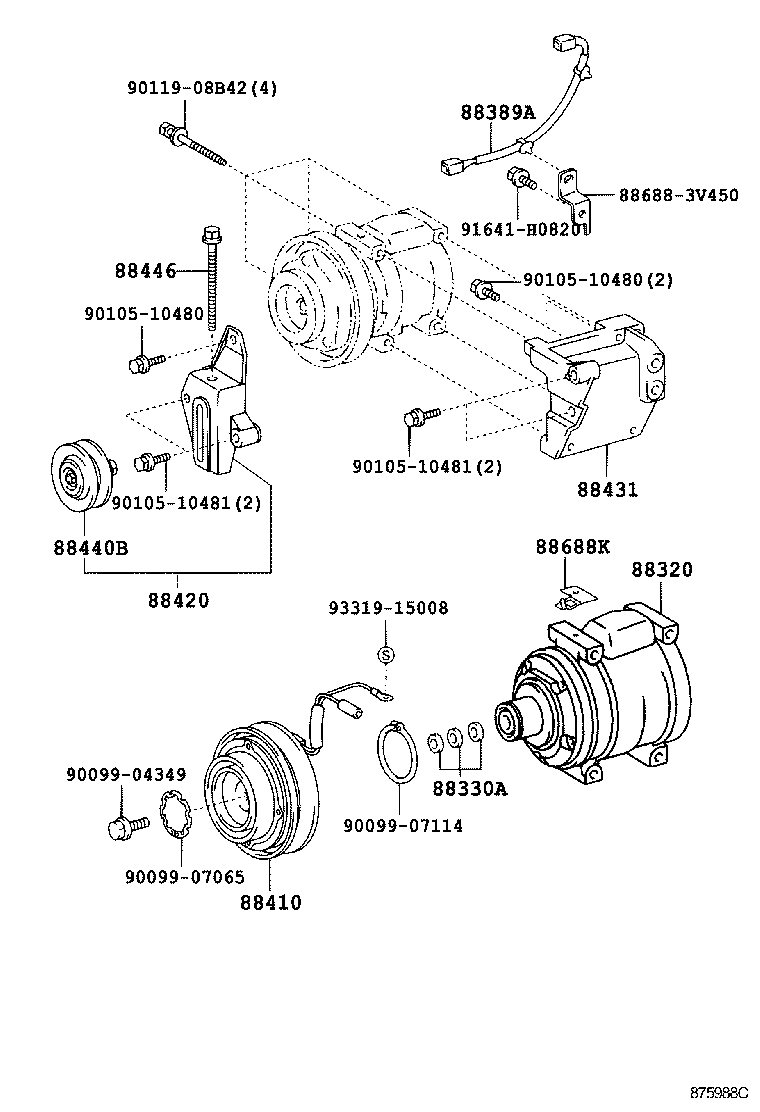

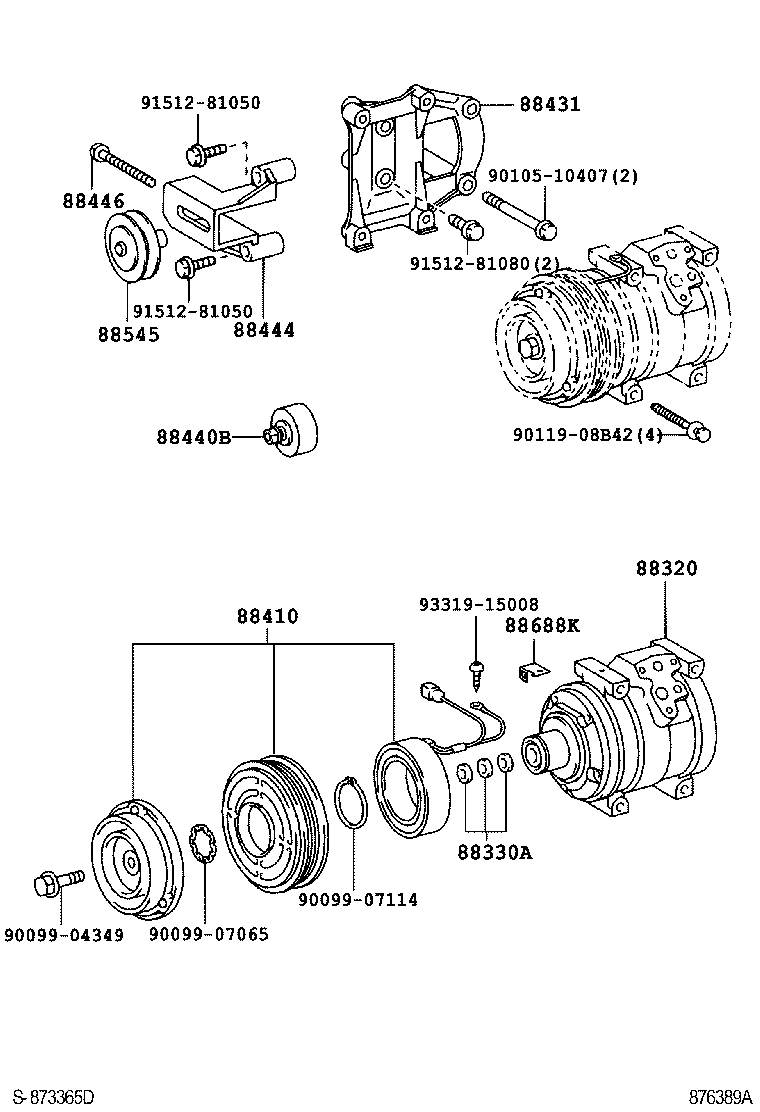

Heating & Air Conditioning - Compressor
11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88389A | Wire, Compressor |
| 88410 | Clutch Assy, Magnet |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88545 | Pulley Assy, Idle |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
