Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

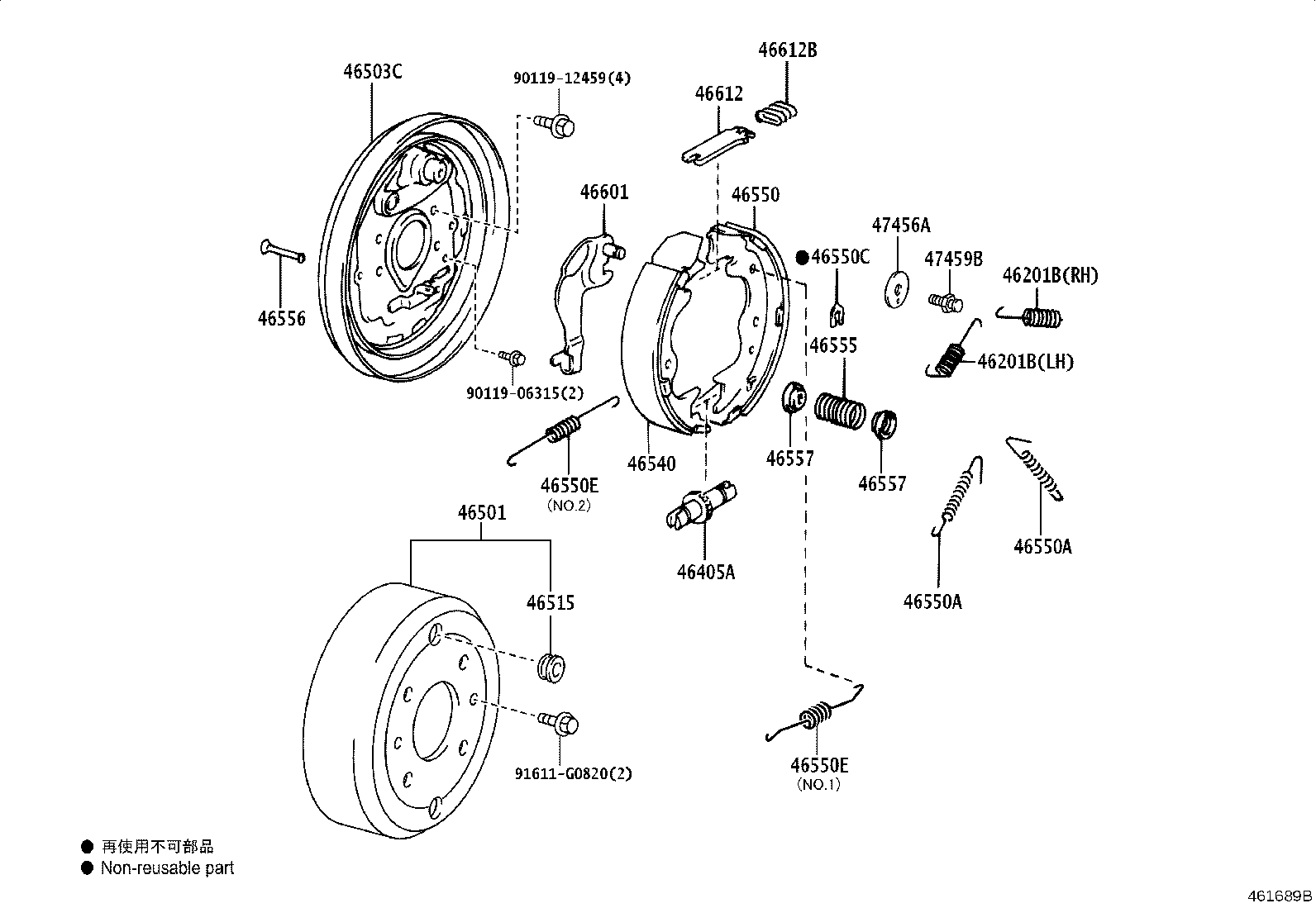

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46201B — Spring, Tension | ||||
| 90507-20020 note |
Spring, Tension
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 90507-20020 note |
Spring, Tension
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 90507-20021 note |
Spring, Tension
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 90507-20021 note |
Spring, Tension
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 90507-20020 note |
Spring, Tension
2019-11 → —
|
XZU710,720 GEN | — | |
| 90507-20021 note |
Spring, Tension
2019-11 → —
|
XZU710,720 GEN | — | |
| 46405A — Screw Set, Shoe Adjusting, RH | ||||
| 47405-36010 |
Screw Set, Shoe Adjusting, RH
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 47405-36010 |
Screw Set, Shoe Adjusting, RH
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00289 |
Screw Set, Shoe Adjusting, RH
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00289 |
Screw Set, Shoe Adjusting, RH
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 47405-36010 |
Screw Set, Shoe Adjusting, RH
2019-11 → —
|
XZU710,720 GEN | — | |
| 46501 — Drum Sub-assy, Parking Brake | ||||
| 46501-37050 |
Drum Sub-assy, Parking Brake
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 46501-37180 |
Drum Sub-assy, Parking Brake
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 46511-37080 |
Drum Sub-assy, Parking Brake
2011-07 → 2019-04
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 46511-37080 |
Drum Sub-assy, Parking Brake
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 46511-37200 |
Drum Sub-assy, Parking Brake
2019-05 → 2020-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 46501-37090 |
Drum Sub-assy, Parking Brake
2019-11 → —
|
XZU710,720 GEN | — | |
| 46503C — Plate Sub-assy, Parking Brake | ||||
| 46503-37691 |
Plate Sub-assy, Parking Brake
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 46503-37691 |
Plate Sub-assy, Parking Brake
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU710,720 LHD +2 | — | |
| 46503-37710 |
Plate Sub-assy, Parking Brake
2011-07 → 2020-05
ended
|
WU710 RHD 75T;WU700,710,720 65T | — | |
| SU002-00296 |
Plate Sub-assy, Parking Brake
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00296 |
Plate Sub-assy, Parking Brake
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 46503-37E90 |
Plate Sub-assy, Parking Brake
2019-11 → —
|
XZU710,720 GEN | — | |
| 46515 — Cover, Inspection Hole | ||||
| 46515-37040 |
Cover, Inspection Hole
2019-11 → —
|
XZU710,720 GEN | — | |
| 46540 — Shoe Assy, Parking Brake, RH OR Center NO.1 | ||||
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 46540-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00286 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00286 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 46540-37060 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2019-11 → —
|
XZU710,720 GEN | — | |
| 46550 — Shoe Assy, Parking Brake, RH OR Center NO.2 | ||||
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 46550-37040 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00286 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00286 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 46550-37050 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2019-11 → —
|
XZU710,720 GEN | — | |
| 46550A — Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| SU002-00287 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00287 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 90905-06020 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2019-11 → —
|
XZU710,720 GEN | — | |
| 46550C — Washer, Type C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 90213-06003 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00299 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00299 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 90213-07002 |
Washer, Type C(FOR PARKING BRAKE SHOE)
2019-11 → —
|
XZU710,720 GEN | — | |
| 46550E — Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 90506-23049 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00288 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00288 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 90506-14054 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2019-11 → —
|
XZU710,720 GEN | — | |
| 90506-23055 note |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2019-11 → —
|
XZU710,720 GEN | — | |
| 46555 — Spring, Brake Shoe Hold Down | ||||
| 90501-16108 |
Spring, Brake Shoe Hold Down
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00290 |
Spring, Brake Shoe Hold Down
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00290 |
Spring, Brake Shoe Hold Down
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 90501-16108 |
Spring, Brake Shoe Hold Down
2019-11 → —
|
XZU710,720 GEN | — | |
| 46556 — Pin, Shoe Hold Down Spring | ||||
| 47447-20030 |
Pin, Shoe Hold Down Spring
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| SU002-00297 |
Pin, Shoe Hold Down Spring
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00297 |
Pin, Shoe Hold Down Spring
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 47447-20030 |
Pin, Shoe Hold Down Spring
2019-11 → —
|
XZU710,720 GEN | — | |
| 46557 — Cup, Brake Shoe Hold Down | ||||
| 47449-20011 |
Cup, Brake Shoe Hold Down
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 47449-20011 |
Cup, Brake Shoe Hold Down
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00303 |
Cup, Brake Shoe Hold Down
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00303 |
Cup, Brake Shoe Hold Down
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 47449-20011 |
Cup, Brake Shoe Hold Down
2019-11 → —
|
XZU710,720 GEN | — | |
| 46601 — Lever Sub-assy, Parking Brake Shoe | ||||
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 46601-36051 |
Lever Sub-assy, Parking Brake Shoe
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00993 |
Lever Sub-assy, Parking Brake Shoe
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| SU002-00993 |
Lever Sub-assy, Parking Brake Shoe
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 46601-37E80 |
Lever Sub-assy, Parking Brake Shoe
2019-11 → —
|
XZU710,720 GEN | — | |
| 46612 — Strut, Parking Brake Shoe Lever | ||||
| 46612-36050 |
Strut, Parking Brake Shoe Lever
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 46612-36050 |
Strut, Parking Brake Shoe Lever
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00294 |
Strut, Parking Brake Shoe Lever
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00294 |
Strut, Parking Brake Shoe Lever
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 46612-36050 |
Strut, Parking Brake Shoe Lever
2019-11 → —
|
XZU710,720 GEN | — | |
| 46612B — Spring, Compression(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 90504-10010 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| SU002-00295 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00295 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 90504-10010 |
Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
2019-11 → —
|
XZU710,720 GEN | — | |
| 47456A — Plate, Shoe Guide(FOR PARKING BRAKE) | ||||
| 47456-20030 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2011-07 → 2014-01
ended
|
WU700,710,720,XZU710 5F,6FC | — | |
| 47456-35010 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2014-01 → 2015-05
ended
|
XZU710 CBU | — | |
| 47456-35010 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2014-01 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| SU002-00292 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2011-07 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| SU002-00292 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2011-07 → 2019-05
ended
|
WU710,720,XZU710,720 6F GCC | — | |
| 47456-35010 |
Plate, Shoe Guide(FOR PARKING BRAKE)
2019-11 → —
|
XZU710,720 GEN | — | |
| 47459B — Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) | ||||
| 47459-30010 |
Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 47459-30010 |
Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2011-07 → 2020-05
ended
|
XZU710 5F GCC;WU700,710,720 5F | — | |
| 47459-30010 |
Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
2019-11 → —
|
XZU710,720 GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
