Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

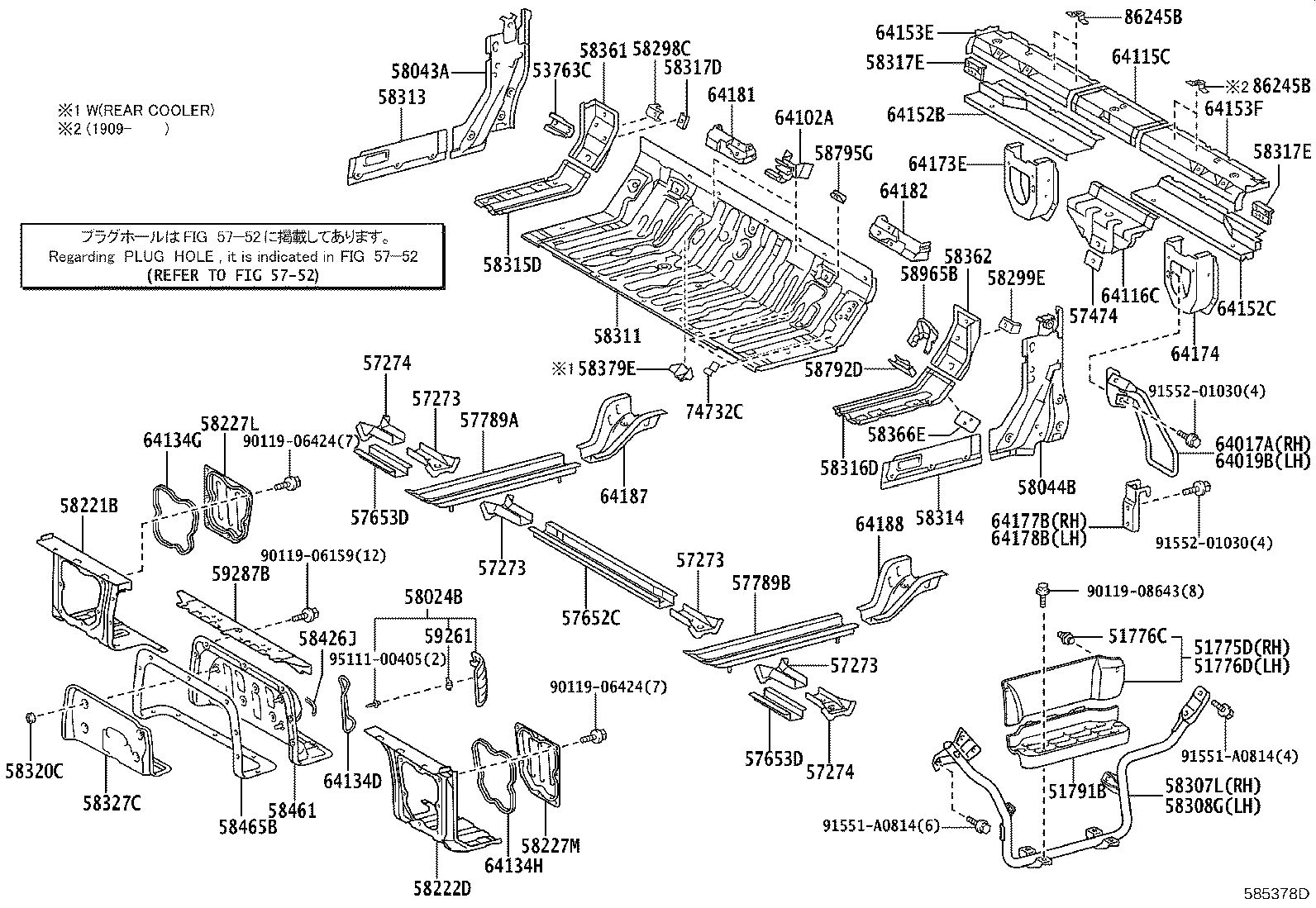

Exploded illustration 585378D 5752 — not listed in this catalogue 51776D — PLATE, SIDE STEP, LH (2 parts) 51775D — PLATE, SIDE STEP, RH (2 parts) 51776C — CLIP(FOR STEP PLATE) (2 parts) 51791B — PANEL, REAR STEP (3 parts) 53763C — BRACKET, AIR CLEANER INLET MOUNTING (1 parts) 57273 — GUSSET, REAR FLOOR CROSS, NO.1 (1 parts) 57273 — GUSSET, REAR FLOOR CROSS, NO.1 (1 parts) 57273 — GUSSET, REAR FLOOR CROSS, NO.1 (1 parts) 57273 — GUSSET, REAR FLOOR CROSS, NO.1 (1 parts) 57274 — GUSSET, REAR FLOOR CROSS, NO.2 (1 parts) 57274 — GUSSET, REAR FLOOR CROSS, NO.2 (1 parts) 57474 — PLATE, BELT ANCHOR, NO.1 (1 parts) 57652C — MEMBER, REAR FLOOR CROSS, NO.1 (1 parts) 57653D — MEMBER, REAR FLOOR CROSS, NO.2 (1 parts) 57653D — MEMBER, REAR FLOOR CROSS, NO.2 (1 parts) 57789A — REINFORCEMENT, REAR FLOOR MOUNTING, RH (8 parts) 57789B — REINFORCEMENT, REAR FLOOR MOUNTING, LH (8 parts) 58024B — COVER SUB-ASSY, HEADER PANEL (1 parts) 58043A — PANEL SUB-ASSY, FLOOR SIDE, REAR RH (1 parts) 58044B — PANEL SUB-ASSY, FLOOR SIDE, REAR LH (1 parts) 58227L — COVER, HEADER PANEL, RH (1 parts) 58227M — COVER, HEADER PANEL, LH (1 parts) 58298C — REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH (1 parts) 58299E — REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH (1 parts) 58307L — PANEL SUB-ASSY, STEP, RH (1 parts) 58308G — PANEL SUB-ASSY, STEP, LH (1 parts) 58311 — PAN, REAR FLOOR (5 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (1 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (1 parts) 58315D — EXTENSION, REAR FLOOR PAN, RH (1 parts) 58316D — EXTENSION, REAR FLOOR PAN, LH (1 parts) 58317D — RETAINER, REAR SEAT ANCHOR, NO.1 (1 parts) 58317E — RETAINER, REAR SEAT, NO.2 (2 parts) 58317E — RETAINER, REAR SEAT, NO.2 (2 parts) 58320C — CLIP(FOR REAR FLOOR SERVICE HOLE COVER) (1 parts) 58327C — INSULATOR, TRANSMISSION SERVICE HOLE COVER (1 parts) 58361 — REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH (1 parts) 58362 — REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH (1 parts) 58379E — BRACKET, HEATER HOSE CLAMP (2 parts) 58461 — COVER, TRANSMISSION SERVICE HOLE (1 parts) 58792D — SUPPORT, JACK (1 parts) 58795G — PLATE, JACK CLAMP (1 parts) 58965B — HOLDER, JACK (1 parts) 59261 — HOLDER, INSPECTION HOLE COVER LOCK (1 parts) 64017A — REINFORCE SUB-ASSY, REAR MOUNTING BRACKET (1 parts) 64019B — REINFORCE SUB-ASSY, REAR MOUNTING BRACKET, LH (1 parts) 64102A — BRACKET SUB-ASSY, JACK HANDLE SUPPORT (1 parts) 64115C — REINFORCEMENT, UPPER BACK, CENTER (1 parts) 86245B — BRACKET, VOLTAGE CONVERTER (2 parts) 64116C — REINFORCEMENT, UPPER BACK, NO.2 (1 parts) 64134D — PACKING, HEADER PANEL COVER (1 parts) 64134G — PACKING, HEADER PANEL COVER, RH (1 parts) 64134H — PACKING, HEADER PANEL COVER, LH (1 parts) 64152B — FRAME, BACK, LOWER RH (1 parts) 64152C — FRAME, BACK, LOWER LH (1 parts) 64153E — FRAME, BACK, REAR RH (1 parts) 64153F — FRAME, BACK, REAR LH (1 parts) 64177B — STOPPER, REAR MOUNTING BRACKET, RH (1 parts) 64178B — STOPPER, REAR MOUNTING BRACKET, LH (1 parts) 64181 — REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR (2 parts) 64182 — REINFORCEMENT, REAR SEAT BELT ANCHOR, NO.2 (2 parts) 64187 — REINFORCE, REAR MOUNTING BRACKET, LOWER RH (1 parts) 64188 — REINFORCE, REAR MOUNTING BRACKET, LOWER LH (1 parts) 74732C — BRACKET, TOOL BAG SET BAND (1 parts) 9011906424 — not listed in this catalogue 9011906424 — not listed in this catalogue 9011906159 — not listed in this catalogue 91551A0814 — not listed in this catalogue 91551A0814 — not listed in this catalogue 9155201030 — not listed in this catalogue 9511100405 — not listed in this catalogue 58465B — PACKING, TRANSMISSION SERVICE HOLE COVER (1 parts) 58221B — PANEL, HEADER, RH (1 parts) 58222D — PANEL, HEADER, LH (1 parts) 59287B — BASE, TRANSMISSION COVER, CENTER (1 parts) 58426J — PROTECTOR, ENGINE SUB COVER (1 parts) 64174 — BRACKET, REAR MOUNTING, LOWER LH (1 parts) 9155201030 — not listed in this catalogue 64173E — BRACKET, REAR MOUNTING, LOWER RH (1 parts) 58366E — RETAINER, JACK COVER (1 parts) 9011908643 — not listed in this catalogue 86245B — BRACKET, VOLTAGE CONVERTER (2 parts)
585378D · 73 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
51775D — Plate, Side Step, RH
51775-37090 Plate, Side Step, RH
2011-08 → 2014-08 ended
XZU710 GCC IV3 —
51775-37091 Plate, Side Step, RH
2014-09 → 2020-05 ended
XZU710 DCB —
51776C — Clip(FOR STEP PLATE)
67771-89109 Clip(FOR STEP PLATE)
2011-08 → 2014-08 ended
XZU710 GCC IV3 —
90467-10161 Clip(FOR STEP PLATE)
2014-09 → 2020-05 ended
XZU710 DCB —
51776D — Plate, Side Step, LH
51776-37110 Plate, Side Step, LH
2011-08 → 2014-08 ended
XZU710 GCC IV3 —
51776-37111 Plate, Side Step, LH
2014-09 → 2020-05 ended
XZU710 DCB —
51791B — Panel, Rear Step
51791-37040 Panel, Rear Step
2011-08 → 2014-10 ended
XZU710 GCC IV3 —
51791-37041 Panel, Rear Step
2014-11 → 2015-01 ended
XZU710 GCC IV3 —
51791-37042 Panel, Rear Step
2015-01 → 2020-05 ended
XZU710 DCB —
53763C — Bracket, Air Cleaner Inlet Mounting
53763-37100 Bracket, Air Cleaner Inlet Mounting
2011-08 → 2020-05 ended
XZU710 DCB —
57273 — Gusset, Rear Floor Cross, NO.1
57273-37011 Gusset, Rear Floor Cross, NO.1
2011-08 → 2020-05 ended
XZU710 DCB —
57274 — Gusset, Rear Floor Cross, NO.2
57274-37040 Gusset, Rear Floor Cross, NO.2
2011-08 → 2020-05 ended
XZU710 DCB —
57474 — Plate, Belt Anchor, NO.1
57474-37010 Plate, Belt Anchor, NO.1
2011-08 → 2020-05 ended
XZU710 DCB —
57652C — Member, Rear Floor Cross, NO.1
57652-37020 Member, Rear Floor Cross, NO.1
2011-08 → 2020-05 ended
XZU710 DCB —
57653D — Member, Rear Floor Cross, NO.2
57653-37011 Member, Rear Floor Cross, NO.2
2011-08 → 2020-05 ended
XZU710 DCB —
57789A — Reinforcement, Rear Floor Mounting, RH
57789-37050 Reinforcement, Rear Floor Mounting, RH
2011-08 → 2017-02 ended
XZU710 DCB —
57789-37050 Reinforcement, Rear Floor Mounting, RH
2017-06 → 2017-09 ended
XZU710 DCB —
57789-37051 Reinforcement, Rear Floor Mounting, RH
2017-03 → 2017-06 ended
XZU710 DCB —
57789-37060 note Reinforcement, Rear Floor Mounting, RH
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
57789-37060 note Reinforcement, Rear Floor Mounting, RH
2017-06 → 2017-09 ended
XZU710 DCB —
57789-37060 note Reinforcement, Rear Floor Mounting, RH
2011-08 → 2017-02 ended
XZU710 DCB —
57789-37061 note Reinforcement, Rear Floor Mounting, RH
2017-03 → 2017-06 ended
XZU710 DCB —
57789-37070 Reinforcement, Rear Floor Mounting, RH
2017-09 → 2020-05 ended
XZU710 DCB —
57789B — Reinforcement, Rear Floor Mounting, LH
57789-37050 Reinforcement, Rear Floor Mounting, LH
2011-08 → 2017-02 ended
XZU710 DCB —
57789-37050 Reinforcement, Rear Floor Mounting, LH
2017-06 → 2017-09 ended
XZU710 DCB —
57789-37051 Reinforcement, Rear Floor Mounting, LH
2017-03 → 2017-06 ended
XZU710 DCB —
57789-37060 note Reinforcement, Rear Floor Mounting, LH
2017-06 → 2017-09 ended
XZU710 DCB —
57789-37060 note Reinforcement, Rear Floor Mounting, LH
2011-08 → 2017-02 ended
XZU710 DCB —
57789-37060 note Reinforcement, Rear Floor Mounting, LH
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
57789-37061 note Reinforcement, Rear Floor Mounting, LH
2017-03 → 2017-06 ended
XZU710 DCB —
57789-37080 Reinforcement, Rear Floor Mounting, LH
2017-09 → 2020-05 ended
XZU710 DCB —
58024B — Cover Sub-assy, Header Panel
58024-37030 Cover Sub-assy, Header Panel
2011-08 → 2020-05 ended
XZU710 DCB —
58043A — Panel Sub-assy, Floor Side, Rear RH
58043-37120 Panel Sub-assy, Floor Side, Rear RH
2011-08 → 2020-05 ended
XZU710 DCB —
58044B — Panel Sub-assy, Floor Side, Rear LH
58044-37130 Panel Sub-assy, Floor Side, Rear LH
2011-08 → 2020-05 ended
XZU710 DCB —
58221B — Panel, Header, RH
58221-37120 Panel, Header, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58222D — Panel, Header, LH
58222-37150 Panel, Header, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58227L — Cover, Header Panel, RH
58227-37090 Cover, Header Panel, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58227M — Cover, Header Panel, LH
58227-37100 Cover, Header Panel, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58298C — Reinforcement, Seat Belt Anchor Floor, RH
58298-95400 Reinforcement, Seat Belt Anchor Floor, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58299E — Reinforcement, Seat Belt Anchor Floor, LH
58298-95400 Reinforcement, Seat Belt Anchor Floor, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58307L — Panel Sub-assy, Step, RH
58307-37090 Panel Sub-assy, Step, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58308G — Panel Sub-assy, Step, LH
58308-37060 Panel Sub-assy, Step, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58311 — Pan, Rear Floor
58311-37440 Pan, Rear Floor
2011-08 → 2014-09 ended
XZU710 GCC IV3 —
58311-37441 Pan, Rear Floor
2014-09 → 2020-05 ended
XZU710 DCB —
58311-37450 note Pan, Rear Floor
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
58311-37450 note Pan, Rear Floor
2011-08 → 2014-09 ended
XZU710 GCC IV3 —
58311-37451 note Pan, Rear Floor
2014-09 → 2020-05 ended
XZU710 DCB —
58313 — Panel, Rear Floor Side, RH
58313-37110 Panel, Rear Floor Side, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58314 — Panel, Rear Floor Side, LH
58314-37110 Panel, Rear Floor Side, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58315D — Extension, Rear Floor Pan, RH
58315-37120 Extension, Rear Floor Pan, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58316D — Extension, Rear Floor Pan, LH
58316-37090 Extension, Rear Floor Pan, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58317D — Retainer, Rear Seat Anchor, NO.1
58317-37010 Retainer, Rear Seat Anchor, NO.1
2011-08 → 2020-05 ended
XZU710 DCB —
58317E — Retainer, Rear Seat, NO.2
58317-37020 Retainer, Rear Seat, NO.2
2011-08 → 2017-04 ended
XZU710 DCB —
58317-37030 Retainer, Rear Seat, NO.2
2017-05 → 2020-05 ended
XZU710 DCB —
58320C — Clip(FOR REAR FLOOR SERVICE HOLE COVER)
90467-06206-C0 note Clip(FOR REAR FLOOR SERVICE HOLE COVER)
2011-08 → 2020-05 ended
XZU710 DCB —
58327C — Insulator, Transmission Service Hole Cover
58327-37140 Insulator, Transmission Service Hole Cover
2011-08 → 2020-05 ended
XZU710 DCB —
58361 — Reinforcement, Rear Floor Pan TO Body Lower Back, RH
58361-37020 Reinforcement, Rear Floor Pan TO Body Lower Back, RH
2011-08 → 2020-05 ended
XZU710 DCB —
58362 — Reinforcement, Rear Floor Pan TO Body Lower Back, LH
58362-37020 Reinforcement, Rear Floor Pan TO Body Lower Back, LH
2011-08 → 2020-05 ended
XZU710 DCB —
58366E — Retainer, Jack Cover
58366-37010 Retainer, Jack Cover
2014-09 → 2020-05 ended
XZU710 DCB —
58379E — Bracket, Heater Hose Clamp
58379-37040 note Bracket, Heater Hose Clamp
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
58379-37040 note Bracket, Heater Hose Clamp
2011-08 → 2020-05 ended
XZU710 DCB —
58426J — Protector, Engine Sub Cover
58426-95405 Protector, Engine Sub Cover
2011-08 → 2020-05 ended
XZU710 DCB —
58461 — Cover, Transmission Service Hole
58461-37170 Cover, Transmission Service Hole
2011-08 → 2020-05 ended
XZU710 DCB —
58465B — Packing, Transmission Service Hole Cover
58465-37130 Packing, Transmission Service Hole Cover
2011-08 → 2020-05 ended
XZU710 DCB —
58792D — Support, Jack
58792-37010 Support, Jack
2011-08 → 2020-05 ended
XZU710 DCB —
58795G — Plate, Jack Clamp
58795-95500 Plate, Jack Clamp
2011-08 → 2020-05 ended
XZU710 DCB —
58965B — Holder, Jack
58965-95400 Holder, Jack
2011-08 → 2020-05 ended
XZU710 DCB —
59261 — Holder, Inspection Hole Cover Lock
59261-37020 Holder, Inspection Hole Cover Lock
2011-08 → 2020-05 ended
XZU710 DCB —
59287B — Base, Transmission Cover, Center
59287-37060 Base, Transmission Cover, Center
2011-08 → 2020-05 ended
XZU710 DCB —
64017A — Reinforce Sub-assy, Rear Mounting Bracket
64017-37020 Reinforce Sub-assy, Rear Mounting Bracket
2011-08 → 2020-05 ended
XZU710 DCB —
64019B — Reinforce Sub-assy, Rear Mounting Bracket, LH
64019-37060 Reinforce Sub-assy, Rear Mounting Bracket, LH
2011-08 → 2020-05 ended
XZU710 DCB —
64102A — Bracket Sub-assy, Jack Handle Support
64102-37010 Bracket Sub-assy, Jack Handle Support
2011-08 → 2020-05 ended
XZU710 DCB —
64115C — Reinforcement, Upper Back, Center
64115-37140 Reinforcement, Upper Back, Center
2011-08 → 2020-05 ended
XZU710 DCB —
64116C — Reinforcement, Upper Back, NO.2
64116-37020 Reinforcement, Upper Back, NO.2
2011-08 → 2020-05 ended
XZU710 DCB —
64134D — Packing, Header Panel Cover
64134-37040 Packing, Header Panel Cover
2011-08 → 2020-05 ended
XZU710 DCB —
64134G — Packing, Header Panel Cover, RH
64134-37050 Packing, Header Panel Cover, RH
2011-08 → 2020-05 ended
XZU710 DCB —
64134H — Packing, Header Panel Cover, LH
64134-37060 Packing, Header Panel Cover, LH
2011-08 → 2020-05 ended
XZU710 DCB —
64152B — Frame, Back, Lower RH
64152-37031 Frame, Back, Lower RH
2011-08 → 2020-05 ended
XZU710 DCB —
64152C — Frame, Back, Lower LH
64152-37051 Frame, Back, Lower LH
2011-08 → 2020-05 ended
XZU710 DCB —
64153E — Frame, Back, Rear RH
64153-37090 Frame, Back, Rear RH
2011-08 → 2020-05 ended
XZU710 DCB —
64153F — Frame, Back, Rear LH
64153-37100 Frame, Back, Rear LH
2011-08 → 2020-05 ended
XZU710 DCB —
64173E — Bracket, Rear Mounting, Lower RH
64173-37070 Bracket, Rear Mounting, Lower RH
2014-09 → 2020-05 ended
XZU710 DCB —
64174 — Bracket, Rear Mounting, Lower LH
64174-37030 Bracket, Rear Mounting, Lower LH
2014-09 → 2020-05 ended
XZU710 DCB —
64177B — Stopper, Rear Mounting Bracket, RH
64177-37100 Stopper, Rear Mounting Bracket, RH
2011-08 → 2020-05 ended
XZU710 DCB —
64178B — Stopper, Rear Mounting Bracket, LH
64177-37100 Stopper, Rear Mounting Bracket, LH
2011-08 → 2020-05 ended
XZU710 DCB —
64181 — Reinforcement Sub-assy, Rear Seat Belt Anchor
64181-37060 Reinforcement Sub-assy, Rear Seat Belt Anchor
2011-08 → 2014-09 ended
XZU710 GCC IV3 —
64181-37080 Reinforcement Sub-assy, Rear Seat Belt Anchor
2014-09 → 2020-05 ended
XZU710 DCB —
64182 — Reinforcement, Rear Seat Belt Anchor, NO.2
64182-37190 Reinforcement, Rear Seat Belt Anchor, NO.2
2011-08 → 2014-09 ended
XZU710 GCC IV3 —
64182-37220 Reinforcement, Rear Seat Belt Anchor, NO.2
2014-09 → 2020-05 ended
XZU710 DCB —
64187 — Reinforce, Rear Mounting Bracket, Lower RH
64187-37050 Reinforce, Rear Mounting Bracket, Lower RH
2011-08 → 2020-05 ended
XZU710 DCB —
64188 — Reinforce, Rear Mounting Bracket, Lower LH
64187-37050 Reinforce, Rear Mounting Bracket, Lower LH
2011-08 → 2020-05 ended
XZU710 DCB —
74732C — Bracket, Tool Bag Set Band
74732-95600 Bracket, Tool Bag Set Band
2011-08 → 2020-05 ended
XZU710 DCB —
86245B — Bracket, Voltage Converter
86245-37080 Bracket, Voltage Converter
2013-09 → 2019-09 ended
XZU710 DCB —
86245-37080 Bracket, Voltage Converter
2019-09 → 2020-05 ended
XZU710 DCB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
