Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

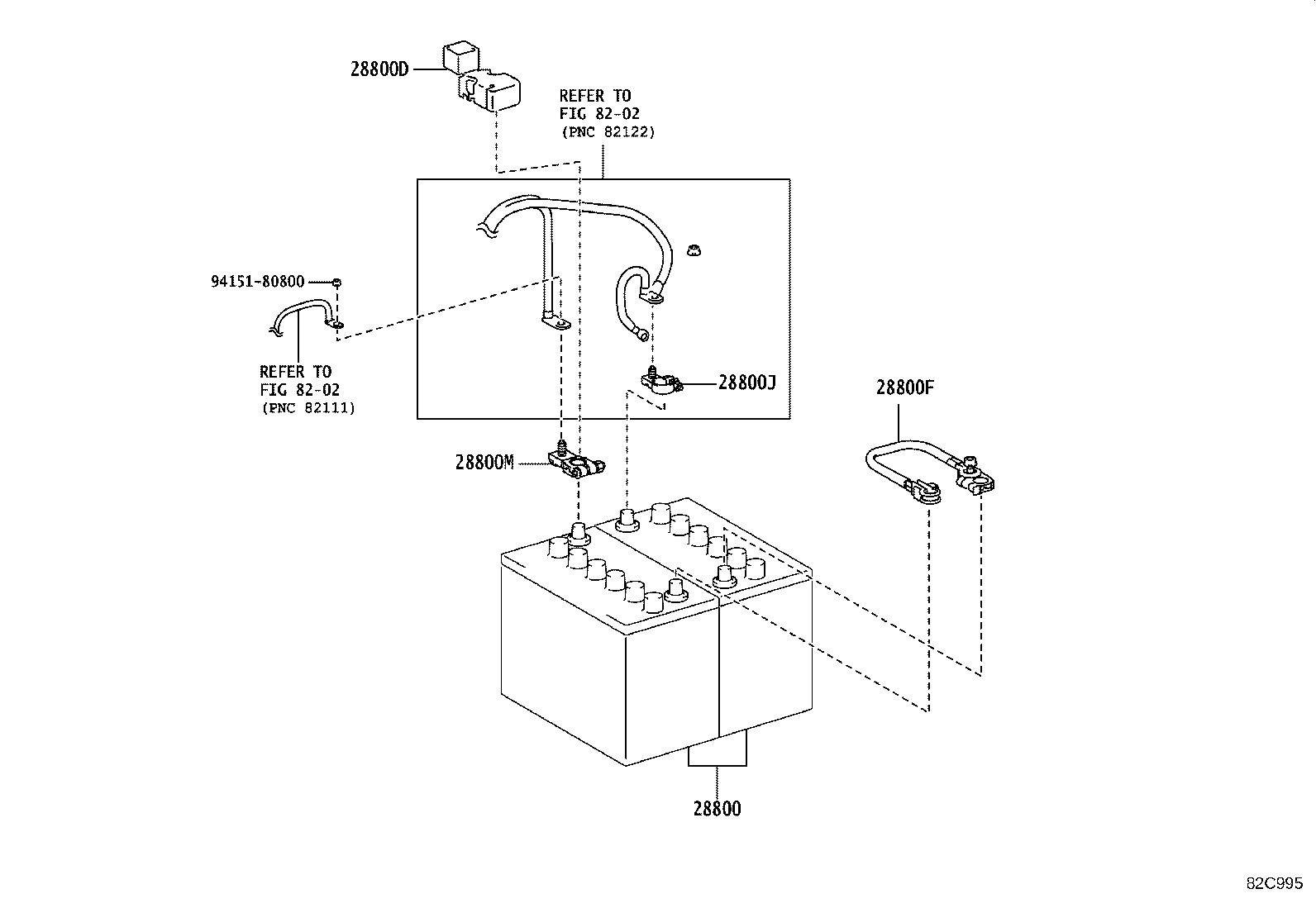

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-42041 note |
Battery
2011-07 → 2012-01
ended
|
N04C,W04D WU700,710,720,XZU710 | — | |
| 28800-56080 note |
Battery
2011-07 → 2012-01
ended
|
N04C,W04D WU700,710,720,XZU710 | — | |
| 28800-56081 note |
Battery
2012-02 → 2013-10
ended
|
N04C,W04D WU700,710,720,XZU710,720,730 | — | |
| 28800-56082 note |
Battery
2013-11 → 2020-05
ended
|
W04D WU700,710,720;N04C XZU710,720 MTM +1 | — | |
| 28800-56082 note |
Battery
2013-11 → 2015-12
ended
|
N04C XZU710,720,730 EUR | — | |
| 28800-56082 note |
Battery
2013-11 → 2015-05
ended
|
N04C XZU710 CBU | — | |
| 28800-64011 note |
Battery
2012-02 → 2012-06
ended
|
N04C,W04D WU700,710,720,XZU710 | — | |
| 28800-64012 note |
Battery
2013-11 → 2020-05
ended
|
W04D WU700,710,720;N04C XZU710,720 MTM +1 | — | |
| 28800-64012 note |
Battery
2012-06 → 2013-10
ended
|
N04C,W04D WU700,710,720,XZU710,720,730 | — | |
| 28800-64012 note |
Battery
2013-11 → 2015-12
ended
|
N04C XZU710,720,730 EUR | — | |
| 28800-64012 note |
Battery
2013-11 → 2015-05
ended
|
N04C XZU710 CBU | — | |
| 28800-66013 note |
Battery
2012-06 → 2020-05
ended
|
W04D WU700,710,720;N04C XZU710,720 MTM +1 | — | |
| 28800-66013 note |
Battery
2012-06 → 2015-12
ended
|
N04C XZU710,720,730 EUR | — | |
| 28800-66013 note |
Battery
2012-06 → 2015-05
ended
|
N04C XZU710 CBU | — | |
| 28800-66013 note |
Battery
2011-07 → 2012-01
ended
|
N04C,W04D WU700,710,720,XZU710 | — | |
| 28800-78100 note |
Battery
2011-08 → 2012-01
ended
|
N04C,W04D WU700,710,720,XZU710 | — | |
| 28800-78101 note |
Battery
2012-02 → 2015-05
ended
|
N04C XZU710 CBU | — | |
| 28800-78101 note |
Battery
2012-02 → 2020-05
ended
|
W04D WU700,710,720;N04C XZU710,720 MTM +1 | — | |
| 28800-78101 note |
Battery
2012-02 → 2015-12
ended
|
N04C XZU710,720,730 EUR | — | |
| 28800-78120 note |
Battery
2012-02 → 2012-06
ended
|
N04C,W04D WU700,710,720,XZU710 | — | |
| 28800-54022 note |
Battery
2019-11 → 2023-05
ended
|
N04C XZU710,720 GEN | — | |
| 28800-54023 note |
Battery
2023-06 → —
|
N04C XZU710,720 GEN | — | |
| 28800-56082 note |
Battery
2019-11 → 2023-06
ended
|
N04C XZU710,720 GEN | — | |
| 28800-56083 note |
Battery
2023-07 → —
|
N04C XZU710,720 GEN | — | |
| 28800-64012 note |
Battery
2019-11 → 2023-05
ended
|
N04C XZU710,720 GEN | — | |
| 28800-64013 note |
Battery
2023-06 → —
|
N04C XZU710,720 GEN | — | |
| 28800-E0051 note |
Battery
2019-11 → —
|
N04C XZU710,720 GEN | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
Cover, Connector(FOR BATTERY TERMINAL)
2019-11 → —
|
N04C XZU710,720 GEN | — | |
| 28800F — Cable, Battery TO Battery | ||||
| 82123-37220 |
Cable, Battery TO Battery
2011-07 → 2015-05
ended
|
N04C XZU710 CBU | — | |
| 82123-37220 |
Cable, Battery TO Battery
2011-07 → 2015-12
ended
|
N04C XZU710,720,730 EUR | — | |
| 82123-37220 |
Cable, Battery TO Battery
2011-07 → 2017-01
ended
|
N04C,W04D WU700,710,720,XZU710,720 MTM (GCC,GEN) | — | |
| 82123-37260 |
Cable, Battery TO Battery
2017-01 → 2020-05
ended
|
W04D WU710,720;N04C XZU710,720 MTM +1 | — | |
| 82123-37260 |
Cable, Battery TO Battery
2019-11 → —
|
N04C XZU710,720 GEN | — | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06060 |
Terminal, Battery Negative
2019-11 → —
|
N04C XZU710,720 GEN | — | |
| 28800M — Terminal, Battery Positive | ||||
| 90982-05062 |
Terminal, Battery Positive
2019-11 → —
|
N04C XZU710,720 GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
