Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

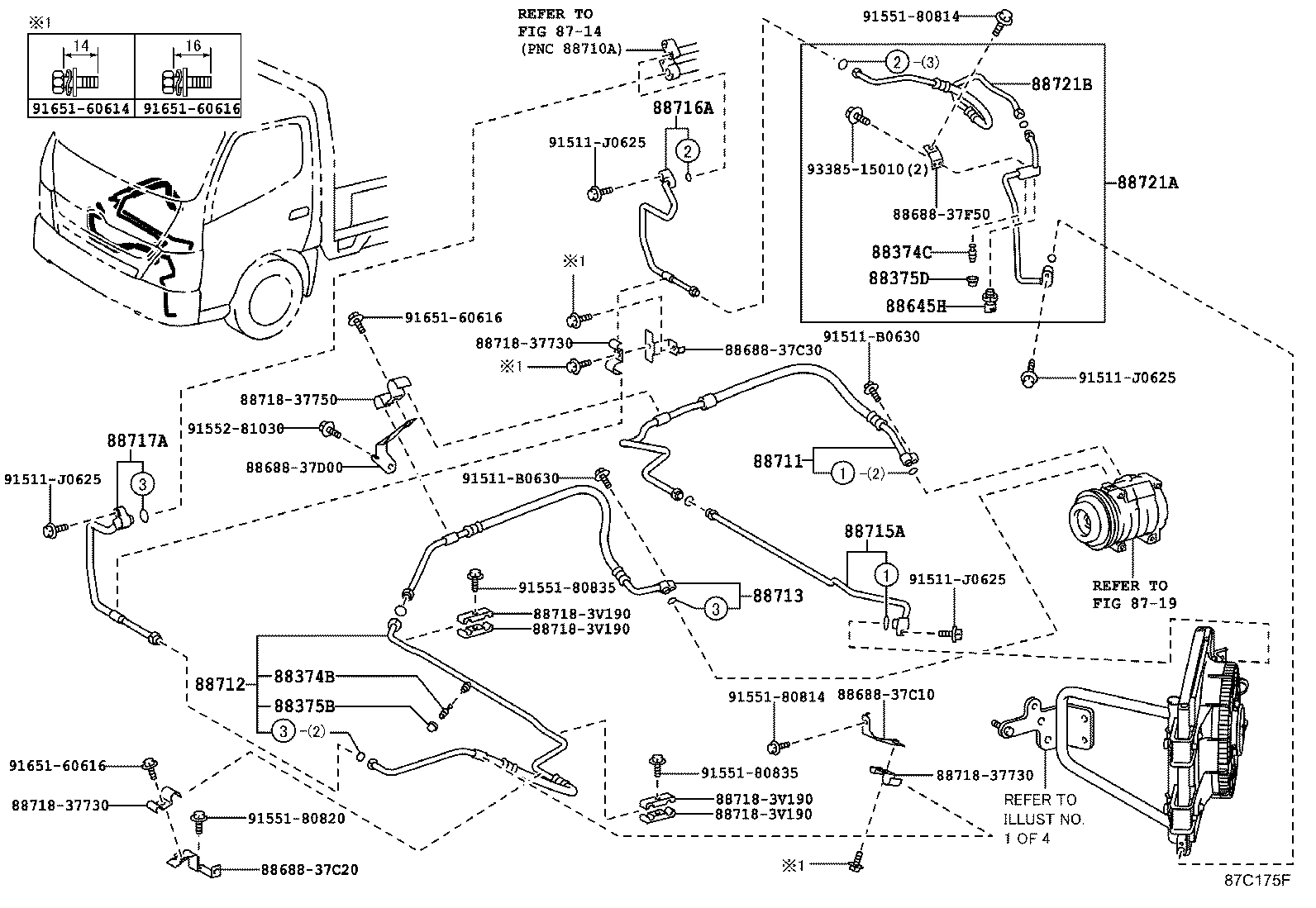

Exploded illustration 87C175F 9155180814 — not listed in this catalogue 8868837C10 — not listed in this catalogue 8871837730 — not listed in this catalogue 9155180820 — not listed in this catalogue 8868837C20 — not listed in this catalogue 8871837730 — not listed in this catalogue 9165160616 — not listed in this catalogue 8868837C30 — not listed in this catalogue 8871837730 — not listed in this catalogue 91511B0630 — not listed in this catalogue 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (23 parts) 88713 — HOSE, COOLER REFRIGERANT SUCTION, NO.2 (15 parts) 9155281030 — not listed in this catalogue 9165160616 — not listed in this catalogue 8868837D00 — not listed in this catalogue 8871837750 — not listed in this catalogue 91511B0630 — not listed in this catalogue 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (19 parts) 88715A — PIPE, COOLER REFRIGERANT DISCHARGE, A (2 parts) 8714 — not listed in this catalogue 88716A — PIPE, COOLER REFRIGERANT LIQUID, A (15 parts) 91511J0625 — not listed in this catalogue 88717A — PIPE, COOLER REFRIGERANT SUCTION, A (15 parts) 91511J0625 — not listed in this catalogue 9155180835 — not listed in this catalogue 887183V190 — not listed in this catalogue 887183V190 — not listed in this catalogue 9155180835 — not listed in this catalogue 887183V190 — not listed in this catalogue 887183V190 — not listed in this catalogue 91511J0625 — not listed in this catalogue 91511J0625 — not listed in this catalogue 9155180814 — not listed in this catalogue 88721A — HOSE, LIQUID, A (15 parts) 8719 — not listed in this catalogue 88375B — CAP, SERVICE VALVE, NO.1 (13 parts) 88374B — VALVE, SERVICE, NO.1 (13 parts) 88374C — VALVE, SERVICE, NO.2 (13 parts) 88645H — SWITCH, PRESSURE NO.1 (13 parts) 88375D — CAP, SERVICE VALVE, NO.2 (13 parts) 9338515010 — not listed in this catalogue 8868837F50 — not listed in this catalogue 88721B — HOSE, LIQUID, B (2 parts) 9165160614 — not listed in this catalogue 9165160616 — not listed in this catalogue
87C175F · 13 callouts, 32 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
171 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 note Valve, Service, NO.1
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88374-30010 note Valve, Service, NO.1
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88374-30010 Valve, Service, NO.1
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88374-30010 Valve, Service, NO.1
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88374-30010 note Valve, Service, NO.1
2011-07 → 2020-05 ended
WU710 GEN;WU700,720 5F;WU710 85T +1 —
88374-30010 note Valve, Service, NO.1
2011-07 → 2020-05 ended
WU710,720 GEN —
88374-30010 note Valve, Service, NO.1
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88374-30010 note Valve, Service, NO.1
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88374-30010 note Valve, Service, NO.1
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88374-30010 Valve, Service, NO.1
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88374-30010 note Valve, Service, NO.1
2011-07 → 2015-05 ended
XZU710 CBU —
88374-30010 note Valve, Service, NO.1
2019-11 → —
XZU710,720 GEN —
88374-30010 note Valve, Service, NO.1
2019-11 → —
XZU710,720 GEN —
88374C — Valve, Service, NO.2
88374-30010 Valve, Service, NO.2
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88374-30010 Valve, Service, NO.2
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88374-30010 note Valve, Service, NO.2
2011-07 → 2020-05 ended
WU710 GEN;WU700,720 5F;WU710 85T +1 —
88374-30010 note Valve, Service, NO.2
2011-07 → 2020-05 ended
WU710,720 GEN —
88374-30010 note Valve, Service, NO.2
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88374-30010 note Valve, Service, NO.2
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88374-30010 Valve, Service, NO.2
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88374-30010 note Valve, Service, NO.2
2011-07 → 2015-05 ended
XZU710 CBU —
88374-30010 note Valve, Service, NO.2
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88374-30010 note Valve, Service, NO.2
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88374-30010 note Valve, Service, NO.2
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88374-30010 note Valve, Service, NO.2
2019-11 → —
XZU710,720 GEN —
88374-30010 note Valve, Service, NO.2
2019-11 → —
XZU710,720 GEN —
88375B — Cap, Service Valve, NO.1
88375-30290 note Cap, Service Valve, NO.1
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88375-30290 Cap, Service Valve, NO.1
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88375-30290 Cap, Service Valve, NO.1
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88375-30290 note Cap, Service Valve, NO.1
2011-07 → 2020-05 ended
WU710 GEN;WU700,720 5F;WU710 85T +1 —
88375-30290 note Cap, Service Valve, NO.1
2011-07 → 2020-05 ended
WU710,720 GEN —
88375-30290 note Cap, Service Valve, NO.1
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88375-30290 note Cap, Service Valve, NO.1
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88375-30290 Cap, Service Valve, NO.1
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88375-30290 note Cap, Service Valve, NO.1
2011-07 → 2015-05 ended
XZU710 CBU —
88375-30290 note Cap, Service Valve, NO.1
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88375-30290 note Cap, Service Valve, NO.1
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88375-30290 note Cap, Service Valve, NO.1
2019-11 → —
XZU710,720 GEN —
88375-30290 note Cap, Service Valve, NO.1
2019-11 → —
XZU710,720 GEN —
88375D — Cap, Service Valve, NO.2
88375-30280 note Cap, Service Valve, NO.2
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88375-30280 Cap, Service Valve, NO.2
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88375-30280 Cap, Service Valve, NO.2
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88375-30280 note Cap, Service Valve, NO.2
2011-07 → 2020-05 ended
WU710 GEN;WU700,720 5F;WU710 85T +1 —
88375-30280 note Cap, Service Valve, NO.2
2011-07 → 2020-05 ended
WU710,720 GEN —
88375-30280 note Cap, Service Valve, NO.2
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88375-30280 note Cap, Service Valve, NO.2
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88375-30280 note Cap, Service Valve, NO.2
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88375-30280 note Cap, Service Valve, NO.2
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88375-30280 note Cap, Service Valve, NO.2
2011-07 → 2015-05 ended
XZU710 CBU —
88375-30280 Cap, Service Valve, NO.2
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88375-30280 note Cap, Service Valve, NO.2
2019-11 → —
XZU710,720 GEN —
88375-30280 note Cap, Service Valve, NO.2
2019-11 → —
XZU710,720 GEN —
88645H — Switch, Pressure NO.1
88645-34010 note Switch, Pressure NO.1
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88645-34010 note Switch, Pressure NO.1
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88645-34010 note Switch, Pressure NO.1
2011-07 → 2015-05 ended
XZU710 CBU —
88645-34010 Switch, Pressure NO.1
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88645-34010 note Switch, Pressure NO.1
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88645-34010 note Switch, Pressure NO.1
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88645-34010 note Switch, Pressure NO.1
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88645-34010 note Switch, Pressure NO.1
2011-07 → 2020-05 ended
WU710,720 GEN —
88645-34010 note Switch, Pressure NO.1
2011-07 → 2020-05 ended
WU710 GEN;WU700,720 5F;WU710 85T +1 —
88645-34010 Switch, Pressure NO.1
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88645-34010 Switch, Pressure NO.1
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88645-34010 note Switch, Pressure NO.1
2019-11 → —
XZU710,720 GEN —
88645-34010 note Switch, Pressure NO.1
2019-11 → —
XZU710,720 GEN —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-37A90 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2014-05 ended
WU700,710,720 GCC —
88711-37A90 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2020-05 ended
WU700,720 5F;WU710 LHD GEN;WU710 +2 —
88711-37A90 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2020-05 ended
WU710,720 LHD GEN —
88711-37A90 note Hose, Cooler Refrigerant Discharge, NO.1
2016-05 → 2019-12 ended
WU710,720 GCC —
88711-37A90 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2016-05 ended
WU720 6F;WU710 GCC IV3;WU710 +3 —
88711-37A90 Hose, Cooler Refrigerant Discharge, NO.1
2016-05 → 2020-05 ended
WU710,720 GCC —
88711-37B00 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2016-05 ended
XZU720 GCC —
88711-37B00 note Hose, Cooler Refrigerant Discharge, NO.1
2016-05 → 2019-12 ended
XZU710,720 SCB MTM GCC —
88711-37B00 Hose, Cooler Refrigerant Discharge, NO.1
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88711-37B00 Hose, Cooler Refrigerant Discharge, NO.1
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88711-37B00 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2015-05 ended
XZU710 CBU —
88711-37B00 Hose, Cooler Refrigerant Discharge, NO.1
2016-05 → 2020-05 ended
XZU720 75T GCC IV3 —
88711-37B00 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2014-05 ended
XZU710,720 SCB GCC —
88711-37B60 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2020-05 ended
WU710 RHD —
88711-37B60 note Hose, Cooler Refrigerant Discharge, NO.1
2011-07 → 2020-05 ended
WU710 RHD —
88711-3V191 Hose, Cooler Refrigerant Discharge, NO.1
2016-05 → 2020-05 ended
XZU710 DCB —
88711-3V191 note Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88711-3V191 note Hose, Cooler Refrigerant Discharge, NO.1
2016-05 → 2019-12 ended
XZU710 DCB —
88711-3V191 note Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88711-3V191 note Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88711-3V191 note Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88711-37C20 note Hose, Cooler Refrigerant Discharge, NO.1
2019-11 → —
XZU710,720 GEN —
88711-37C20 note Hose, Cooler Refrigerant Discharge, NO.1
2019-11 → —
XZU710,720 GEN —
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-37C30 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2014-05 ended
WU700,710,720 GCC —
88712-37C30 Hose, Cooler Refrigerant Suction, NO.1
2016-05 → 2020-05 ended
WU710,720 GCC —
88712-37C30 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2016-05 ended
WU720 6F;WU710 GCC IV3;WU710 +3 —
88712-37C30 note Hose, Cooler Refrigerant Suction, NO.1
2016-05 → 2019-12 ended
WU710,720 GCC —
88712-37C30 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2020-05 ended
WU700,720 5F;WU710 LHD GEN;WU710 +2 —
88712-37C30 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2020-05 ended
WU710,720 LHD GEN —
88712-37D00 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2020-05 ended
WU710 RHD —
88712-37D00 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2020-05 ended
WU710 RHD —
88712-37D10 note Hose, Cooler Refrigerant Suction, NO.1
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88712-37D10 Hose, Cooler Refrigerant Suction, NO.1
2016-05 → 2020-05 ended
XZU710 DCB;XZU720 75T GCC +1 —
88712-37D10 Hose, Cooler Refrigerant Suction, NO.1
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88712-37D10 note Hose, Cooler Refrigerant Suction, NO.1
2016-05 → 2019-12 ended
XZU710,720 MTM GCC —
88712-37D10 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2016-05 ended
XZU710,720 GCC IV3 —
88712-37D10 Hose, Cooler Refrigerant Suction, NO.1
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88712-37D10 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2015-05 ended
XZU710 CBU —
88712-37D10 note Hose, Cooler Refrigerant Suction, NO.1
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88712-37D10 note Hose, Cooler Refrigerant Suction, NO.1
2011-07 → 2014-05 ended
XZU710,720 GCC —
88712-37F60 note Hose, Cooler Refrigerant Suction, NO.1
2019-11 → —
XZU710,720 GEN —
88712-37F60 note Hose, Cooler Refrigerant Suction, NO.1
2019-11 → —
XZU710,720 GEN —
88713 — Hose, Cooler Refrigerant Suction, NO.2
88712-37B70 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2014-05 ended
XZU710,720 GCC —
88712-37B70 note Hose, Cooler Refrigerant Suction, NO.2
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88712-37B70 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2015-05 ended
XZU710 CBU —
88712-37B70 Hose, Cooler Refrigerant Suction, NO.2
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88712-37B70 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2016-05 ended
XZU710,720 GCC IV3 —
88712-37B70 note Hose, Cooler Refrigerant Suction, NO.2
2011-08 → 2016-05 ended
XZU710 GCC IV3 —
88712-37B70 note Hose, Cooler Refrigerant Suction, NO.2
2016-05 → 2019-12 ended
XZU710,720 MTM GCC —
88712-37B70 Hose, Cooler Refrigerant Suction, NO.2
2016-05 → 2020-05 ended
XZU710 DCB;XZU720 75T GCC +1 —
88712-37B70 Hose, Cooler Refrigerant Suction, NO.2
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88712-37C10 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2020-05 ended
WU710 GEN;WU700,720 5F;WU710 85T +1 —
88712-37C10 Hose, Cooler Refrigerant Suction, NO.2
2016-05 → 2020-05 ended
WU710,720 GCC —
88712-37C10 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2020-05 ended
WU710,720 GEN —
88712-37C10 note Hose, Cooler Refrigerant Suction, NO.2
2016-05 → 2019-12 ended
WU710,720 GCC —
88712-37C10 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2016-05 ended
WU720 6F;WU710 GCC IV3;WU710 +3 —
88712-37C10 note Hose, Cooler Refrigerant Suction, NO.2
2011-07 → 2014-05 ended
WU700,710,720 GCC —
88715A — Pipe, Cooler Refrigerant Discharge, A
88715-37470 note Pipe, Cooler Refrigerant Discharge, A
2011-07 → 2020-05 ended
WU710 RHD —
88715-37470 note Pipe, Cooler Refrigerant Discharge, A
2011-07 → 2020-05 ended
WU710 RHD —
88716A — Pipe, Cooler Refrigerant Liquid, A
88716-37C40 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2020-05 ended
WU710 RHD —
88716-37C40 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2020-05 ended
WU710 RHD —
88716-37D00 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2015-05 ended
XZU710 CBU —
88716-37D00 Pipe, Cooler Refrigerant Liquid, A
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88716-37D00 Pipe, Cooler Refrigerant Liquid, A
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88716-37D00 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2020-05 ended
WU700,720 5F;WU710 LHD GEN;WU710 +2 —
88716-37D00 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2020-05 ended
WU710,720 LHD GEN —
88716-37D00 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88716-37D00 Pipe, Cooler Refrigerant Liquid, A
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88716-37D00 note Pipe, Cooler Refrigerant Liquid, A
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88716-37D00 note Pipe, Cooler Refrigerant Liquid, A
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88716-37D10 note Pipe, Cooler Refrigerant Liquid, A
2011-08 → 2020-05 ended
XZU710 DCB —
88716-37D10 note Pipe, Cooler Refrigerant Liquid, A
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88716-37F50 note Pipe, Cooler Refrigerant Liquid, A
2019-11 → —
XZU710,720 GEN —
88716-37F50 note Pipe, Cooler Refrigerant Liquid, A
2019-11 → —
XZU710,720 GEN —
88717A — Pipe, Cooler Refrigerant Suction, A
88717-37490 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2020-05 ended
WU710 RHD —
88717-37490 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2020-05 ended
WU710 RHD —
88717-37510 Pipe, Cooler Refrigerant Suction, A
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88717-37510 Pipe, Cooler Refrigerant Suction, A
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88717-37510 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2020-05 ended
WU700,720 5F;WU710 LHD GEN;WU710 +2 —
88717-37510 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2020-05 ended
WU710,720 LHD GEN —
88717-37510 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88717-37510 Pipe, Cooler Refrigerant Suction, A
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88717-37510 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2015-05 ended
XZU710 CBU —
88717-37510 note Pipe, Cooler Refrigerant Suction, A
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88717-37510 note Pipe, Cooler Refrigerant Suction, A
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88717-37520 note Pipe, Cooler Refrigerant Suction, A
2011-08 → 2020-05 ended
XZU710 DCB —
88717-37520 note Pipe, Cooler Refrigerant Suction, A
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88717-37570 note Pipe, Cooler Refrigerant Suction, A
2019-11 → —
XZU710,720 GEN —
88717-37570 note Pipe, Cooler Refrigerant Suction, A
2019-11 → —
XZU710,720 GEN —
88721A — Hose, Liquid, A
88721-37B60 note Hose, Liquid, A
2011-07 → 2020-05 ended
WU710 RHD —
88721-37B60 note Hose, Liquid, A
2011-07 → 2020-05 ended
WU710 RHD —
88721-37B90 note Hose, Liquid, A
2011-07 → 2016-05 ended
WU710 65T GCC CBU;WU720,XZU720 +4 —
88721-37B90 Hose, Liquid, A
2016-05 → 2020-05 ended
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 —
88721-37B90 Hose, Liquid, A
2013-06 → 2020-05 ended
XZU720 75T CBU;XZU710,720 SCB +2 —
88721-37B90 note Hose, Liquid, A
2011-07 → 2020-05 ended
WU700,720 5F;WU710 LHD GEN;WU710 +2 —
88721-37B90 note Hose, Liquid, A
2011-07 → 2020-05 ended
WU710,720 LHD GEN —
88721-37B90 note Hose, Liquid, A
2016-05 → 2019-12 ended
WU710,720,XZU710,720 MTM GCC —
88721-37B90 Hose, Liquid, A
2013-06 → 2015-12 ended
XZU710,720,730 EUR —
88721-37B90 note Hose, Liquid, A
2011-07 → 2015-05 ended
XZU710 CBU —
88721-37B90 note Hose, Liquid, A
2011-07 → 2014-05 ended
WU700,710,720,XZU710,720 GCC —
88721-37C50 note Hose, Liquid, A
2011-08 → 2020-05 ended
XZU710 DCB —
88721-37C50 note Hose, Liquid, A
2011-08 → 2014-05 ended
XZU710 GCC IV3 —
88721-37F10 note Hose, Liquid, A
2019-11 → —
XZU710,720 GEN —
88721-37F10 note Hose, Liquid, A
2019-11 → —
XZU710,720 GEN —
88721B — Hose, Liquid, B
88721-37C70 note Hose, Liquid, B
2011-07 → 2020-05 ended
WU710 RHD —
88721-37C70 note Hose, Liquid, B
2011-07 → 2020-05 ended
WU710 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
