Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

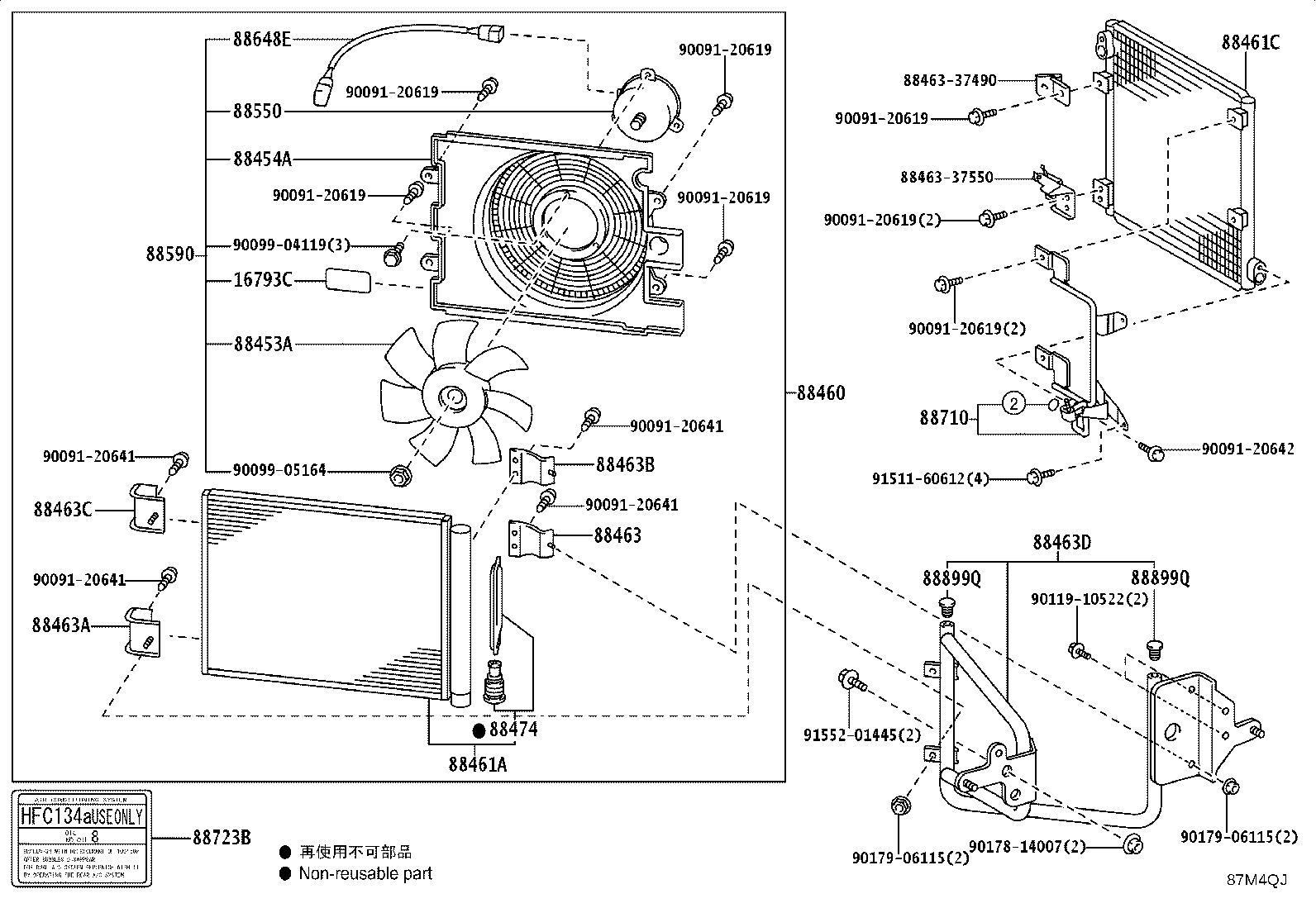

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16793C — Label, Cooling Fan Caution | ||||
| 16793-28020 note |
Label, Cooling Fan Caution
2011-08 → 2014-05
ended
|
N04C XZU710 GCC IV3 | — | |
| 16793-28020 note |
Label, Cooling Fan Caution
2011-07 → 2015-05
ended
|
N04C XZU710 CBU | — | |
| 16793-28020 |
Label, Cooling Fan Caution
2013-06 → 2015-12
ended
|
N04C XZU710,720,730 EUR | — | |
| 16793-28020 note |
Label, Cooling Fan Caution
2011-07 → 2016-04
ended
|
W04D WU710,720 GEN | — | |
| 16793-28020 note |
Label, Cooling Fan Caution
2011-07 → 2016-04
ended
|
N04C,W04D WU700,710,720,XZU710,720 MTM (GCC,GEN) | — | |
| 16793-28020 note |
Label, Cooling Fan Caution
2011-08 → 2016-04
ended
|
N04C XZU710 GCC IV3 | — | |
| 16793-28020 note |
Label, Cooling Fan Caution
2011-07 → 2014-05
ended
|
N04C,W04D WU700,710,720,XZU710,720 GCC | — | |
| 88453A — Fan, Cooling | ||||
| 88453-37030 |
Fan, Cooling
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88453-37030 |
Fan, Cooling
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88453-37030 note |
Fan, Cooling
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88453-37030 note |
Fan, Cooling
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88453-37030 note |
Fan, Cooling
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88453-37030 note |
Fan, Cooling
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88453-37030 |
Fan, Cooling
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88453-37030 note |
Fan, Cooling
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88453-37030 note |
Fan, Cooling
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88453-37030 note |
Fan, Cooling
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88453-37030 note |
Fan, Cooling
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88454A — Shroud, Fan | ||||
| 88454-37120 note |
Shroud, Fan
2011-07 → 2016-04
ended
|
WU710 RHD | — | |
| 88454-37120 note |
Shroud, Fan
2011-07 → 2016-04
ended
|
WU710 RHD | — | |
| 88454-37130 note |
Shroud, Fan
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88454-37130 |
Shroud, Fan
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88454-37130 note |
Shroud, Fan
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88454-37130 note |
Shroud, Fan
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88454-37130 note |
Shroud, Fan
2011-07 → 2016-04
ended
|
WU710,720 LHD GEN | — | |
| 88454-37130 note |
Shroud, Fan
2011-07 → 2016-04
ended
|
WU700,710,720,XZU710,720 LHD MTM (GCC,GEN) | — | |
| 88454-37130 note |
Shroud, Fan
2011-08 → 2016-04
ended
|
XZU710 GCC IV3 | — | |
| 88454-37160 note |
Shroud, Fan
2016-04 → 2020-05
ended
|
WU710 RHD | — | |
| 88454-37160 note |
Shroud, Fan
2016-04 → 2020-05
ended
|
WU710 RHD | — | |
| 88454-37170 note |
Shroud, Fan
2016-04 → 2016-05
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88454-37170 |
Shroud, Fan
2016-05 → 2020-05
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88454-37170 note |
Shroud, Fan
2016-04 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88454-37170 note |
Shroud, Fan
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88454-37170 note |
Shroud, Fan
2016-04 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88454-37170 note |
Shroud, Fan
2016-04 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-37A00 note |
Condenser Assy, Cooler
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88460-37A00 note |
Condenser Assy, Cooler
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88460-37A10 |
Condenser Assy, Cooler
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88460-37A10 |
Condenser Assy, Cooler
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88460-37A10 |
Condenser Assy, Cooler
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-07 → 2020-05
ended
|
WU700,720 5F;WU710 LHD GEN;WU710 +2 | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-07 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88460-37A10 note |
Condenser Assy, Cooler
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88461A — Core, Cooler Condenser | ||||
| 88461-37150 note |
Core, Cooler Condenser
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88461-37150 note |
Core, Cooler Condenser
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-07 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88461-37160 |
Core, Cooler Condenser
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88461-37160 |
Core, Cooler Condenser
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-07 → 2020-05
ended
|
WU700,720 5F;WU710 LHD GEN;WU710 +2 | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88461-37160 |
Core, Cooler Condenser
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88461-37160 note |
Core, Cooler Condenser
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88461-37160 note |
Core, Cooler Condenser
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88461-37240 note |
Core, Cooler Condenser
2019-11 → —
|
XZU710,720 GEN | — | |
| 88461-37240 note |
Core, Cooler Condenser
2019-11 → —
|
XZU710,720 GEN | — | |
| 88461C — Core, Cooler Condenser, NO.2 | ||||
| 88461-37140 note |
Core, Cooler Condenser, NO.2
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88461-37140 |
Core, Cooler Condenser, NO.2
2016-05 → 2020-05
ended
|
XZU710 DCB | — | |
| 88461-37140 note |
Core, Cooler Condenser, NO.2
2016-05 → 2019-12
ended
|
XZU710 DCB | — | |
| 88461-37140 note |
Core, Cooler Condenser, NO.2
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88461-37140 note |
Core, Cooler Condenser, NO.2
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88461-37140 note |
Core, Cooler Condenser, NO.2
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88463 — Bracket, Cooler Condenser, NO.1 | ||||
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88688-37D80 |
Bracket, Cooler Condenser, NO.1
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88688-37D80 |
Bracket, Cooler Condenser, NO.1
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88688-37D80 |
Bracket, Cooler Condenser, NO.1
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37D80 note |
Bracket, Cooler Condenser, NO.1
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88688-37E50 note |
Bracket, Cooler Condenser, NO.1
2019-11 → —
|
XZU710,720 GEN | — | |
| 88688-37E50 note |
Bracket, Cooler Condenser, NO.1
2019-11 → —
|
XZU710,720 GEN | — | |
| 88463A — Bracket, Cooler Condenser, NO.2 | ||||
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88688-37D90 |
Bracket, Cooler Condenser, NO.2
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88688-37D90 |
Bracket, Cooler Condenser, NO.2
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88688-37D90 |
Bracket, Cooler Condenser, NO.2
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88688-37D90 note |
Bracket, Cooler Condenser, NO.2
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37E60 note |
Bracket, Cooler Condenser, NO.2
2019-11 → —
|
XZU710,720 GEN | — | |
| 88688-37E60 note |
Bracket, Cooler Condenser, NO.2
2019-11 → —
|
XZU710,720 GEN | — | |
| 88463B — Bracket, Cooler Condenser, NO.3 | ||||
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88688-37E00 |
Bracket, Cooler Condenser, NO.3
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88688-37E00 |
Bracket, Cooler Condenser, NO.3
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88688-37E00 |
Bracket, Cooler Condenser, NO.3
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37E00 note |
Bracket, Cooler Condenser, NO.3
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88688-37E70 note |
Bracket, Cooler Condenser, NO.3
2019-11 → —
|
XZU710,720 GEN | — | |
| 88688-37E70 note |
Bracket, Cooler Condenser, NO.3
2019-11 → —
|
XZU710,720 GEN | — | |
| 88463C — Bracket, Cooler Condenser, NO.4 | ||||
| 88688-37E10 |
Bracket, Cooler Condenser, NO.4
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37E10 |
Bracket, Cooler Condenser, NO.4
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88688-37E10 |
Bracket, Cooler Condenser, NO.4
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88688-37E10 note |
Bracket, Cooler Condenser, NO.4
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37E90 note |
Bracket, Cooler Condenser, NO.4
2019-11 → —
|
XZU710,720 GEN | — | |
| 88688-37E90 note |
Bracket, Cooler Condenser, NO.4
2019-11 → —
|
XZU710,720 GEN | — | |
| 88463D — Bracket, Cooler Condenser, NO.5 | ||||
| 88688-37D40 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88688-37D40 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88688-37D60 |
Bracket, Cooler Condenser, NO.5
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88688-37D60 |
Bracket, Cooler Condenser, NO.5
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2020-05
ended
|
WU700,720 5F;WU710 LHD GEN;WU710 +2 | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88688-37D60 |
Bracket, Cooler Condenser, NO.5
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88688-37D60 note |
Bracket, Cooler Condenser, NO.5
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-12030 note |
Dryer, Cooler
2014-10 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88474-12030 |
Dryer, Cooler
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88474-12030 note |
Dryer, Cooler
2014-10 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88474-12030 note |
Dryer, Cooler
2014-10 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88474-12030 |
Dryer, Cooler
2014-10 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88474-12030 note |
Dryer, Cooler
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88474-12030 note |
Dryer, Cooler
2014-10 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88474-12030 |
Dryer, Cooler
2014-10 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88474-12030 note |
Dryer, Cooler
2014-10 → 2015-05
ended
|
XZU710 CBU | — | |
| 88474-17010 note |
Dryer, Cooler
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88474-17010 note |
Dryer, Cooler
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88474-17010 note |
Dryer, Cooler
2011-07 → 2014-10
ended
|
WU710,720 GEN | — | |
| 88474-17010 note |
Dryer, Cooler
2011-08 → 2014-10
ended
|
XZU710 GCC IV3 | — | |
| 88474-17010 |
Dryer, Cooler
2013-06 → 2014-10
ended
|
XZU710,720,730 EUR | — | |
| 88474-17010 note |
Dryer, Cooler
2011-07 → 2014-10
ended
|
WU700,710,720,XZU710,720 GCC,GEN | — | |
| 88474-12030 note |
Dryer, Cooler
2019-11 → —
|
XZU710,720 GEN | — | |
| 88474-12030 note |
Dryer, Cooler
2019-11 → —
|
XZU710,720 GEN | — | |
| 88550 — Motor Assy, Blower (FOR CONDENSER) | ||||
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88550-37120 |
Motor Assy, Blower (FOR CONDENSER)
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88550-37120 |
Motor Assy, Blower (FOR CONDENSER)
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2020-05
ended
|
WU700,720 5F;WU710 LHD GEN;WU710 +2 | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88550-37120 |
Motor Assy, Blower (FOR CONDENSER)
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88550-37120 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88550-37140 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88550-37140 note |
Motor Assy, Blower (FOR CONDENSER)
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88590 — Blower Assy, W/Shroud | ||||
| 88590-37260 note |
Blower Assy, W/Shroud
2011-07 → 2020-05
ended
|
WU710,720 LHD GEN | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2011-07 → 2020-05
ended
|
WU700,720 5F;WU710 LHD GEN;WU710 +2 | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88590-37260 |
Blower Assy, W/Shroud
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88590-37260 |
Blower Assy, W/Shroud
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88590-37260 |
Blower Assy, W/Shroud
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88590-37260 note |
Blower Assy, W/Shroud
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88590-37280 note |
Blower Assy, W/Shroud
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88590-37280 note |
Blower Assy, W/Shroud
2011-07 → 2020-05
ended
|
WU710 RHD | — | |
| 88648E — Wiring, Cooler | ||||
| 88648-37140 note |
Wiring, Cooler
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88648-37140 |
Wiring, Cooler
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88648-37140 |
Wiring, Cooler
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88648-37140 note |
Wiring, Cooler
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88648-37140 note |
Wiring, Cooler
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88648-37140 note |
Wiring, Cooler
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88648-37140 |
Wiring, Cooler
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88648-37140 note |
Wiring, Cooler
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88648-37140 note |
Wiring, Cooler
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88648-37140 note |
Wiring, Cooler
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88648-37140 note |
Wiring, Cooler
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88710 — Tube Assy, Air Conditioner | ||||
| 88710-37540 note |
Tube Assy, Air Conditioner
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88710-37540 |
Tube Assy, Air Conditioner
2016-05 → 2020-05
ended
|
XZU710 DCB | — | |
| 88710-37540 note |
Tube Assy, Air Conditioner
2016-05 → 2019-12
ended
|
XZU710 DCB | — | |
| 88710-37540 note |
Tube Assy, Air Conditioner
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88710-37540 note |
Tube Assy, Air Conditioner
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88710-37540 note |
Tube Assy, Air Conditioner
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88723B — Label, Cooler Service Caution | ||||
| 88723-28220 note |
Label, Cooler Service Caution
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
| 88723-28220 |
Label, Cooler Service Caution
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88723-28220 |
Label, Cooler Service Caution
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88723-28220 |
Label, Cooler Service Caution
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2019-11 → —
|
XZU710,720 GEN | — | |
| 88723-28220 note |
Label, Cooler Service Caution
2019-11 → —
|
XZU710,720 GEN | — | |
| 88899Q — Plate, Cover | ||||
| 88899-30840 |
Plate, Cover
2016-05 → 2020-05
ended
|
XZU710 DCB;WU710,720 GCC;XZU720 75T +2 | — | |
| 88899-30840 |
Plate, Cover
2013-06 → 2020-05
ended
|
XZU720 75T CBU;XZU710,720 SCB +2 | — | |
| 88899-30840 note |
Plate, Cover
2011-07 → 2020-05
ended
|
WU710 GEN;WU700,720 5F;WU710 85T +1 | — | |
| 88899-30840 note |
Plate, Cover
2011-07 → 2020-05
ended
|
WU710,720 GEN | — | |
| 88899-30840 note |
Plate, Cover
2016-05 → 2019-12
ended
|
WU710,720,XZU710,720 MTM GCC | — | |
| 88899-30840 note |
Plate, Cover
2011-08 → 2016-05
ended
|
XZU710 GCC IV3 | — | |
| 88899-30840 note |
Plate, Cover
2011-07 → 2016-05
ended
|
WU710 65T GCC CBU;WU720,XZU720 +4 | — | |
| 88899-30840 |
Plate, Cover
2013-06 → 2015-12
ended
|
XZU710,720,730 EUR | — | |
| 88899-30840 note |
Plate, Cover
2011-07 → 2015-05
ended
|
XZU710 CBU | — | |
| 88899-30840 note |
Plate, Cover
2011-08 → 2014-05
ended
|
XZU710 GCC IV3 | — | |
| 88899-30840 note |
Plate, Cover
2011-07 → 2014-05
ended
|
WU700,710,720,XZU710,720 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
