Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 5 illustrations

Illustrations

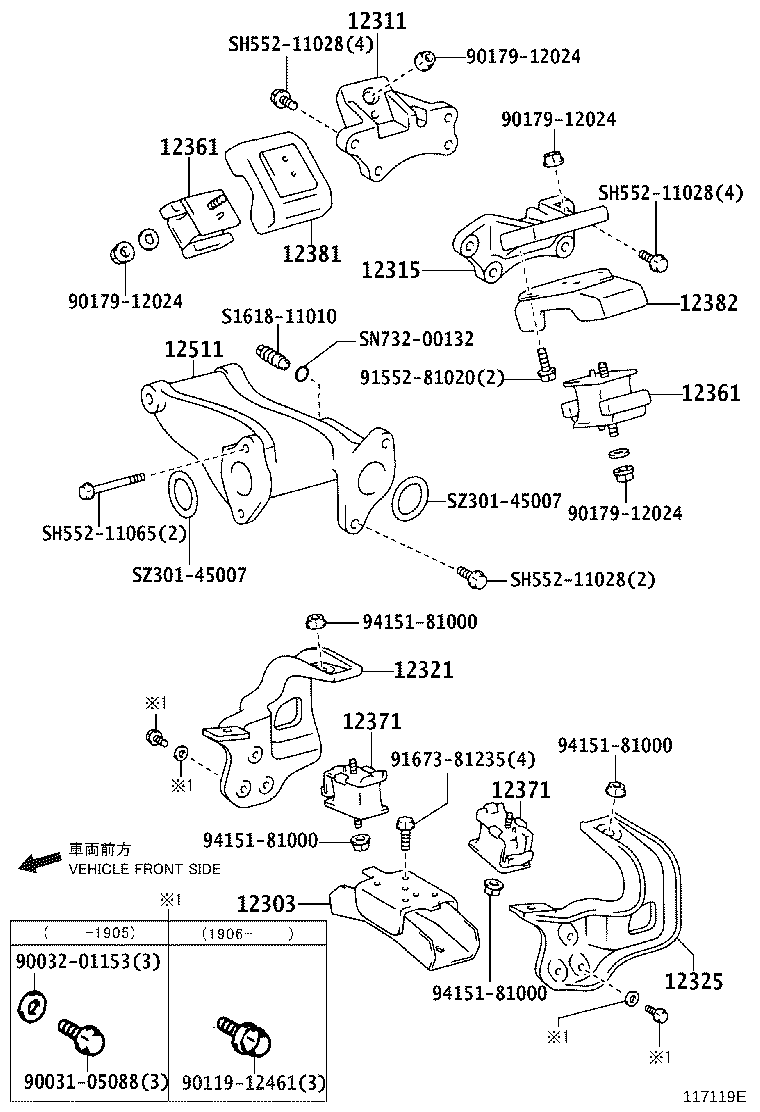

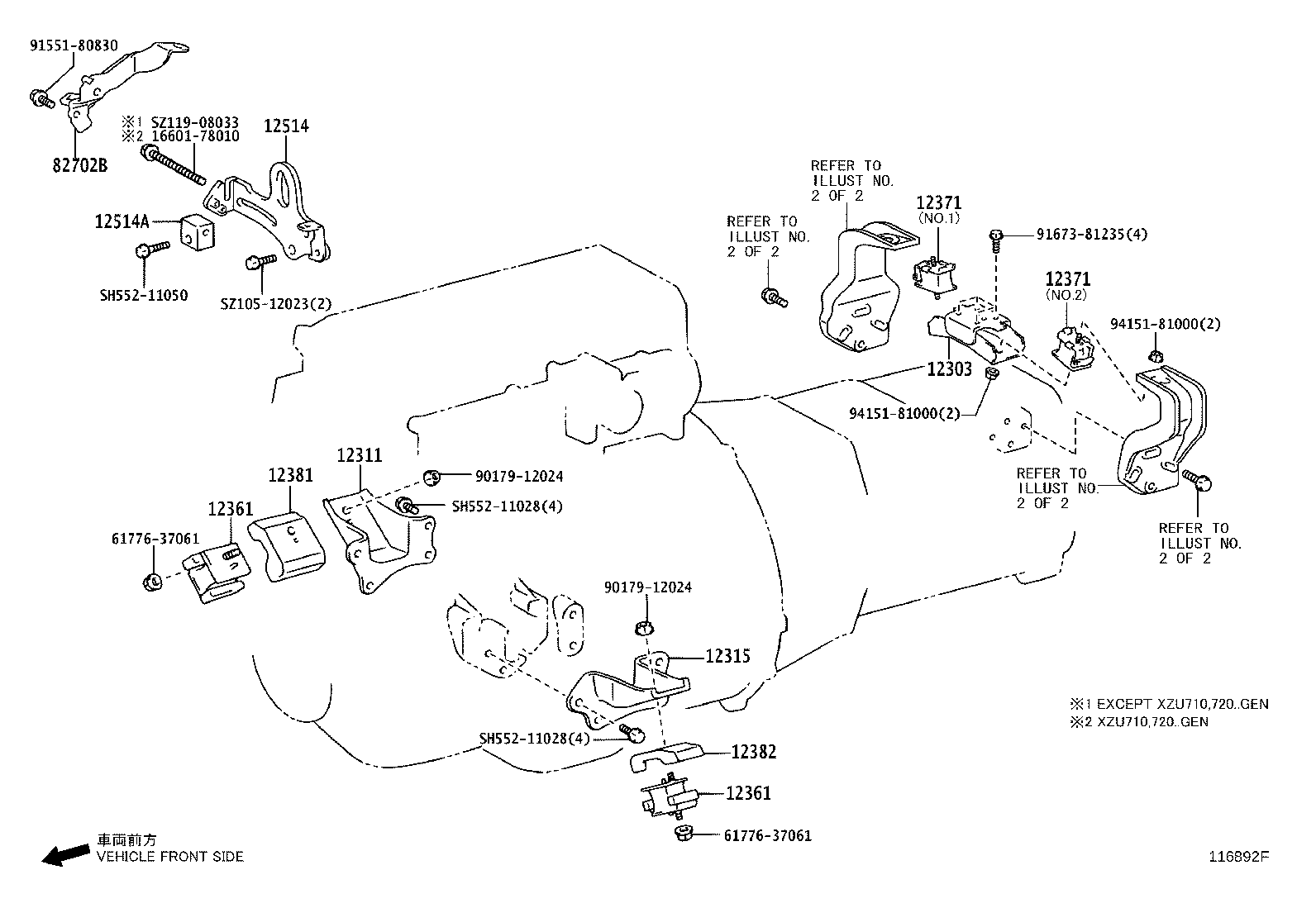

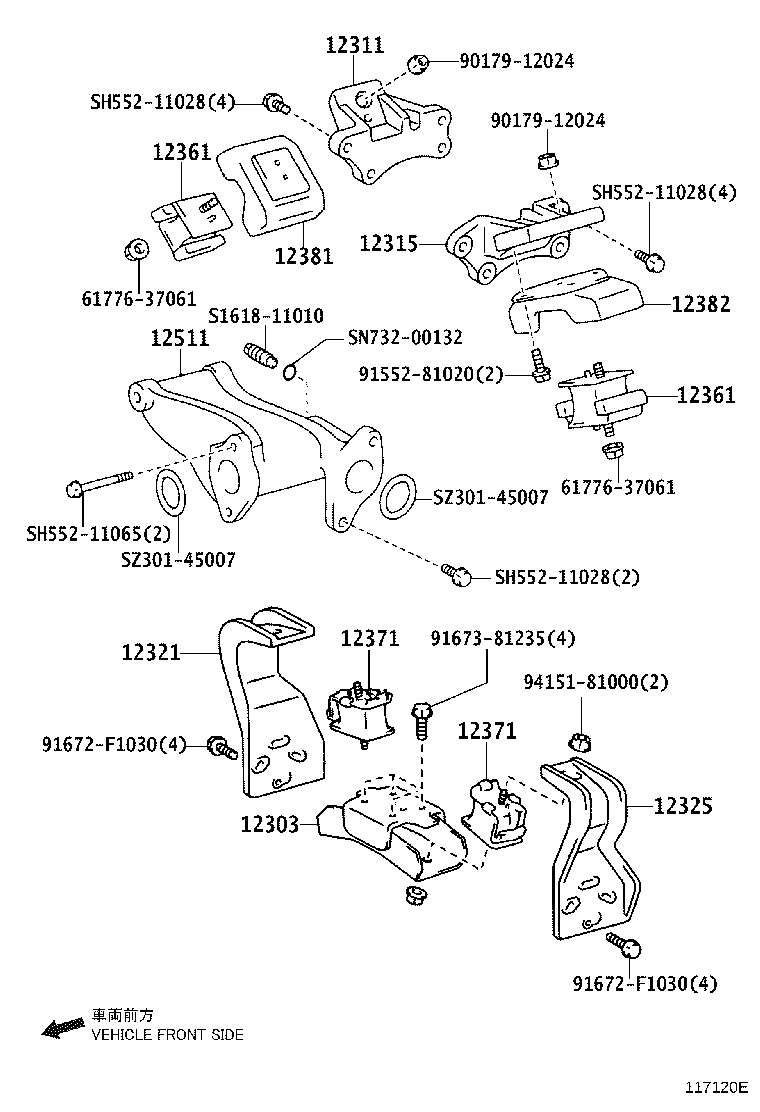

Figure 117118H 117118H 2011-07 → — Figure 117119E 117119E 2011-07 → — Figure 117120E 117120E 2011-07 → — Figure 116892F 116892F 2011-07 → — Figure 116893E 116893E 2011-07 → —

Part groups

PNCDescription
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
82702B Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
