Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

16 part groups · 4 illustrations

Illustrations

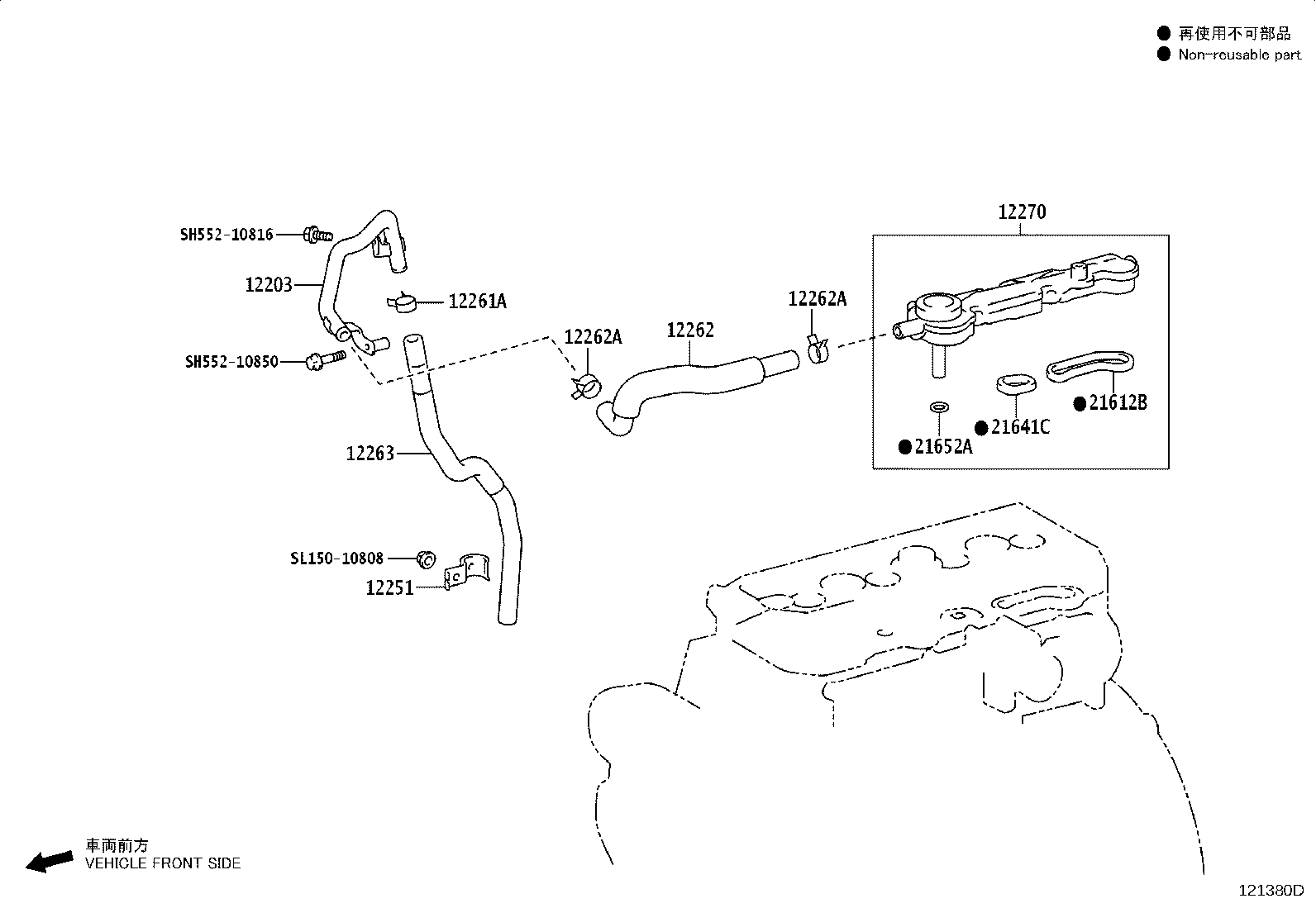

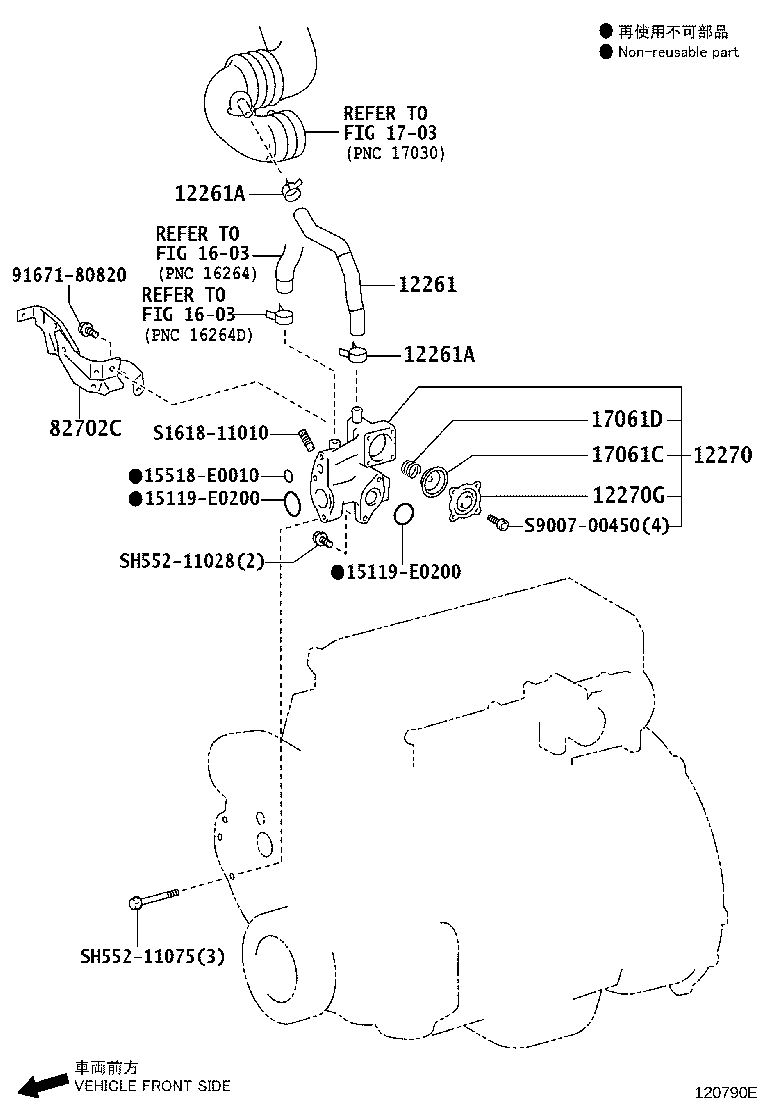

Figure 120807A 120807A 2011-07 → — Figure 120789F 120789F 2011-07 → — Figure 120790E 120790E 2013-06 → — Figure 121380D 121380D 2019-11 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12221 Tube, Ventilation NO.1
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12270 Separator Assy, Oil
12270G Cover
17061C Diaphragm Sub-assy
17061D Spring L
21612B Gasket
21641C Gasket
21652A Ring, O
82702C Bracket Sub-assy, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
