Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

10 part groups · 3 illustrations

Illustrations

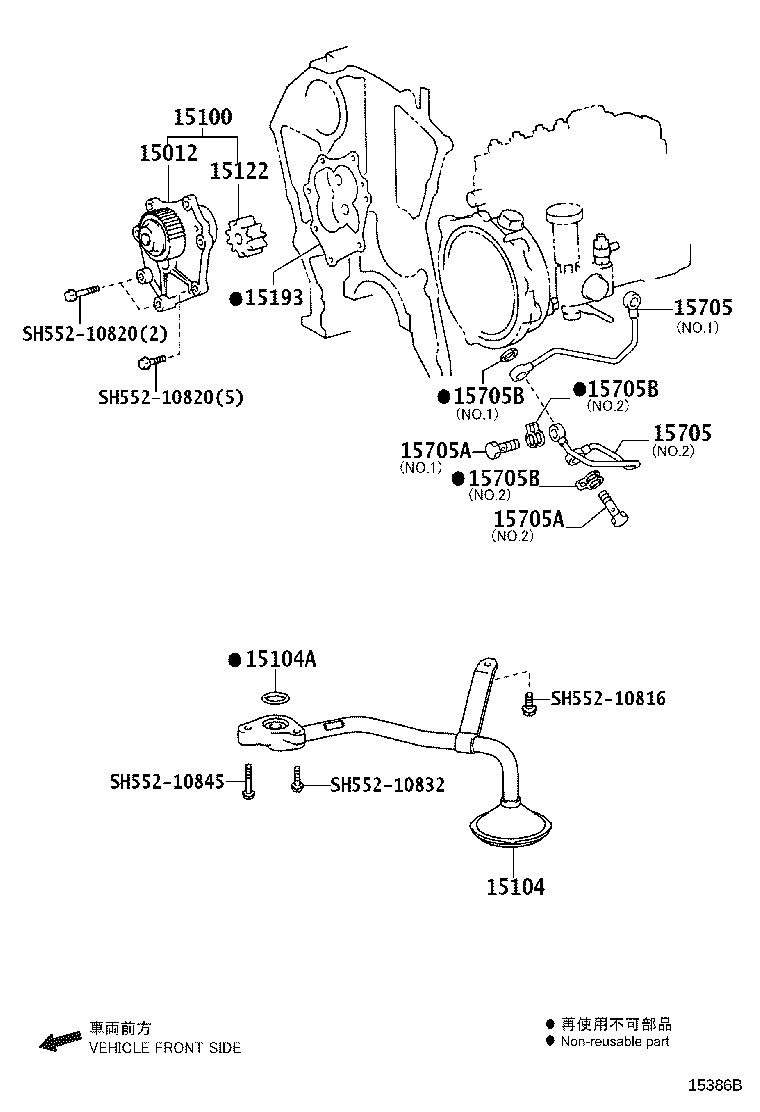

Figure 15386A 15386A 2011-07 → — Figure 15386B 15386B 2011-07 → — Figure 151827C 151827C 2011-07 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15119 Gasket, Oil Pump Cover
15122 Gear, Oil Pump Driven
15193 Gasket, Oil Pump
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
