Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

35 part groups · 6 illustrations

Illustrations

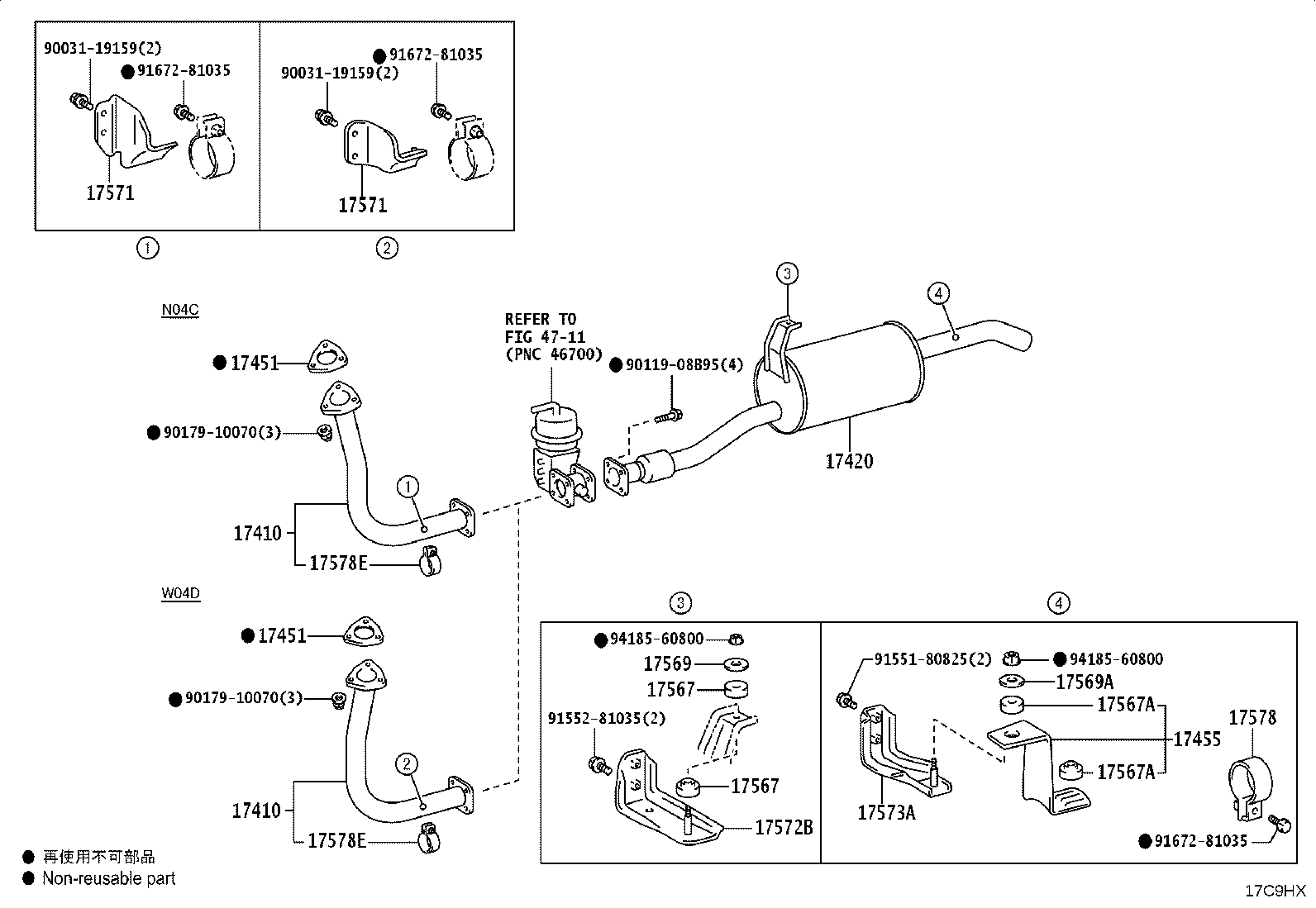

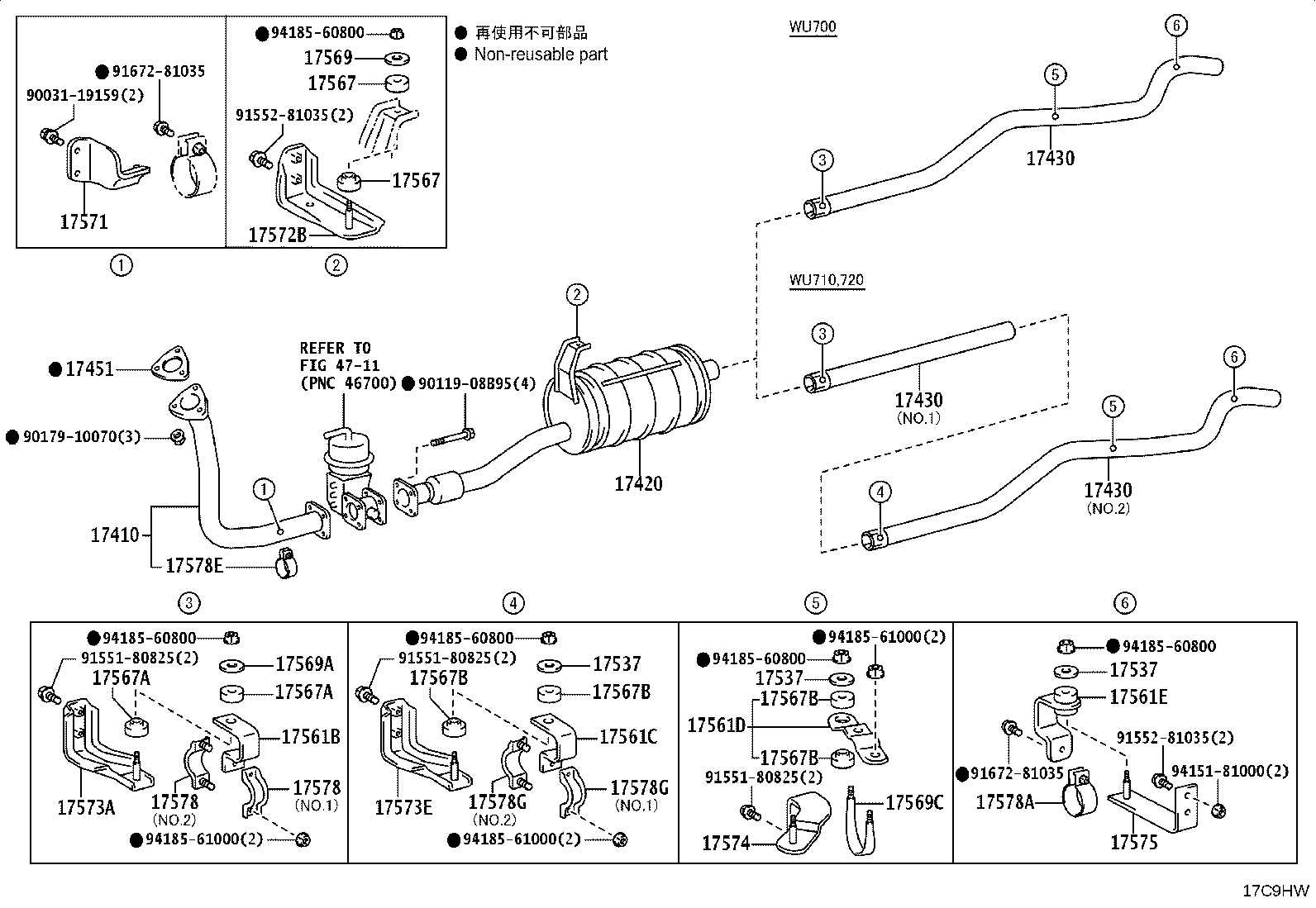

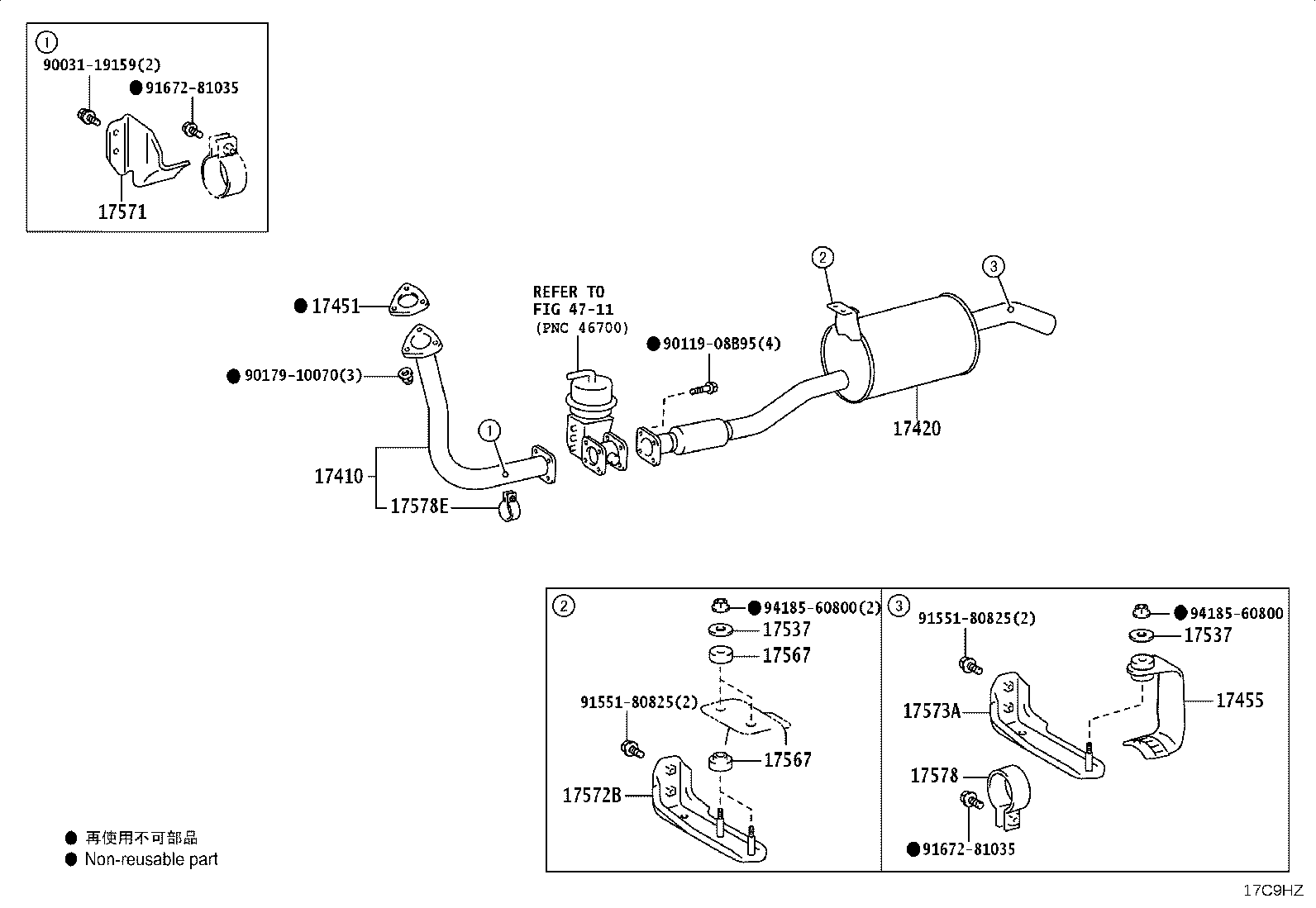

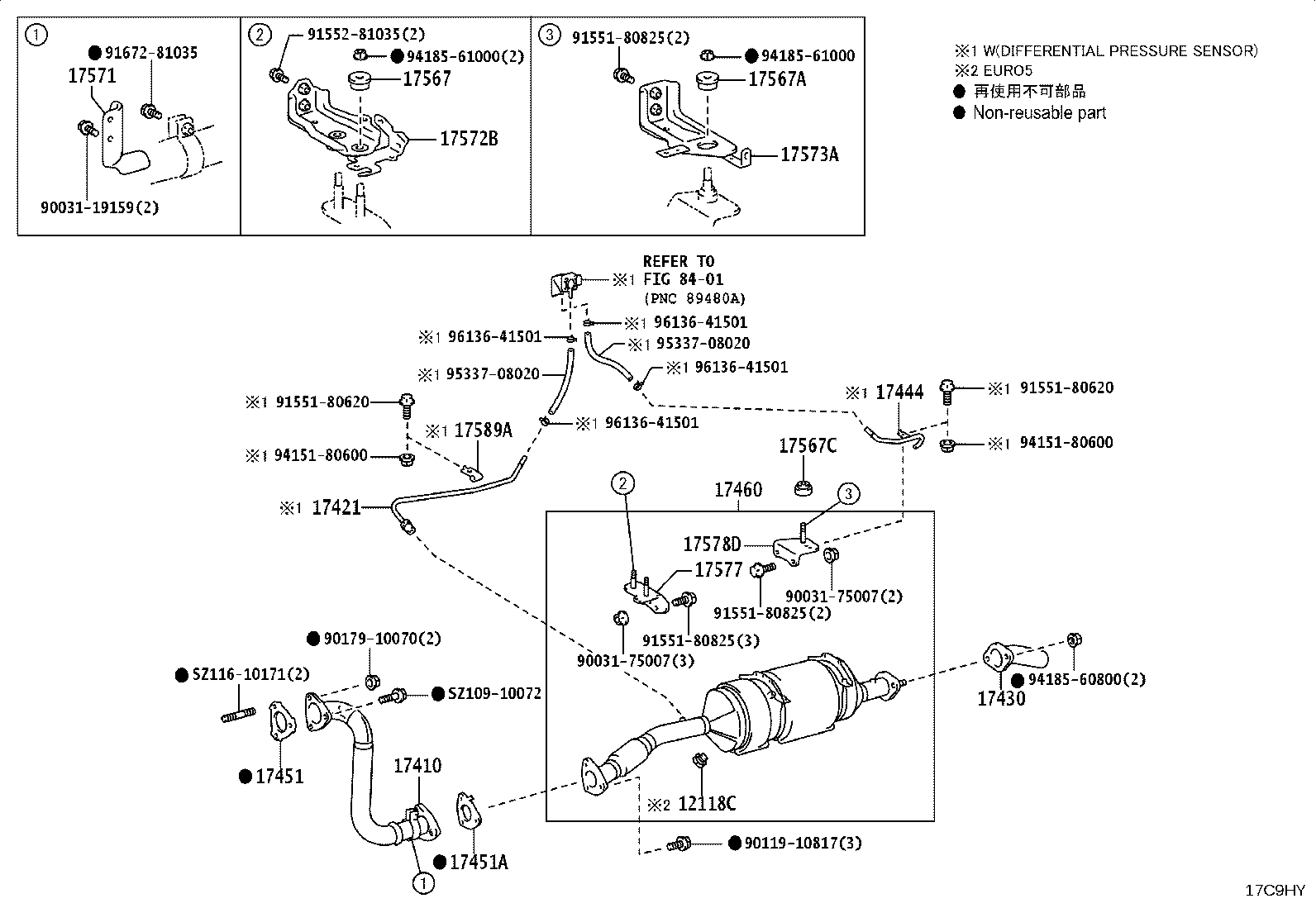

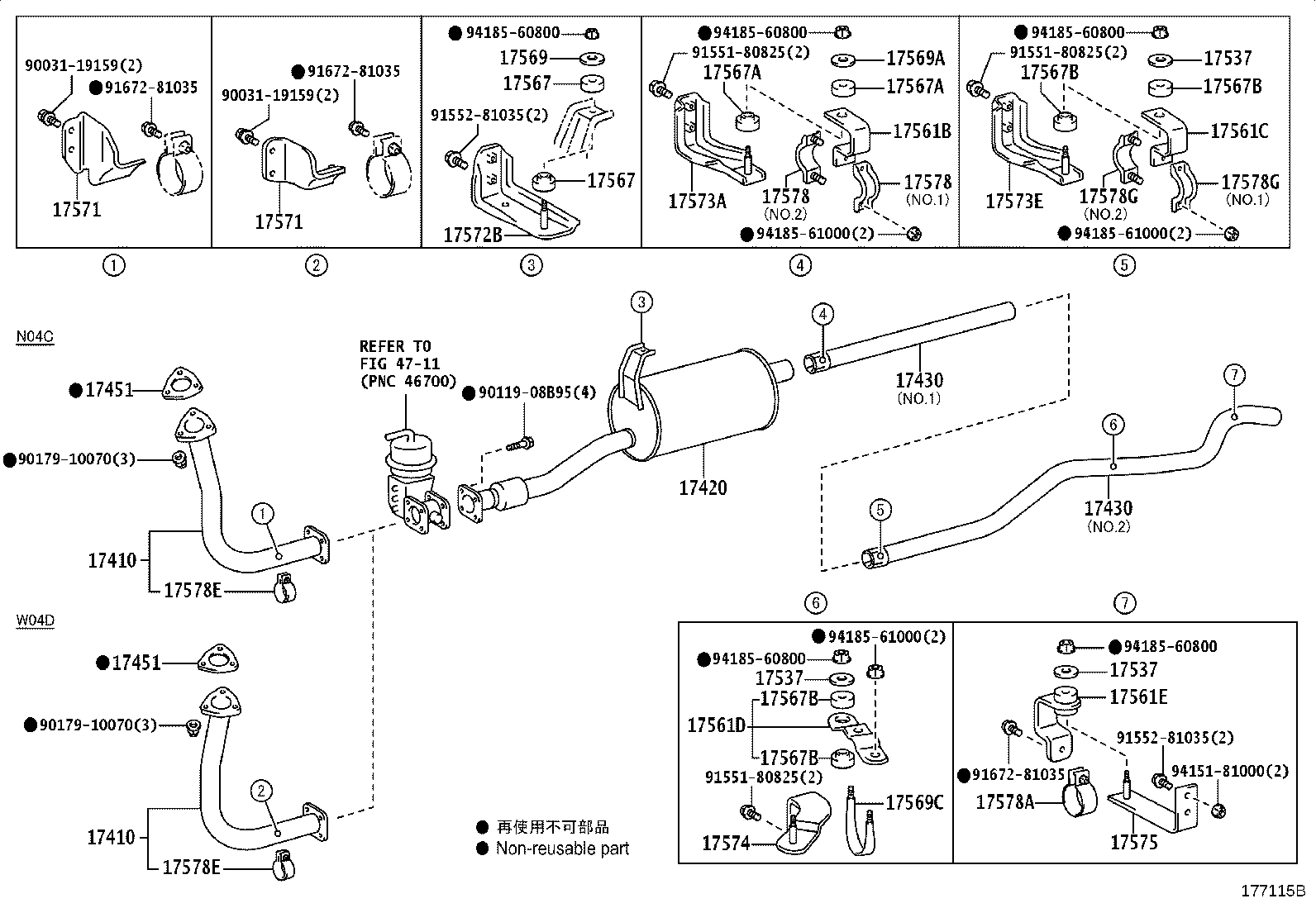

Figure 17C9HV 17C9HV 2011-07 → — Figure 17C9HW 17C9HW 2011-07 → — Figure 17C9HX 17C9HX 2011-07 → — Figure 177115B 177115B 2011-07 → — Figure 17C9HY 17C9HY 2013-06 → — Figure 17C9HZ 17C9HZ 2019-11 → —

Part groups

PNCDescription
12118C Plug, Drain
17410 Pipe Assy, Exhaust, Front
17420 Pipe Assy, Exhaust, Center
17421 Pipe, Exhaust, NO.2
17430 Pipe Assy, Exhaust, Tail
17444 Pipe, Exhaust, NO.4
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17455 Bracket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17537 Plate, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17561E Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17569 Plate, Exhaust Pipe Support
17569A Plate, Exhaust Pipe Support
17569C Bolt, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17573E Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578A Clamp, Muffler
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
17589A Clamp, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
