Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11
Alternator
50 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 16381D | Bar, Fan Belt Adjusting |

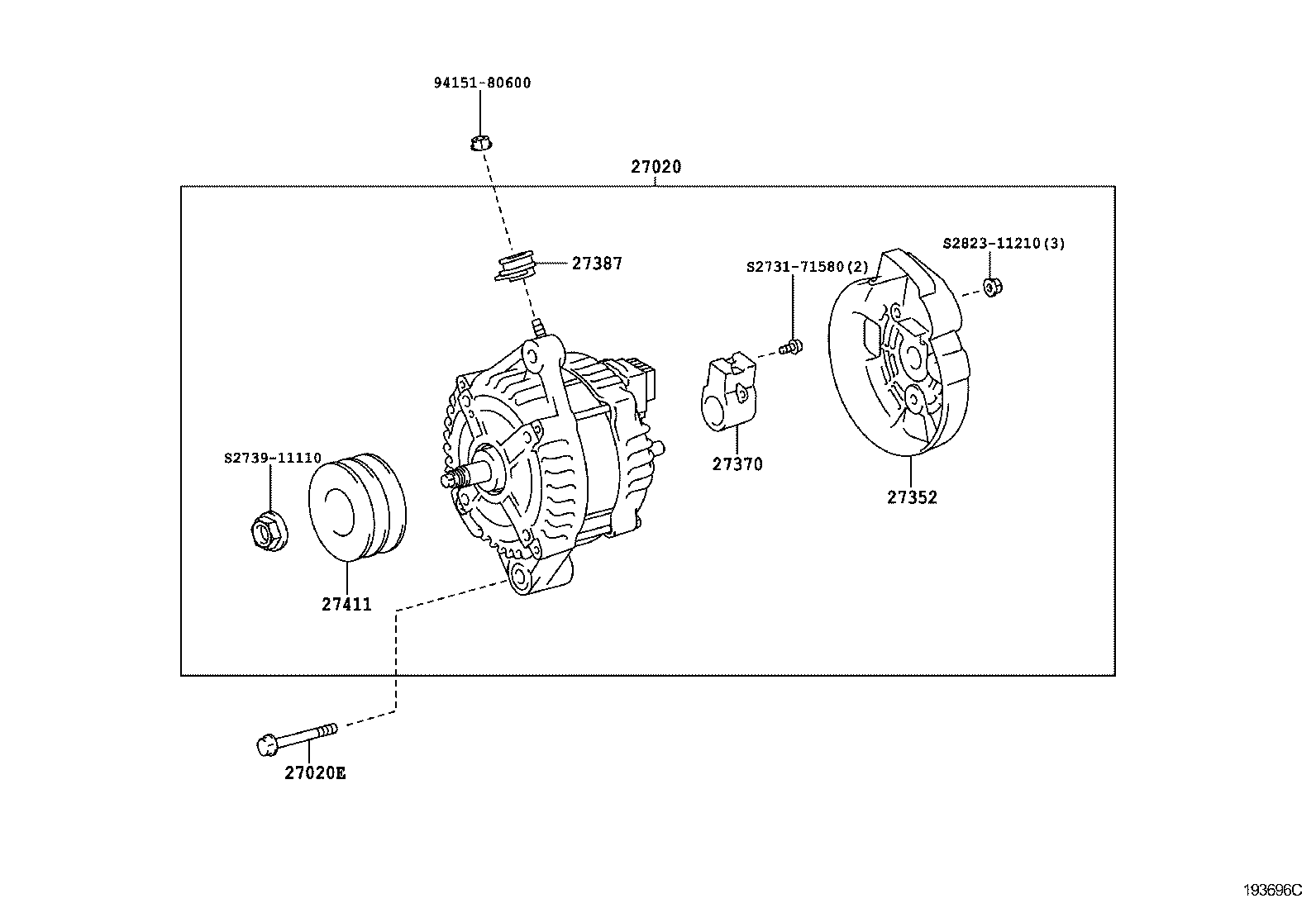

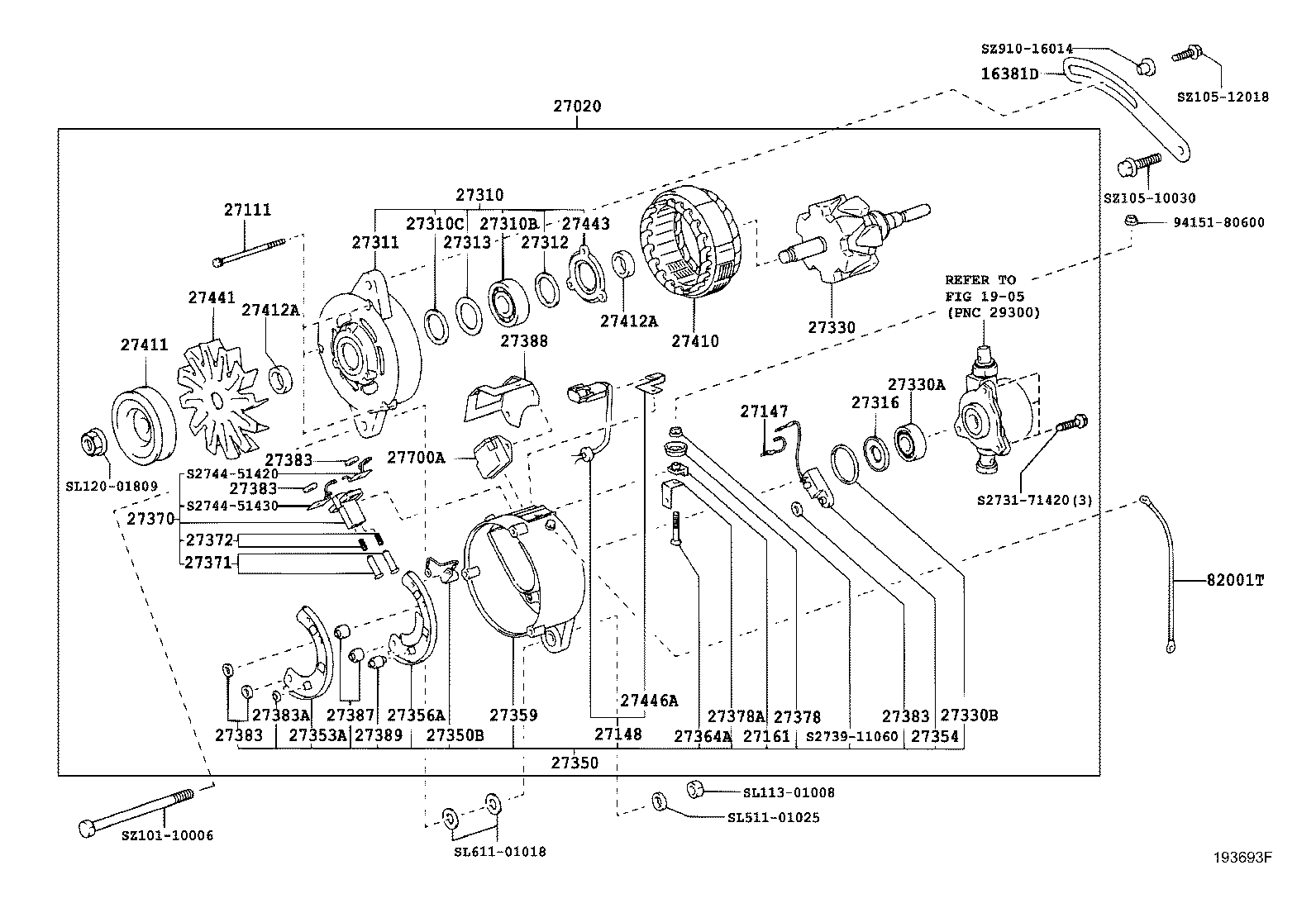

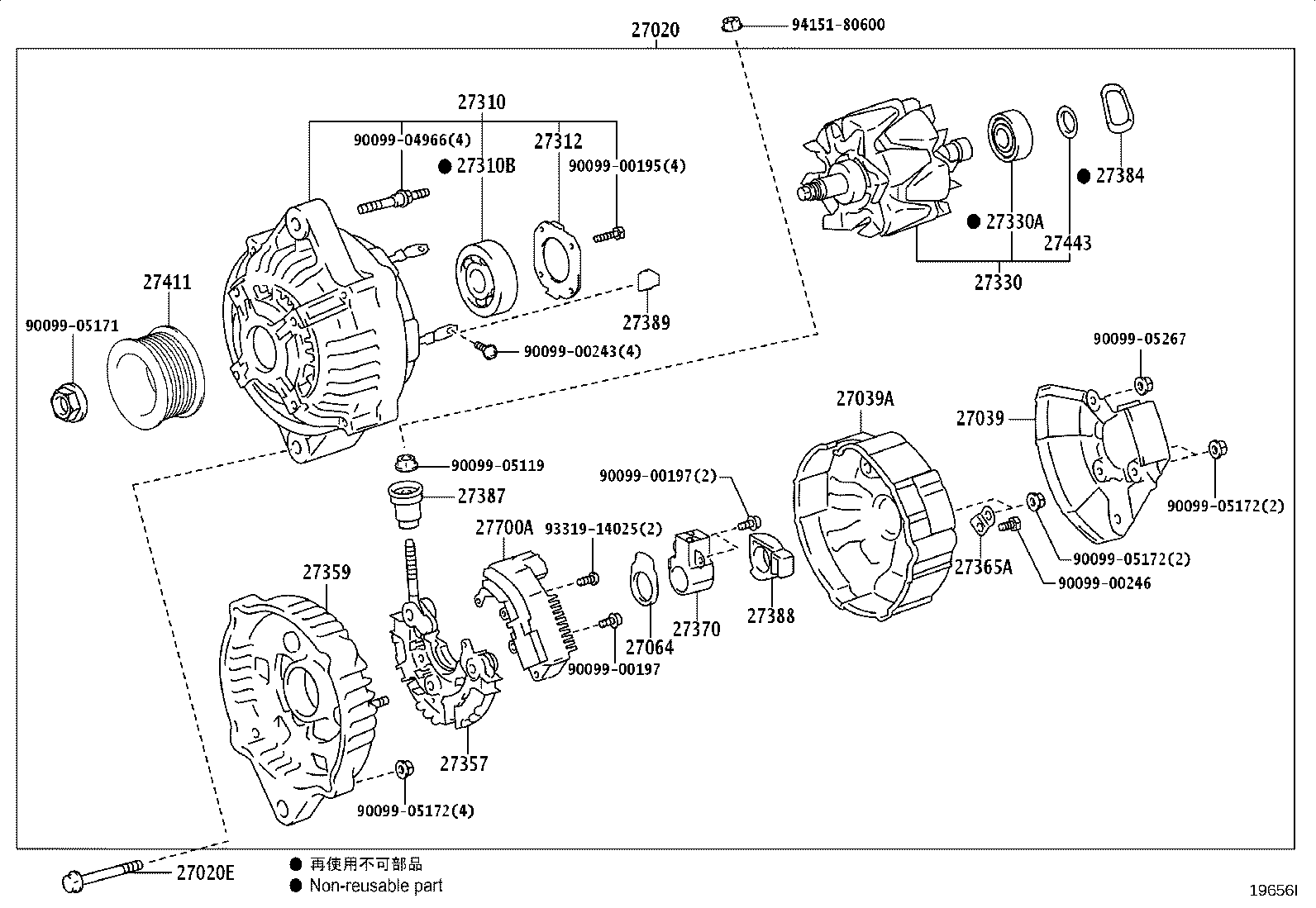

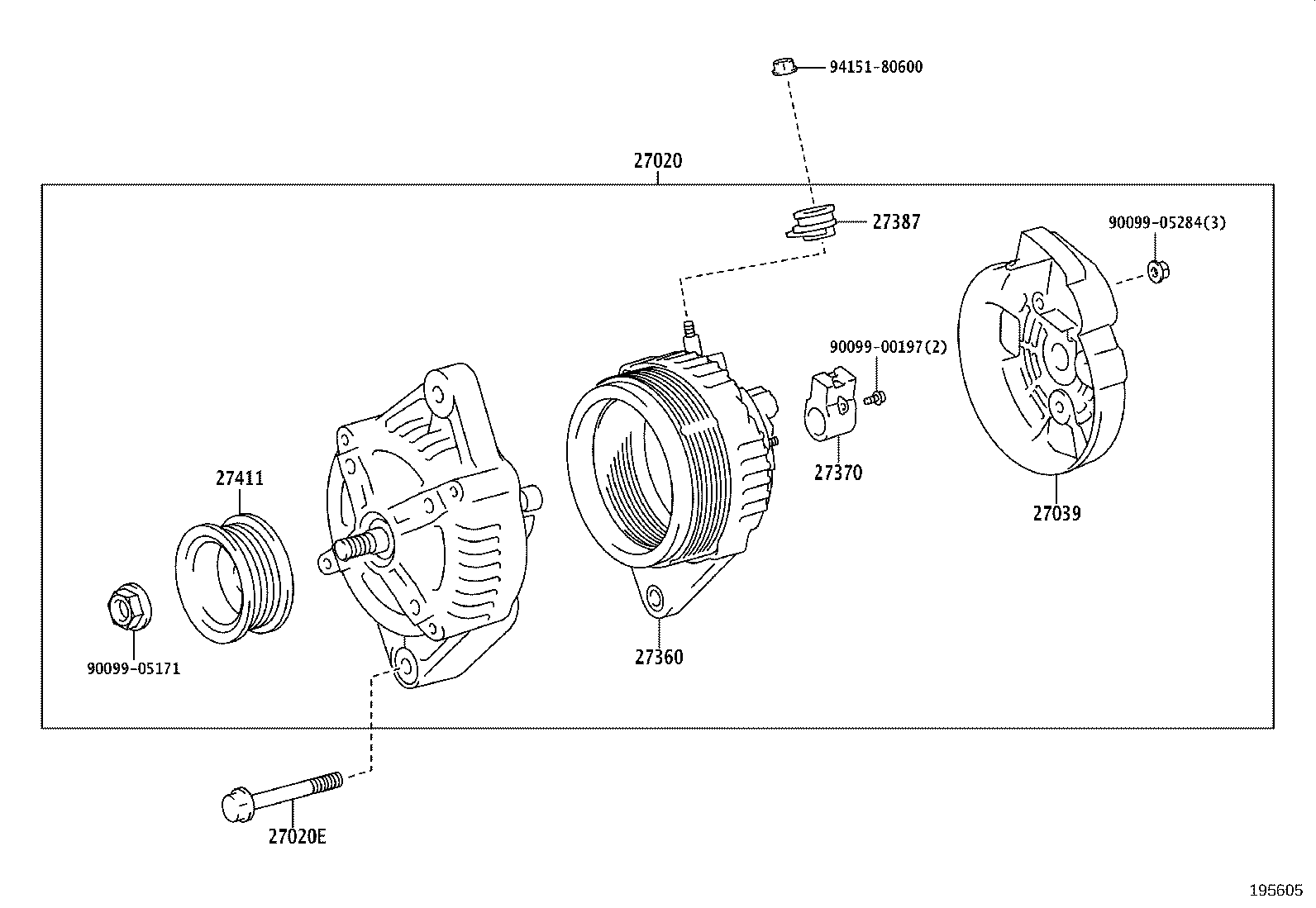

| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27039A | Cover, Alternator Rear End, NO.2 |
| 27064 | Seal, Alternator Plate |
| 27111 | Bolt, Alternator |
| 27147 | Terminal, W/Lead Wire |
| 27148 | Wire, Alternator Connecting |
| 27161 | Insulator, Brush Holder, B |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27310C | Felt(FOR ALTERNATOR DRIVE END FRAME) |
| 27311 | Frame, Alternator Drive End |
| 27312 | Plate, Retainer |
| 27313 | Cover, Alternator Felt, Inner NO.2 |
| 27316 | Packing, Retainer Plate, Alternator |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27330B | Ring, Snap(FOR ALTERNATOR ROTOR) |
| 27350 | Frame Assy, Rectifier End |
| 27350B | Condenser, Alternator |
| 27352 | Cover, Frame Brush |
| 27353A | Holder, W/Rectifier |
| 27354 | Wire Sub-assy, Alternator Lead |
| 27356A | Holder Sub-assy, Rectifier |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27360 | Coil Assy, Alternator |
| 27364A | Bolt, Alternator Terminal |
| 27365A | Plate, Rectifier |
| 27370 | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27378 | Insulator, Alternator, NO.1 |
| 27378A | Insulator, Alternator, NO.2 |
| 27383 | Washer, Alternater Terminal Insulator, NO.1 |
| 27383A | Washer, Alternater Terminal Insulator, NO.2 |
| 27384 | Washer |
| 27387 | Insulator, Terminal |
| 27388 | Cover, Alternator Brush |
| 27389 | Insulator, Terminal |
| 27410 | Stator Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27412A | Collar, Space(FOR ALTERNATOR DRIVE END FRAME) |
| 27441 | Fan, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27446A | Clamp |
| 27700A | Regulator Assy, Generator |
| 82001T | Cable, Bond |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
