Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

26 part groups · 7 illustrations

Illustrations

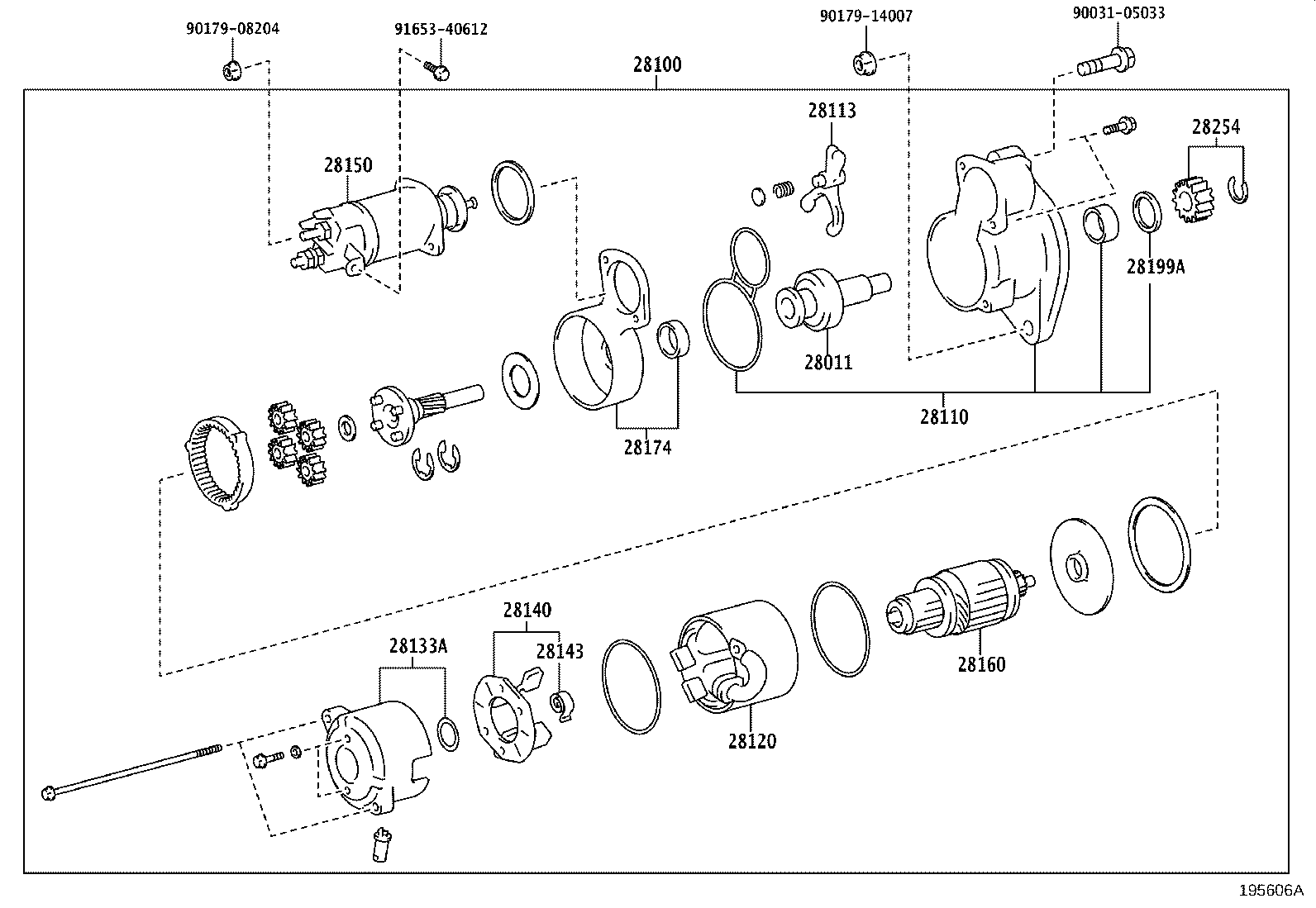

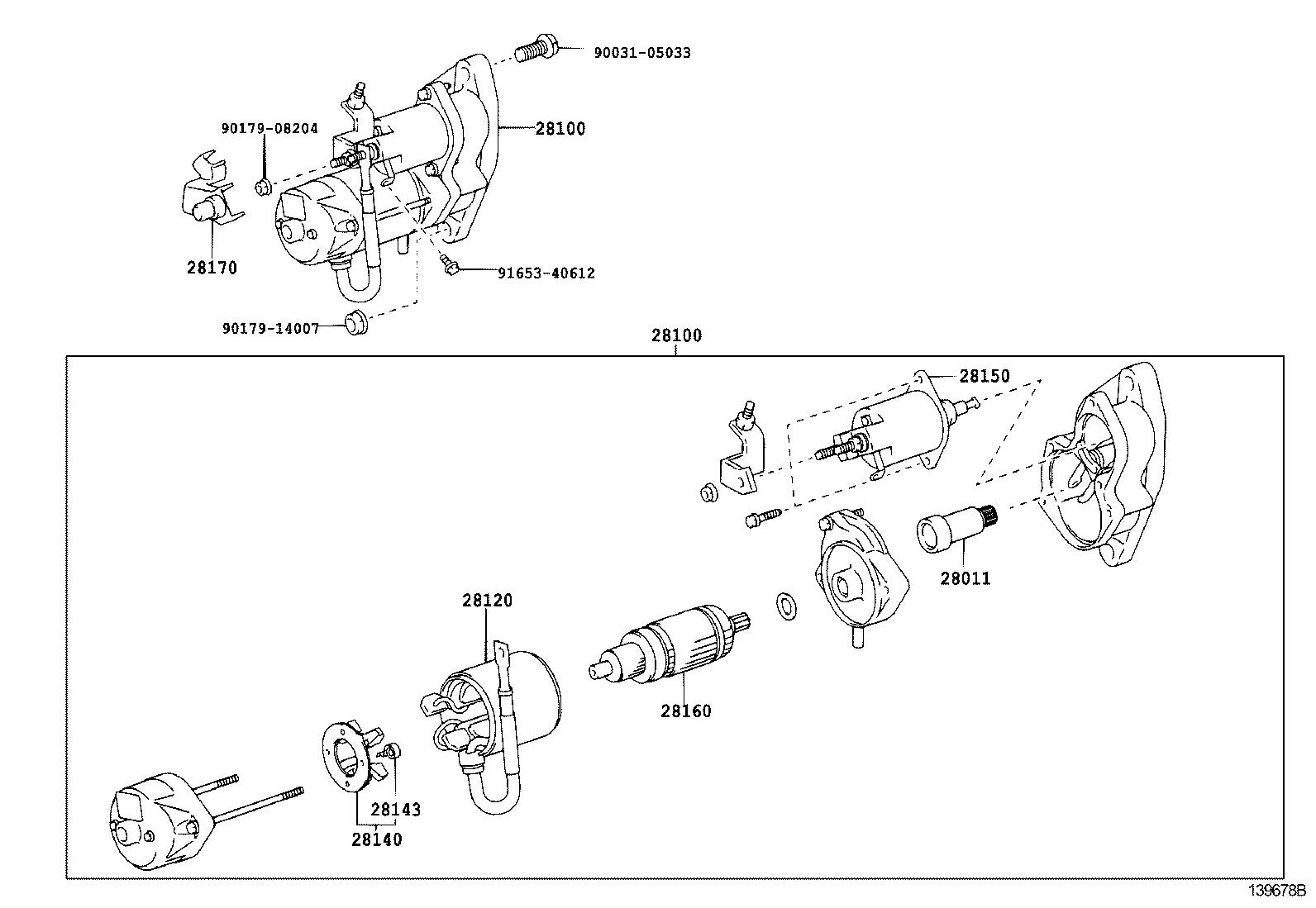

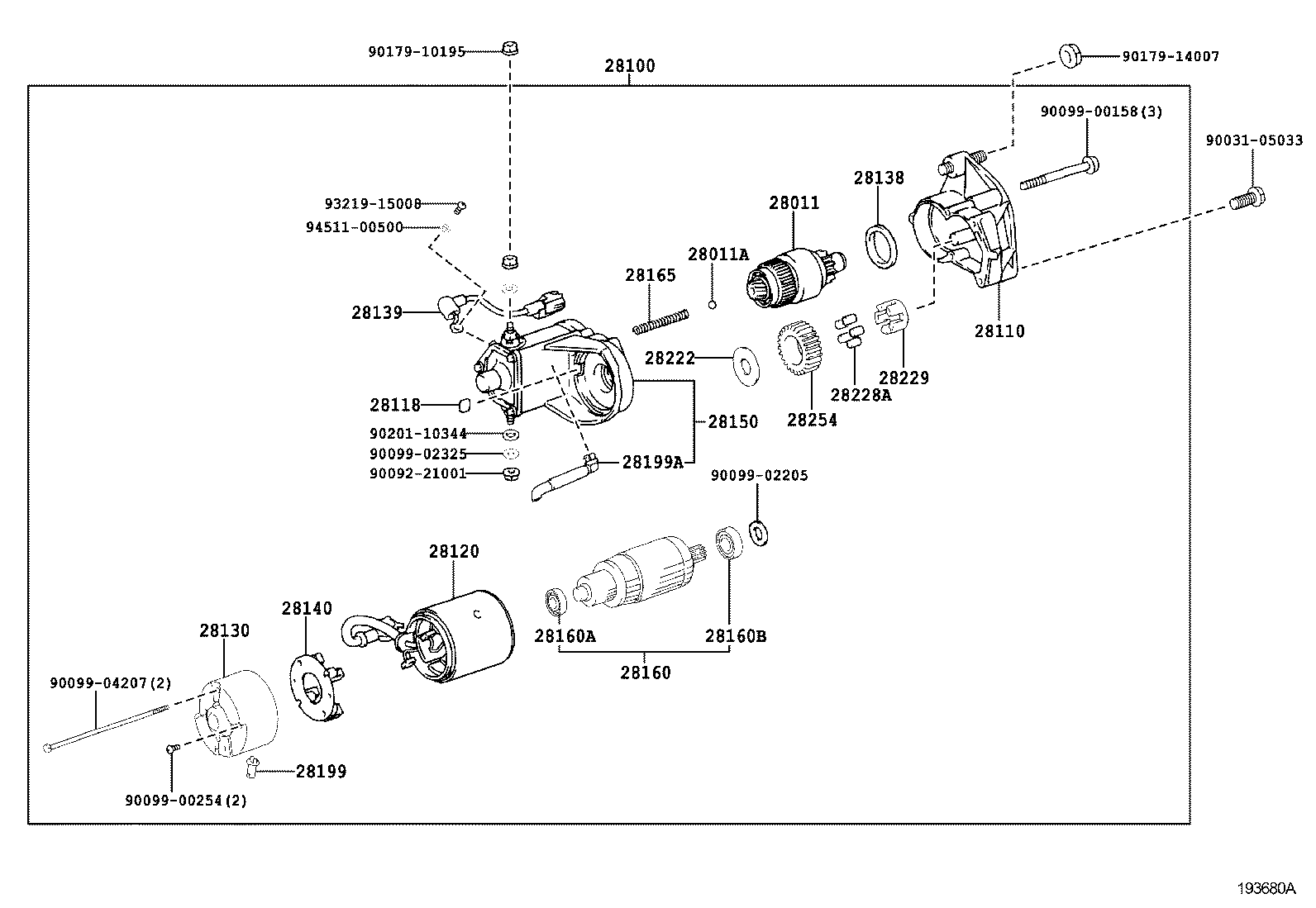

Figure 193679B 193679B 2011-07 → 2015-05 Figure 193679B 193679B 2011-07 → — Figure 193678B 193678B 2011-07 → 2015-05 Figure 193678B 193678B 2011-07 → — Figure 193680A 193680A 2011-07 → 2015-05 Figure 193680A 193680A 2011-07 → — Figure 195606A 195606A 2019-11 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28011A Ball, Starter Clutch
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28118 Plate(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28133A Frame, Commutator End
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28165 Spring, Starter Magnet Switch Return
28170 Cover Assy, Starter
28174 Housing, Starter Motor
28199 Cover, Starter
28199A Protector, Dust Starter
28222 Washer, Starter Idle Gear Clutch
28228A Roller, Starter Clutch
28229 Retainer, Starter Idle Gear
28254 Pinion, Starter Idle Gear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
