Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

20 part groups · 9 illustrations

Illustrations

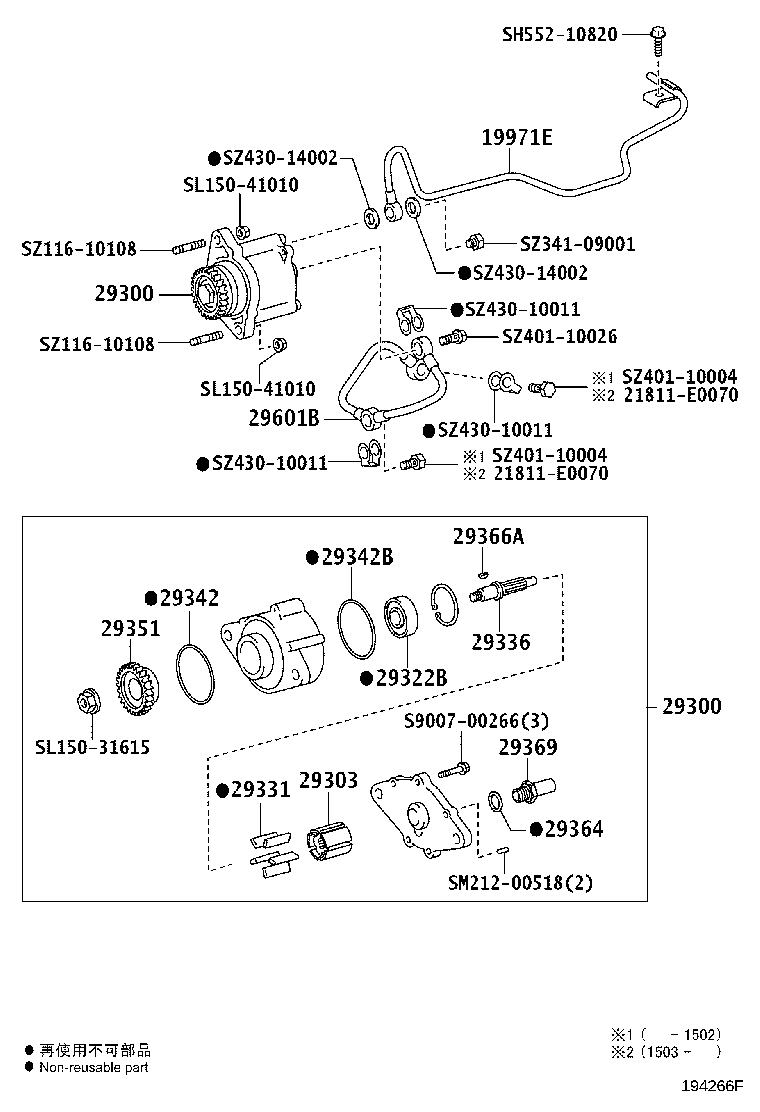

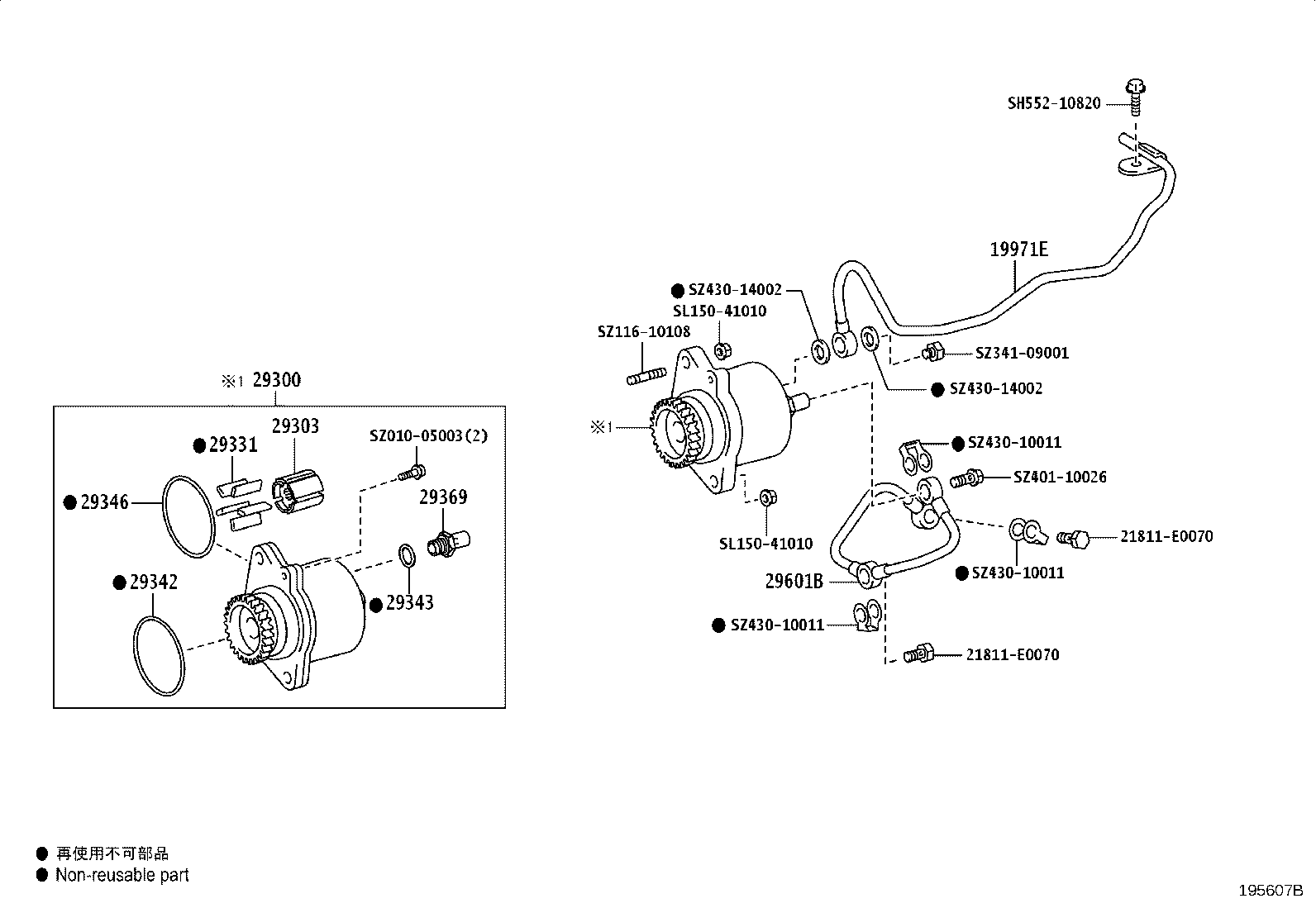

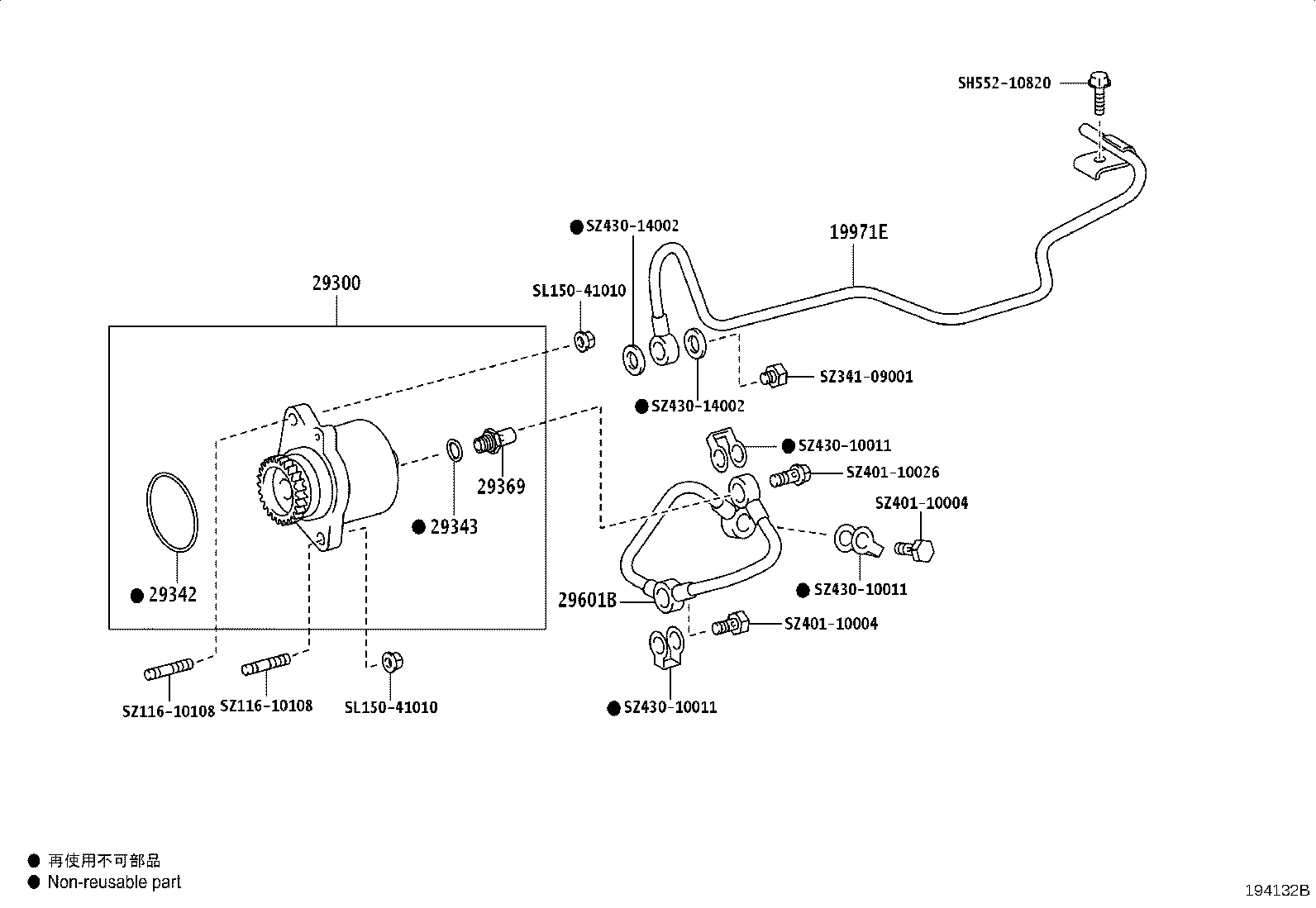

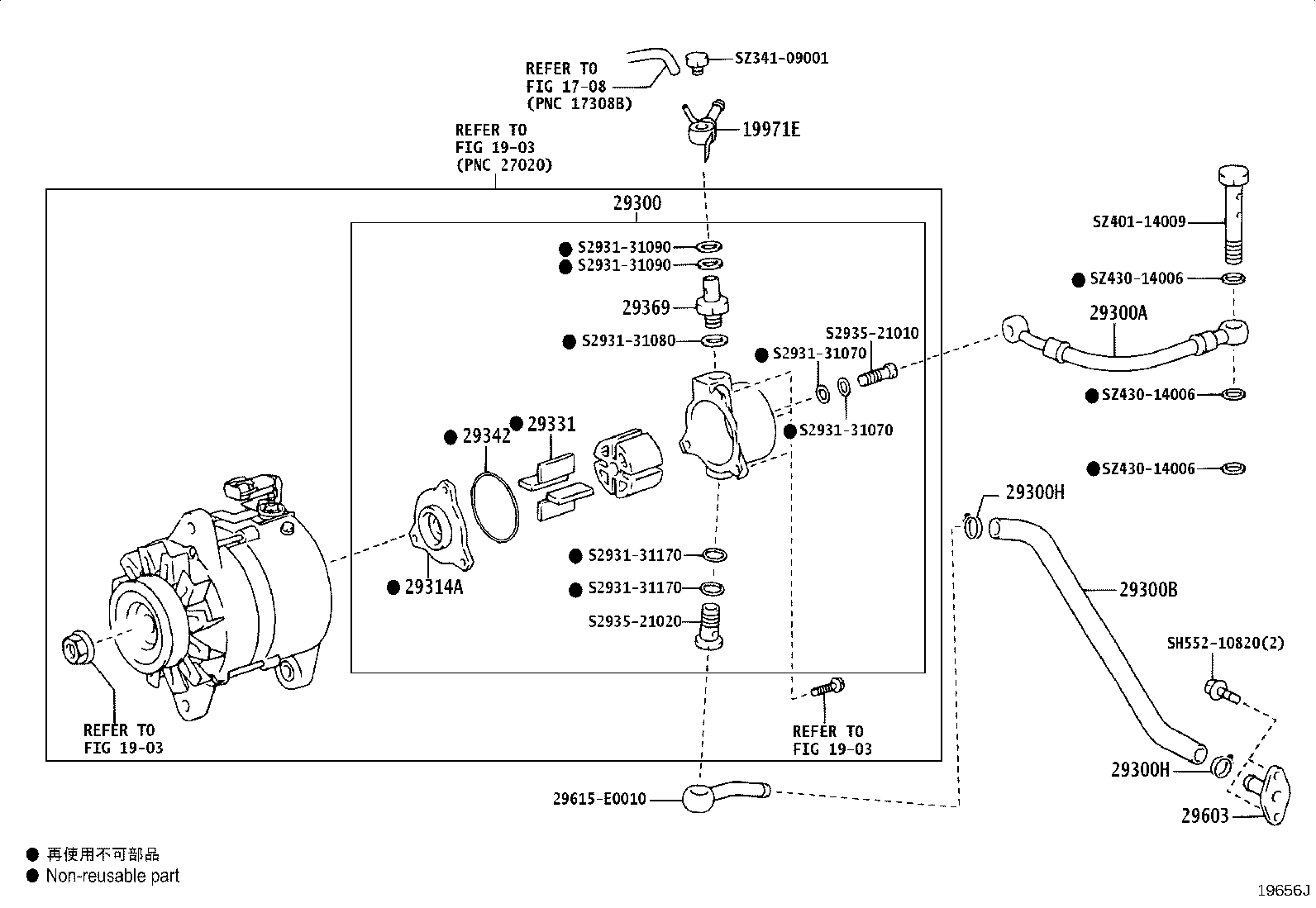

Figure 193702B 193702B 2011-07 → 2012-02 Figure 194132B 194132B 2012-02 → 2013-09 Figure 194132B 194132B 2012-07 → 2013-09 Figure 194266F 194266F 2013-09 → 2015-06 Figure 194266F 194266F 2015-03 → — Figure 194266F 194266F 2016-05 → — Figure 195115C 195115C 2015-06 → — Figure 19656J 19656J 2011-07 → — Figure 195607B 195607B 2019-11 → —

Part groups

PNCDescription
19971E Pipe, Vacuum
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29300H Clamp(FOR VACUUM PUMP OIL HOSE)
29303 Rotor Sub-assy, Vacuum Pump
29314A Cover, End
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29342 Packing, Vacuum Pump
29342B Ring, O
29343 Ring, O Vacuum Pump, NO.1
29346 Ring, O Vacuum Pump Cover
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29366A Key, Vacuum Pump
29369 Valve Sub-assy, Check
29601B Pipe Sub-assy, Oil(FOR VACUUM PUMP)
29603 Pipe, Vacuum Pump Oil Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
