Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

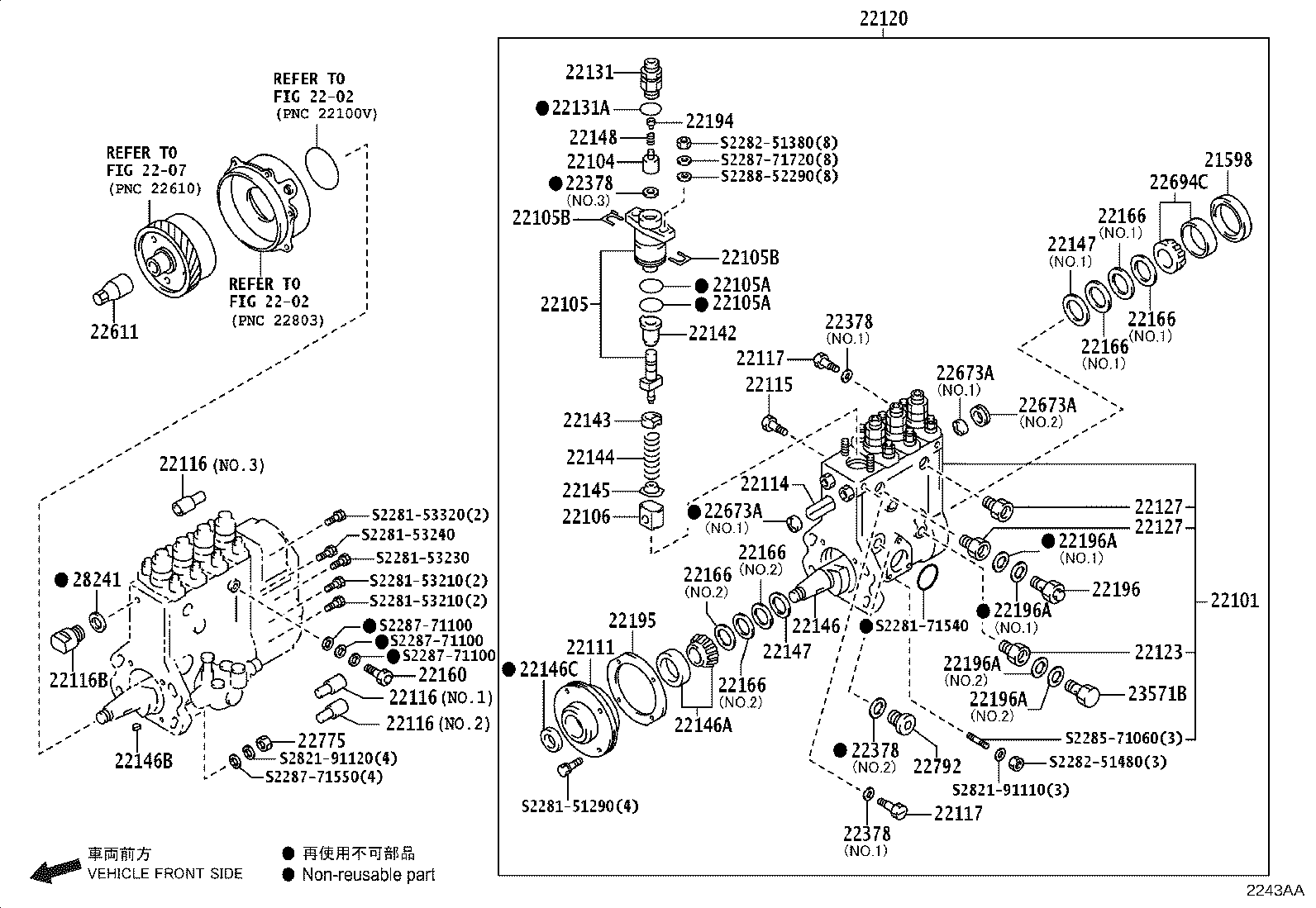

Injection Pump Body
55 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 21598 | Retainer(FOR INJECTION PUMP BALL BEARING) |
| 22101 | Housing Sub-assy, Injection Pump |
| 22102 | Plate Set, Valve Holder Lock |
| 22103 | Cover Sub-assy, Injection Pump |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22105 | Element Sub-assy, Injection Pump |
| 22105A | Ring, O(FOR PUMP ELEMENT) |
| 22105B | Shim(FOR INJECTION PUMP ELEMENT) |
| 22106 | Tappet Sub-assy, Injection Pump |
| 22111 | Cover, Injection Pump Camshaft Bearing |
| 22114 | Rack, Control |
| 22115 | Screw, Rack Guide |
| 22116 | Cover, Control Rack |
| 22116B | Cover, Control Rack |
| 22117 | Screw, Air Bleeder |
| 22120 | Body Assy,Injection |
| 22121 | Packing, Air Bleeder Screw |
| 22123 | Nipple, Drain Plug |
| 22127 | Union, Injection Pump Fuel Inlet |
| 22131 | Holder, Delivery Valve |
| 22131A | Ring, O(FOR DELIVERY VALVE HOLDER) |
| 22142 | Sleeve, Plunger Control |
| 22143 | Seat, Spring Upper |
| 22144 | Spring, Pump Plunger |
| 22145 | Seat, Spring, Lower |
| 22146 | Camshaft, Injection Pump |
| 22146A | Bearing(FOR INJECTION CAMSHAFT) |
| 22146B | Key(FOR INJECTION PUMP CAMSHAFT) |
| 22146C | Seal, Oil, Injection Pump Camshaft |
| 22147 | Ring, Camshaft Adjust |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22153 | Gasket, Injection Pump Cover Plate |
| 22154 | Screw(FOR INJECTION PUMP COVER SETTING) |
| 22155 | Pinion, Plunger Control |
| 22156 | Screw, Plunger Control Pinion Clamp |
| 22157 | Plug, Injection Pump Felt Plate |
| 22160 | Screw Sub-assy, Overflow |
| 22161 | Plate, Camshaft Shim |
| 22166 | Plate, Camshaft Shim |
| 22173 | Washer, Spring |
| 22182 | Plate, Tappet Adjusting Shim |
| 22194 | Stopper, Delivery Valve |
| 22195 | Gasket, Bearing Cover |
| 22196 | Screw, Fuel Inlet Follow |
| 22196A | Washer(FOR INLET FOLLOW SCREW) |
| 22378 | Washer, Drain Screw |
| 22563 | Plate, Injection Pump Cover |
| 22611 | Nut, Timer Round |
| 22673A | Bushing, Control Rack |
| 22694C | Bearing, Injection Pump Ball |
| 22775 | Nut, Lock(FOR INJECTION PUMP) |
| 22792 | Plug, Injection Oil Screw |
| 23571B | Screw, Fuel Inlet Hollow |
| 28241 | Washer, Contact Plate Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
