Fuel Feed Pump

20 part groups · 3 illustrations

Illustrations

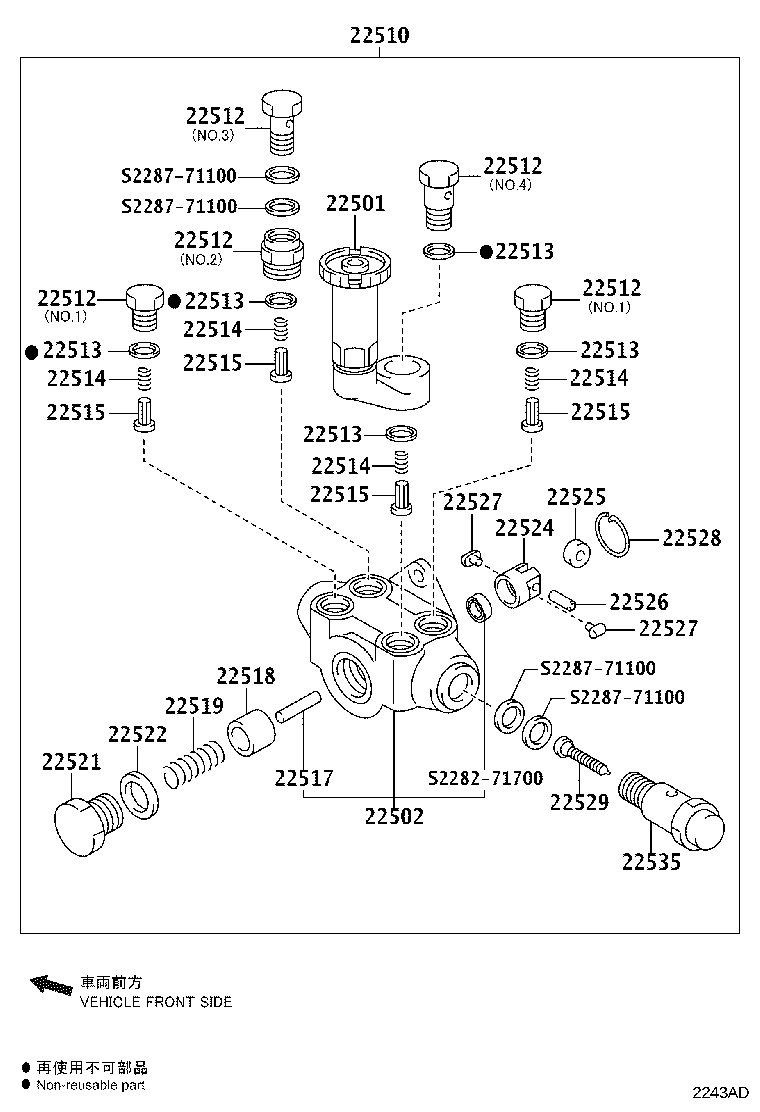

Figure 222700B 222700B 2011-07 → — Figure 223015A 223015A 2011-07 → — Figure 2243AD 2243AD 2011-04 → —

Part groups

PNCDescription
21505 Lever Sub-assy, 2ND Throttle
22501 Pump Sub-assy, Priming
22502 Housing Sub-assy, Fuel
22510 Pump Assy, Fuel Feed
22512 Plug, Feed Pump Check Valve Chamber
22513 Gasket, Check Valve Chamber Plug
22514 Spring, Feed Pump Check Valve
22515 Valve, Feed Pump Check
22517 Rod, Feed Pump Push
22518 Piston, Feed Pump
22519 Spring, Feed Pump Piston
22521 Plug, Feed Pump Piston Chamber
22522 Gasket, Feed Pump Piston Plug
22524 Tappet, Feed Pump
22525 Roller, Feed Pump Tappet
22526 Pin, Feed Pump Tappet Roller
22527 Block, Feed Pump Tappet Sliding
22528 Ring, Feed Pump Tappet Snap
22529 Filter, Fuel Pump
22535 Screw, Fuel Pipe Follow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
