Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Automatic Timer

21 part groups · 2 illustrations

Illustrations

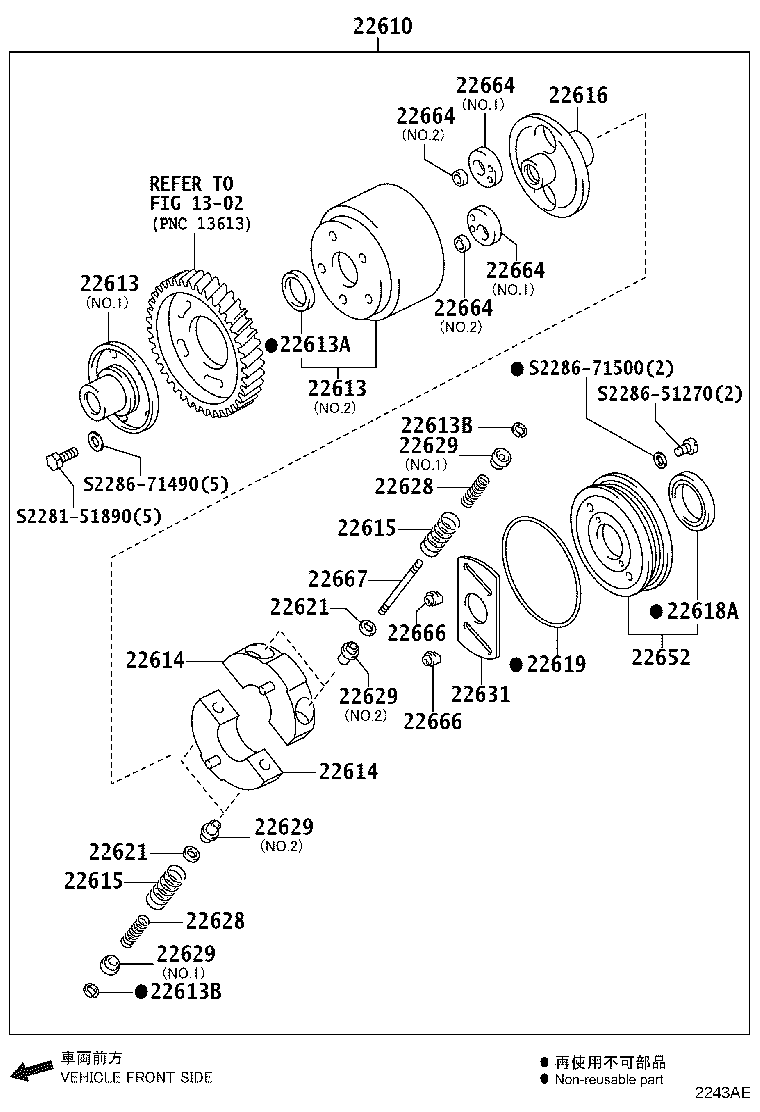

Figure 222698C 222698C 2011-07 → — Figure 2243AE 2243AE 2011-07 → —

Part groups

PNCDescription
21332A Washer(FOR AUTOMATIC TIMER)
22610 Timer Assy, Automatic
22612E Washer, Special
22613 Flange, Timer Driving
22613A Seal, Oil(FOR TIMER DRIVING FLANGE)
22613B Retainer, Timer Spring Seat
22614 Weight, Timer
22615 Spring, Timer
22616 Hub, Timer
22616E Washer, Plate(FOR TIMER HUB)
22618A Seal, Oil
22619 Gasket, Timer Cover
22621 Washer, Timer Spring Adjust
22626A Ring, Clamp(FOR DRIVE GEAR)
22628 Spring, Timer Sub
22629 Seat, Spring(FOR TIMER SPRING)
22631 Flange, Driving
22652 Cover Sub-assy, Timer
22664 Cam, Timer
22666 Roller, Timer
22667 Sleeve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
