Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11
Clutch Pedal & Flexible Hose
27 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31305 | Bracket Sub-assy, Clutch Pedal |
| 31316 | Spring, Turnover Clutch Pedal |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31358 | Cap, Over Center Spring |
| 31394A | Spring, Pedal W/Hook |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |

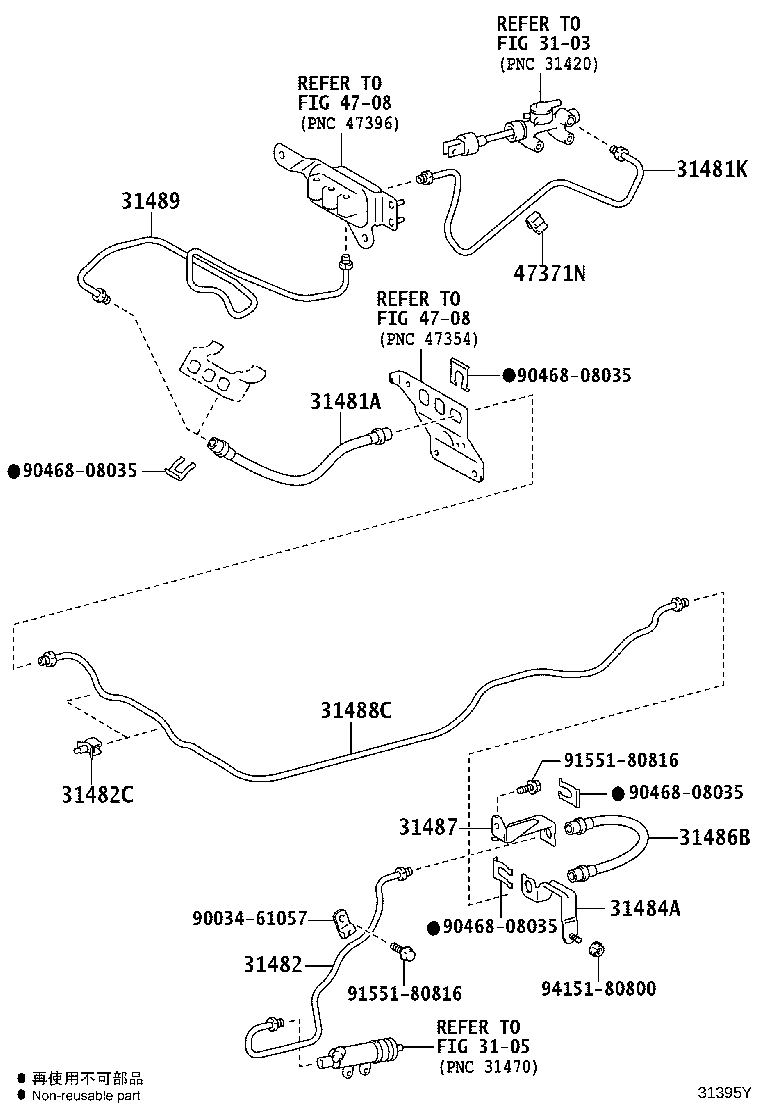

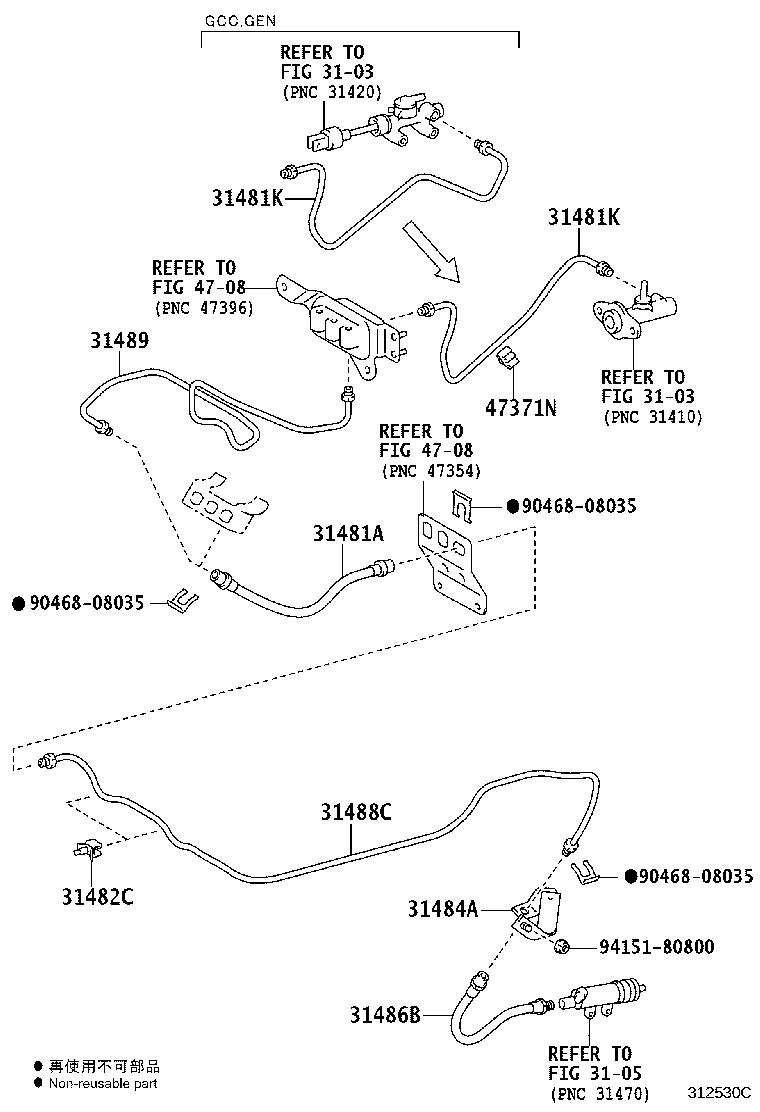

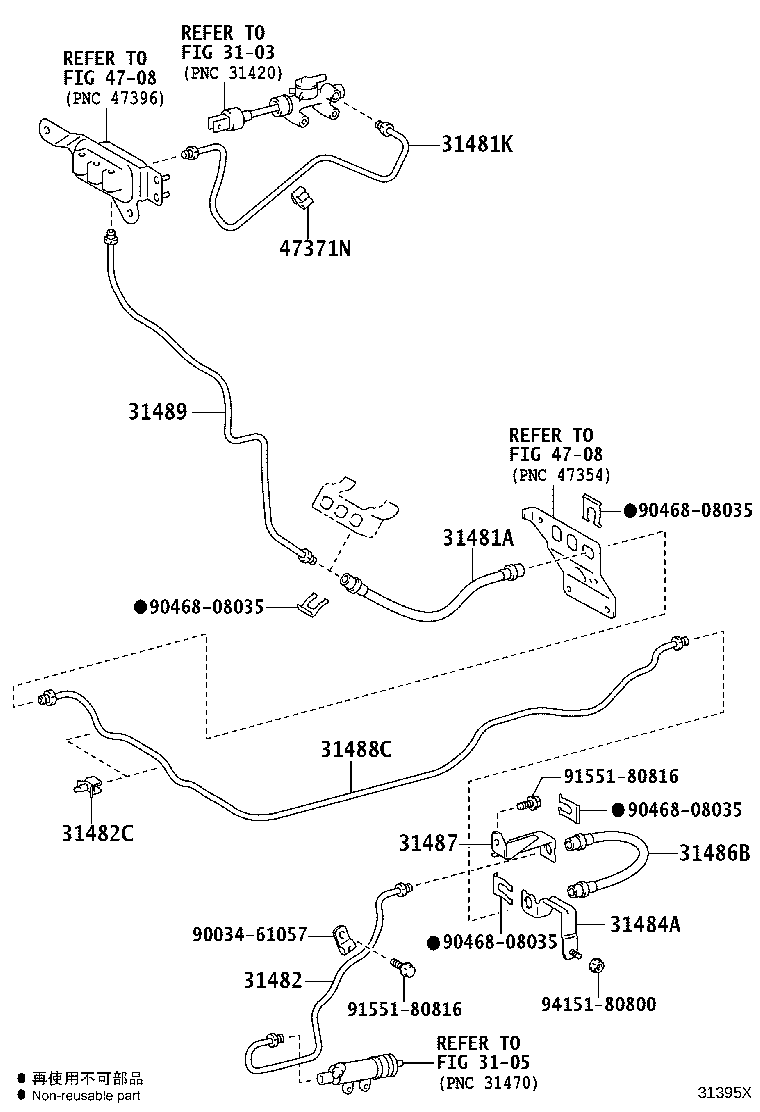

| 31481A | Hose, Clutch, NO.1 |
| 31481K | Tube, Master Cylinder TO Tube Connector |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482C | Clamp(FOR CLUTCH TUBE) |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31486B | Hose, Master Cylinder TO Release Cylinder |
| 31487 | Plate, Release Tube Set |
| 31488C | Tube, Flexible Hose TO Flexible Hose |
| 31489 | Tube, Tube Connector TO Flexible Hose |
| 31496G | Cushion, Clutch Accumulator |
| 47371N | Clamp, Brake Tube |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
