Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 4 illustrations

Illustrations

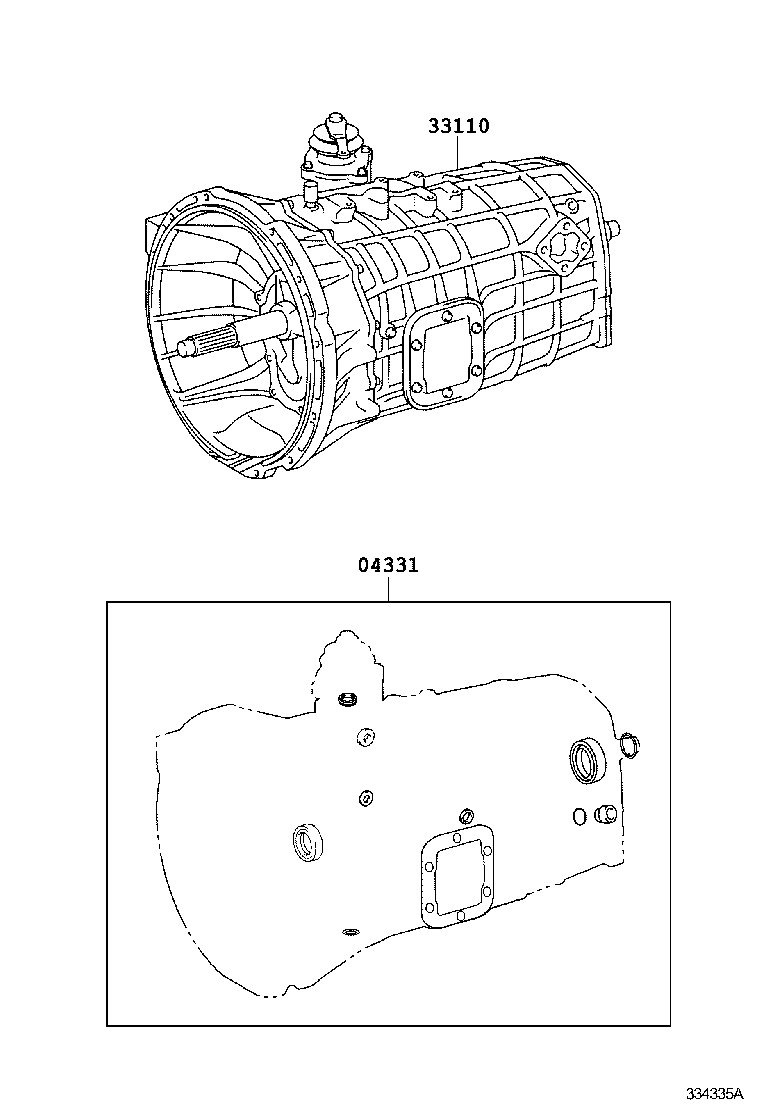

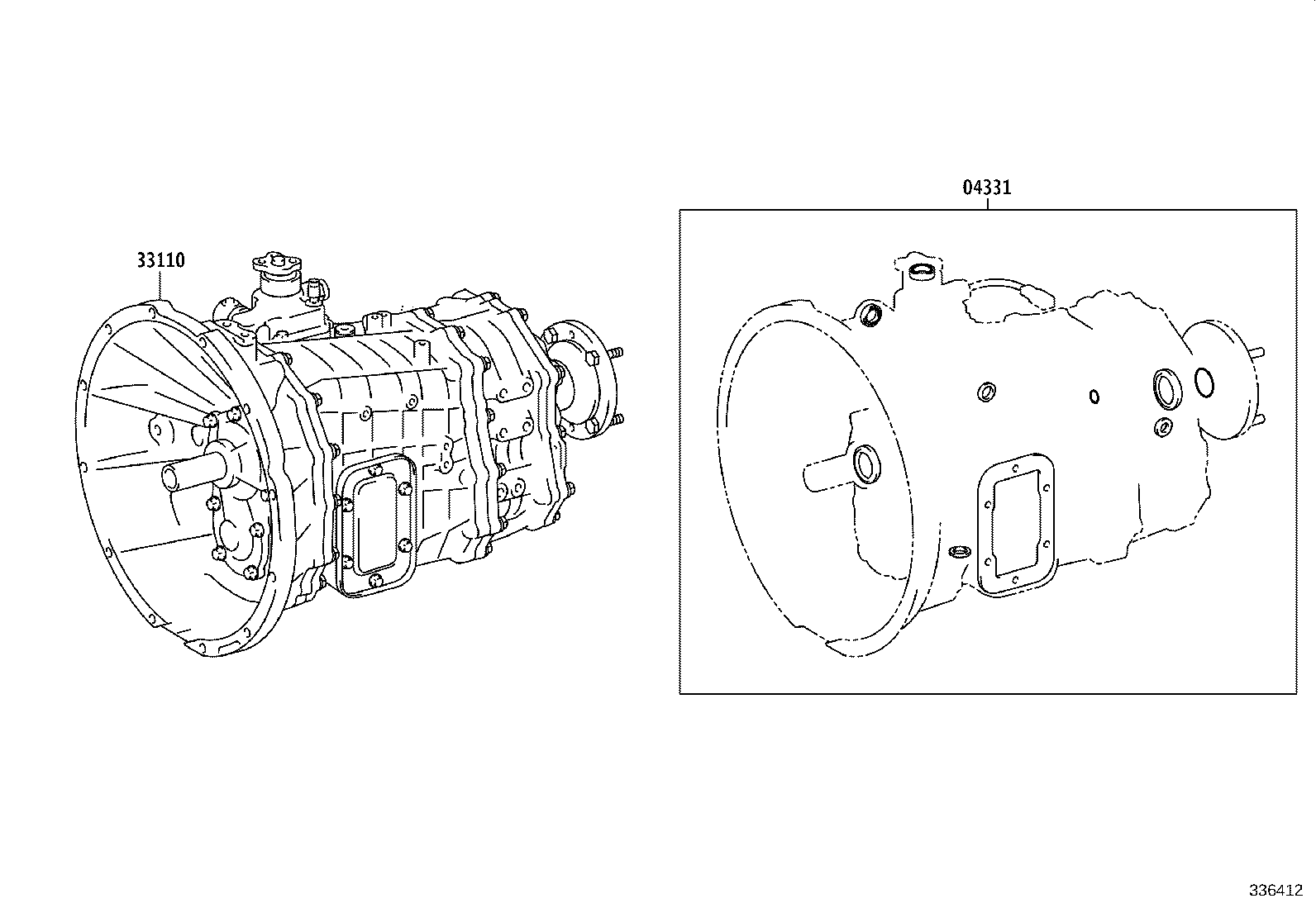

Figure 334334A 334334A 2011-07 → — Figure 334335A 334335A 2011-07 → — Figure 334332 334332 2011-07 → — Figure 336412 336412 2019-11 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
