Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speedometer Driven Gear (MTM)

6 part groups · 4 illustrations

Illustrations

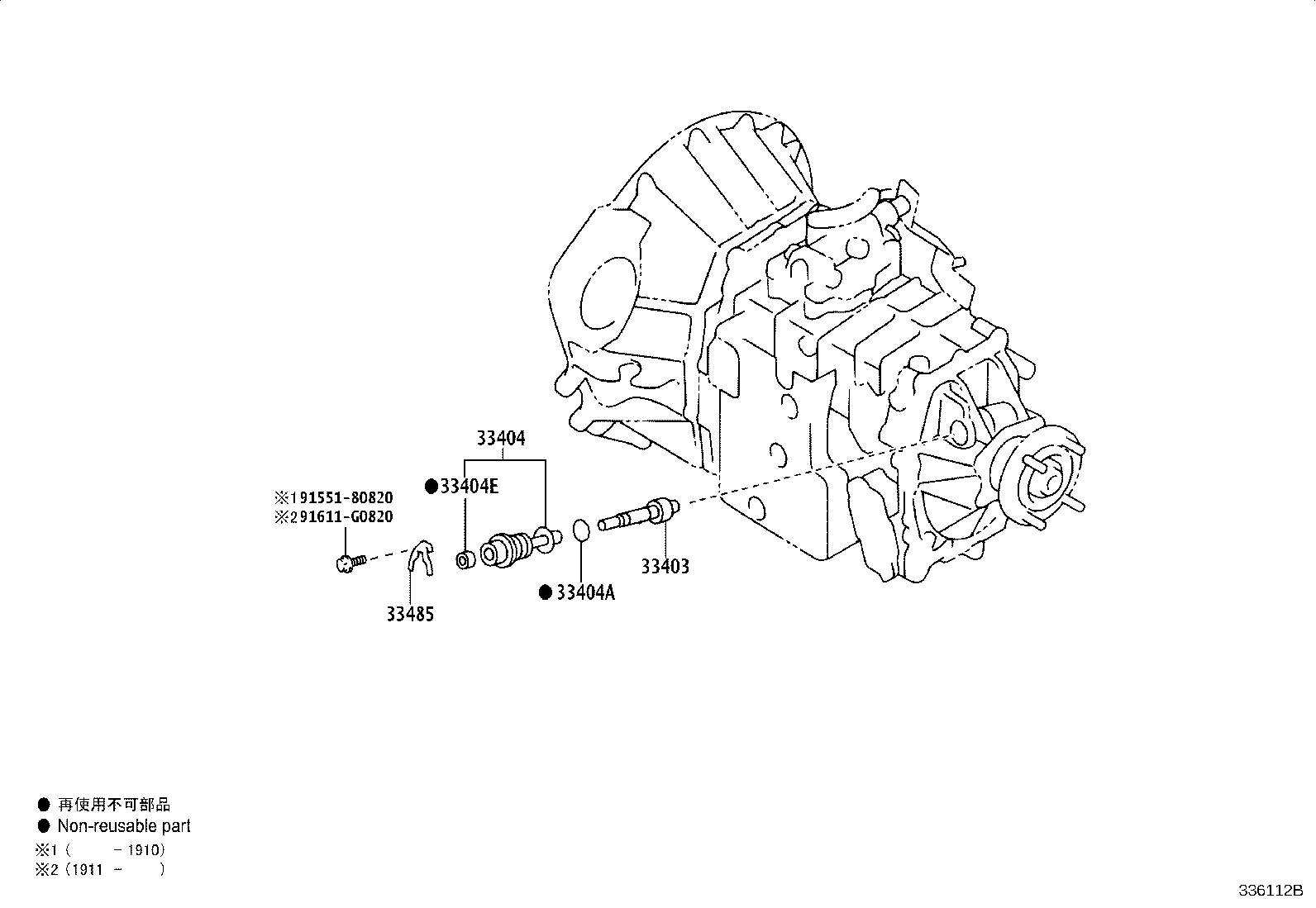

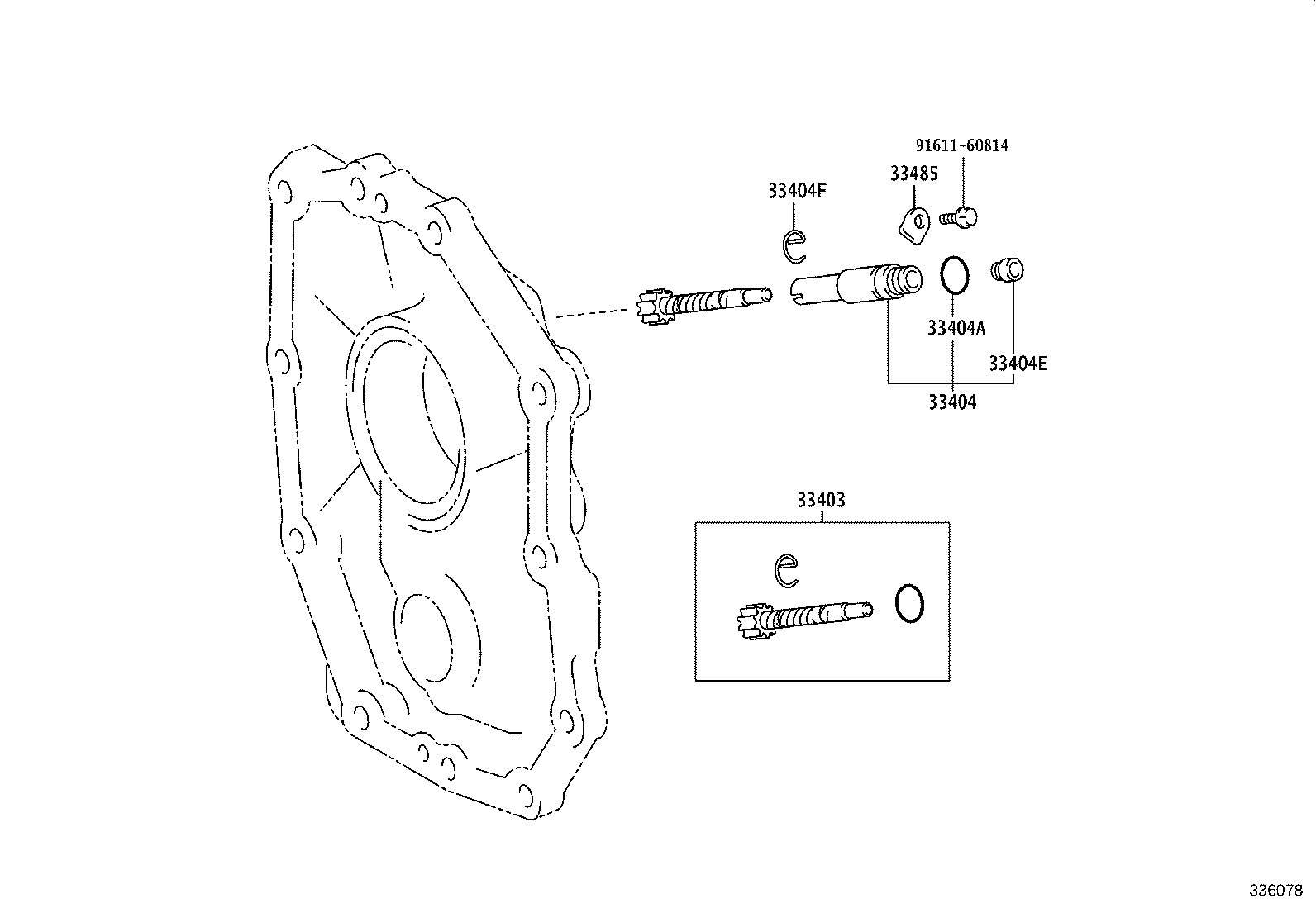

Figure 33728R 33728R 2011-07 → — Figure 33728S 33728S 2011-07 → — Figure 336112B 336112B 2011-07 → — Figure 336078 336078 2019-11 → —

Part groups

PNCDescription
33403 Gear Sub-assy, Speedometer Driven (MTM)
33404 Sleeve Sub-assy, Speedometer Shaft (MTM)
33404A Ring, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404E Seal, Oil (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404F Clip (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485 Plate, Speedometer Sleeve Lock (MTM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
