Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

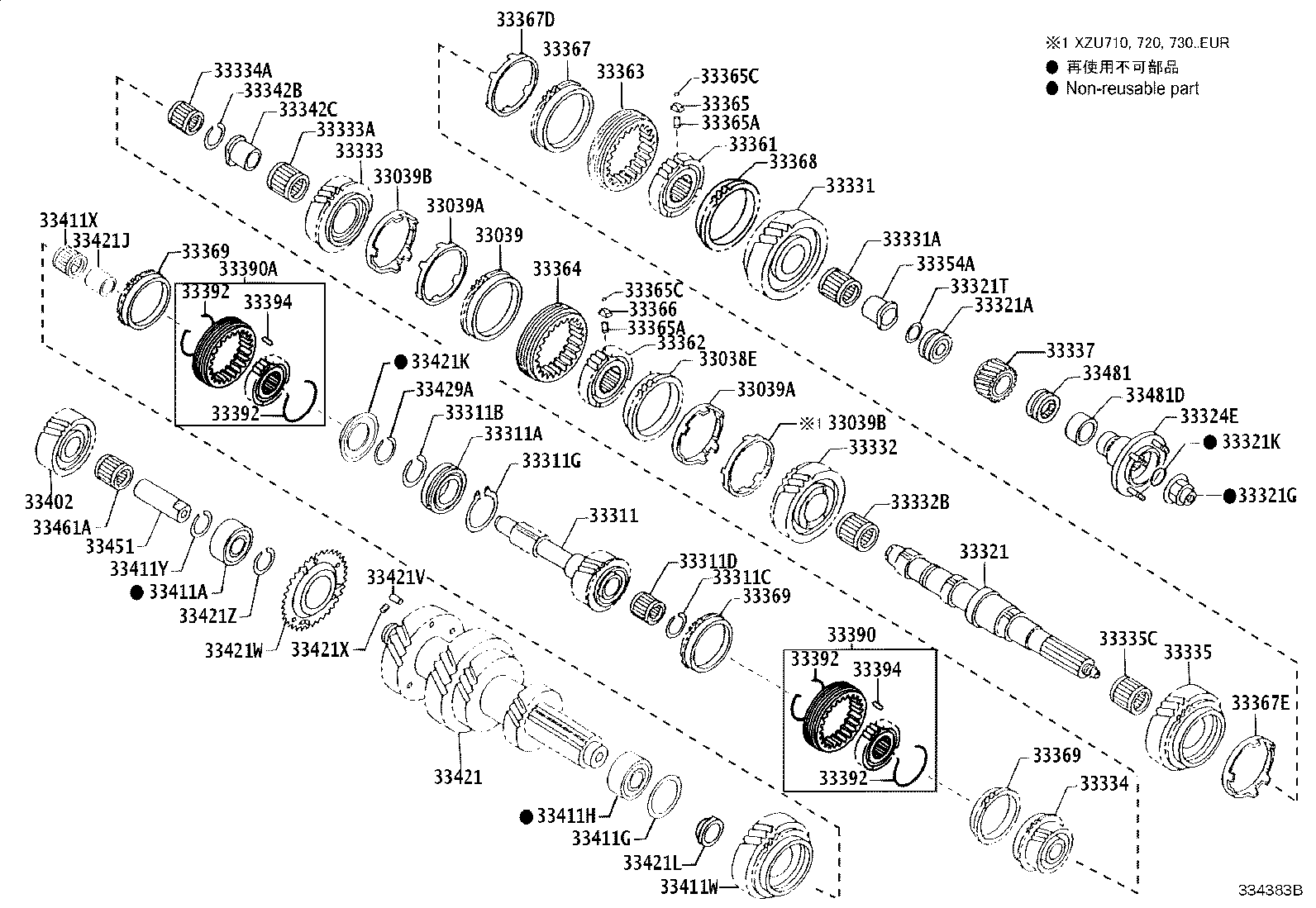

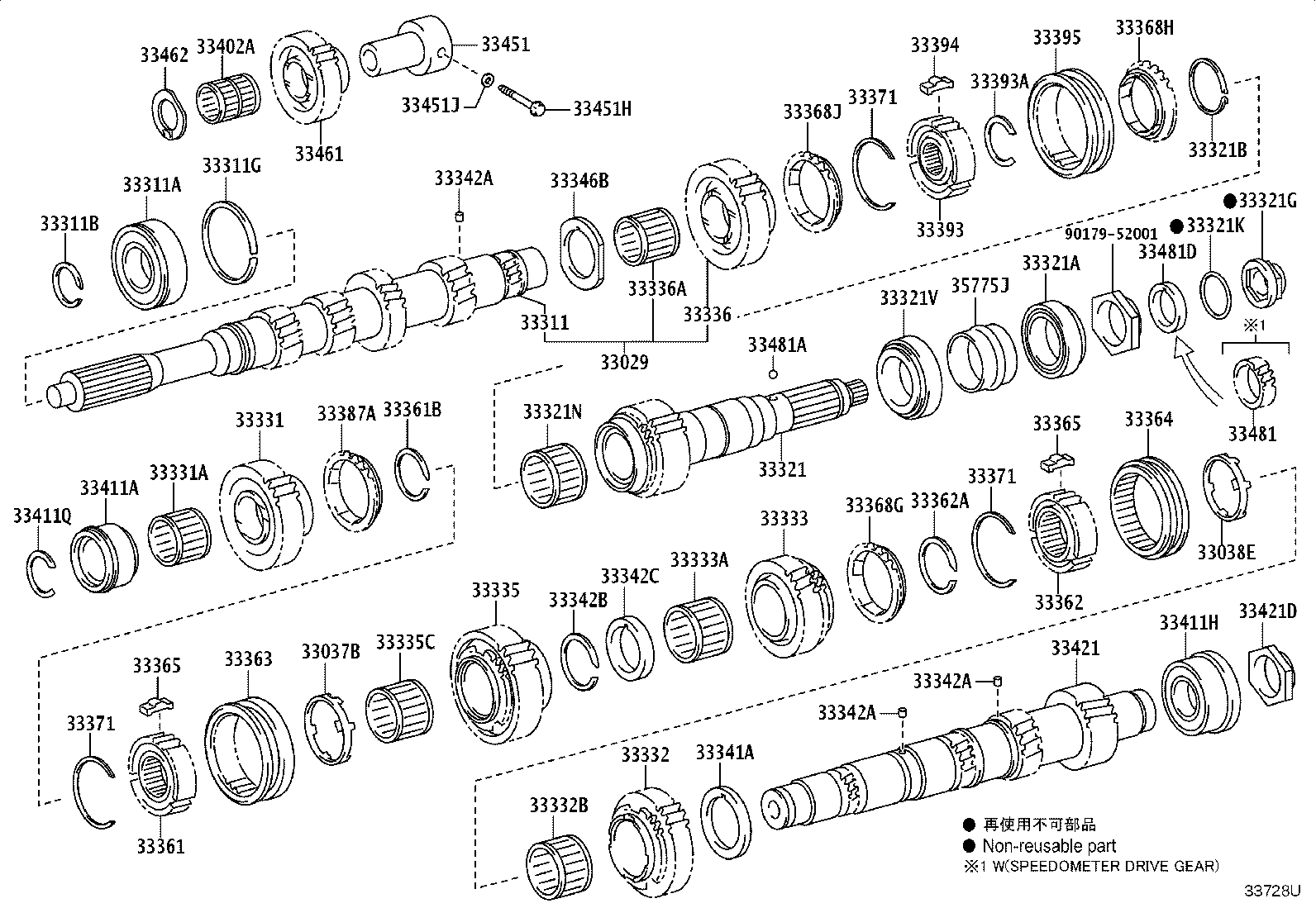

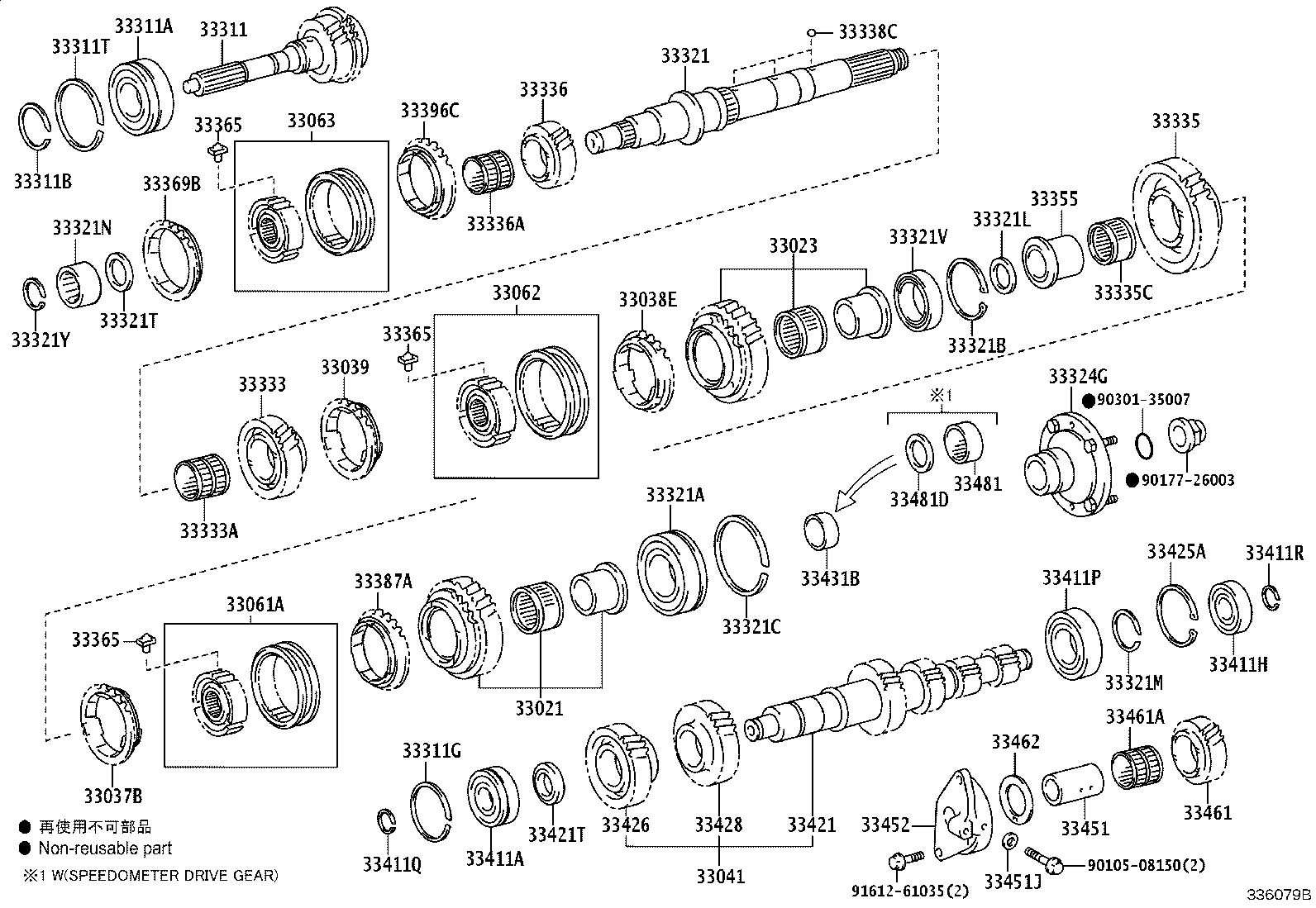

Transmission Gear (MTM)
126 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33021 | Gear Set, Reverse |
| 33023 | Gear Set, 2ND |
| 33029 | Shaft Set, Input |
| 33037B | Ring Set, Synchronizer, NO.1 |
| 33038E | Ring Set, Synchronizer, NO.2 |
| 33039 | Ring Set, Synchronizer, NO.3 |
| 33039A | Ring, Outside, 3RD & 2ND |
| 33039B | Ring, Inside, 3RD & 2ND |
| 33041 | Gear Set, Counter |
| 33061A | Sleeve Sub-assy, Transmission, NO.1 |
| 33062 | Sleeve Sub-assy, Transmission, NO.2 |
| 33063 | Sleeve Sub-assy, Transmission, NO.3 |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311B | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311C | Ring, Hole Snap (FOR NEEDLE ROLLER) |
| 33311D | Bearing, Input Shaft |
| 33311F | Spacer (FOR INPUT SHAFT) |
| 33311G | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311T | Ring, Shaft Snap (FOR INPUT SHAFT) |
| 33321 | Shaft, Output |
| 33321A | Bearing (FOR OUTPUT SHAFT REAR) |
| 33321B | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321C | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321G | Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) |
| 33321K | Ring, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT) |
| 33321L | Shim (FOR OUTPUT SHAFT CENTER BEARING) |
| 33321M | Ring, Shaft Snap (FOR BEARING) |
| 33321N | Bearing (FOR OUTPUT SHAFT FRONT) |
| 33321T | Spacer (FOR OUTPUT SHAFT) |
| 33321V | Bearing (FOR OUTPUT SHAFT CENTER) |
| 33321Y | Ring, Shaft Snap (FOR OUTPUT SHAFT FRONT BEARING) |
| 33323A | Spacer, Synchronizer Ring |
| 33324E | Drive Assy, Coupling |
| 33324G | Flange, Output Shaft Companion (MTM) |
| 33331 | Gear, Reverse |
| 33331A | Bearing (FOR REVERSE GEAR) |
| 33332 | Gear, 2ND |
| 33332B | Bearing, Needle Roller (FOR 2ND GEAR) |
| 33333 | Gear, 3RD |
| 33333A | Bearing, Needle Roller (FOR 3RD GEAR) |
| 33334 | Gear, 4TH |
| 33334A | Bearing, Needle Roller (FOR 4TH GEAR) |
| 33335 | Gear, 1ST |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33336 | Gear, 5TH |
| 33336A | Bearing, Needle Roller (FOR 5TH GEAR) |
| 33336B | Spacer (FOR 5TH GEAR BEARING) |
| 33337 | Gear Sub-assy, 6TH |
| 33338C | Ball, Reverse Shift Restrict |
| 33341A | Washer, 2ND Gear Thrust |
| 33342A | Pin, Straight (FOR GEAR THRUST WASHER) |
| 33342B | Ring, Shaft Snap (FOR GEAR THRUST WASHER) |
| 33342C | Washer, 3RD Gear Thrust |
| 33346B | Washer, 5TH Gear Thrust |
| 33354A | Race, Reverse Gear Bearing, Inner |
| 33355 | Race, 1ST Gear Bearing Inner |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33361B | Ring, Shaft Snap (FOR CLUTCH HUB NO.1) |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33362A | Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING) |
| 33363 | Sleeve, Transmission Hub, NO.1 |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33365A | Spring, Compression |
| 33365C | Ball(FOR SYNCHROMESH SHIFTING KEY) |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33367D | Ring, Outside Low & Reverse |
| 33367E | Ring, Inside Low & Reverse |
| 33368 | Ring, Synchronizer, NO.2 |
| 33368G | Ring, Synchronizer (FOR 3RD GEAR) |
| 33368H | Ring, Synchronizer (FOR 4TH GEAR) |
| 33368J | Ring, Synchronizer (FOR 5TH GEAR) |
| 33369 | Ring, Synchronizer, NO.3 |
| 33369B | Ring, Synchronizer, NO.4 |
| 33371 | Spring, Synchromesh Shifting Key, NO.1 |
| 33387A | Ring, Reverse Synchronizer |
| 33390 | Sleeve & Hub Assy, Top-o/D |
| 33390A | Sleeve & Hub Assy, 6TH |
| 33391 | Spring, Synchromesh Shifting Key, NO.2 |
| 33392 | Spring, Synchromesh Shifting Key, NO.3 |
| 33393 | Hub, Transmission Clutch, NO.3 |
| 33393A | Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3) |
| 33394 | Key, Synchromesh Shifting, NO.3 |
| 33395 | Sleeve, Transmission Hub, NO.3 |
| 33396C | Ring, Synchronizer, NO.5(MTM) |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33402A | Bush OR Bearing (FOR REVERSE IDLER GEAR) |
| 33411A | Bearing OR Roller(FOR COUNTER GEAR FRONT) |
| 33411G | Shim(FOR COUNTER GEAR SHAFT BEARING SETTING) |
| 33411H | Bearing OR Roller(FOR COUNTER GEAR REAR) |
| 33411P | Bearing, Countershaft Center |
| 33411Q | Ring, Counter Gear Front Bearing Snap, NO.2 |
| 33411R | Ring, Snap, Counter Gear Rear Bearing |
| 33411W | Gear, Counter, 6TH |
| 33411X | Bearing, Radial Ball |
| 33411Y | Ring, Snap, Bag, Countershaft |
| 33421 | Gear, Counter |
| 33421D | Nut(FOR COUNTER GEAR REAR) |
| 33421J | Counter, Collar 6TH |
| 33421K | Plate, Stopper, 6TH |
| 33421L | Washer, Thrust 6TH |
| 33421T | Spacer, Counter Gear |
| 33421V | Pin, Anti-lash Plate |
| 33421W | Plate, Anti-lash |
| 33421X | Spring, Anti-lash Plate |
| 33421Z | Ring, Snap, Anti-lash |
| 33425A | Ring, Shaft Snap (FOR COUNTER GEAR) |
| 33426 | Gear, Countershaft Drive |
| 33428 | Gear, Countershaft 5TH |
| 33429A | Ring, Shaft Snap |
| 33431B | Spacer, Output Shaft |
| 33451 | Shaft, Reverse Idler Gear |
| 33451A | Key, Woodruff (FOR REVERSE IDLER GEAR SHAFT) |
| 33451H | Bolt (FOR REVERSE IDLER GEAR SHAFT) |
| 33451J | Gasket (FOR REVERSE IDLER GEAR SHAFT) |
| 33452 | Stopper, Reverse Idler Gear Shaft |
| 33461 | Gear, Reverse Idler |
| 33461A | Bearing, Reverse Idler Gear |
| 33462 | Washer, Reverse Idler Thrust |
| 33464 | Washer, Reverse Idler Thrust, NO.2 |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481A | Key OR Ball, Speedometer Drive Gear (MTM) |
| 33481D | Spacer (FOR SPEEDOMETER DRIVE GEAR) |
| 35775J | Spacer, Output Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
