Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

17 part groups · 4 illustrations

Illustrations

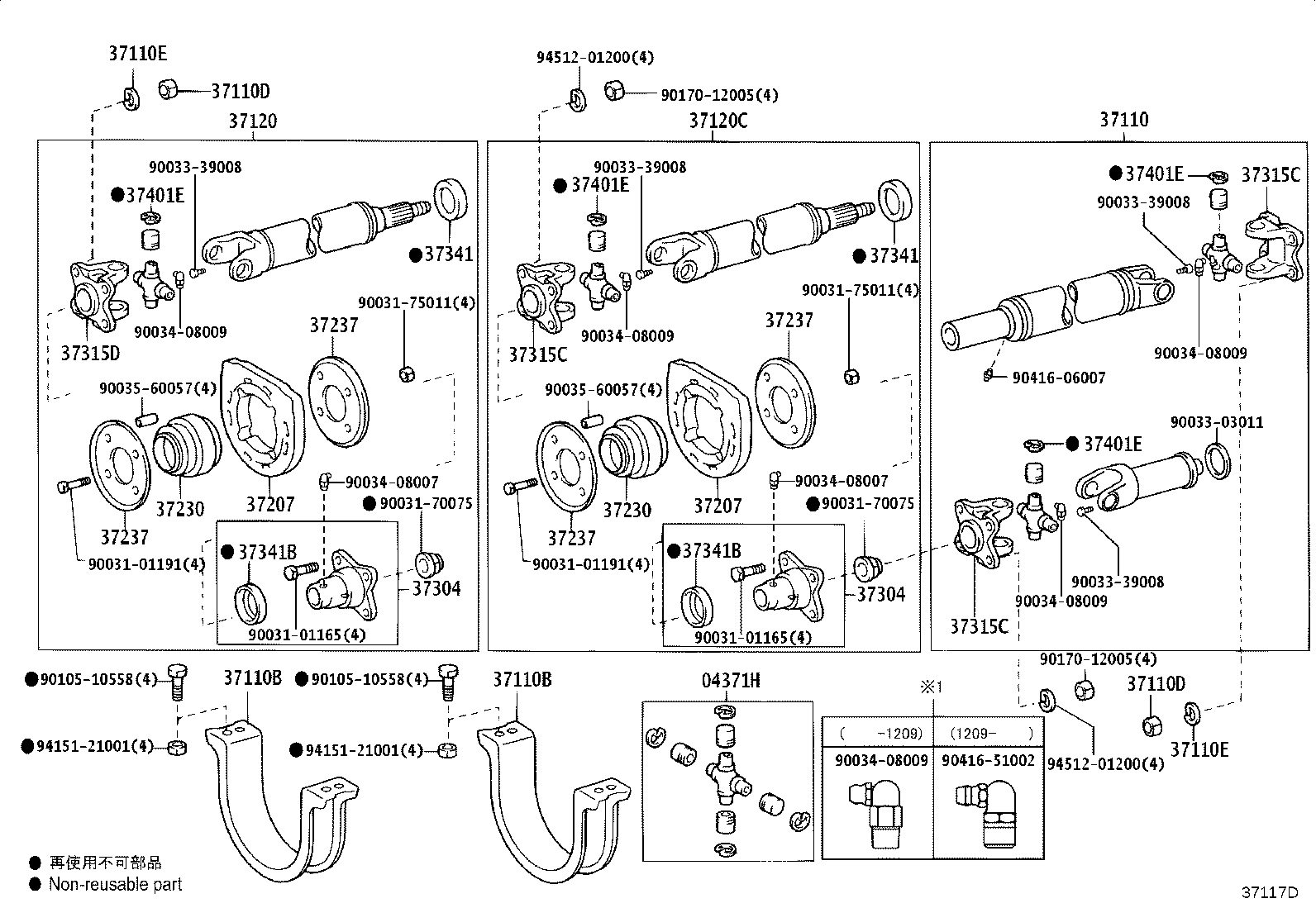

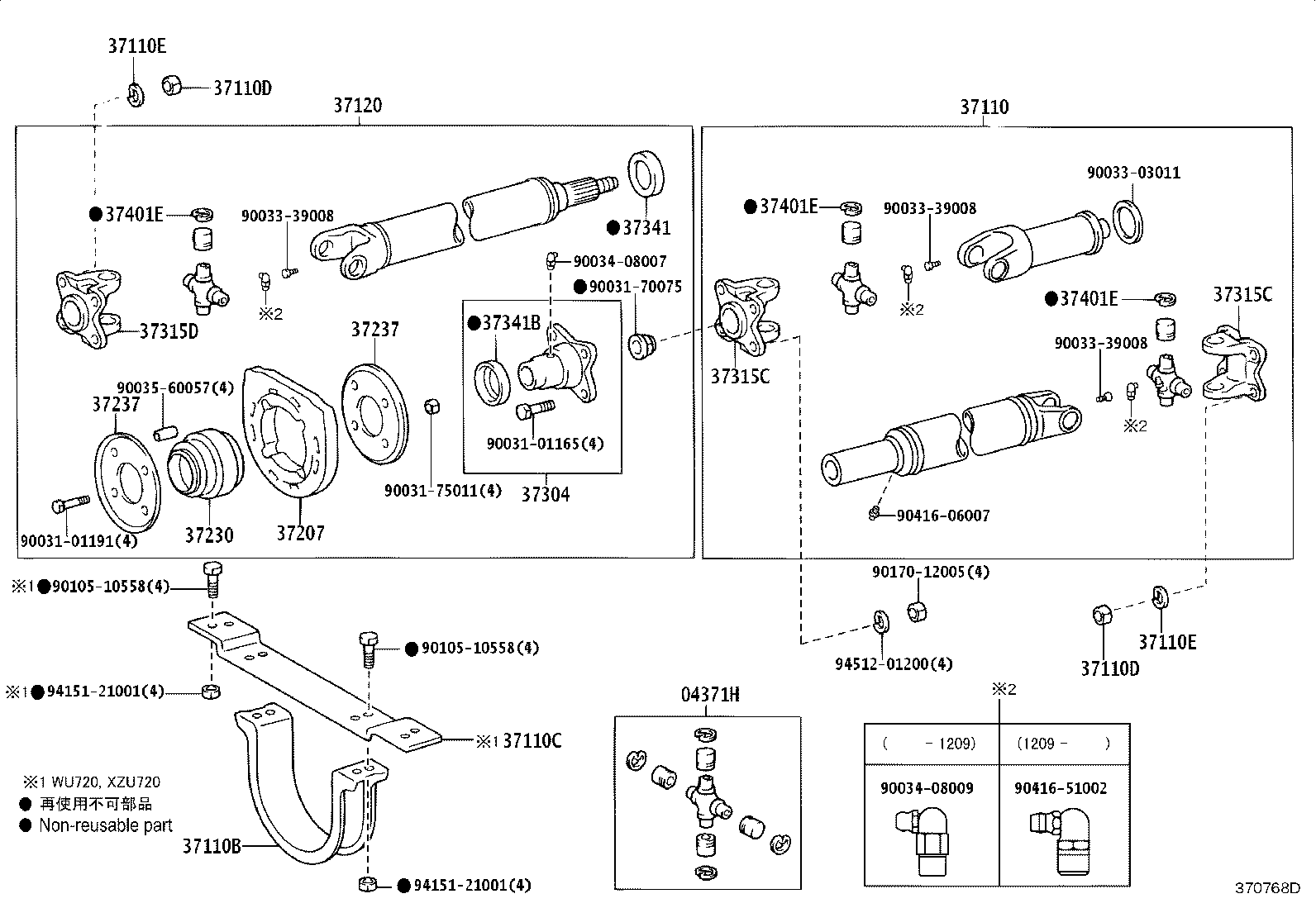

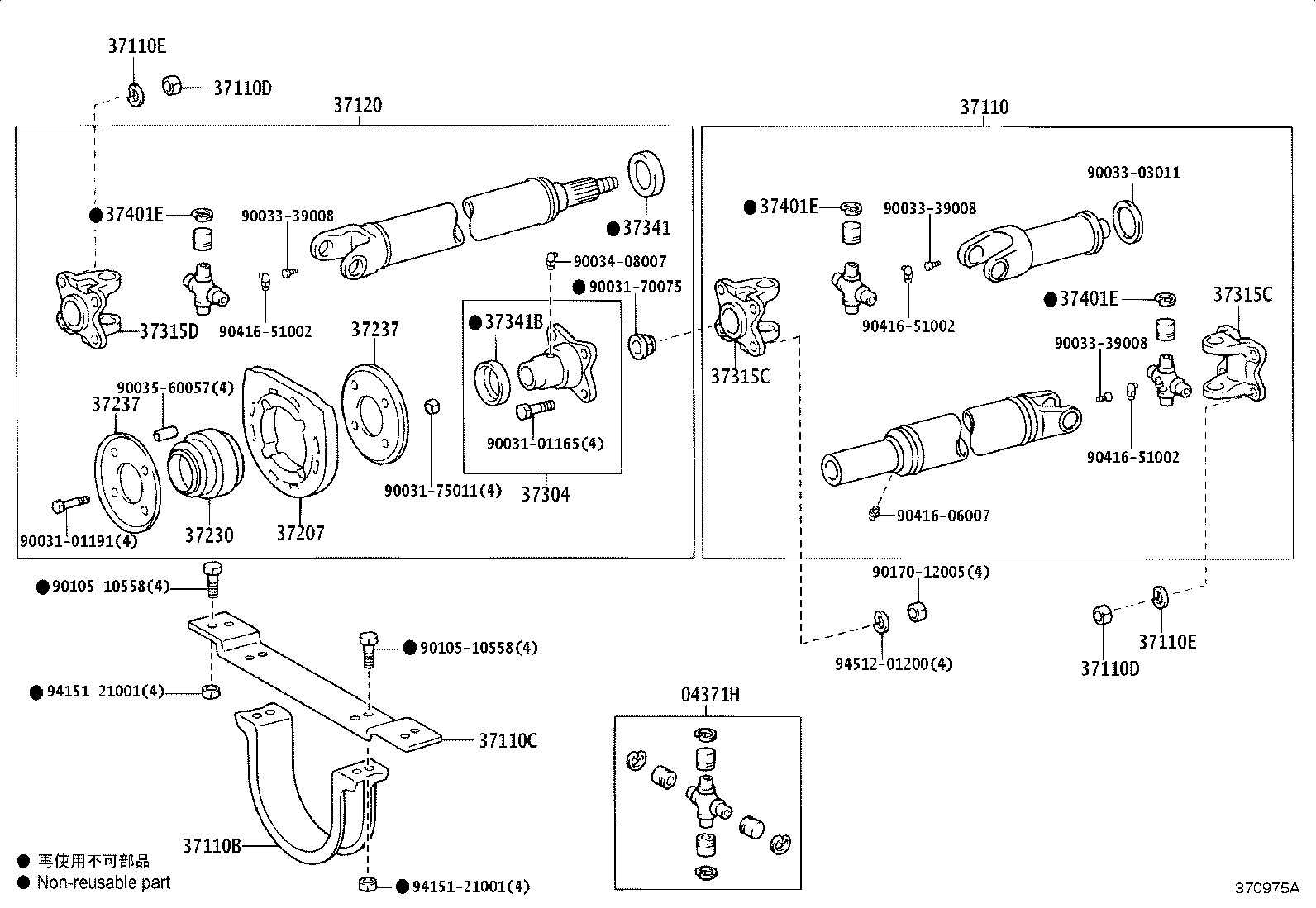

Figure 37117C 37117C 2011-07 → — Figure 370768D 370768D 2011-07 → — Figure 370975A 370975A 2019-11 → — Figure 37117D 37117D 2012-07 → —

Part groups

PNCDescription
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37110 Shaft Assy, Propeller
37110B Guard, Propeller Shaft
37110C Bracket, Propeller Shaft Guard
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120C Shaft Assy, Propeller, Center
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37237 Plate, Center Support Bearing, NO.1
37304 Flange Sub-assy, Universal Joint
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37315D Yoke, NO.2, Rear Propeller Shaft Universal Joint Flange
37341 Deflector, Propeller Shaft Dust, NO.1
37341B Deflector, Propeller Shaft Dust, NO.5
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
