Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

6 part groups · 5 illustrations

Illustrations

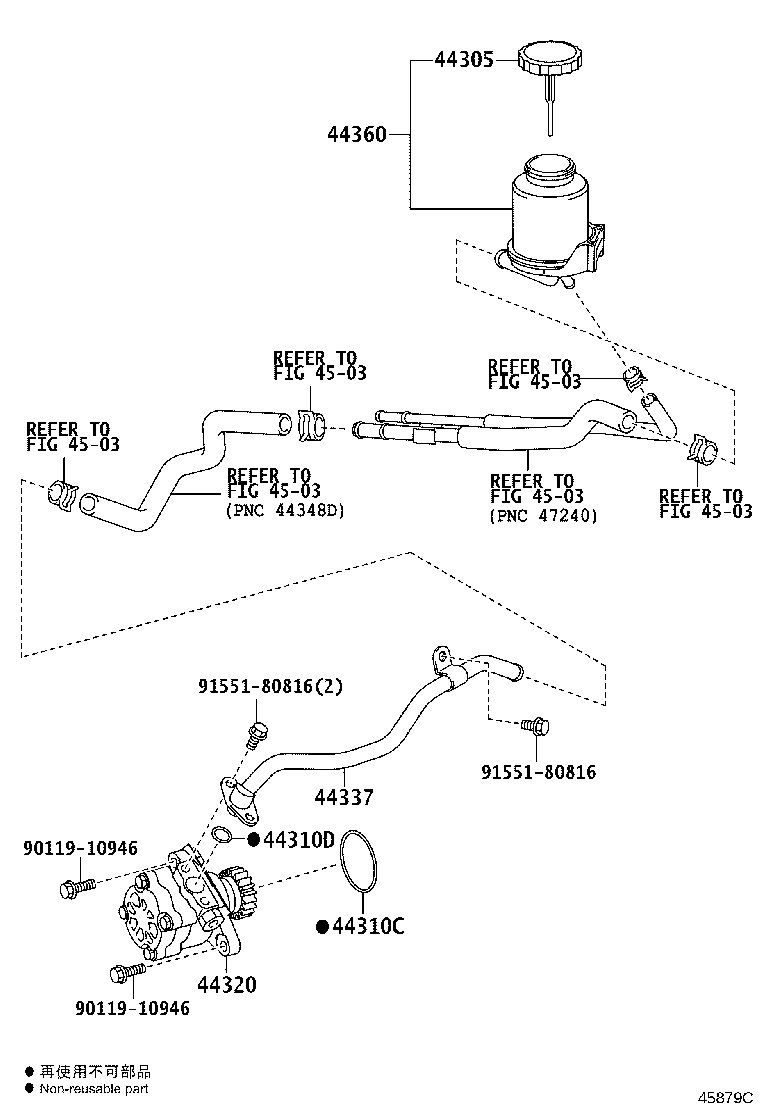

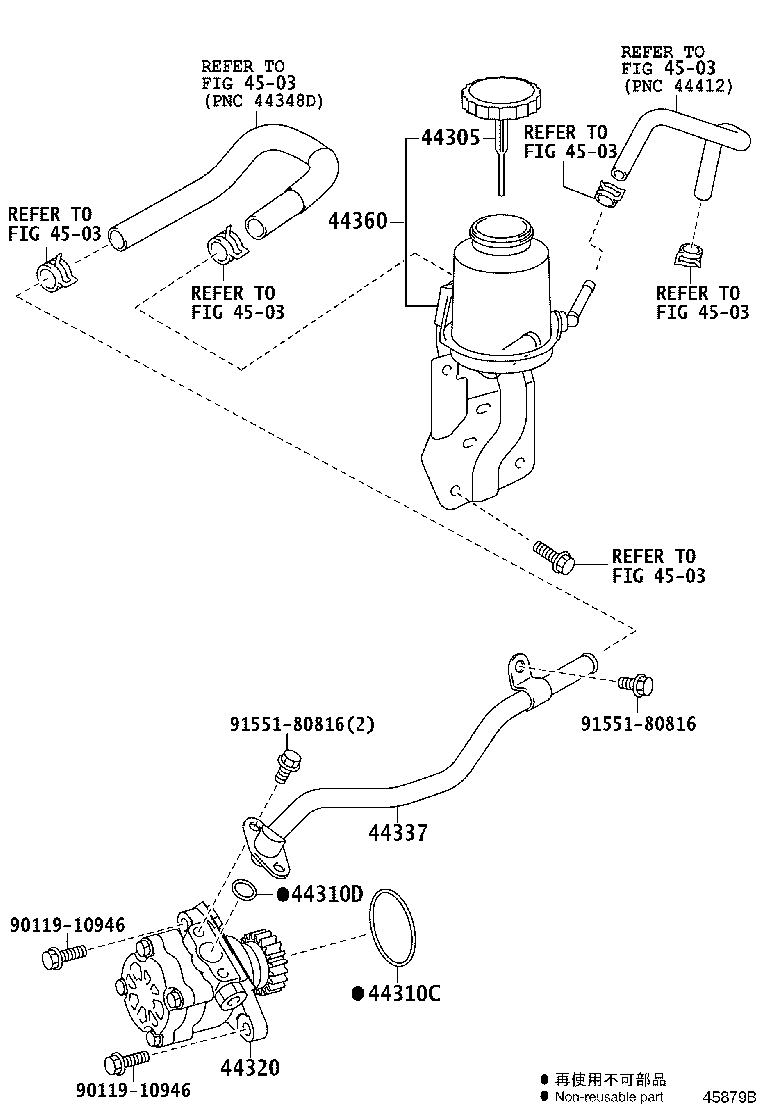

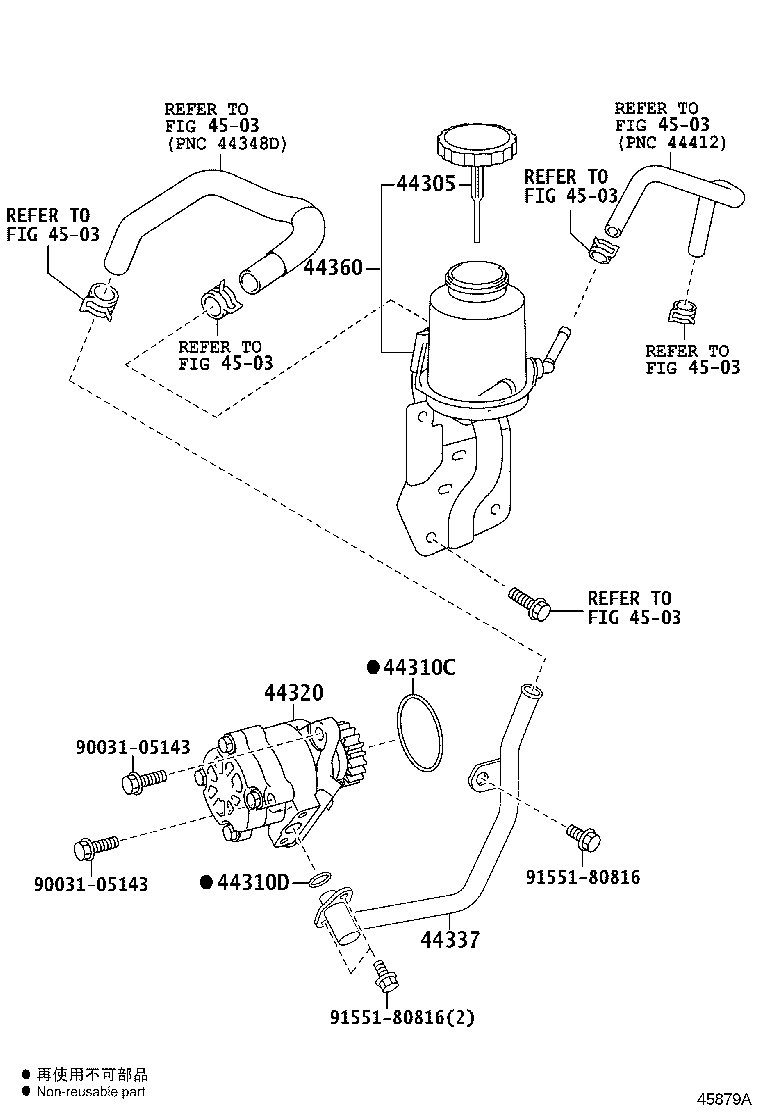

Figure 458799 458799 2011-06 → — Figure 45879A 45879A 2011-06 → — Figure 45879B 45879B 2011-06 → — Figure 45879B 45879B 2019-11 → — Figure 45879C 45879C 2011-06 → —

Part groups

PNCDescription
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310C Ring, O(FOR VANE PUMP)
44310D Ring, O(FOR VANE PUMP UNION)
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
