Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

80 part groups · 26 illustrations

Illustrations

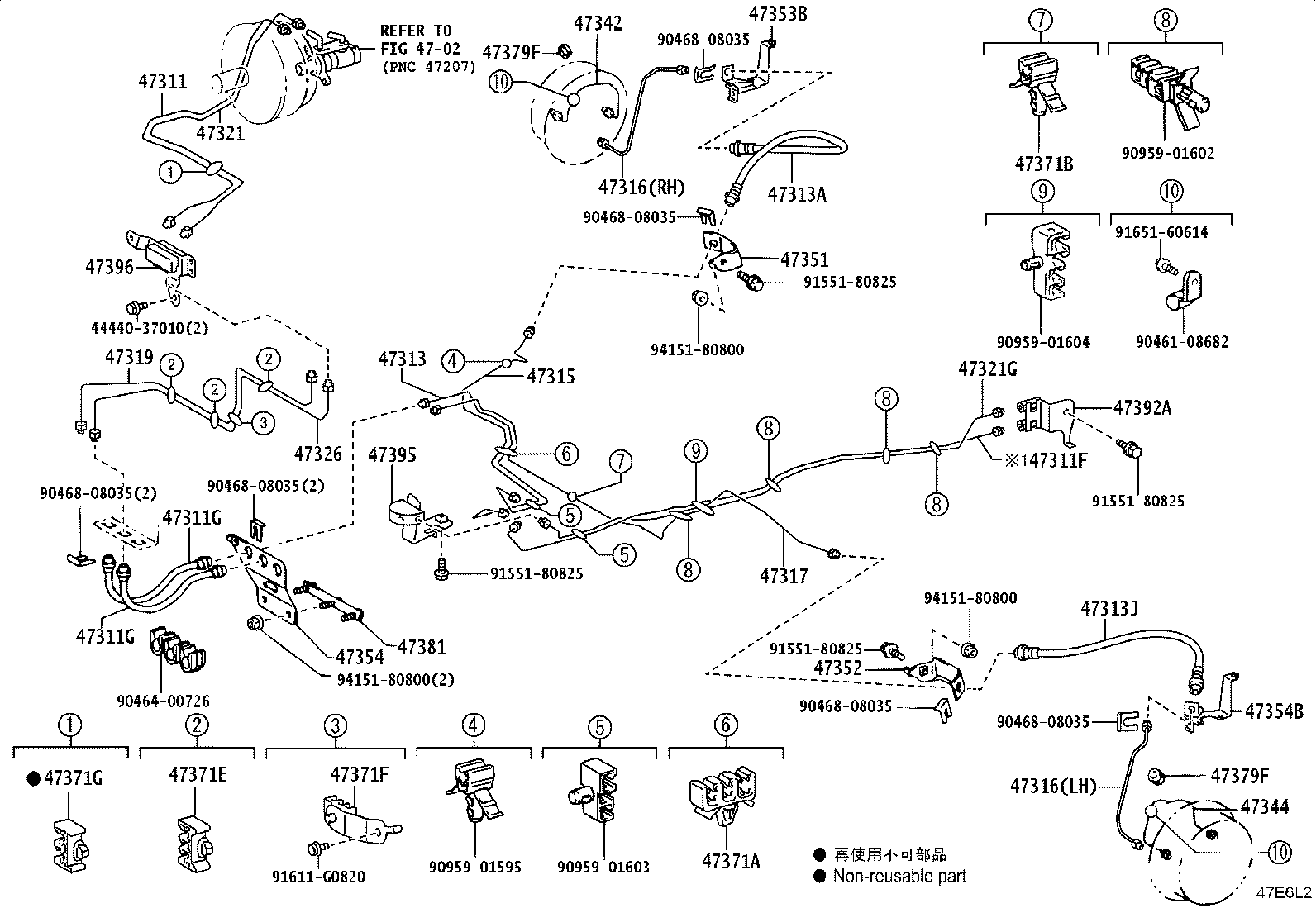

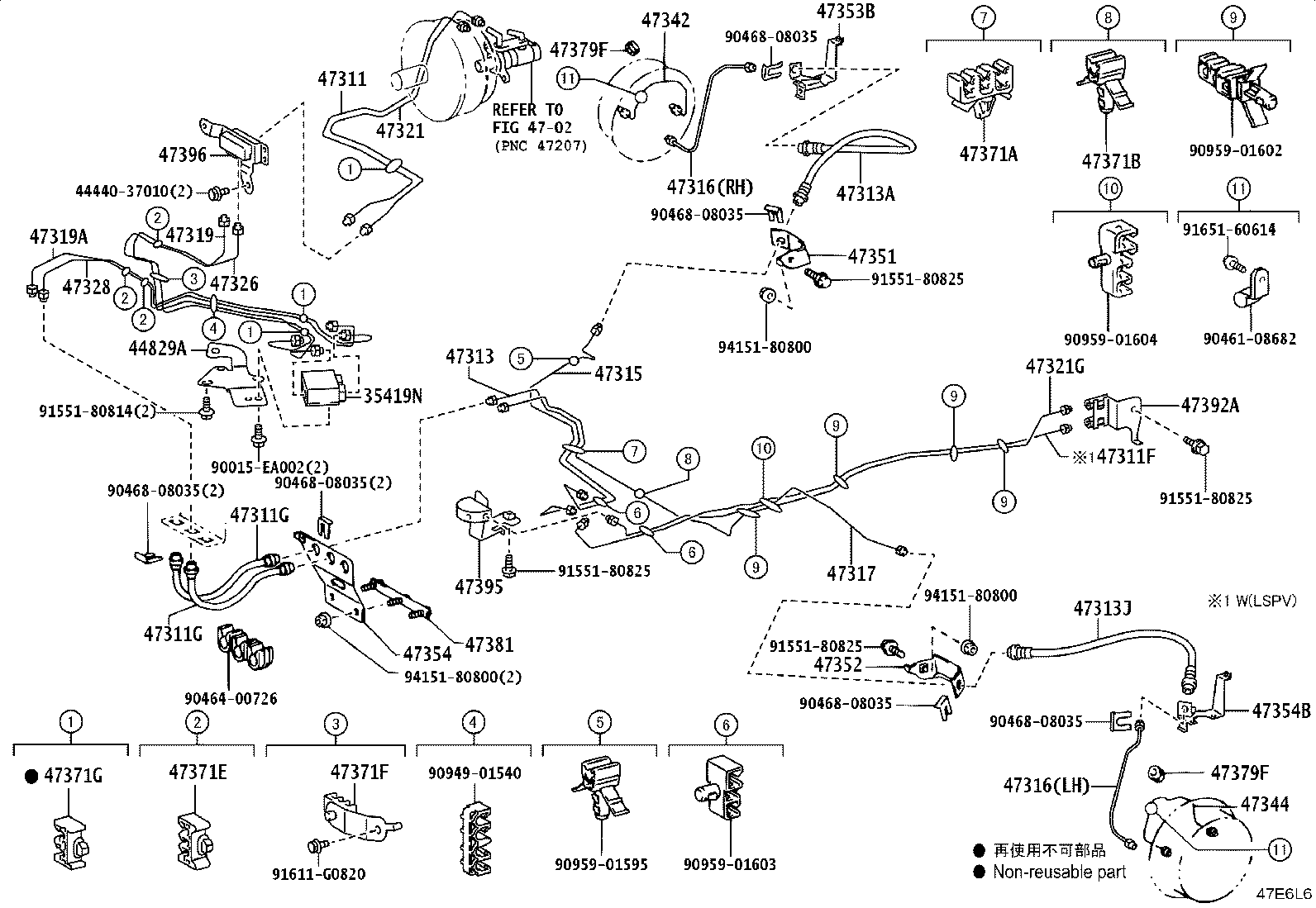

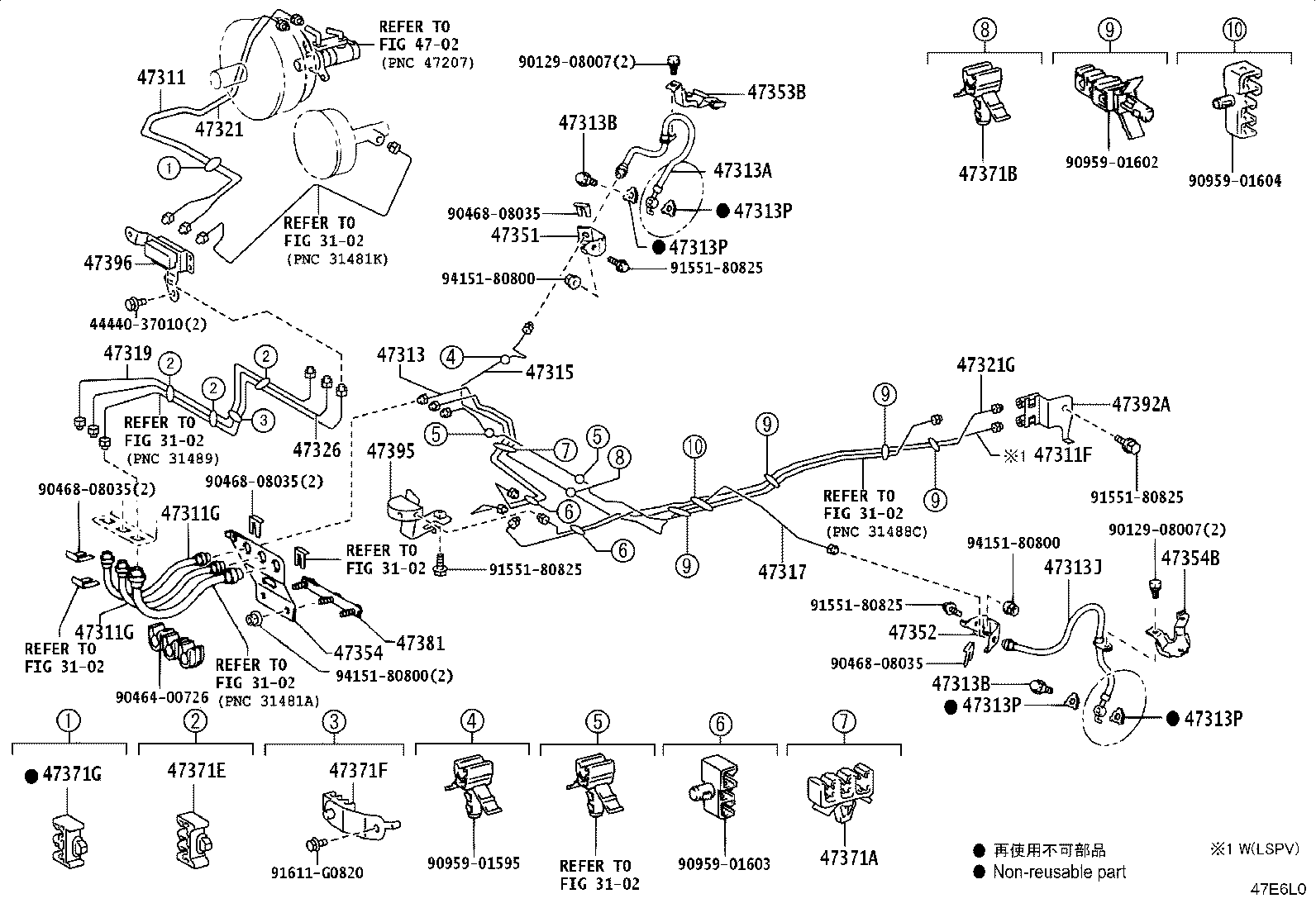

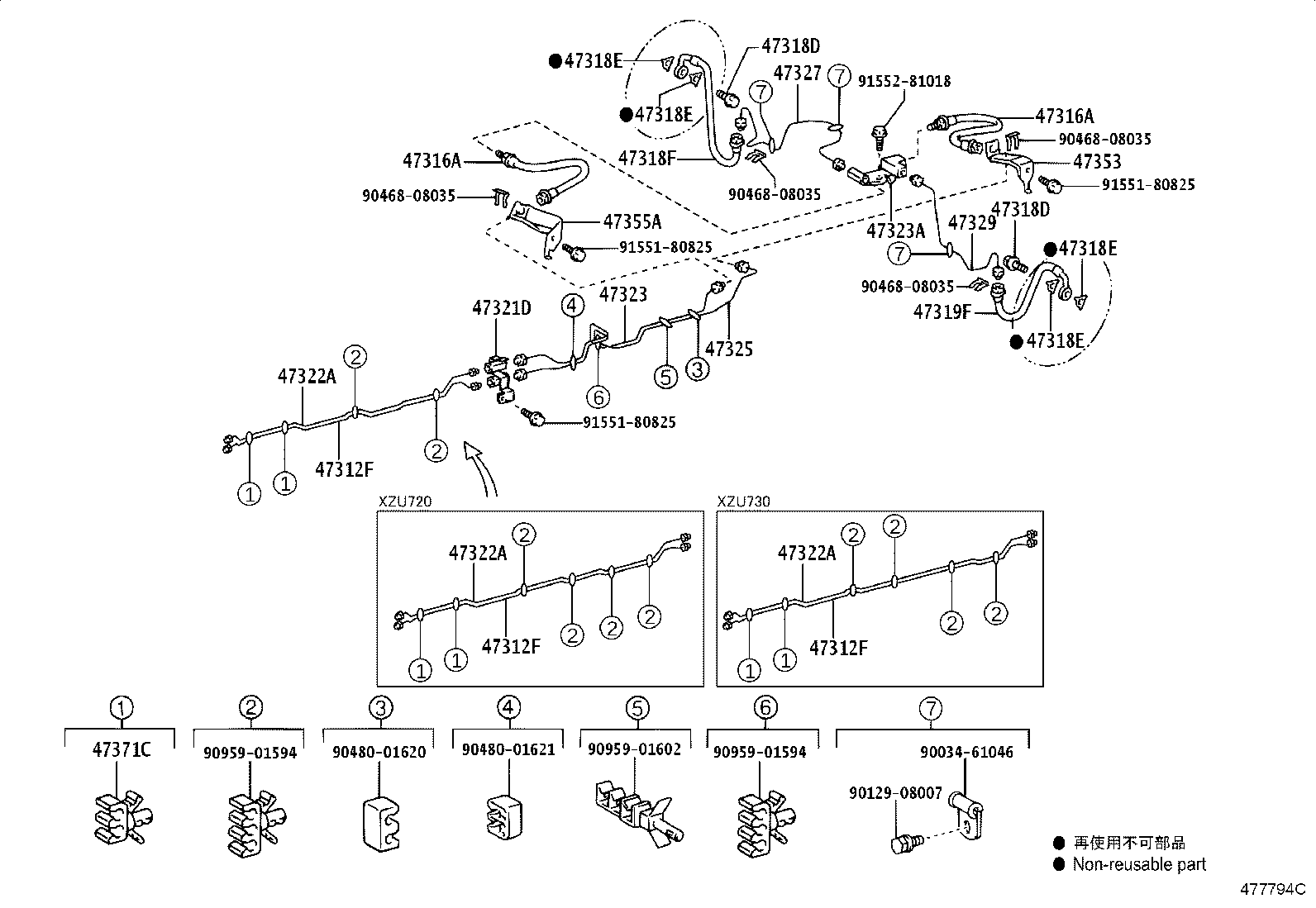

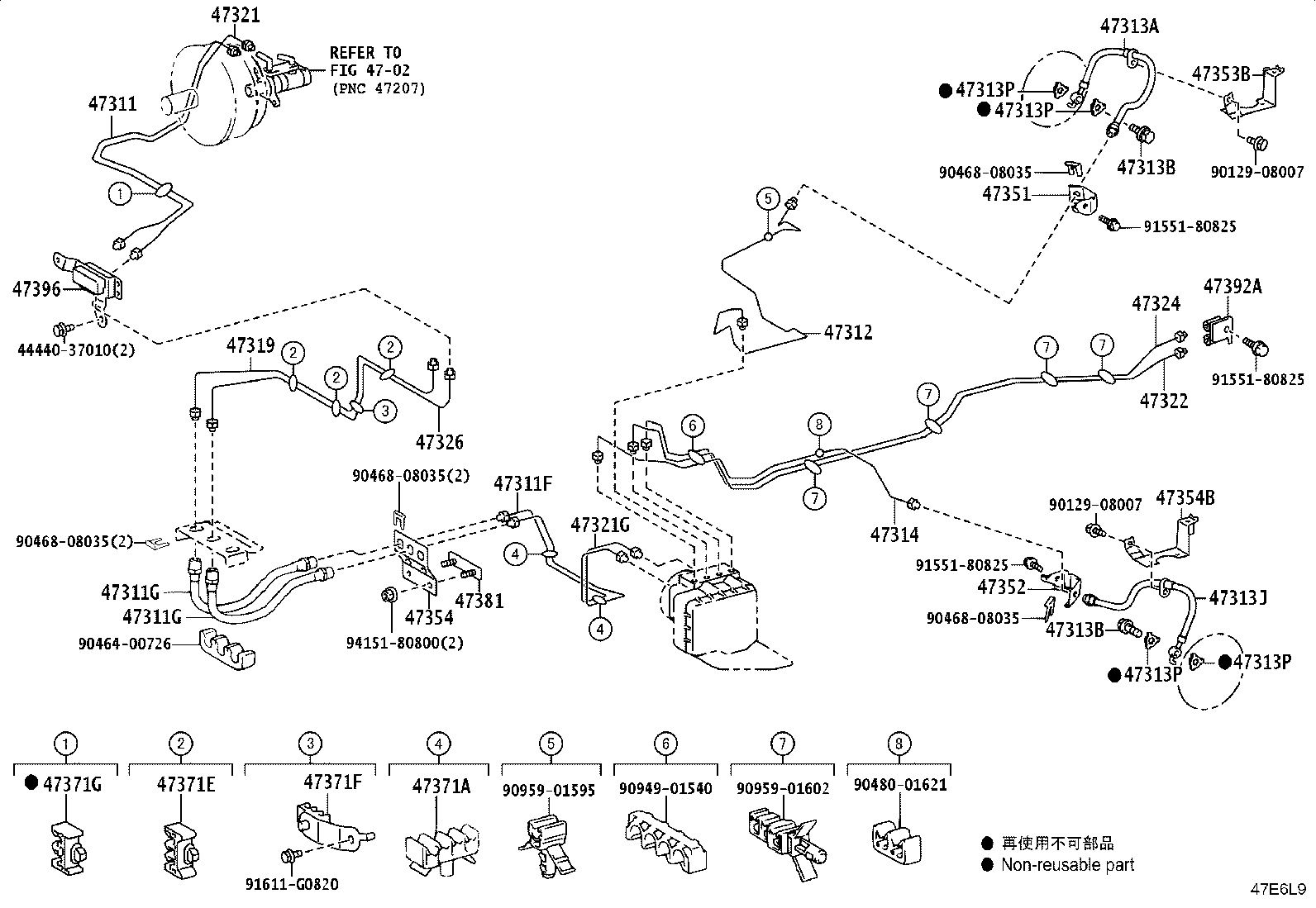

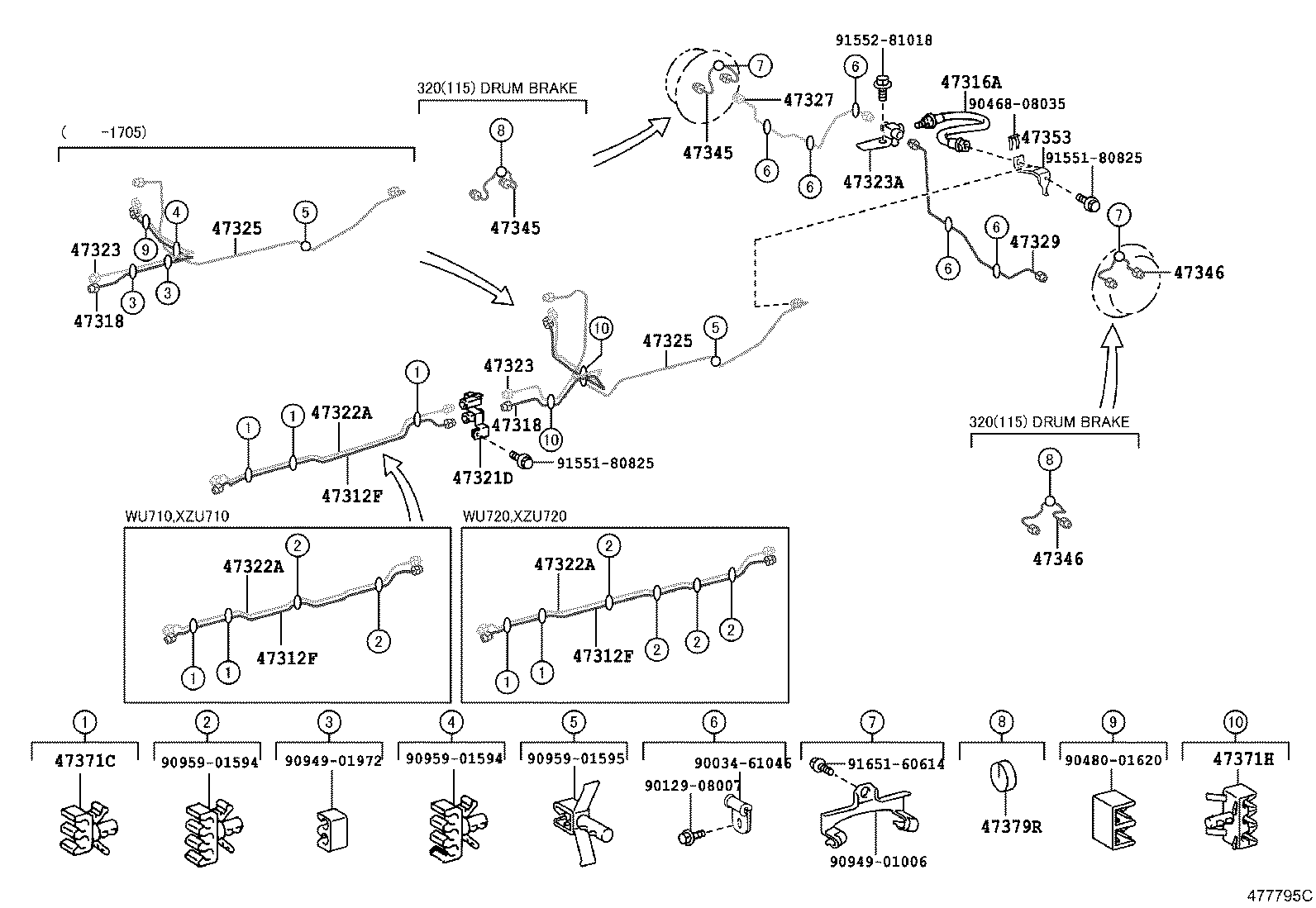

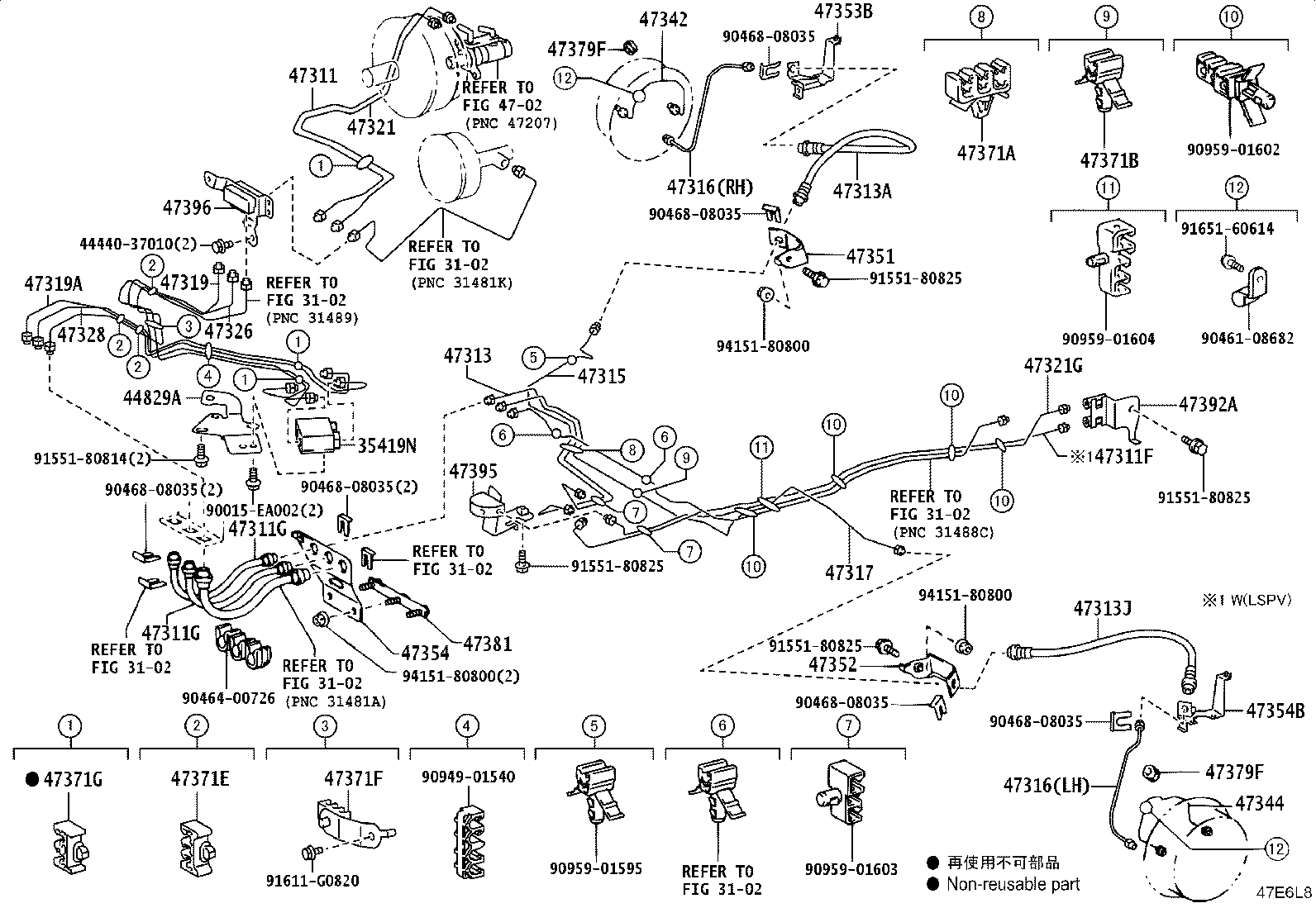

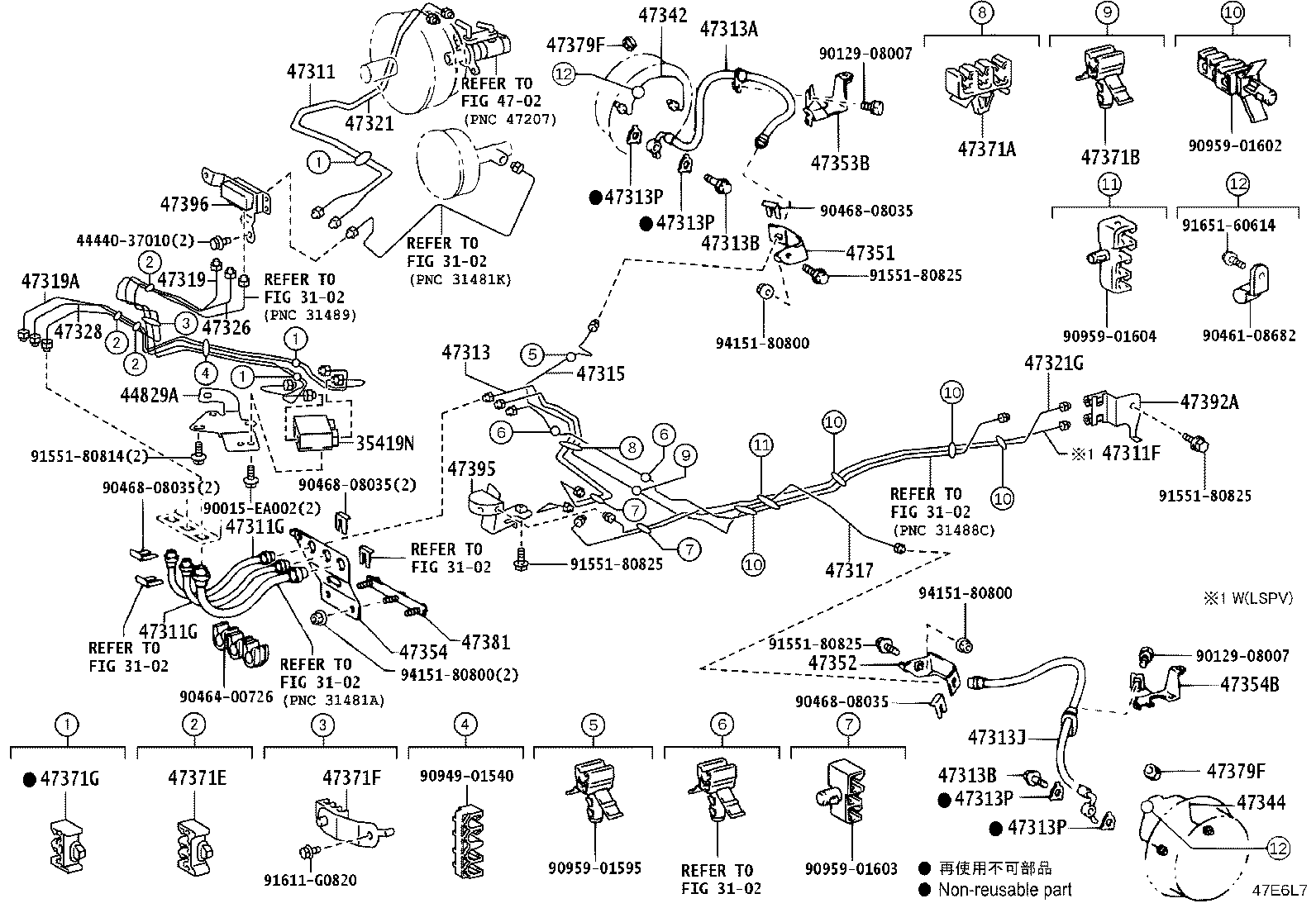

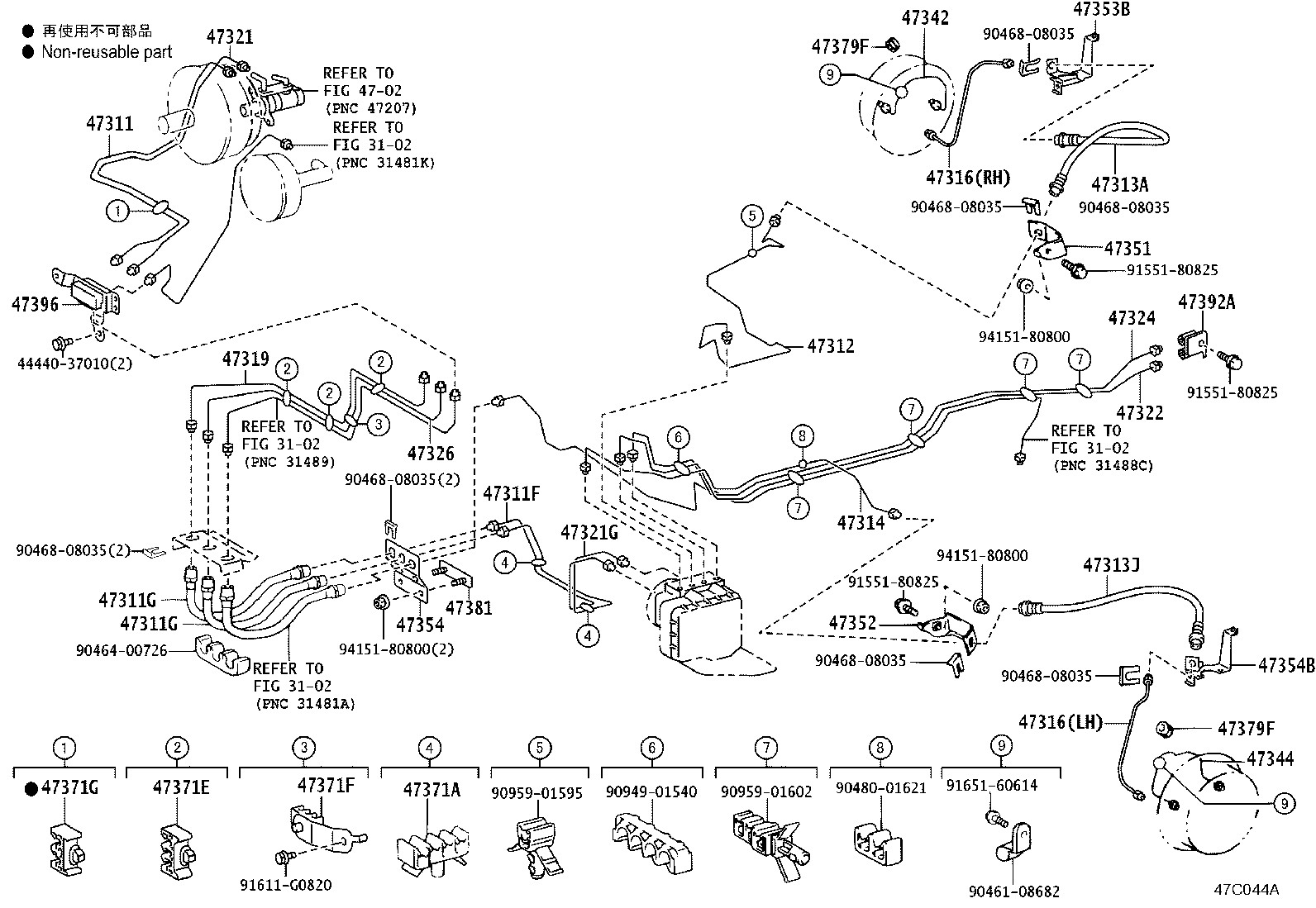

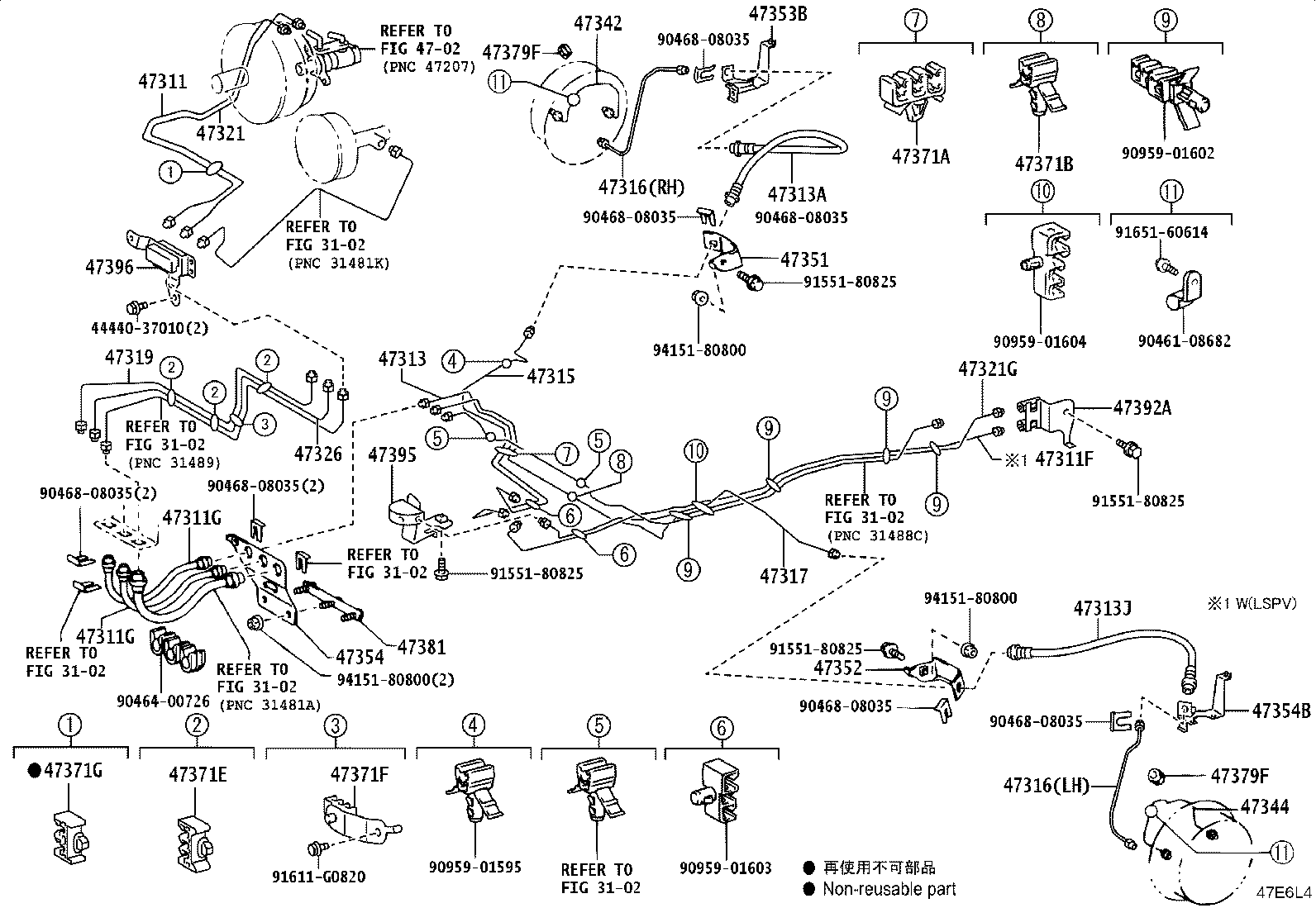

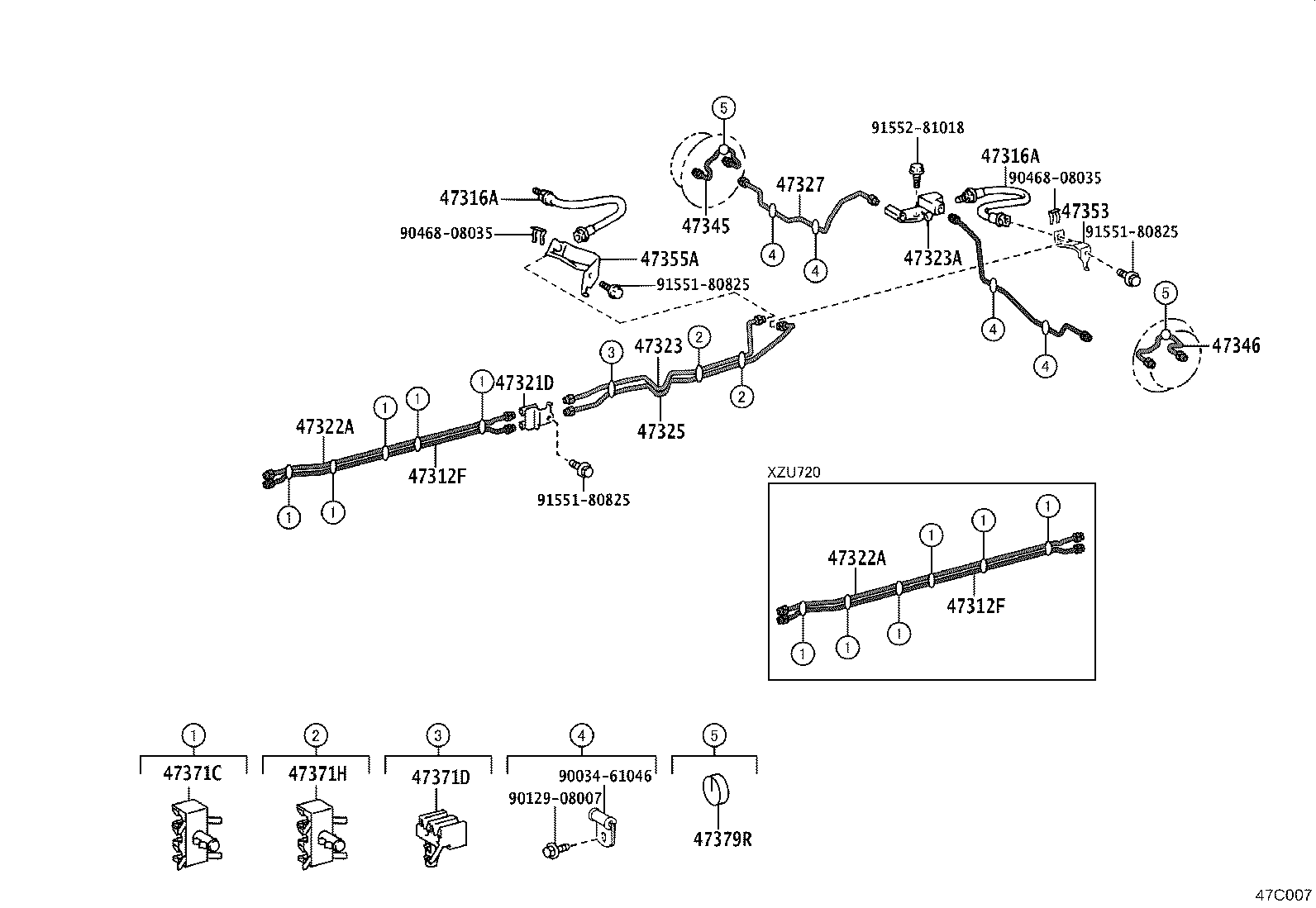

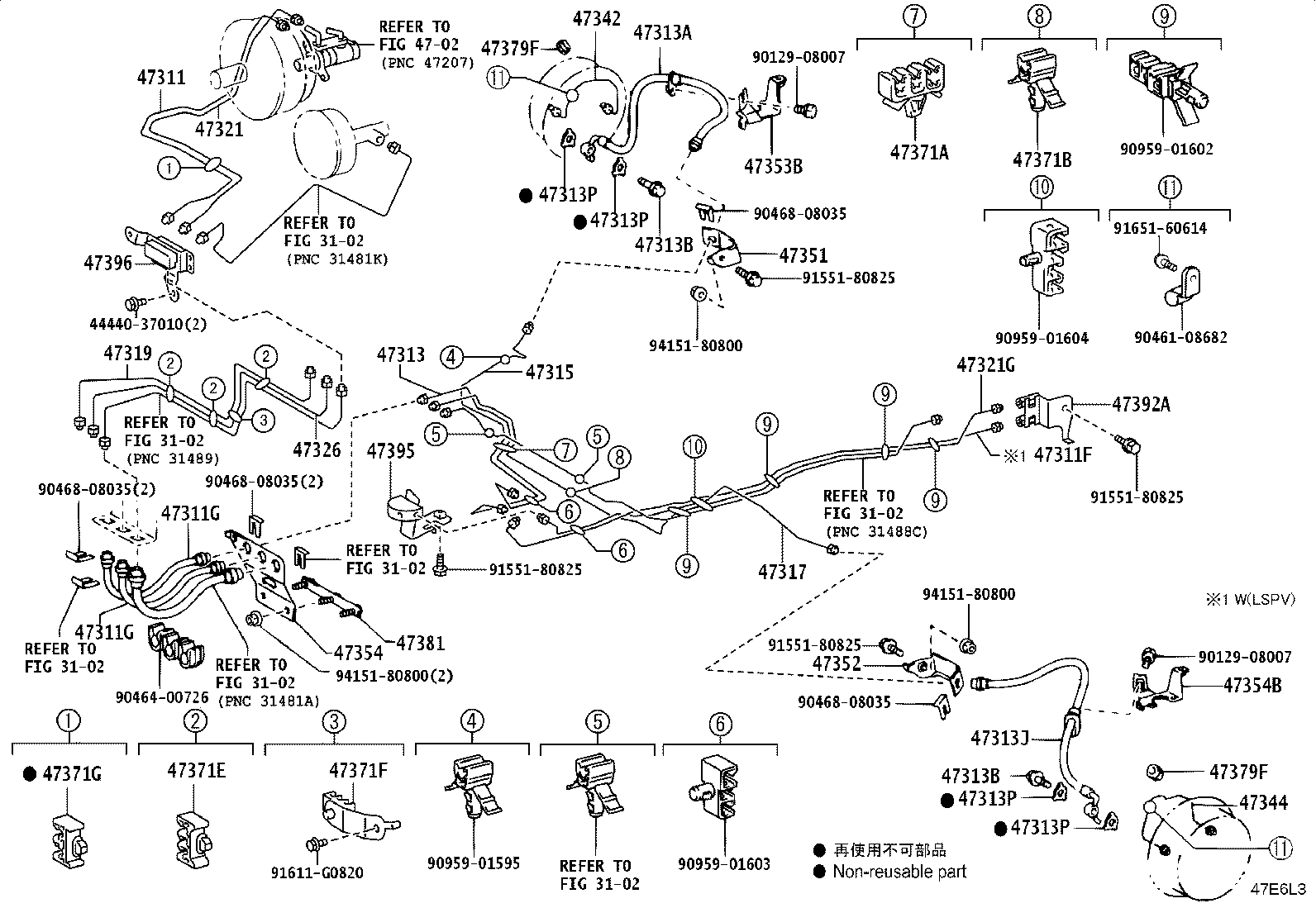

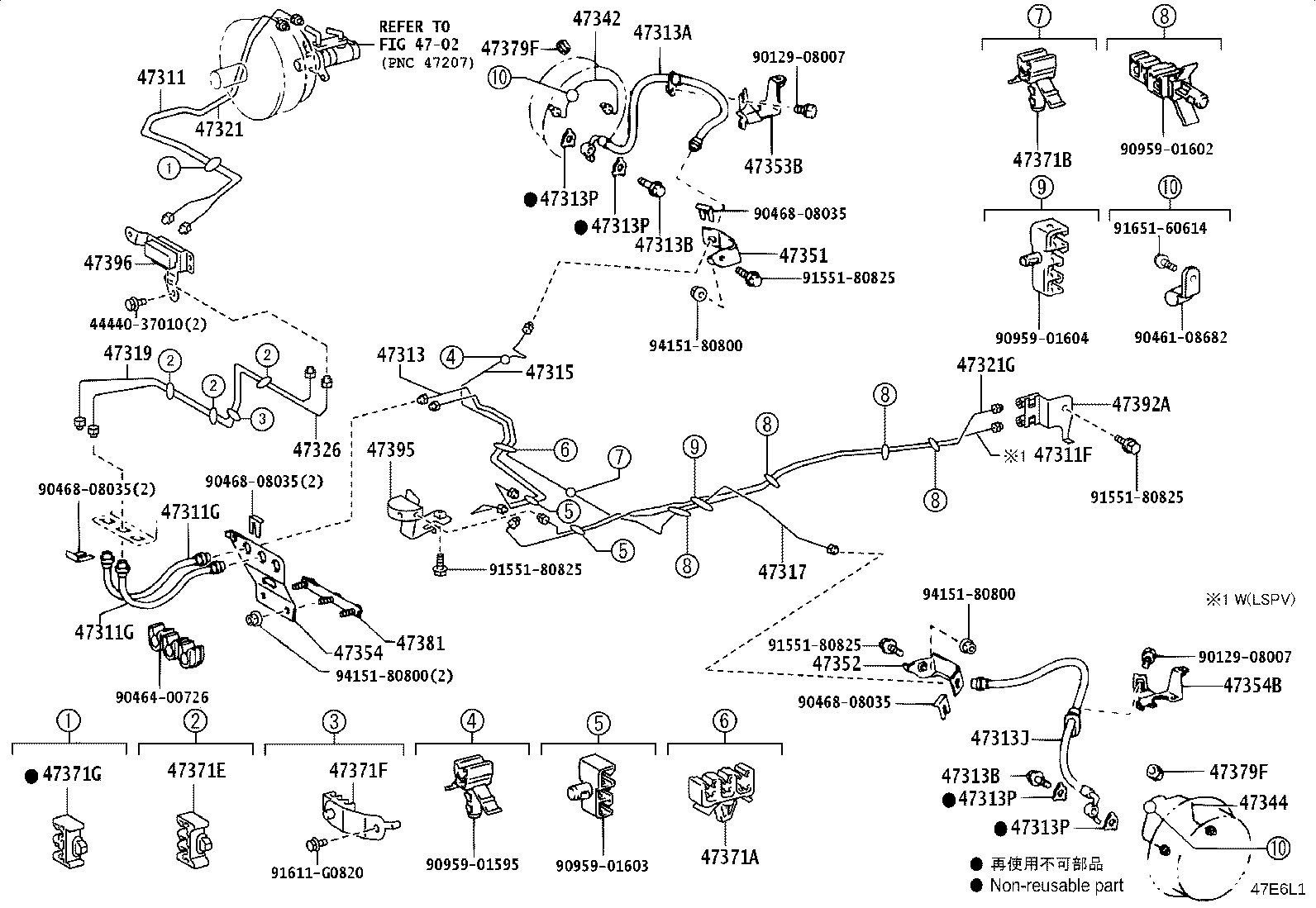

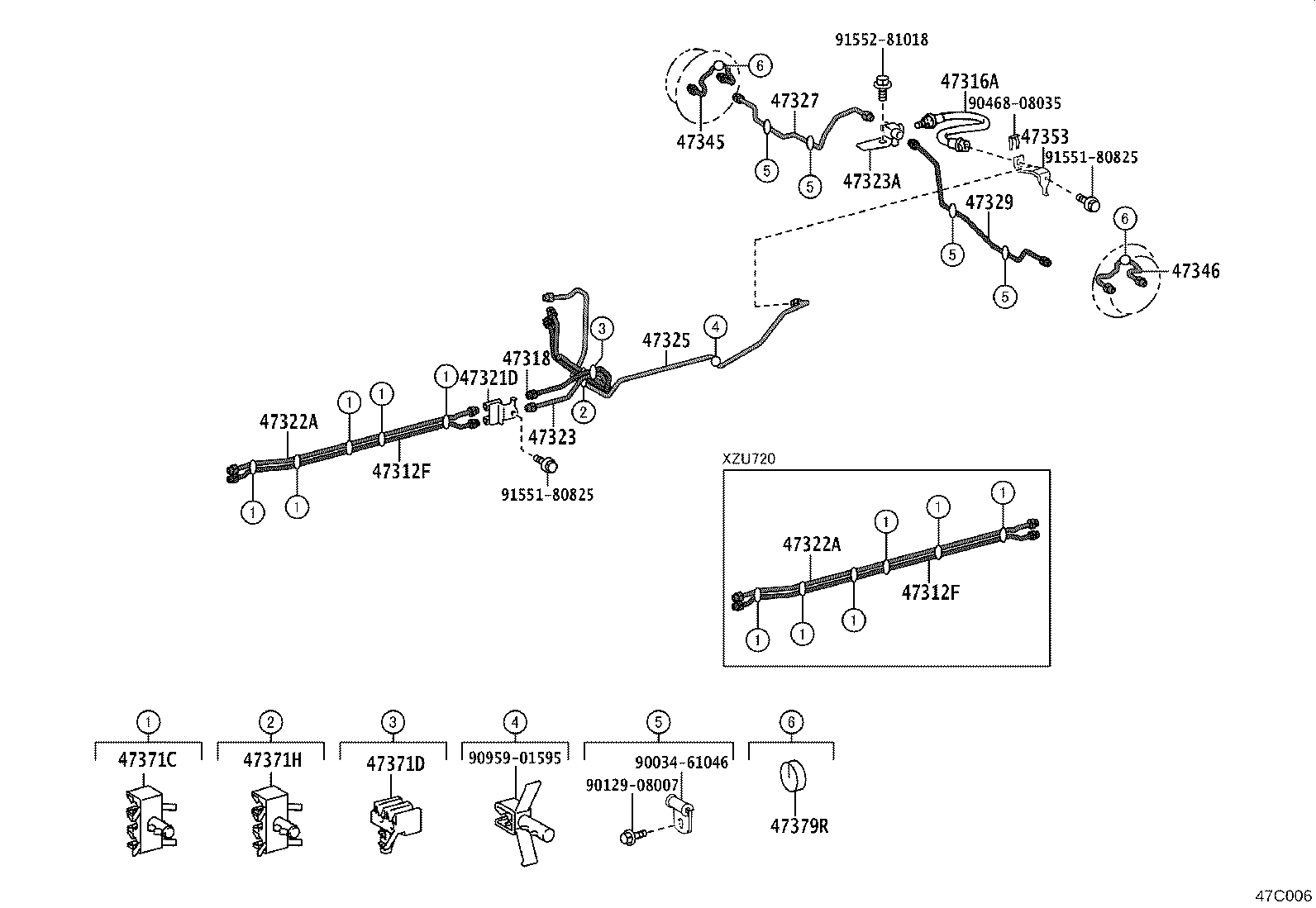

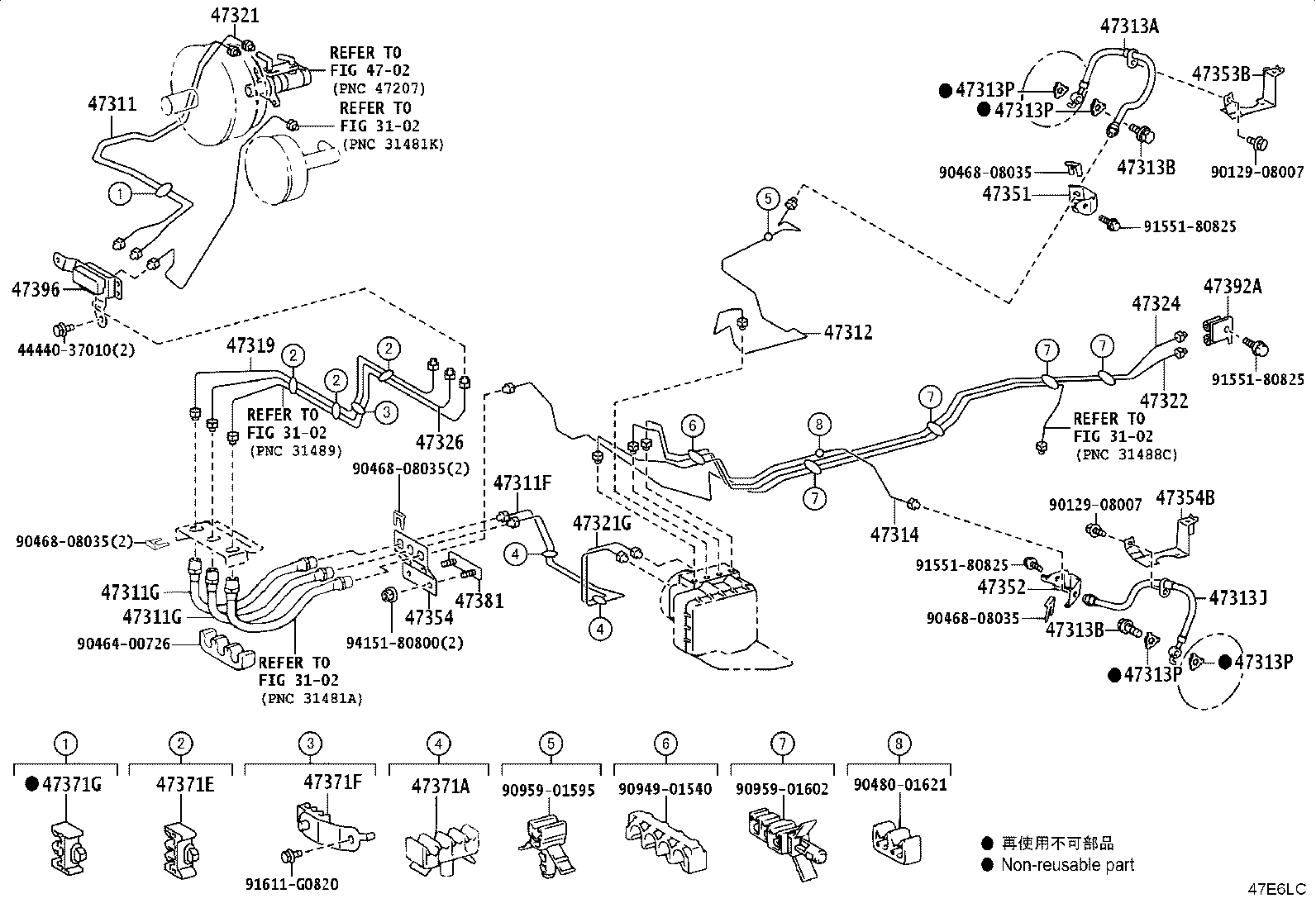

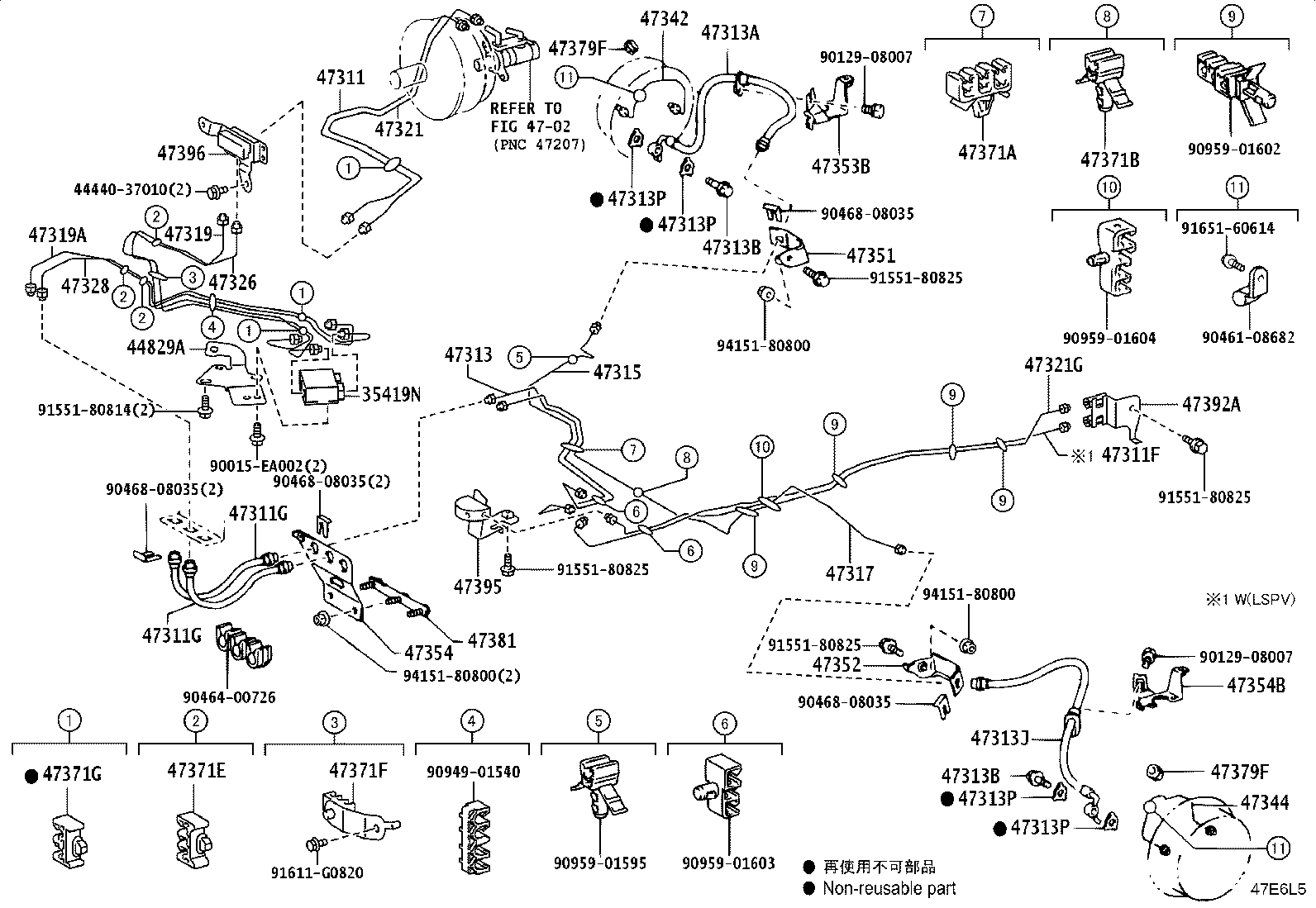

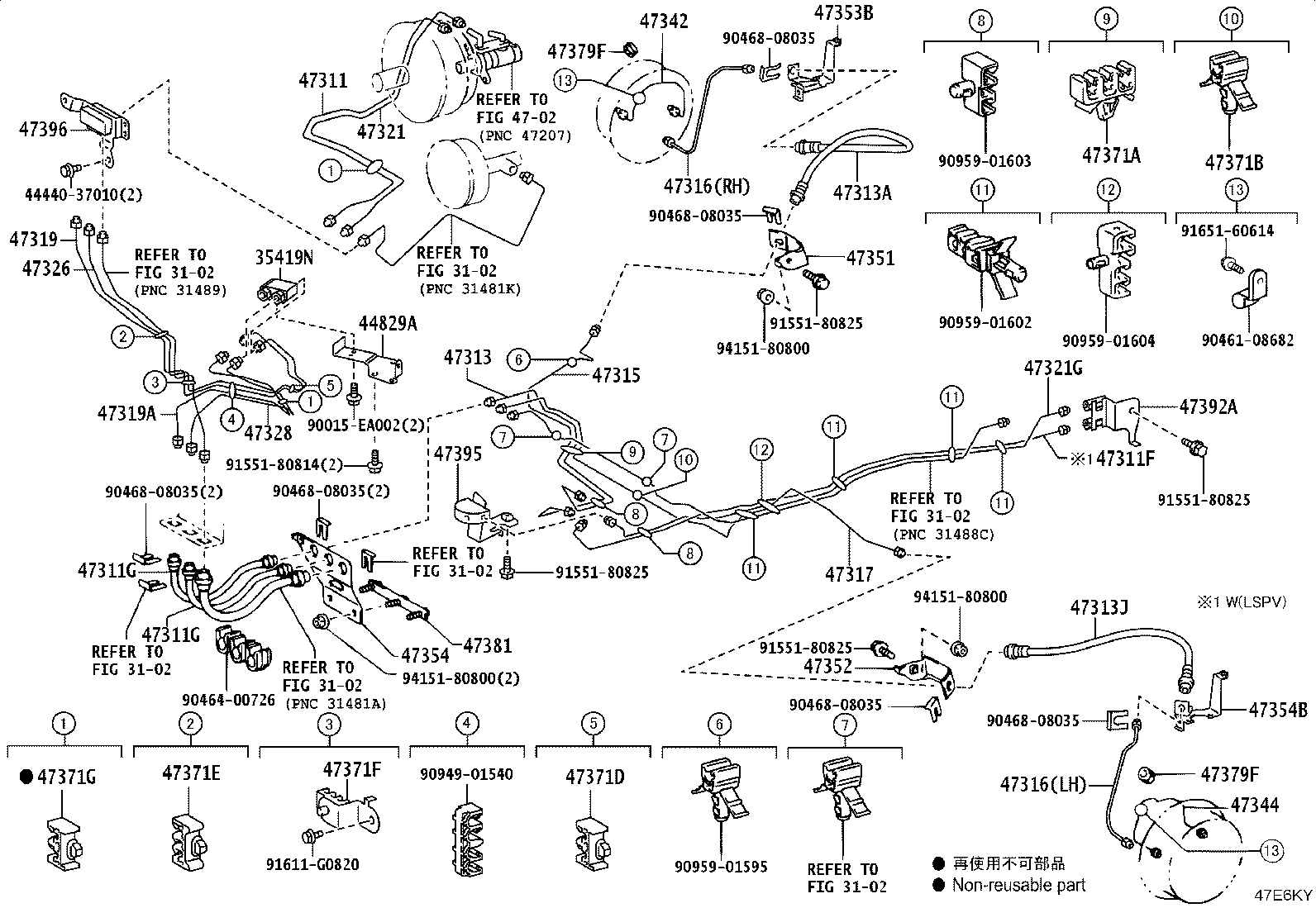

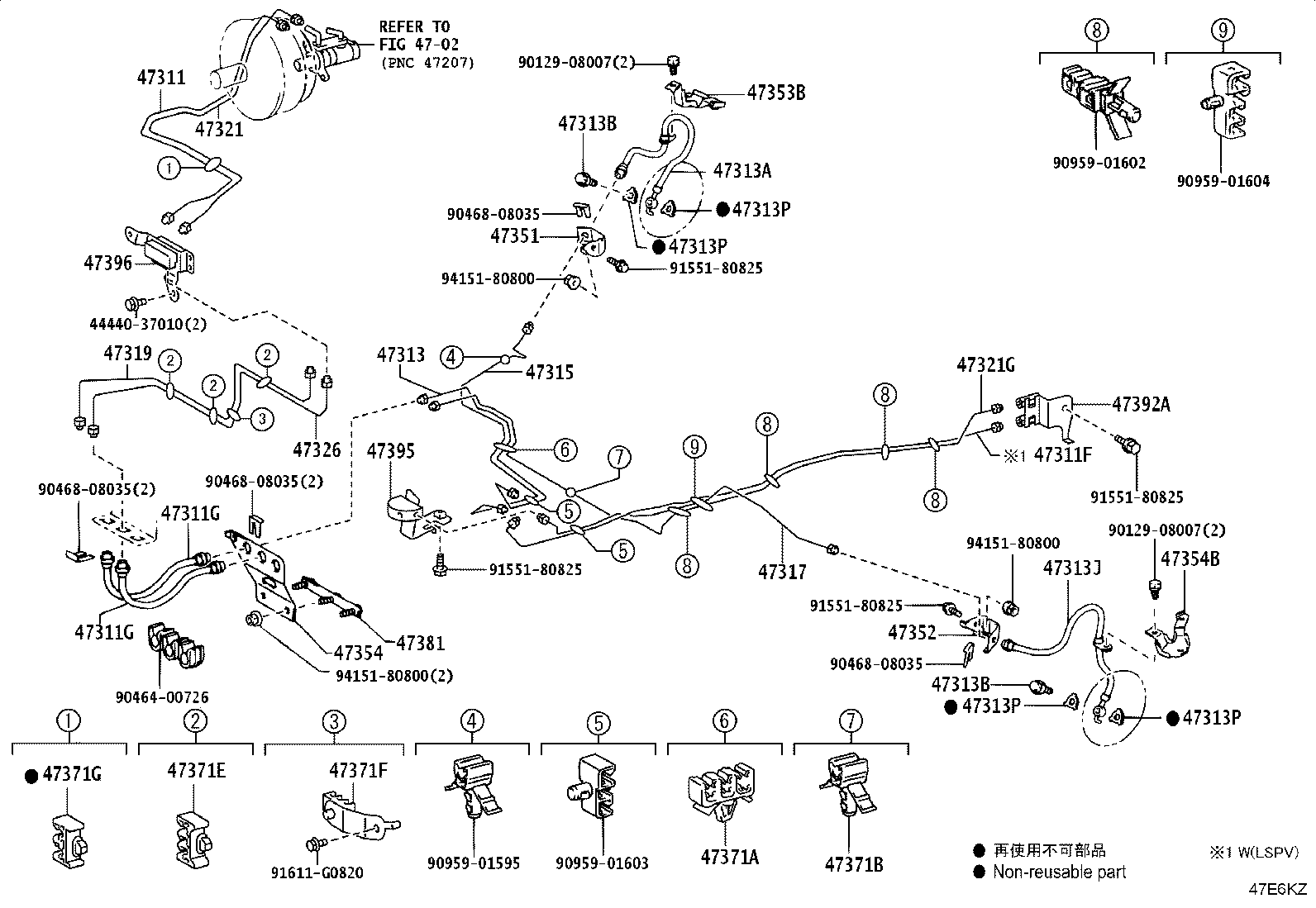

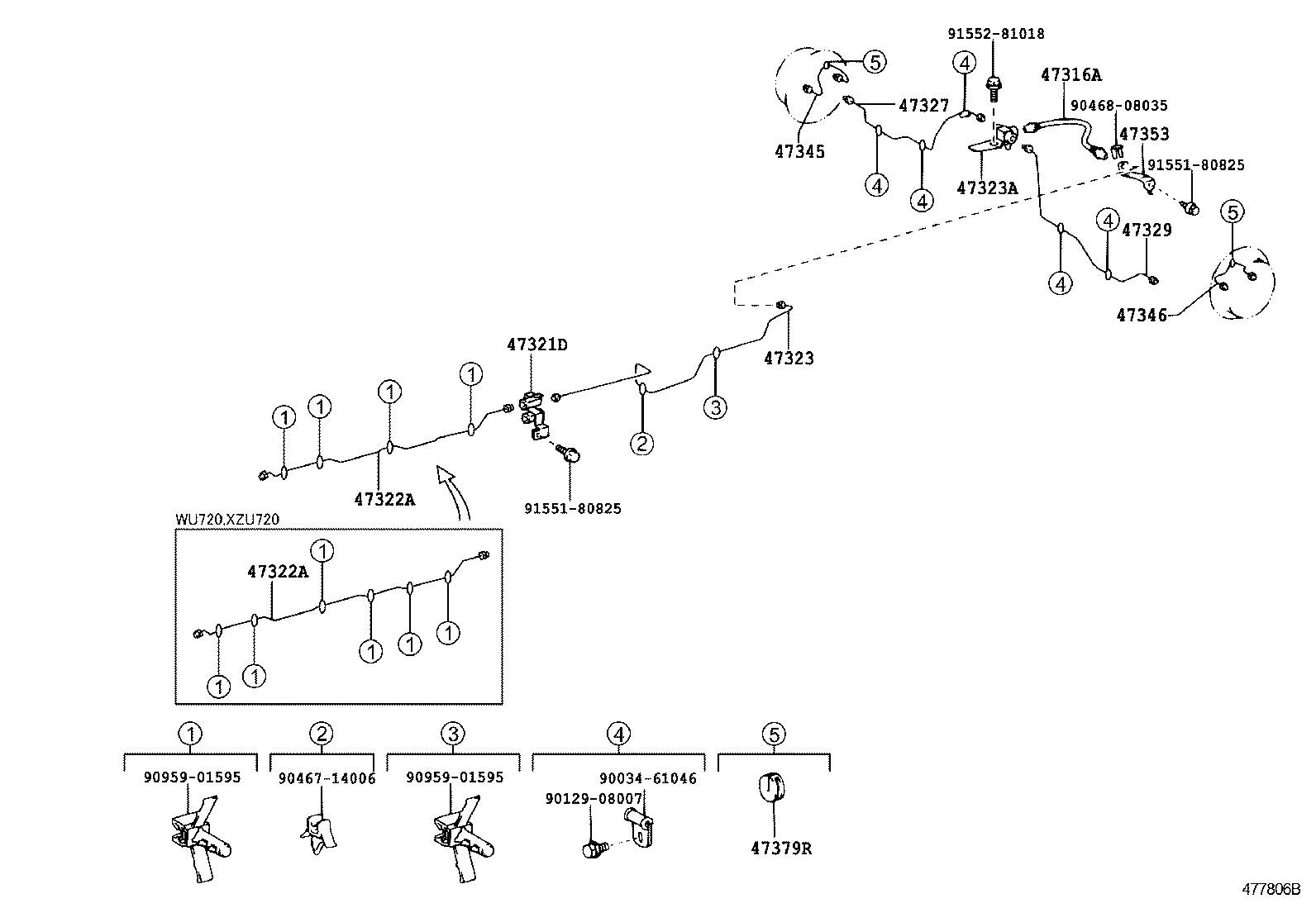

Figure 47E6KX 47E6KX 2011-07 → 2015-09 Figure 47E6KY 47E6KY 2015-09 → — Figure 47E6KZ 47E6KZ 2011-07 → — Figure 47E6L0 47E6L0 2011-07 → — Figure 47E6L1 47E6L1 2011-07 → 2015-09 Figure 47E6L2 47E6L2 2015-09 → — Figure 47E6L3 47E6L3 2011-07 → 2015-09 Figure 47E6L4 47E6L4 2015-09 → — Figure 47E6L4 47E6L4 2019-11 → — Figure 47C044A 47C044A 2019-11 → — Figure 47E6L5 47E6L5 2011-07 → 2015-09 Figure 47E6L6 47E6L6 2015-09 → — Figure 47E6L7 47E6L7 2011-07 → 2015-09 Figure 47E6L8 47E6L8 2015-09 → — Figure 47E6L9 47E6L9 2011-07 → — Figure 47E6LC 47E6LC 2011-08 → — Figure 477806B 477806B 2011-07 → — Figure 477795C 477795C 2011-07 → — Figure 477794C 477794C 2011-07 → — Figure 47C006 47C006 2019-11 → — Figure 47C007 47C007 2019-11 → — Figure 477721A 477721A 2011-07 → — Figure 477727B 477727B 2011-07 → — Figure 477727B 477727B 2019-11 → — Figure 477722A 477722A 2011-07 → — Figure 477722A 477722A 2019-11 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
35419N Valve, Check
44510 Actuator Assy, Brake
44521A Collar, Brake Actuator Case, NO.1
44547B Cushion, Brake Actuator Bracket
44590 Bracket Assy, Brake Actuator
44592 Bracket, Brake Actuator, NO.2
44829A Bracket, Check Valve
47311 Tube, Front Brake, NO.1
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319A Tube, Front Brake, NO.10
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47342 Tube, Wheel Cylinder, Front RH NO.2
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353B Bracket, Flexible Hose, NO.3
47354 Bracket, Front Flexible Hose
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47379F Damper, Tube(FOR FRONT)
47379R Damper, Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47392A Way, Brake Tube, NO.2
47395 Way, Brake Tube, NO.3
47396 Way, Brake Tube, NO.4

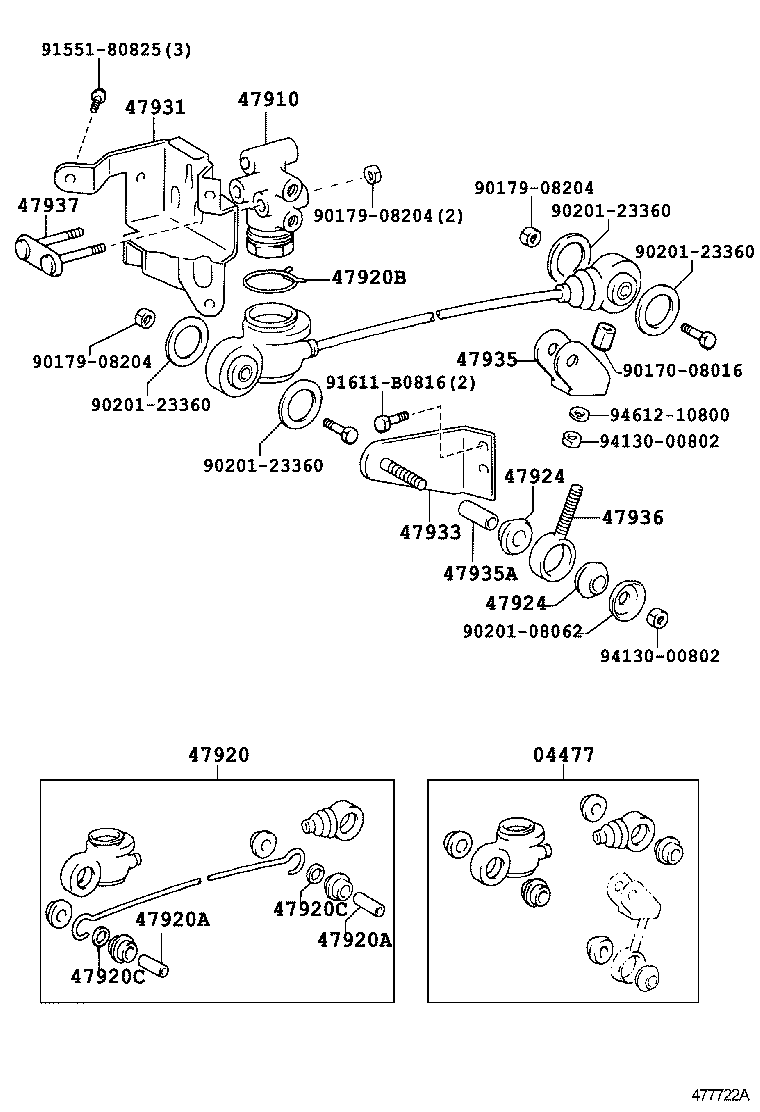

47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
