Front Spring & Shock Absorber

57 part groups · 26 illustrations

Illustrations

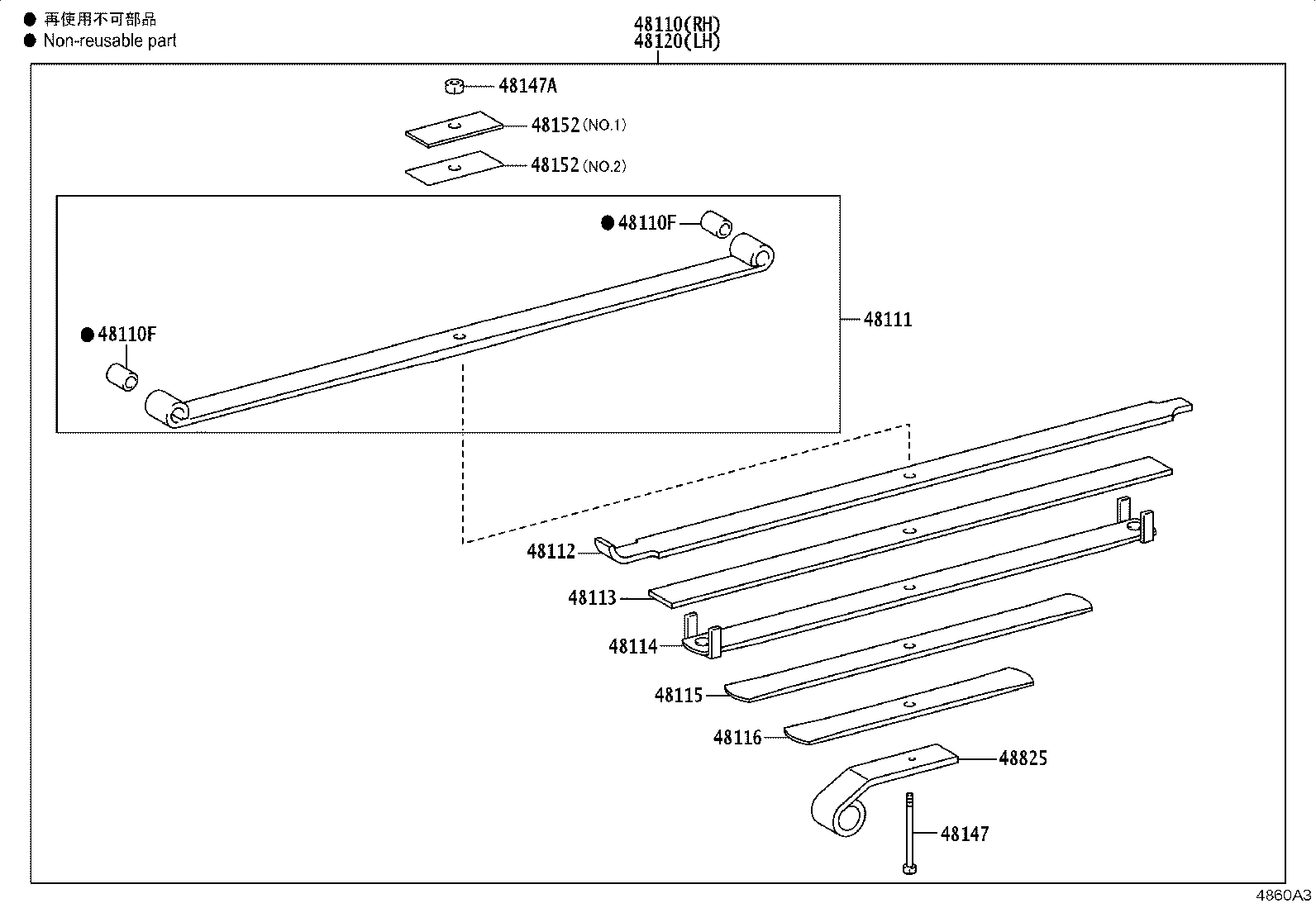

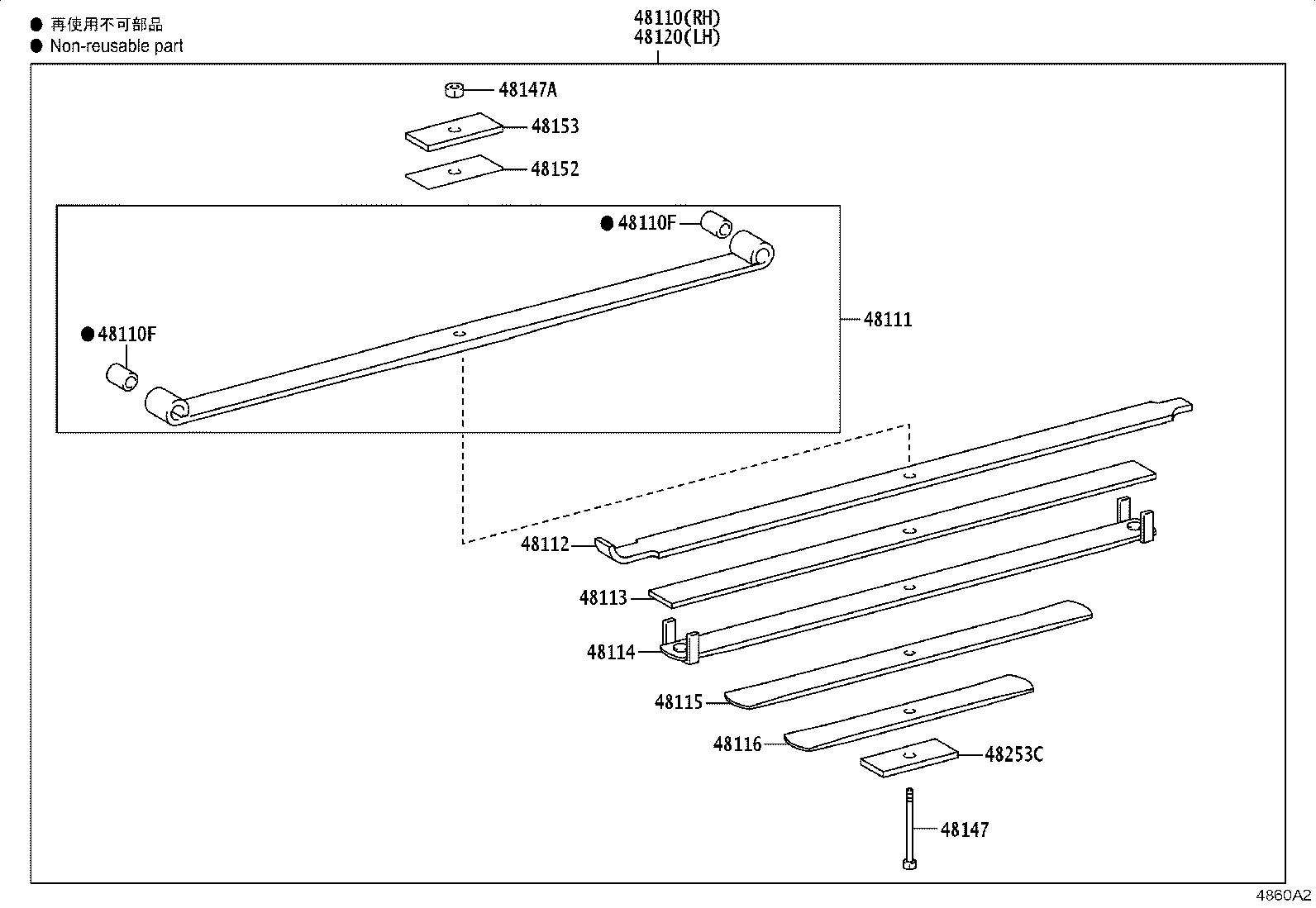

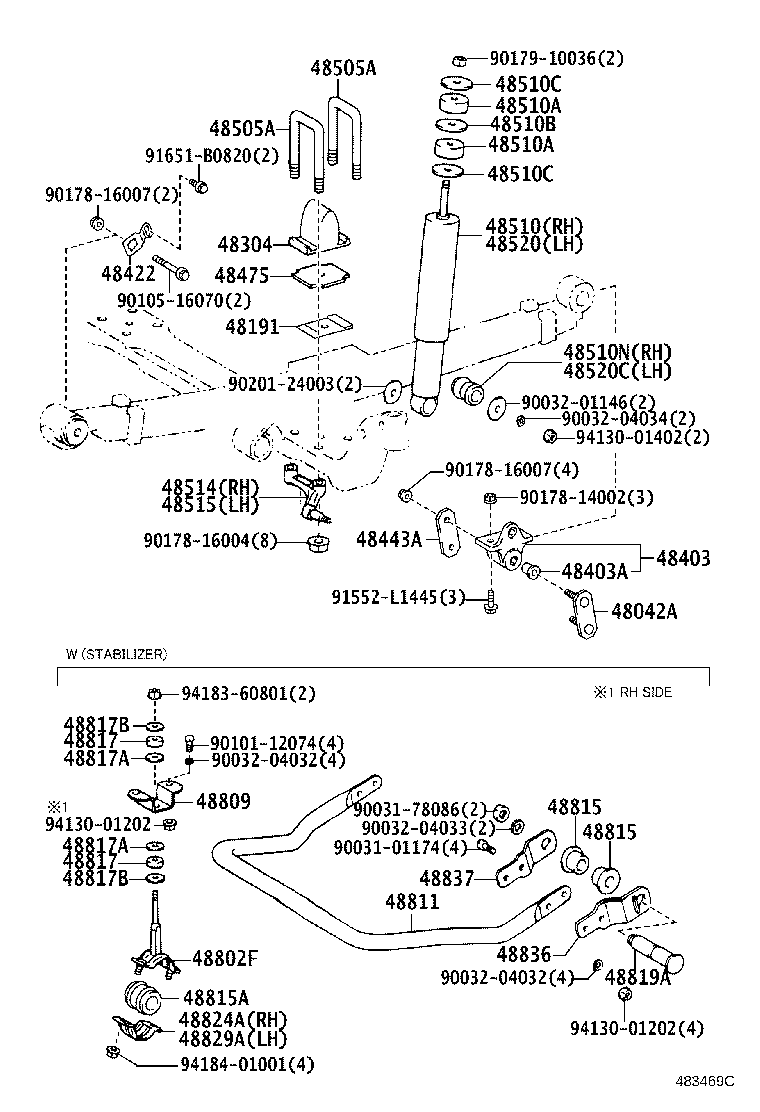

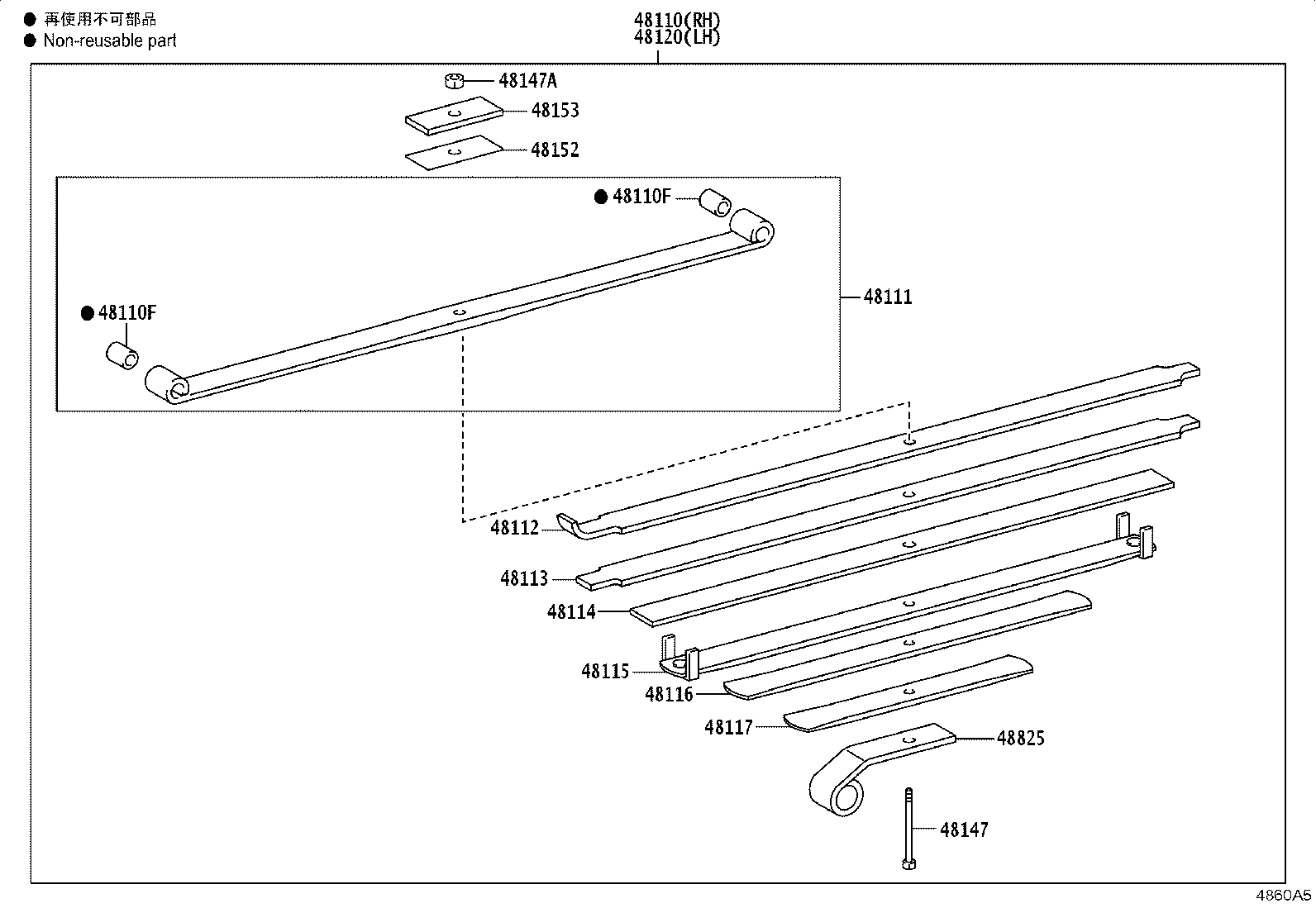

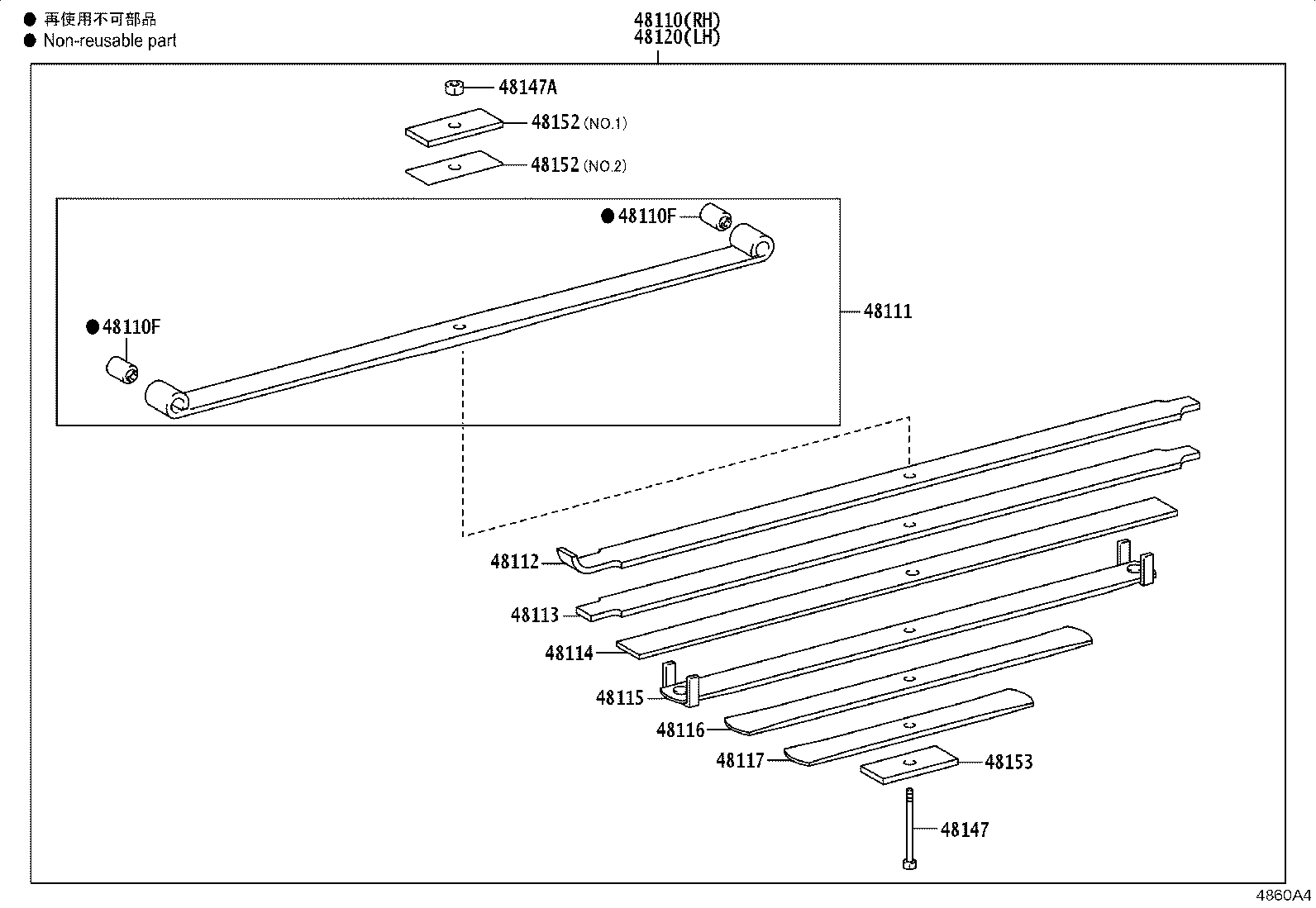

Figure 483470E 483470E 2011-07 → 2015-05 Figure 483470E 483470E 2011-07 → 2020-05 Figure 483470E 483470E 2019-11 → — Figure 483469C 483469C 2011-07 → 2015-05 Figure 483469C 483469C 2011-07 → 2015-12 Figure 483469C 483469C 2011-07 → 2020-05 Figure 48609V 48609V 2013-06 → 2015-09 Figure 48609W 48609W 2015-09 → — Figure 48609X 48609X 2011-07 → — Figure 48609Y 48609Y 2011-07 → — Figure 483343A 483343A 2011-07 → — Figure 483361A 483361A 2011-07 → — Figure 483346A 483346A 2011-07 → — Figure 48609Z 48609Z 2011-07 → — Figure 4860A0 4860A0 2011-07 → — Figure 483364B 483364B 2011-07 → — Figure 483350A 483350A 2011-07 → — Figure 483372B 483372B 2011-07 → — Figure 4860A1 4860A1 2011-07 → — Figure 483366B 483366B 2011-07 → — Figure 483353A 483353A 2011-07 → — Figure 483374B 483374B 2011-07 → — Figure 4860A2 4860A2 2019-11 → — Figure 4860A3 4860A3 2019-11 → — Figure 4860A4 4860A4 2019-11 → — Figure 4860A5 4860A5 2019-11 → —

Part groups

PNCDescription
48042A Shackle Sub-assy, Front Spring, NO.2
48110 Spring Assy, Front, RH
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48117 Leaf, Front Spring, NO.7
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48147A Nut, Front Spring Center Bolt
48152 Seat, Front Spring
48153 Spacer, Front Leaf Spring, NO.1
48153A Silencer, Front Spring, NO.1
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48251B Spacer(FOR FRONT SPRING)
48252D Silencer
48253C Spacer, Front Leaf Spring, NO.2
48253E Spacer, Front Spring, NO.3
48304 Bumper Sub-assy, Front Spring, NO.1
48323 Pin, Front Spring Bracket, Front
48323A Nipple, Grease(FOR FRONT SPRING BRACKET, FRONT PIN)
48323B Pin, Front Spring Bracket, Rear
48323C Nipple, Grease(FOR FRONT SPRING BRACKET, REAR PIN)
48403 Bracket Sub-assy, Spring, NO.2
48403A Bush(FOR SPRING BRACKET)
48422 Support, Front Spring Pin
48442A Shackle, Front Spring, RH
48442B Shackle, Front Spring, LH
48443A Plate, Fornt Spring Shackle, Outer
48475 Plate, Distance(FOR FRONT)
48505A Bolt, U(FOR FRONT SPRING)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48802F Link Sub-assy, Front Stabilizer
48809 Bracket Sub-assy, Stabilizer
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48815A Bush, Front Stabilizer Bar, NO.2
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48819A Bolt, Front Stabilizer
48824A Bracket, Front Stabilizer, NO.1 RH
48825 Bracket, Stabilizer, NO.2
48829A Bracket, Front Stabilizer, NO.1 LH
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
