Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

3 part groups · 3 illustrations

Illustrations

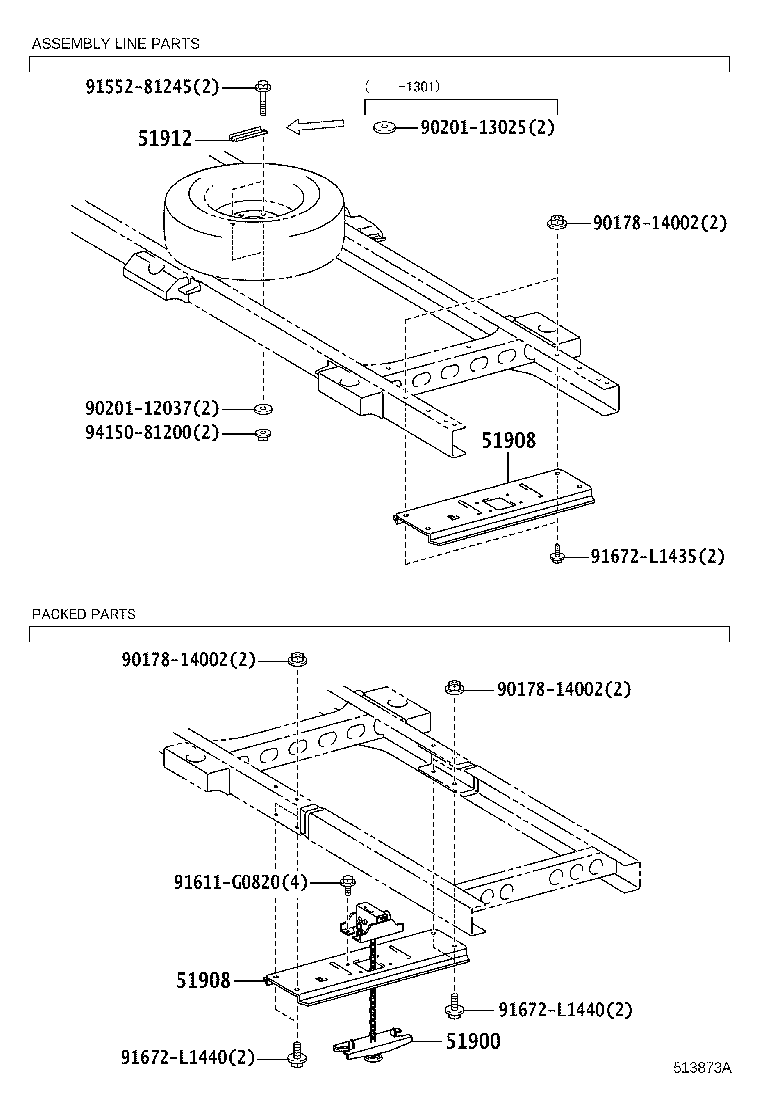

Figure 512216A 512216A 2011-07 → — Figure 512217 512217 2011-07 → — Figure 513873A 513873A 2011-07 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51912 Bracket, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
