Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

6 part groups · 2 illustrations

Illustrations

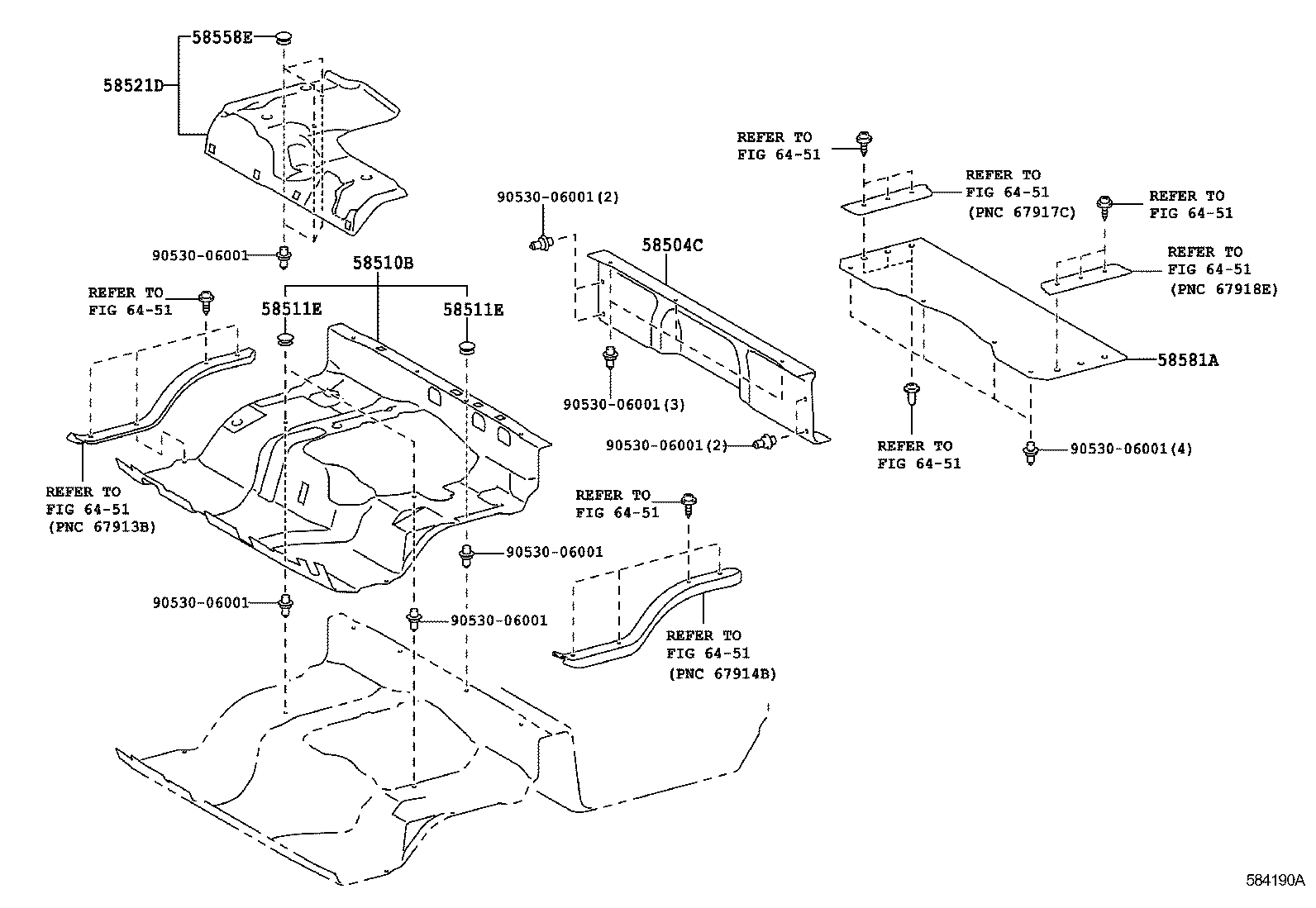

Figure 584189A 584189A 2011-07 → — Figure 584190A 584190A 2011-08 → —

Part groups

PNCDescription
58504C Mat Sub-assy, Header
58510B Mat, Front Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58521D Mat, Engine Service Hole Cover
58558E Fastener, Pile
58581A Mat, Rear Floor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
