Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 3 illustrations

Illustrations

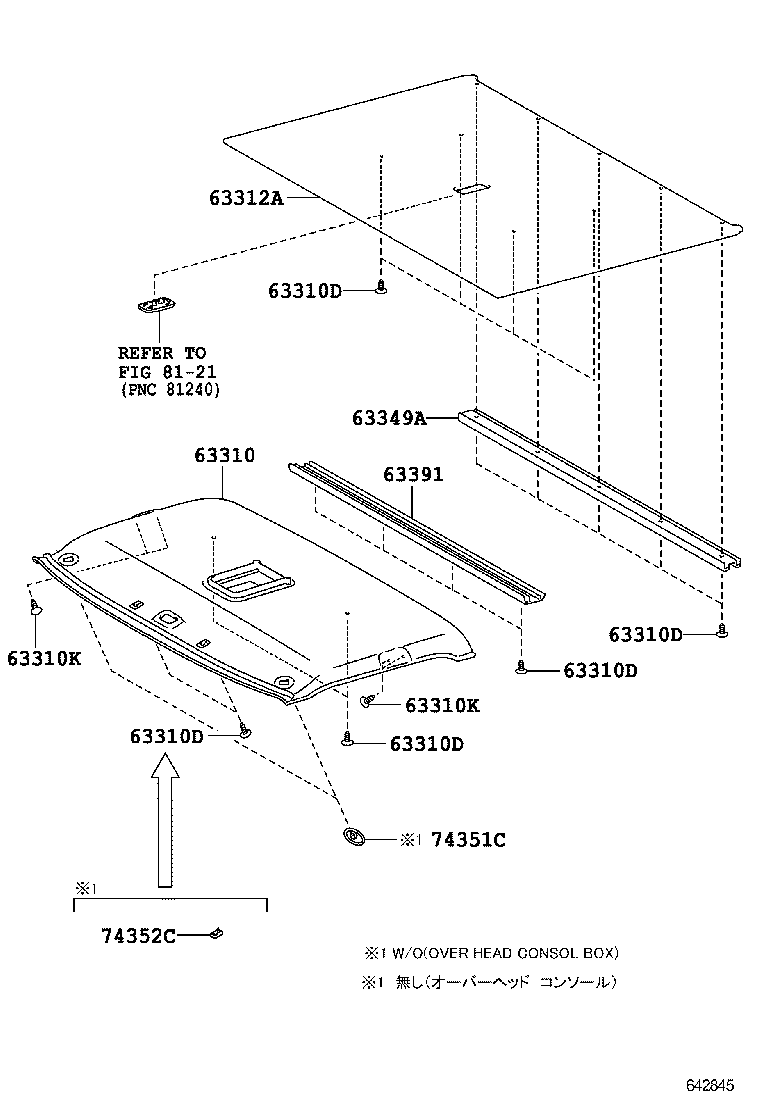

Figure 642844 642844 2011-07 → — Figure 642845 642845 2011-08 → — Figure 642846 642846 2011-07 → —

Part groups

PNCDescription
63183C Bracket, Roof Console, Front
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310K Clip
63312A Headlining, Roof, NO.2
63349A Garnish, Roof Headlining, Rear
63391 Trim, Roof Headlining, Front
63651C Box, Roof Console
74351C Cover, Roof Console, NO.1
74352C Cover, Roof Console, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
