Toyota Dyna
2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe
Supported model
Data version 2019-11

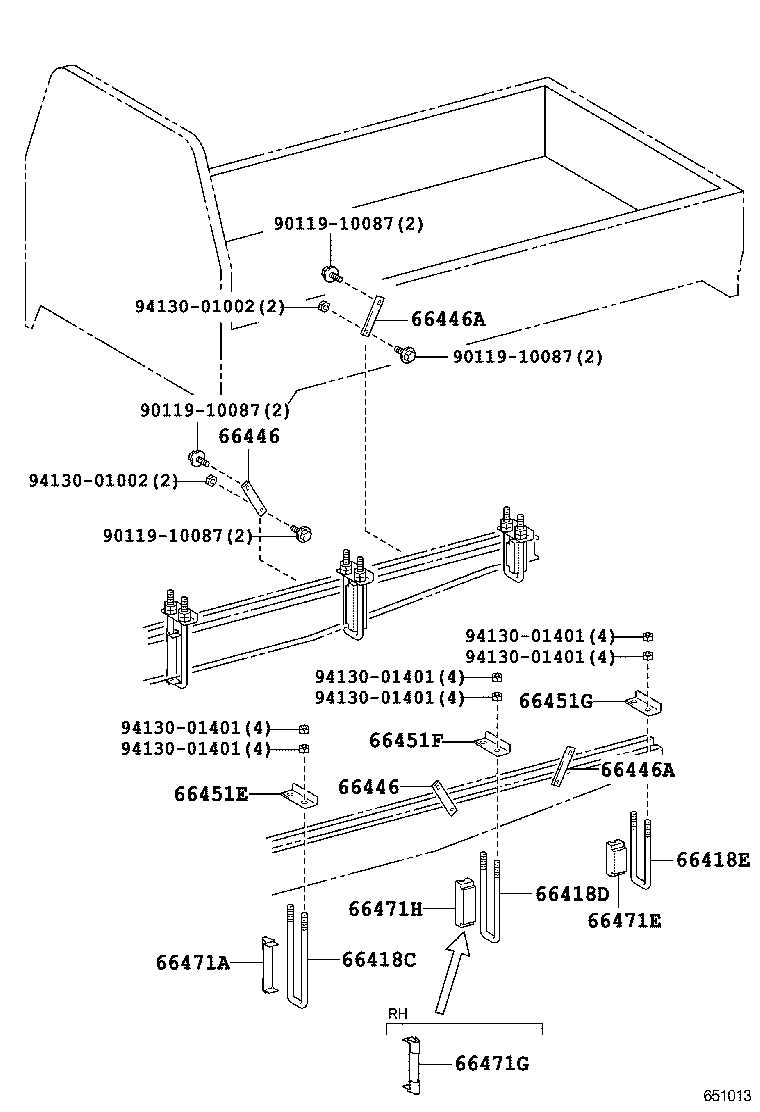

Rear Body Mounting
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 66418C | Bolt, U, Front |
| 66418D | Bolt, U, Center |
| 66418E | Bolt, U, Rear |
| 66446 | Brace, Frame Floor |
| 66446A | Brace, Frame TO Rear Body Floor |
| 66451E | Plate, U Bolt, Front |
| 66451F | Plate, U Bolt, Center |
| 66451G | Plate, U Bolt, Rear |
| 66471A | Reinforcement, Frame U Bolt |
| 66471D | Reinforcement, Frame U Bolt |
| 66471E | Reinforcement, Frame U Bolt |
| 66471G | Reinforcement, Frame U Bolt, RH |
| 66471H | Reinforcement, Frame U Bolt, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
