Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

17 part groups · 5 illustrations

Illustrations

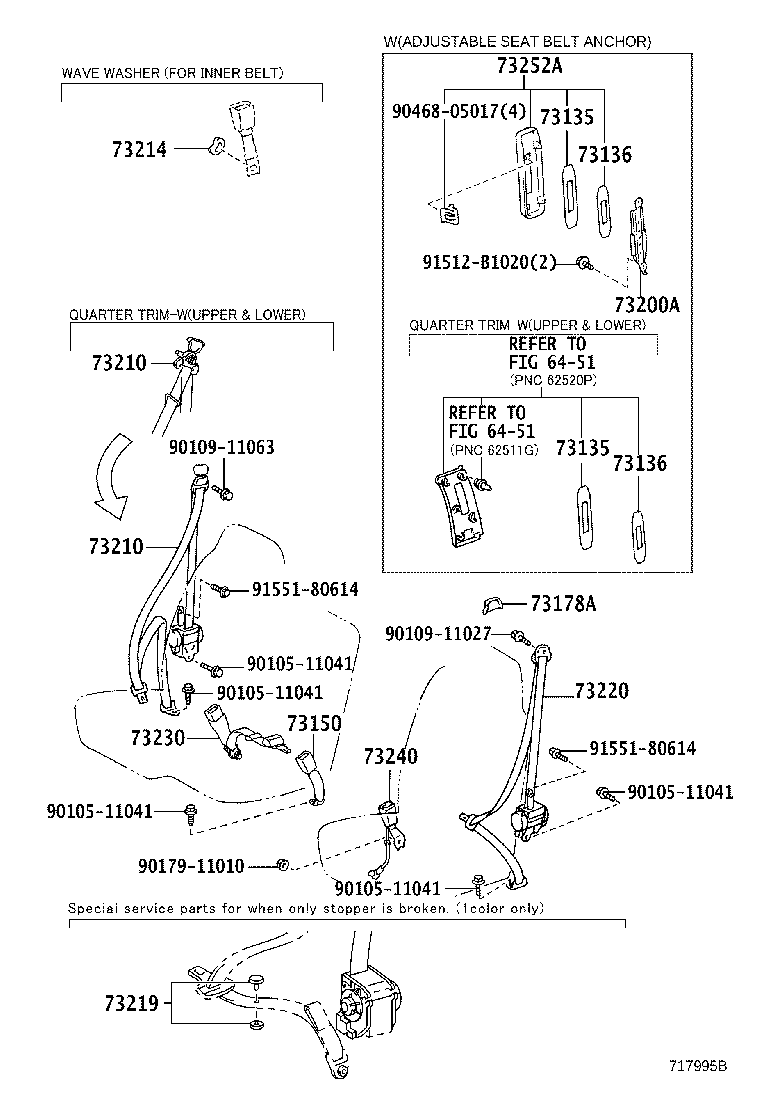

Figure 717293C 717293C 2011-07 → — Figure 717996C 717996C 2011-07 → — Figure 717995B 717995B 2012-07 → — Figure 717209A 717209A 2011-07 → 2012-07 Figure 717209A 717209A 2011-08 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73136 Cover, Shoulder Belt Anchorage Plate, Inner
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380A Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
