Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

57 part groups · 12 illustrations

Illustrations

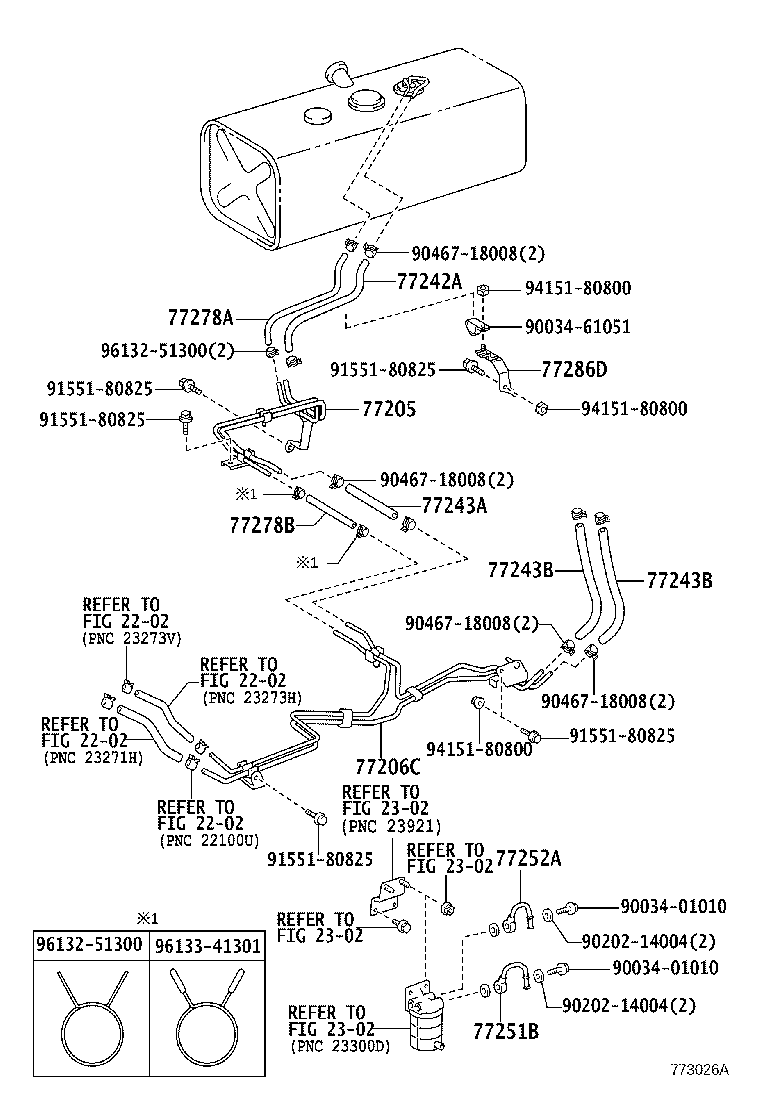

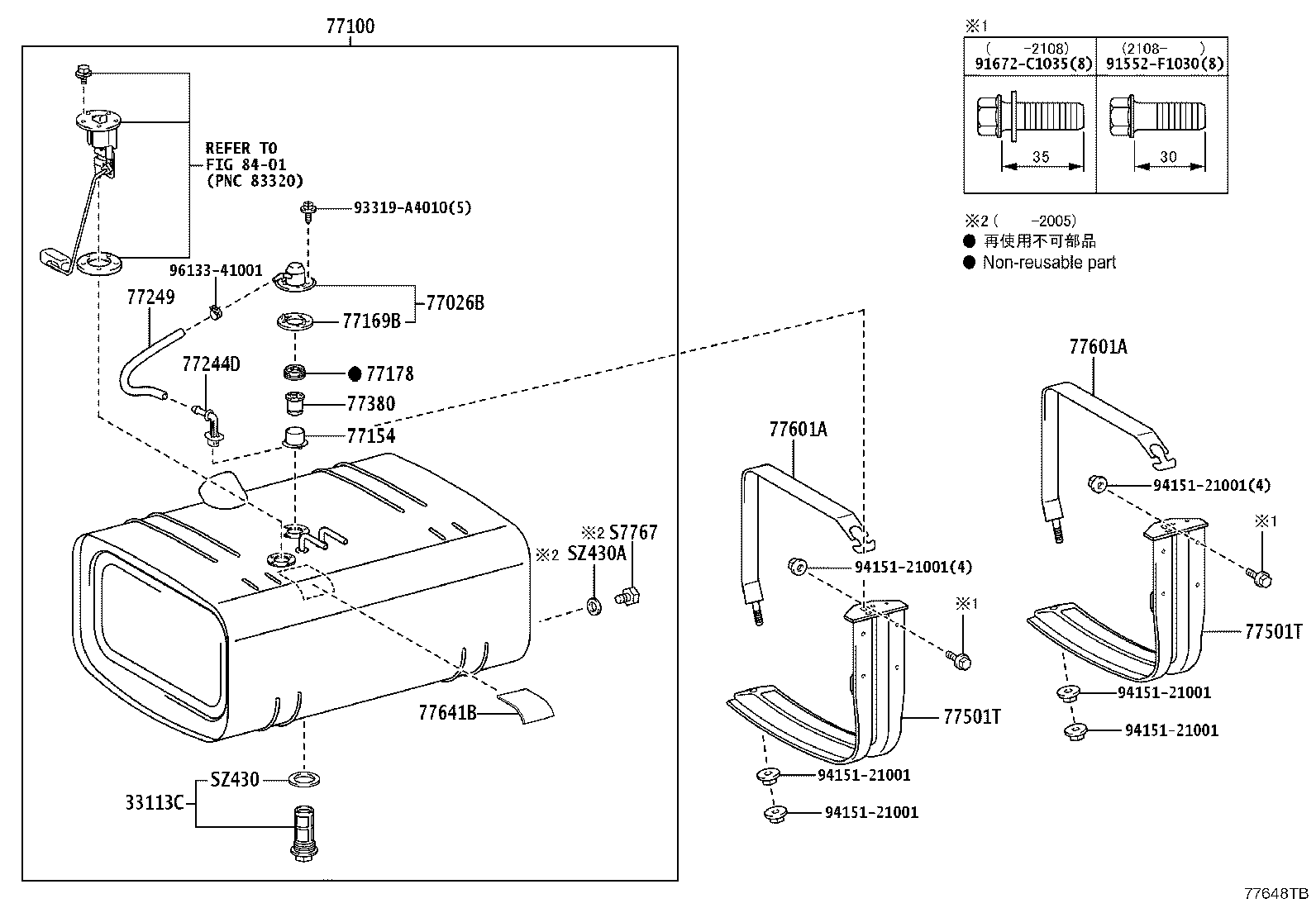

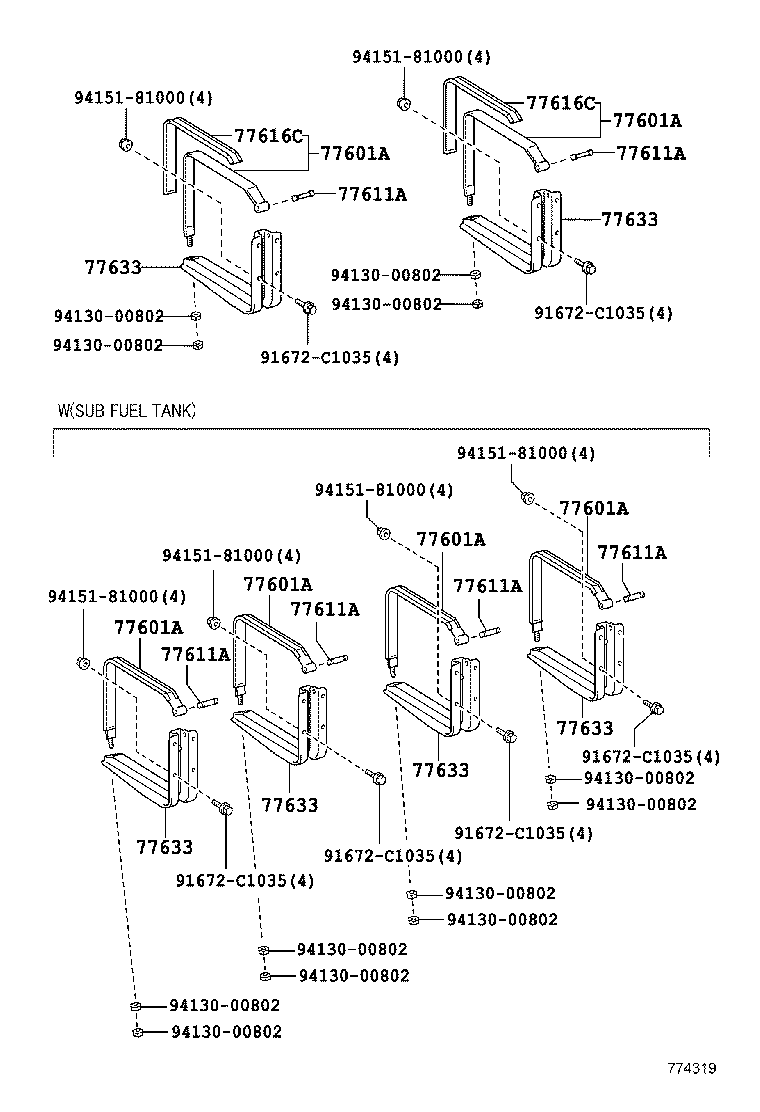

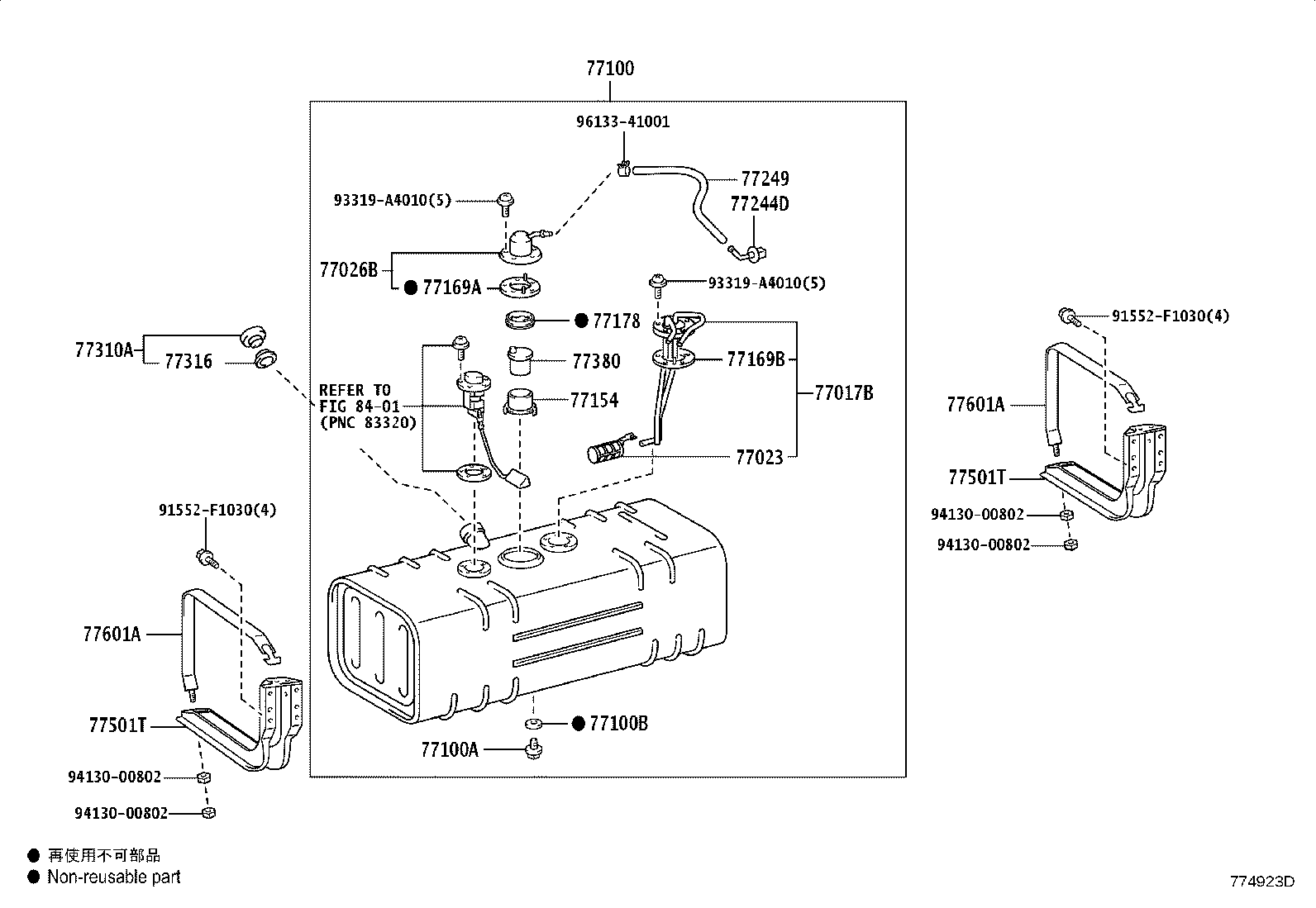

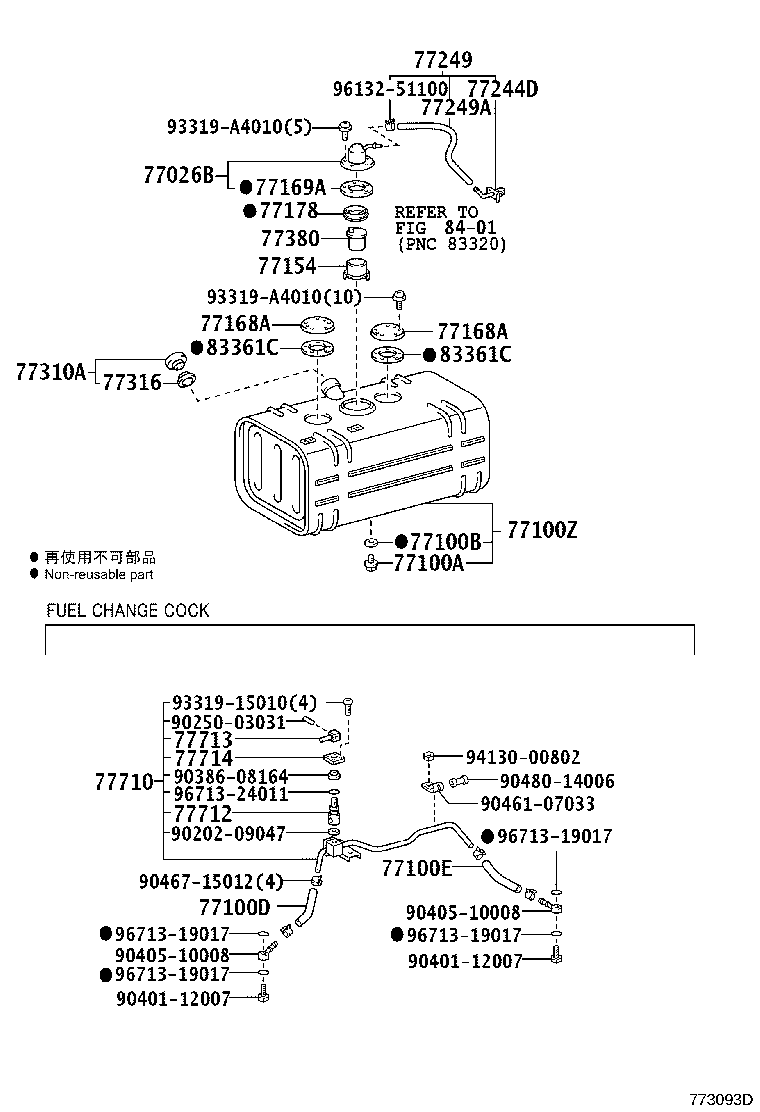

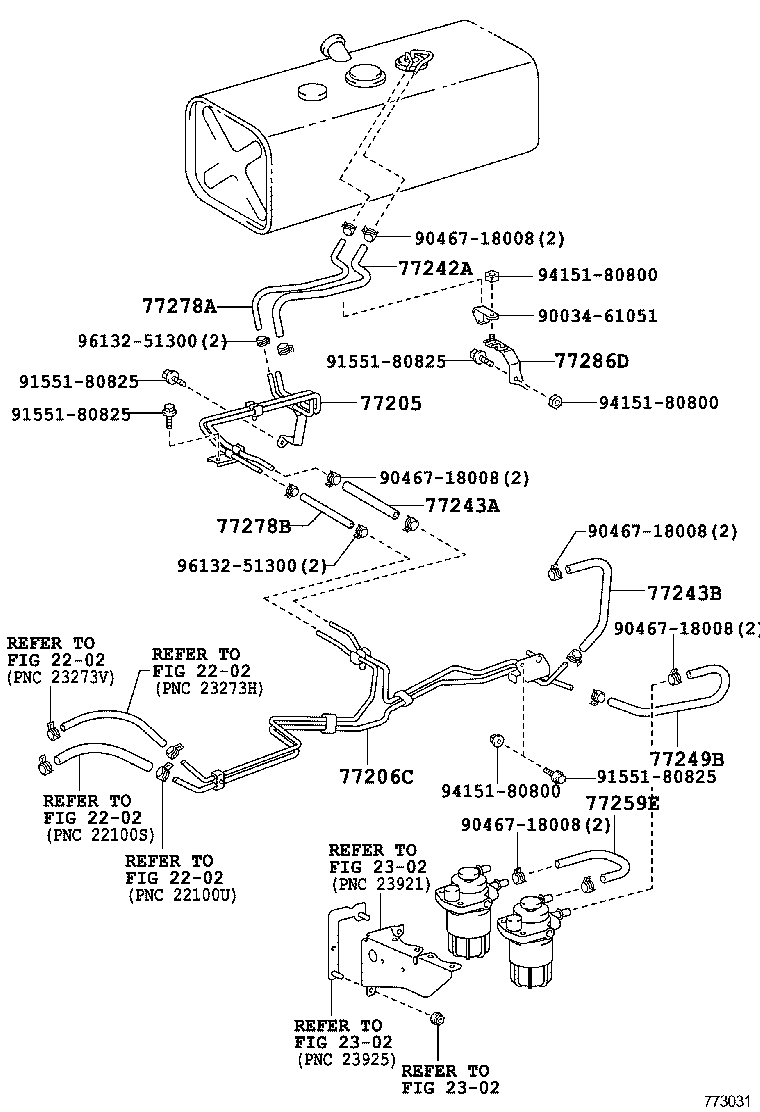

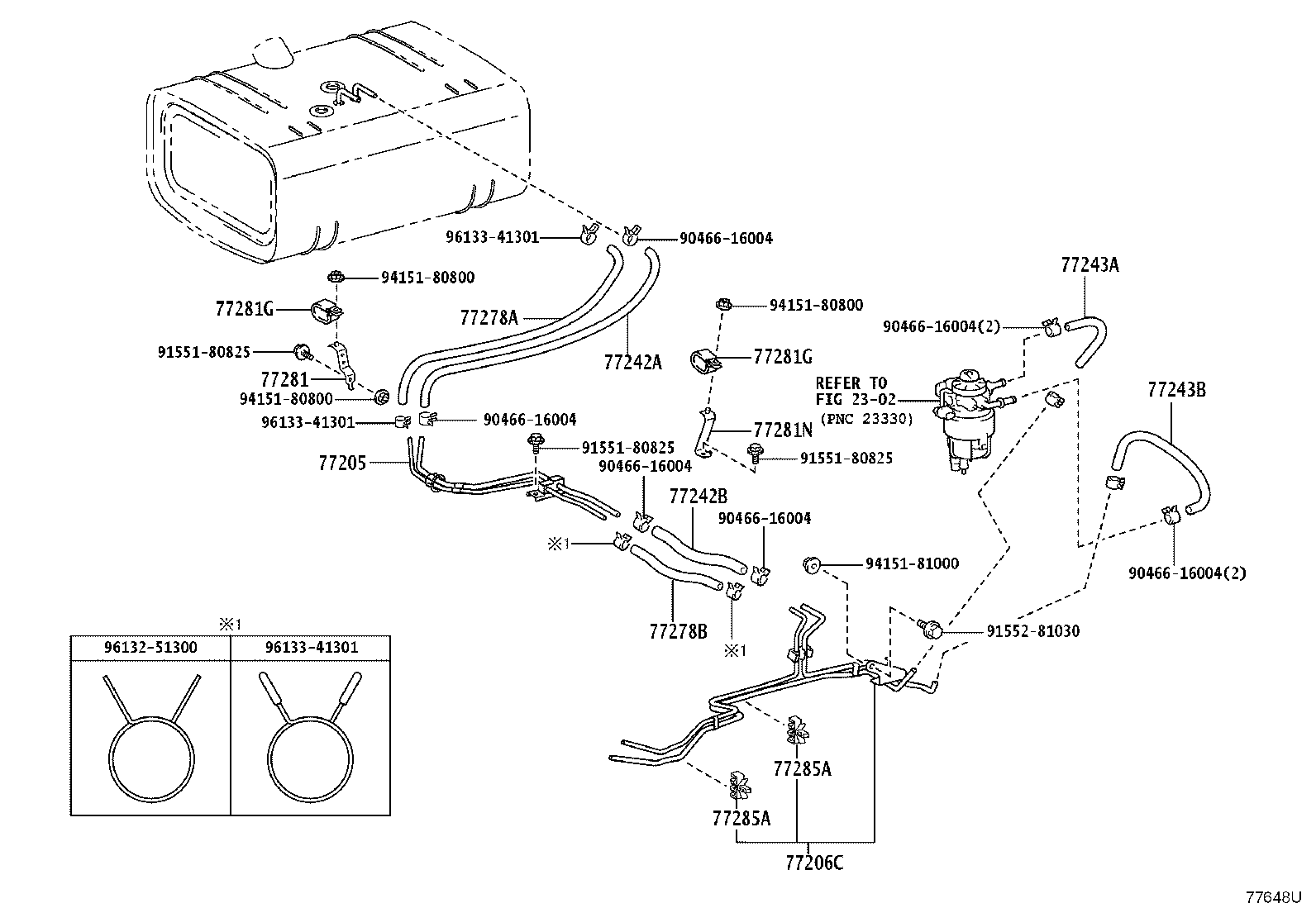

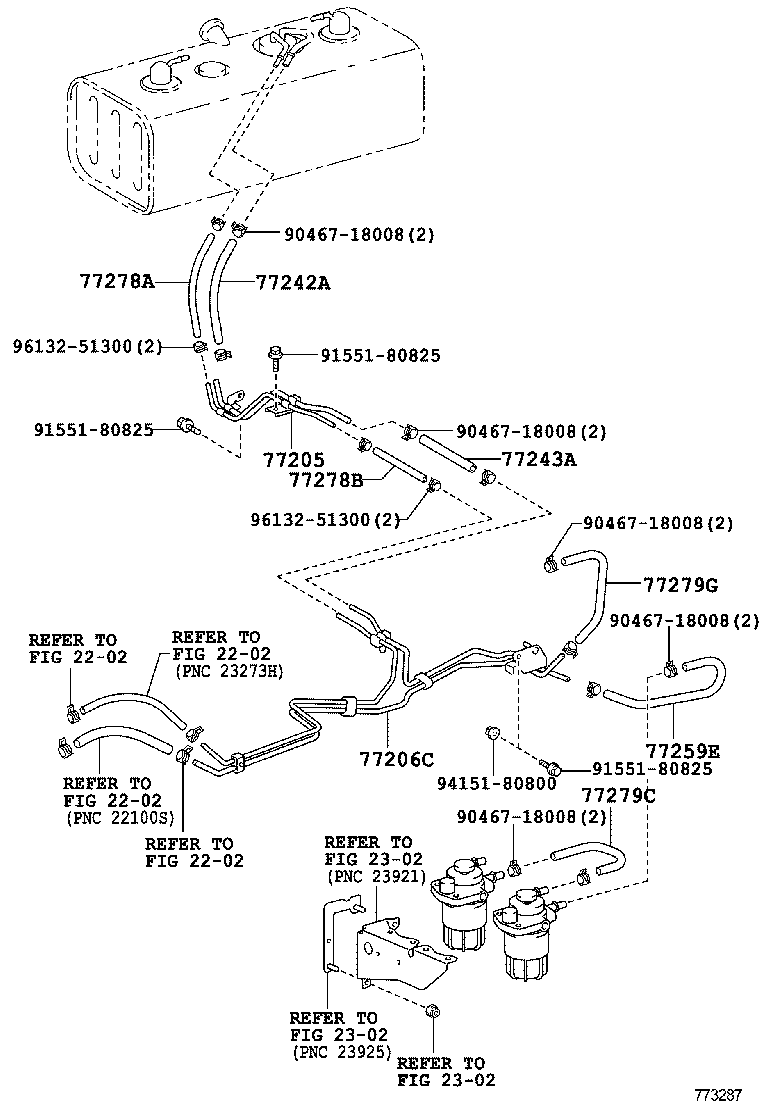

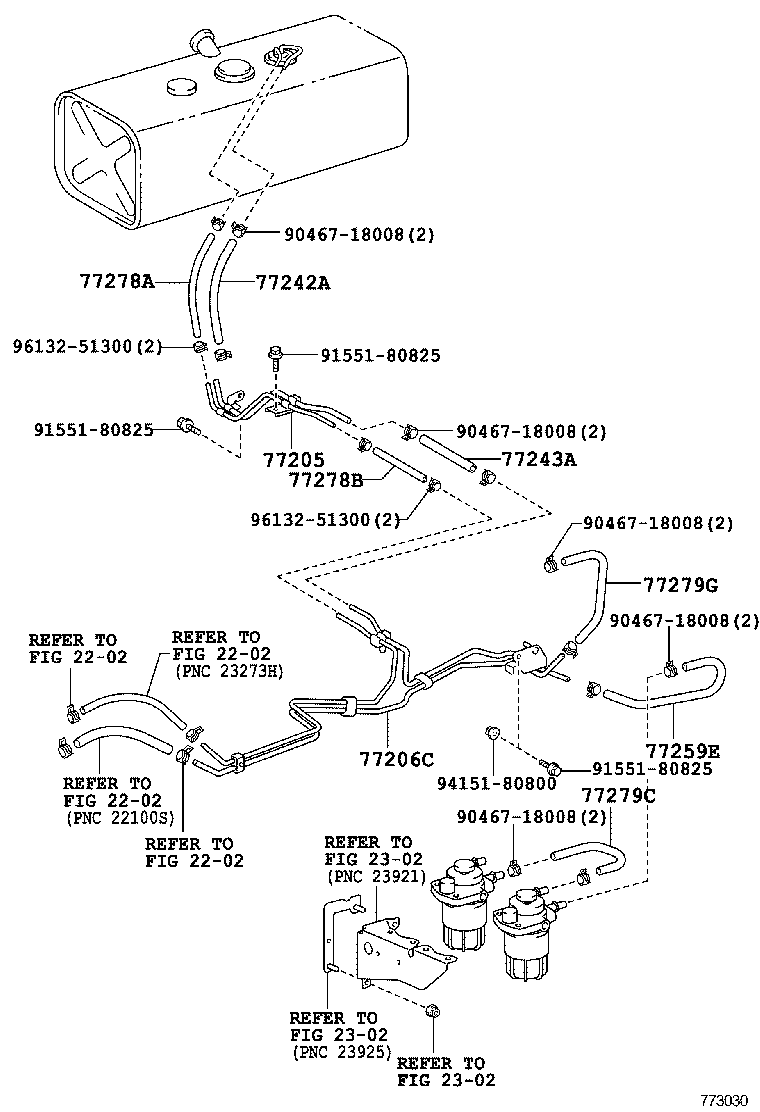

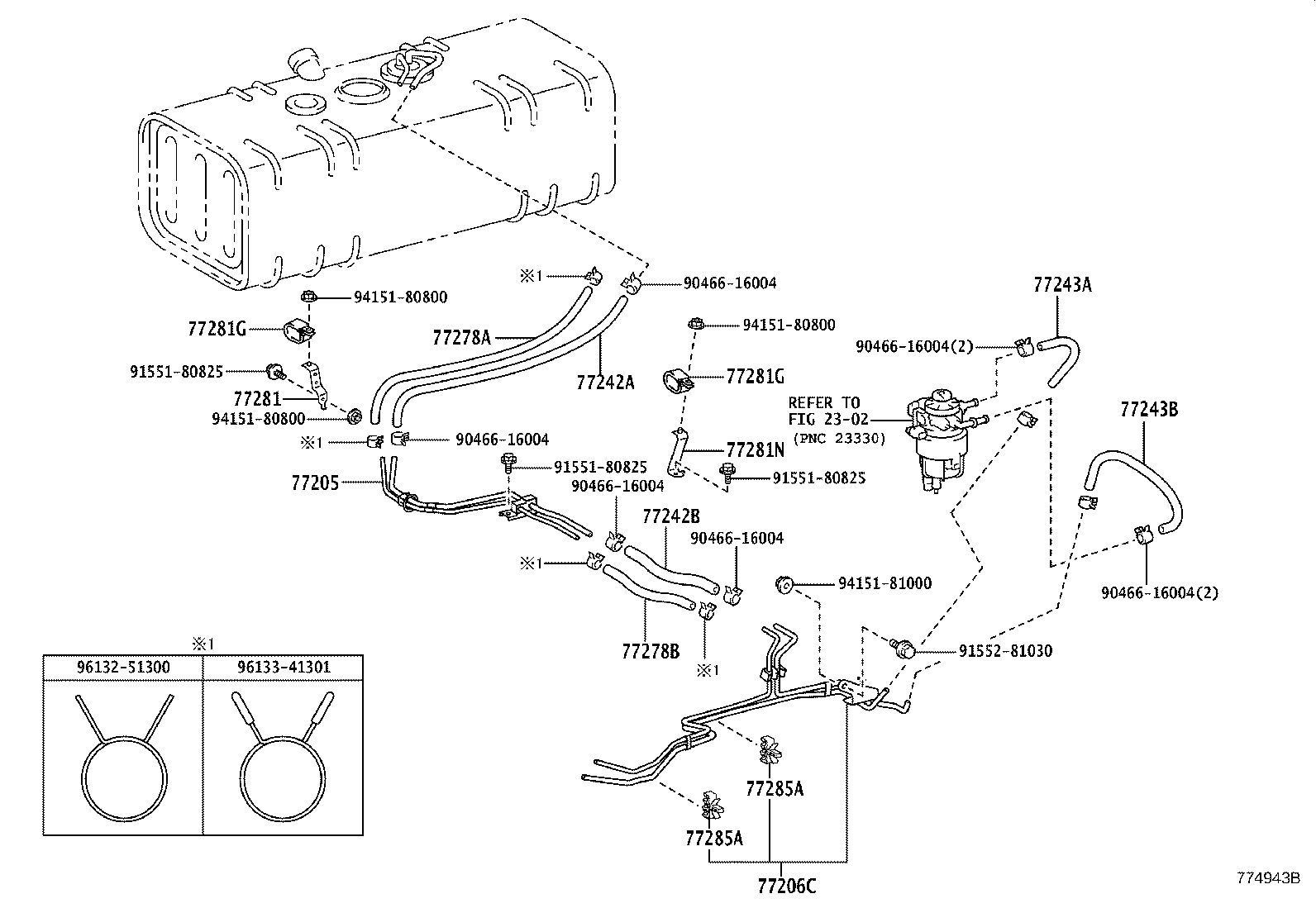

Figure 773092C 773092C 2011-07 → 2020-05 Figure 773093D 773093D 2011-07 → 2020-05 Figure 7764BF 7764BF 2013-06 → 2015-12 Figure 774319 774319 2011-07 → 2020-05 Figure 773026A 773026A 2011-07 → 2020-05 Figure 773030 773030 2011-07 → 2020-05 Figure 773031 773031 2011-08 → 2020-05 Figure 773287 773287 2013-06 → 2020-05 Figure 774923D 774923D 2019-11 → — Figure 77648TC 77648TC 2019-11 → — Figure 774943B 774943B 2019-11 → — Figure 77648U 77648U 2019-11 → —

Part groups

PNCDescription
33113C Plug, Drain
77017B Tube Sub-assy, Fuel Tank Vent
77023 Filter Sub-assy, Fuel Suction Tube
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100E Hose, Fuel, NO.2(FOR FUEL TANK)
77100Z Tank Sub-assy, Fuel Sub
77154 Plate, Fuel Tank Evap/Vent Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77244D Tube, Fuel Evaporation Breather, NO.1
77249 Hose, Fuel Emission
77249A Hose, Fuel Emission
77249B Hose, Fuel
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77259E Hose, Fuel
77266A Protector, Fuel Tube, NO.1
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77279C Hose, Fuel
77279G Hose, Fuel, NO.2
77281 Bracket, Fuel Main Tube, NO.1
77281G Clamp, Fuel Hose
77281N Clamp, Fuel Hose
77285A Support, Fuel Return And Main Tube
77286D Clamp, Fuel Tube, NO.2
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77380 Valve Assy, Fuel Cut Off
77501T Bracket Sub-assy, Fuel Tank
77601A Band Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77616C Seat, Fuel Tank Band
77633 Stay, Fuel Tank
77641B Cover, Fuel Tank
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77710 Cock Assy, Fuel Change
77712 Valve, Fuel Change Cock
77713 Lever, Fuel Change Cock
77714 Cap, Fuel Change Cock
83361C Gasket, Fuel Sender Gage
S7767 Plug, Fuel Strainer
SZ430 Washer, Soft, NO.1
SZ430A Washer, Soft, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
