Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

18 part groups · 3 illustrations

Illustrations

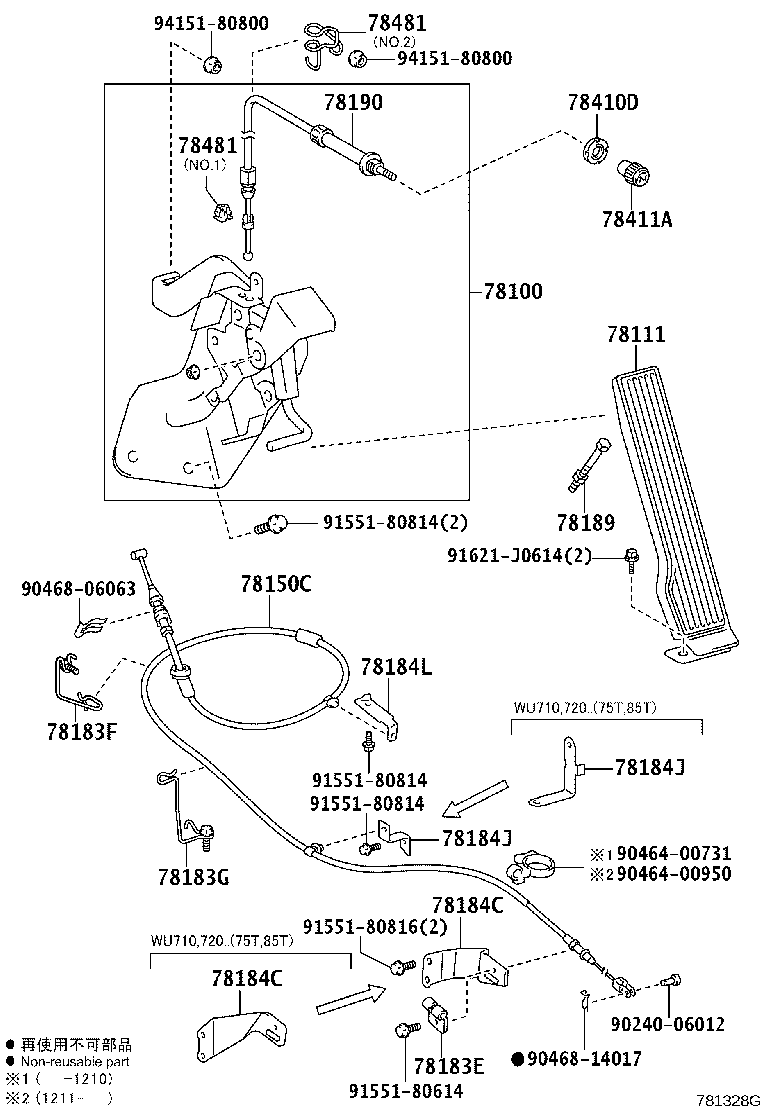

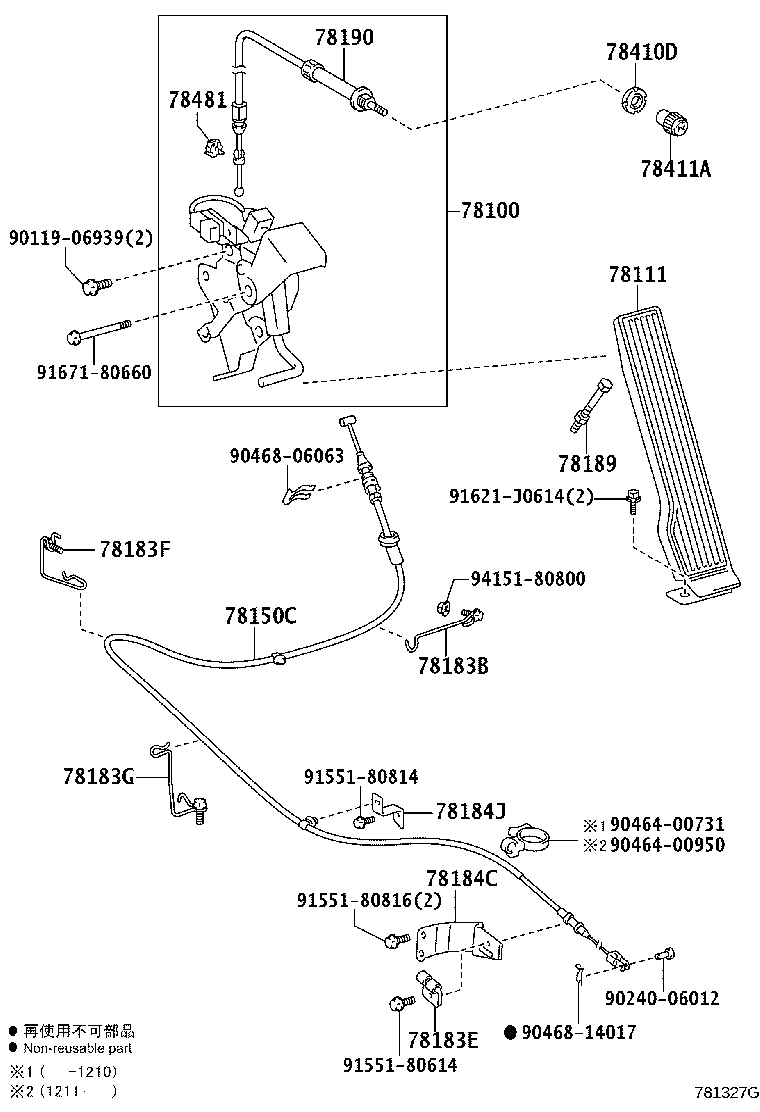

Figure 781323A 781323A 2011-07 → — Figure 781327G 781327G 2011-07 → — Figure 781328G 781328G 2011-07 → —

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78100 Link Assy, Accelerator
78111 Pedal, Accelerator
78114A Bracket, Accelerator Pedal Support
78130 Bellcrank Assy, Accelerator
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78183E Clamp, Accelerator Control Cable
78183F Clamp, Accelerator Control Cable
78183G Clamp, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78184J Bracket, Accelerator Control Cable
78184L Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78190 Cable Assy, Accel Control W/Throttle
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
