Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

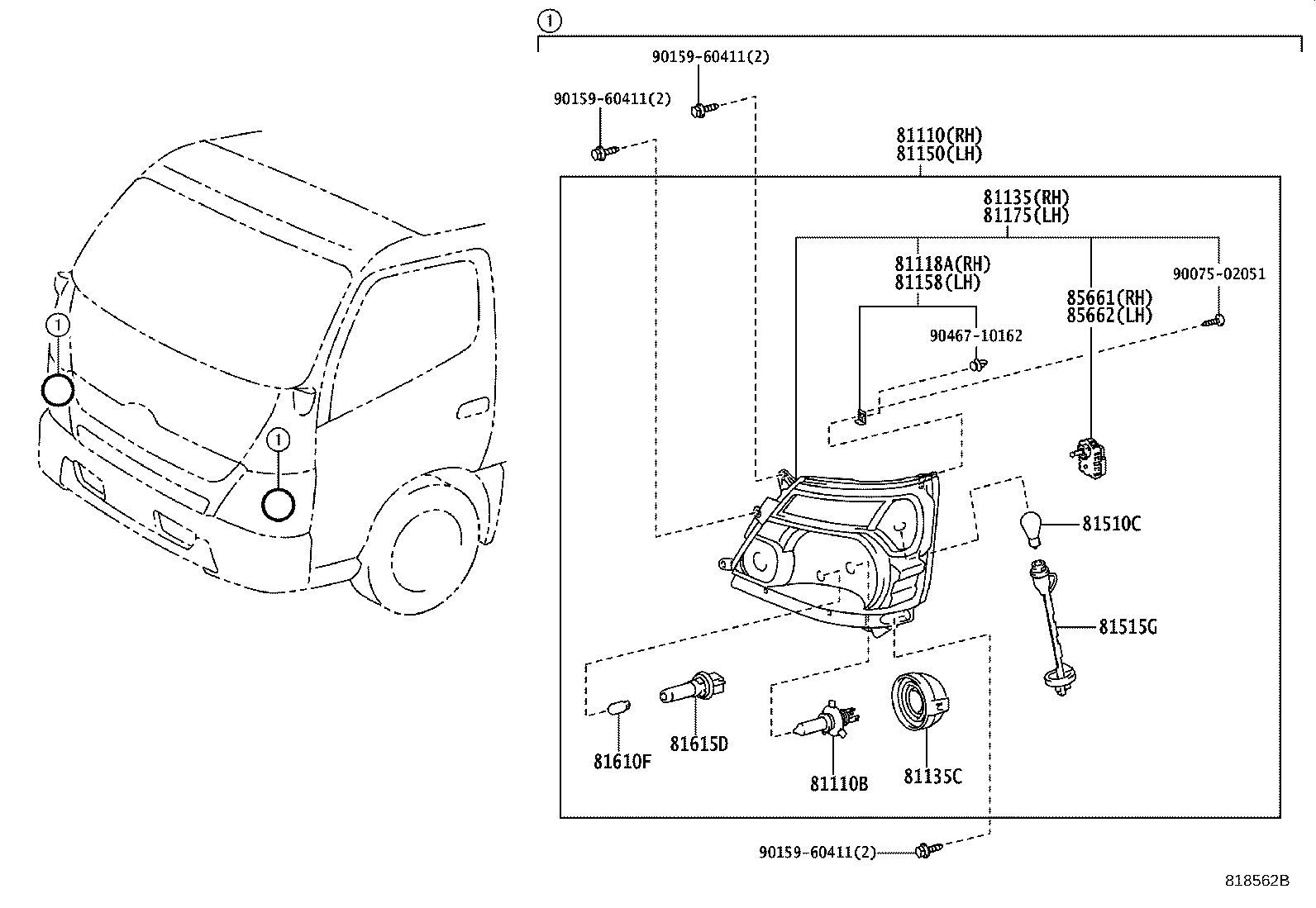

Figure 815663D 815663D 2011-07 → — Figure 818562B 818562B 2011-07 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81118A Bracket, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81158 Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515G Socket & Wire, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
