Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

5 part groups · 2 illustrations

Illustrations

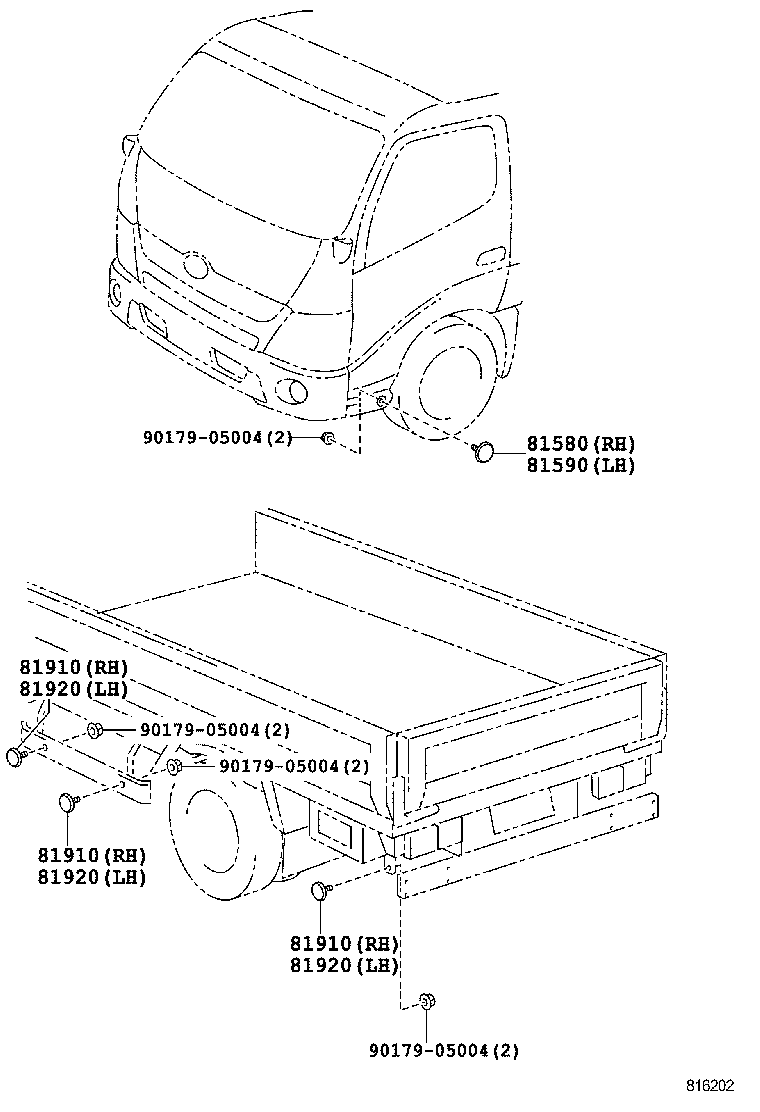

Figure 815706A 815706A 2011-07 → — Figure 816202 816202 2012-07 → —

Part groups

PNCDescription
81580 Reflector Assy, Reflex Side, RH
81590 Reflector Assy, Reflex Side, LH
81910 Reflector Assy, Reflex, RH
81910D Reflector Assy, Reflex, Rear
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
