Toyota Dyna

2011-07 → present · chassis WU700,710,720,XZU710,720,730 · catalogue 771250 · Europe

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 17 illustrations

Illustrations

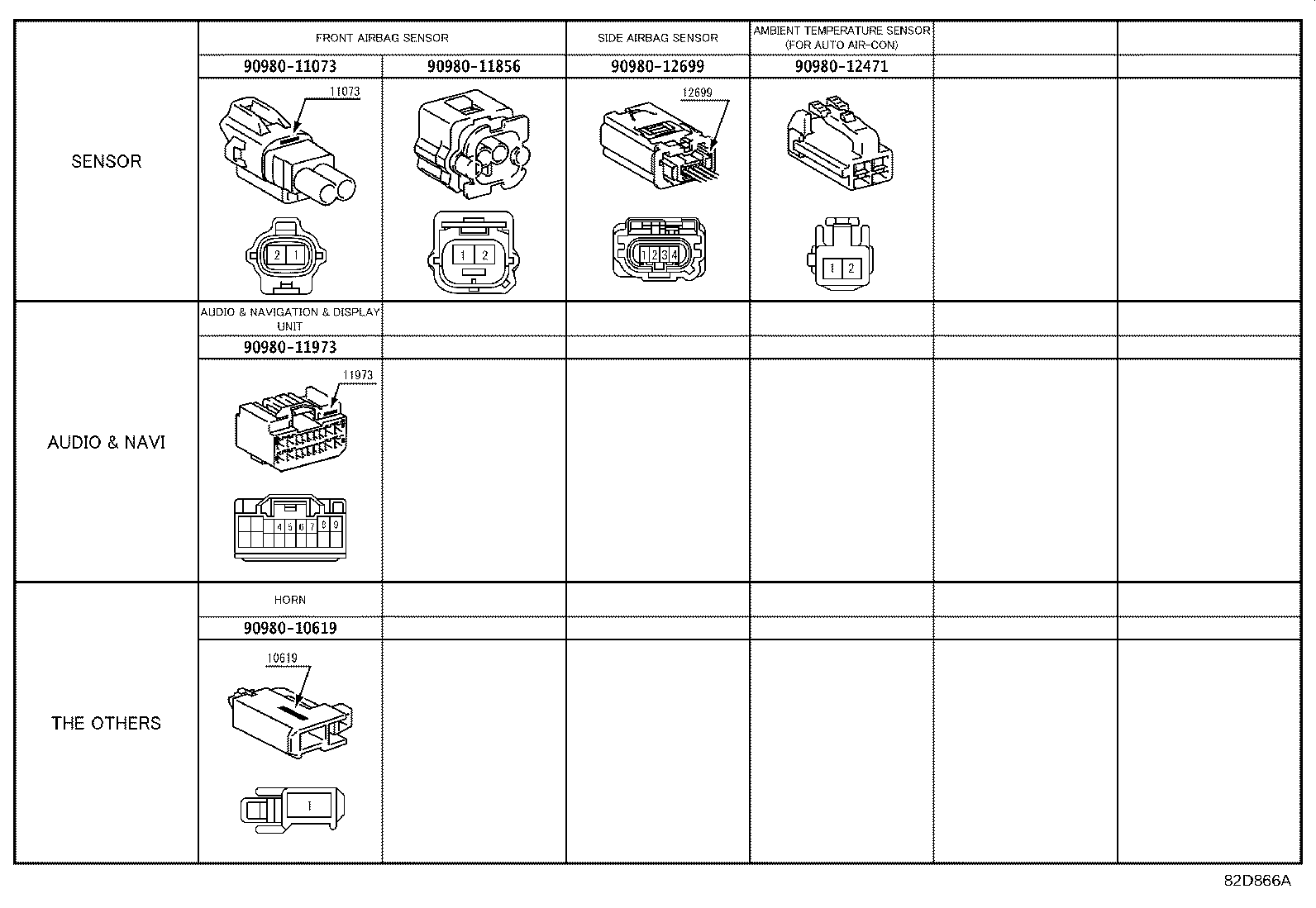

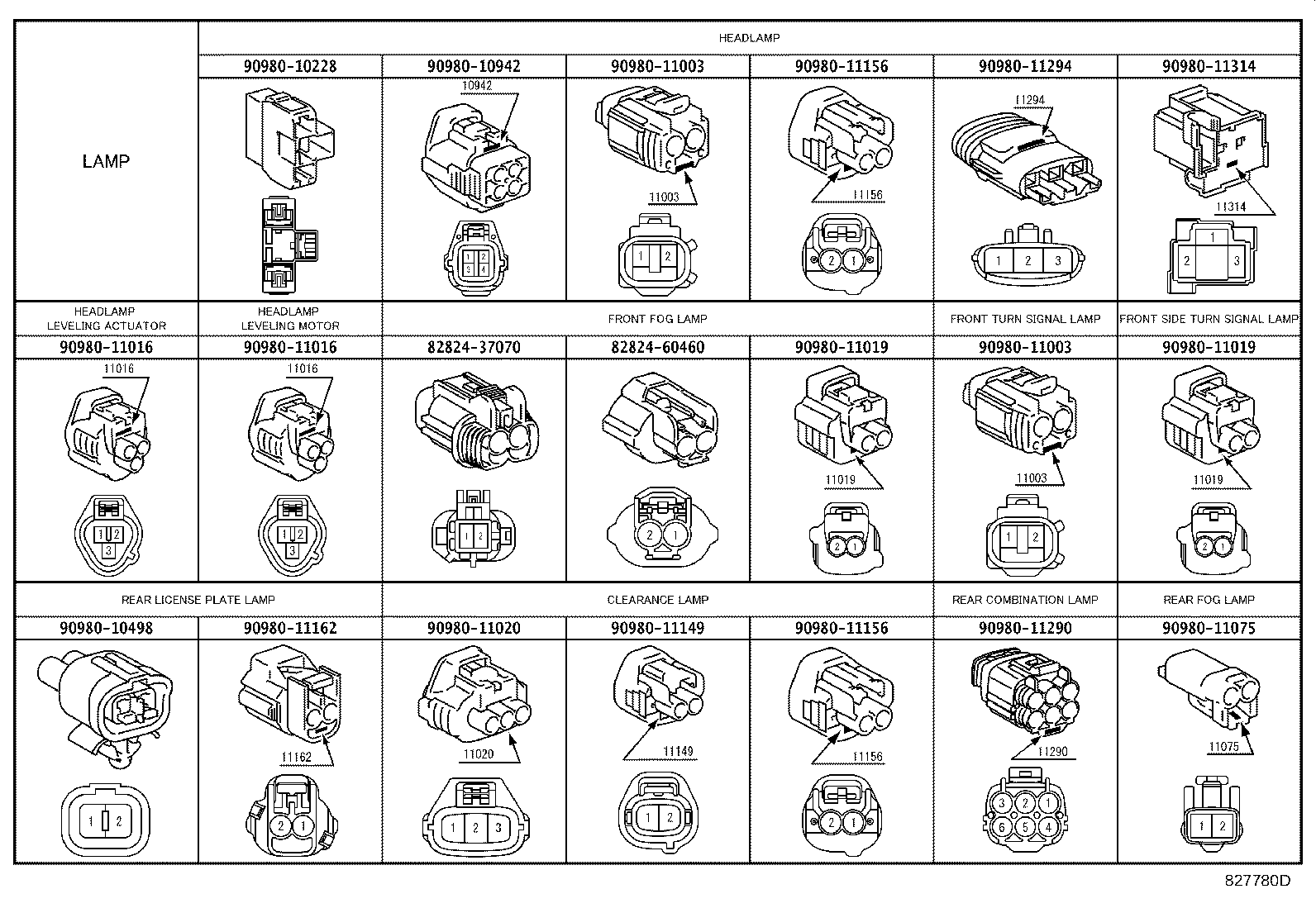

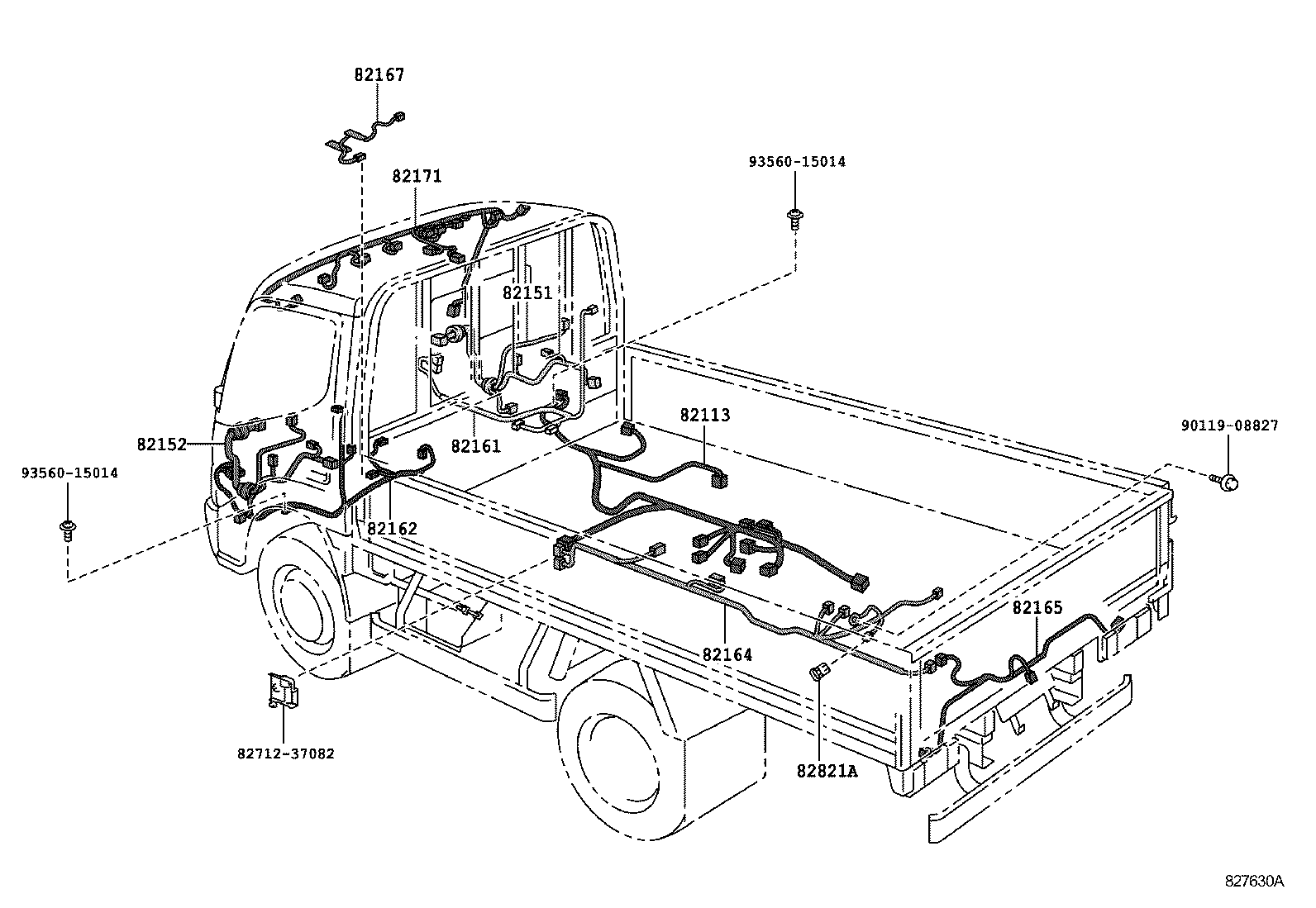

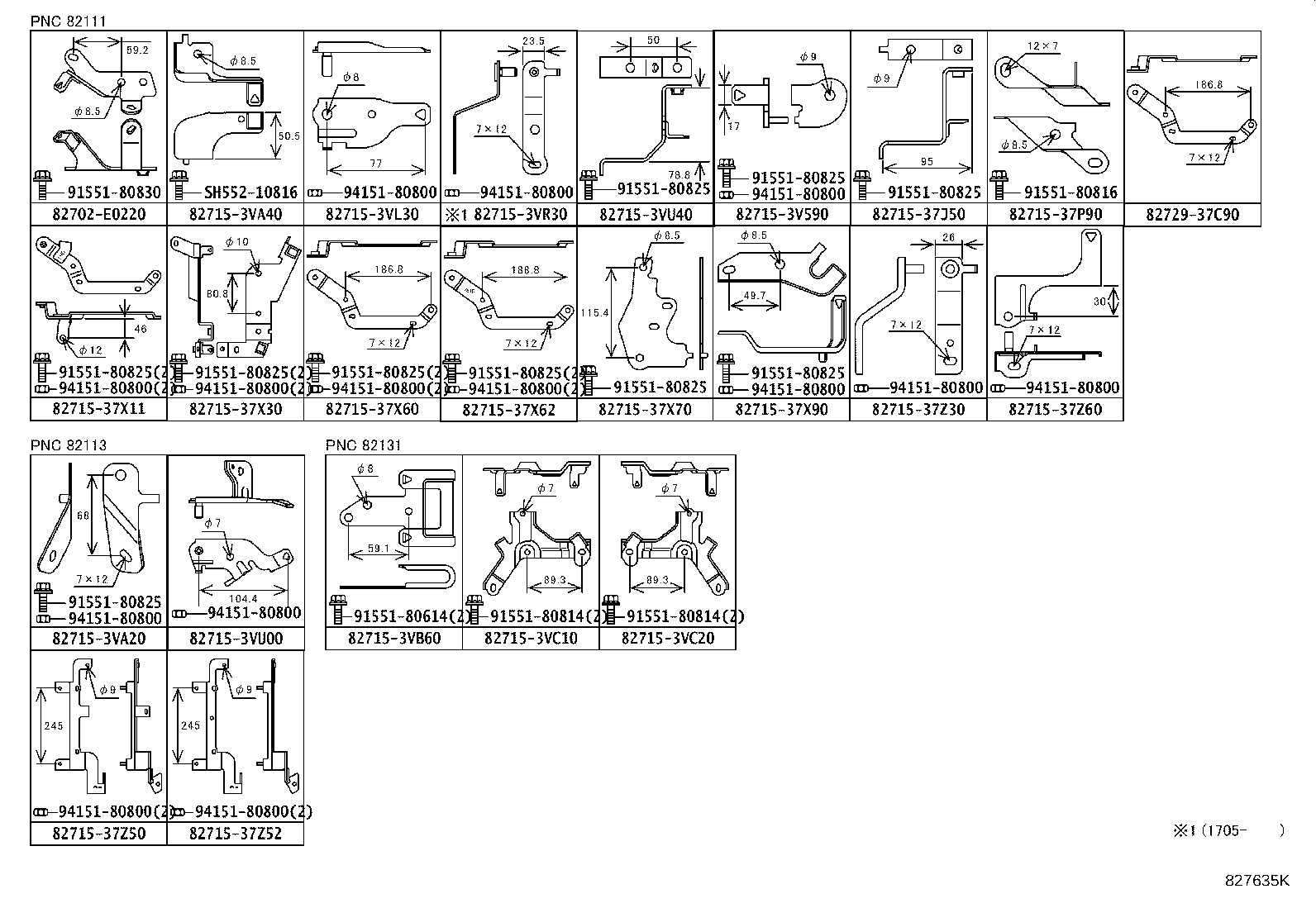

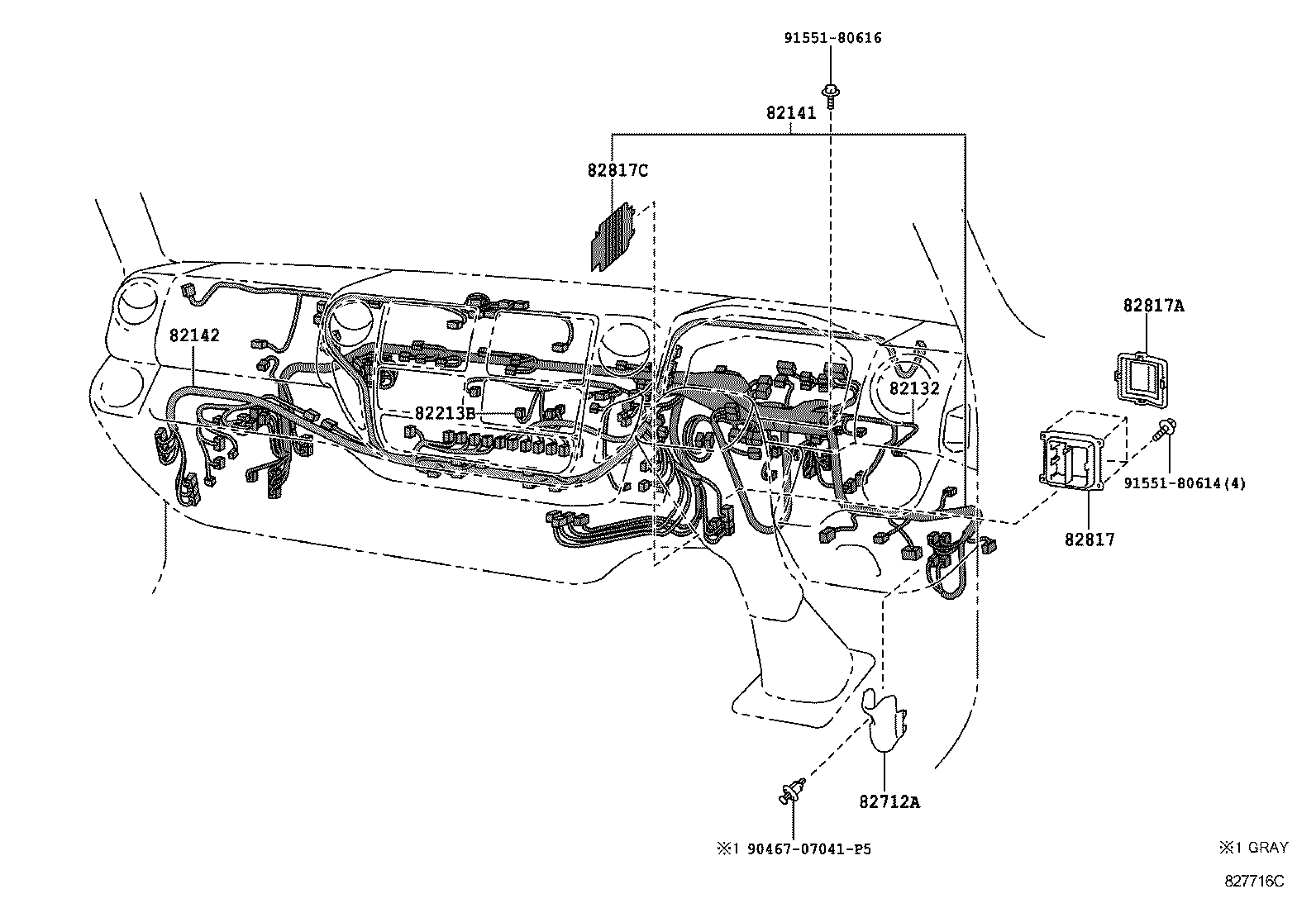

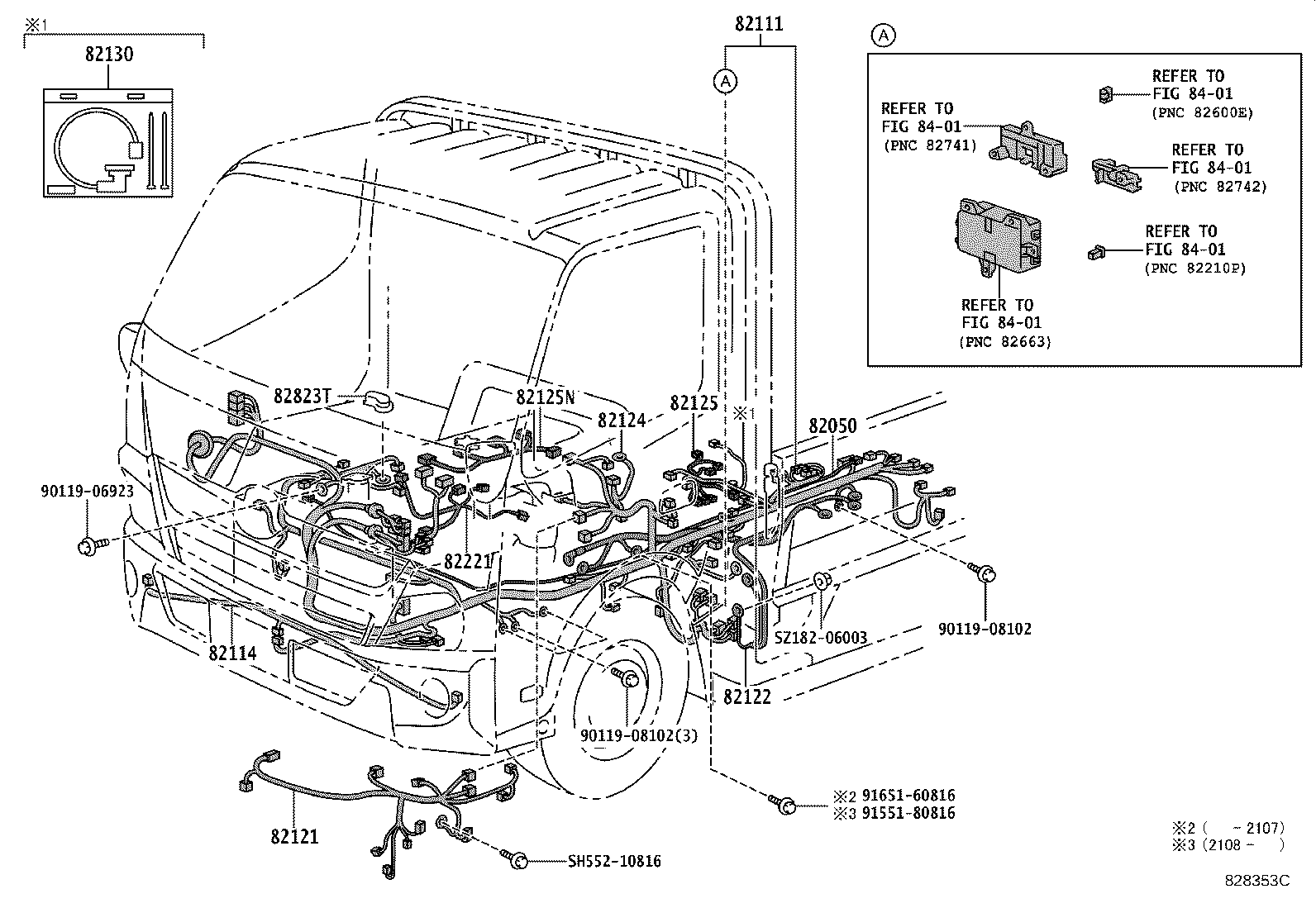

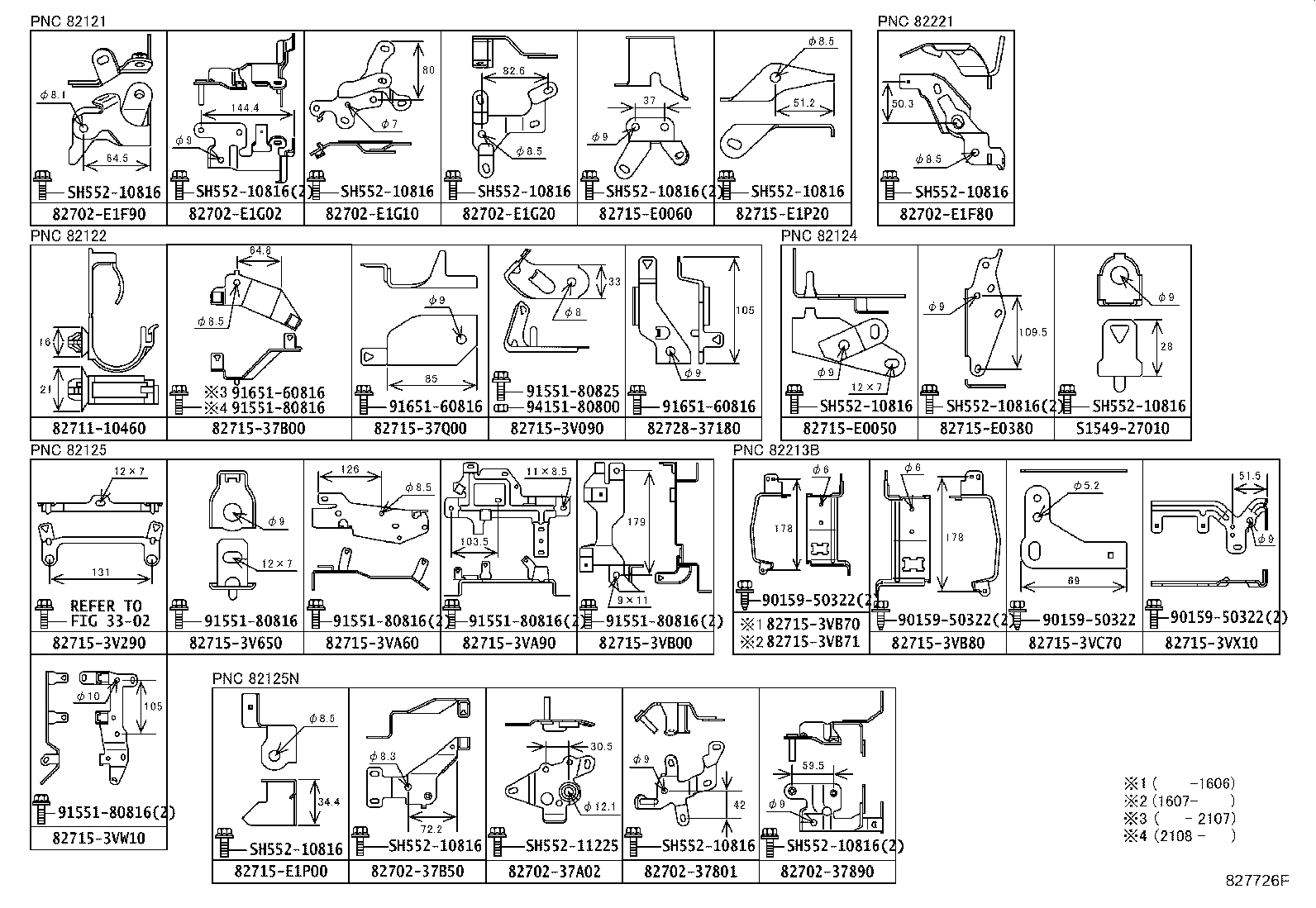

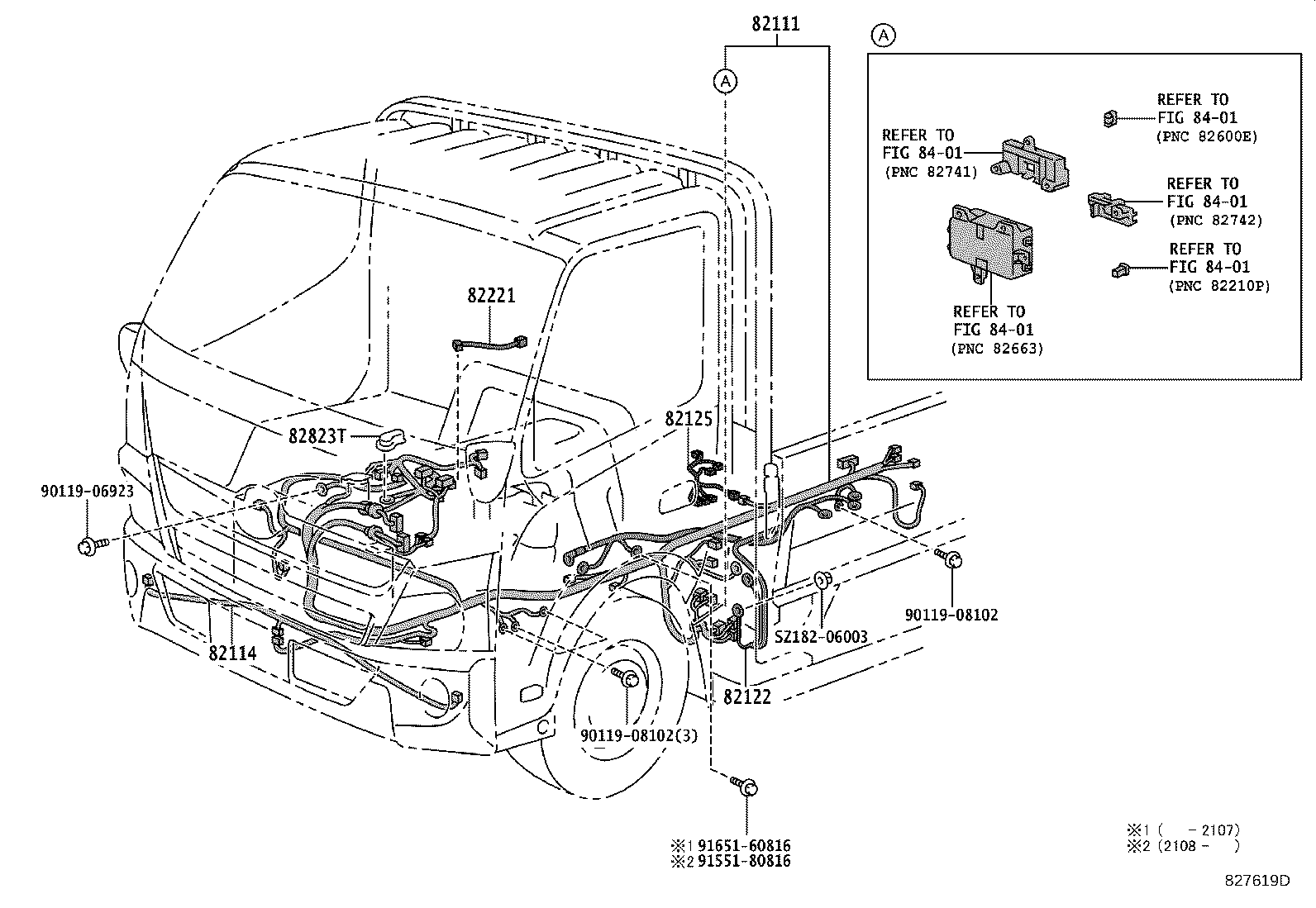

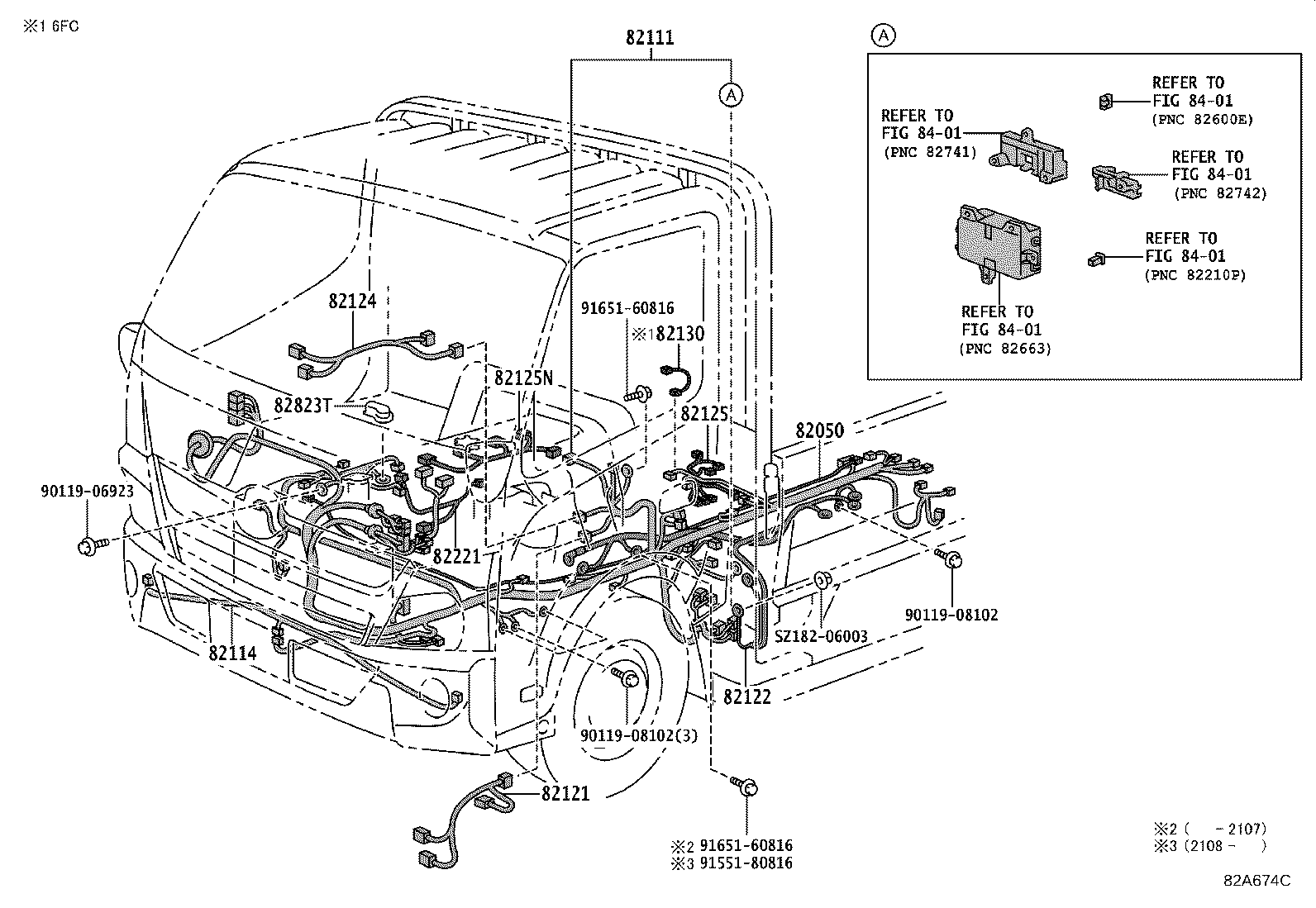

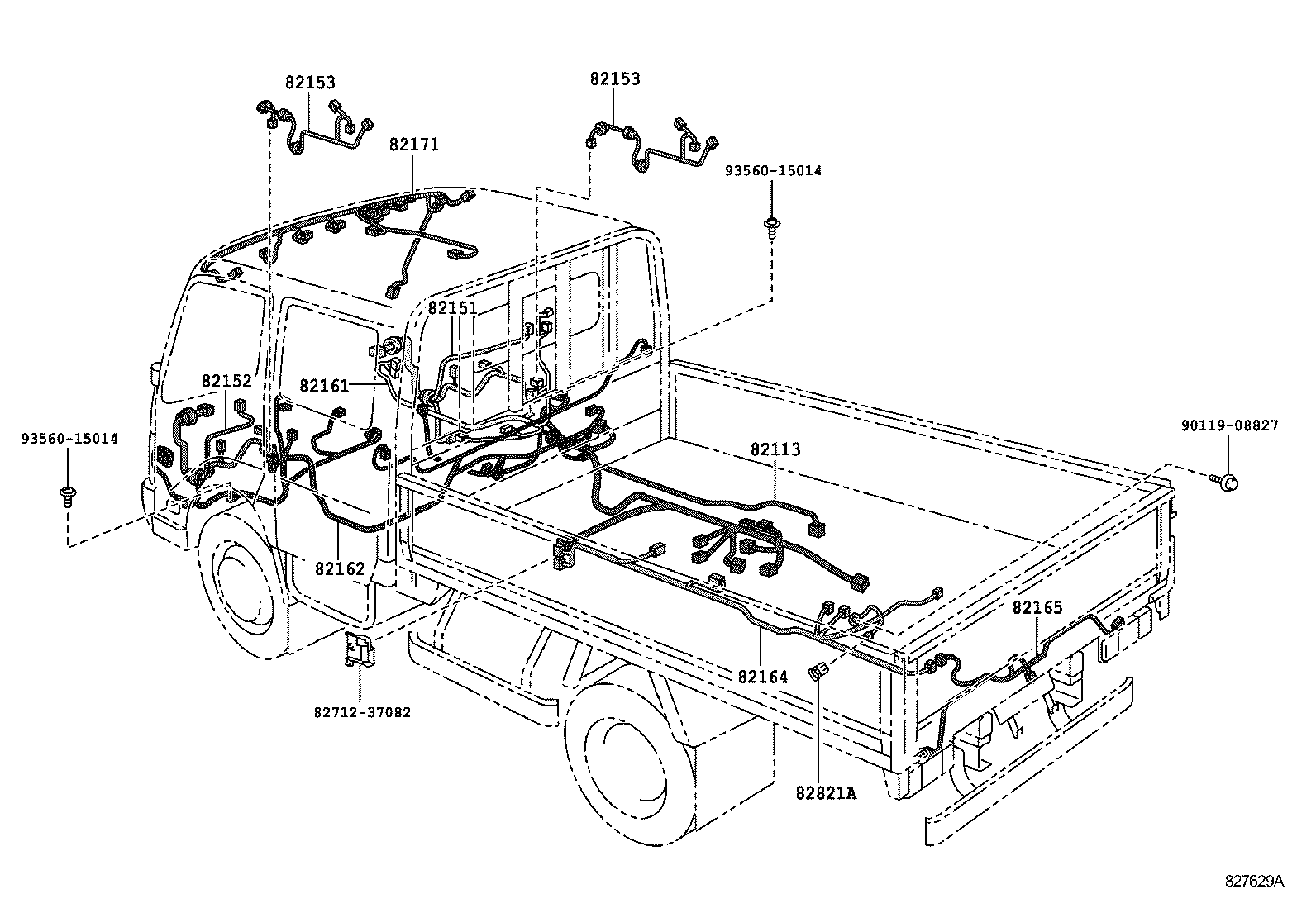

Figure 827712D 827712D 2011-07 → — Figure 82A674C 82A674C 2011-07 → — Figure 828353C 828353C 2012-07 → — Figure 827619D 827619D 2011-07 → — Figure 82C991E 82C991E 2019-11 → — Figure 827623 827623 2011-07 → — Figure 827624 827624 2011-07 → — Figure 827716C 827716C 2011-07 → — Figure 827626E 827626E 2011-07 → — Figure 827718A 827718A 2011-07 → — Figure 827630A 827630A 2011-07 → — Figure 827629A 827629A 2011-08 → — Figure 827635K 827635K 2011-07 → — Figure 82D273 82D273 2011-07 → — Figure 827726F 827726F 2011-07 → — Figure 827780D 827780D 2011-07 → — Figure 82D866A 82D866A 2011-07 → —

Part groups

PNCDescription
82050 Wire Assy, Engine

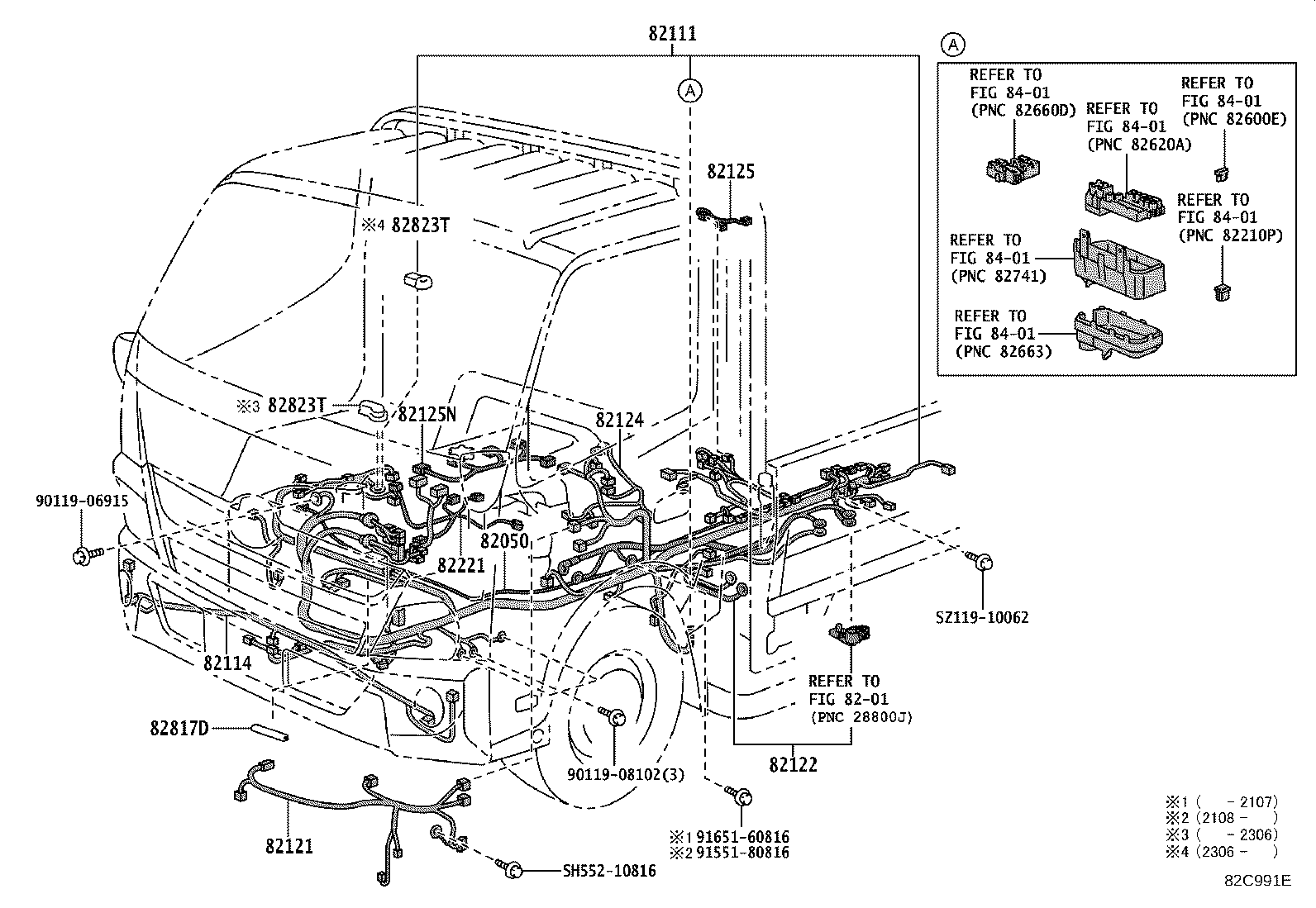

82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82130 Harness Assy, Chassis Wire

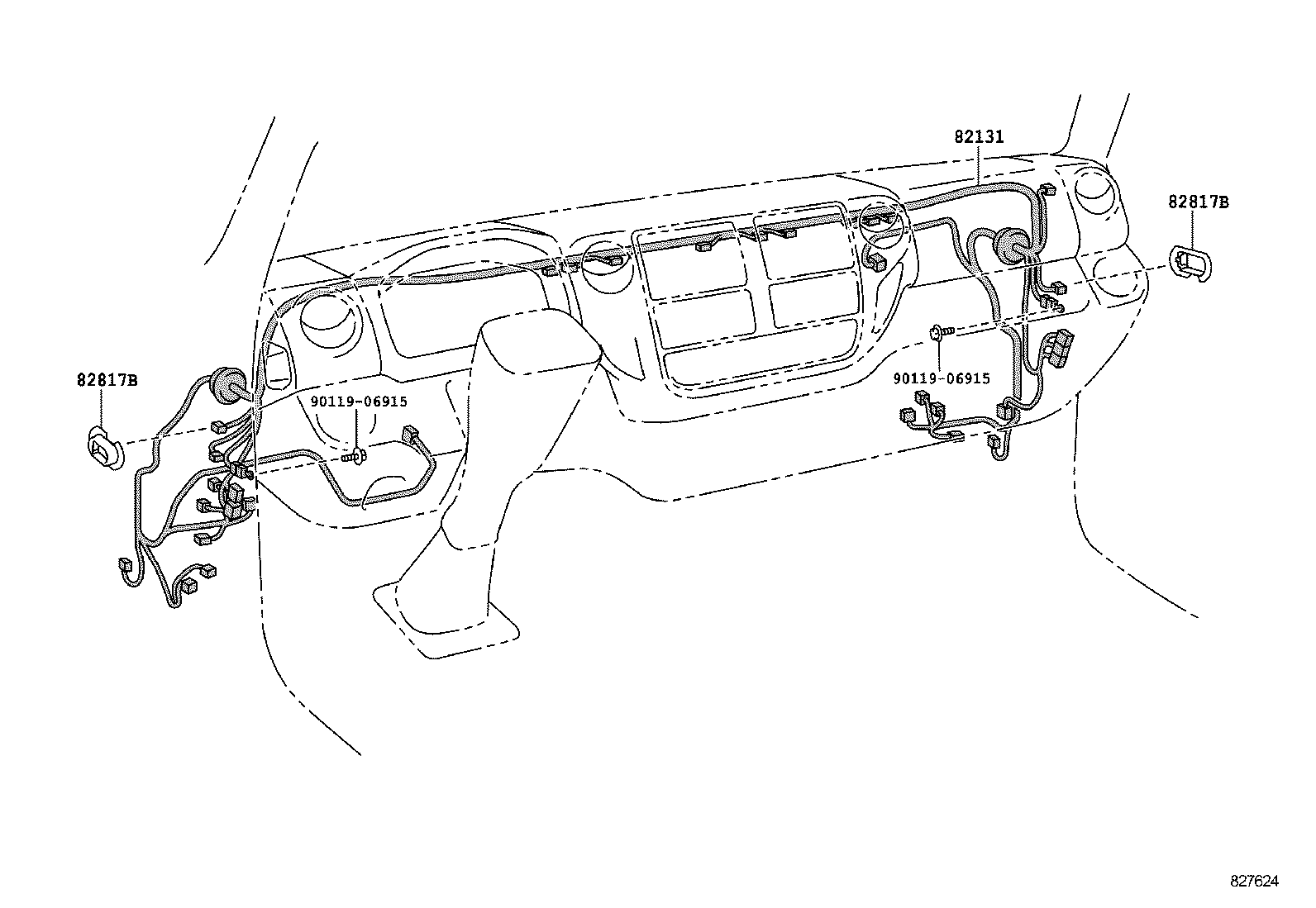

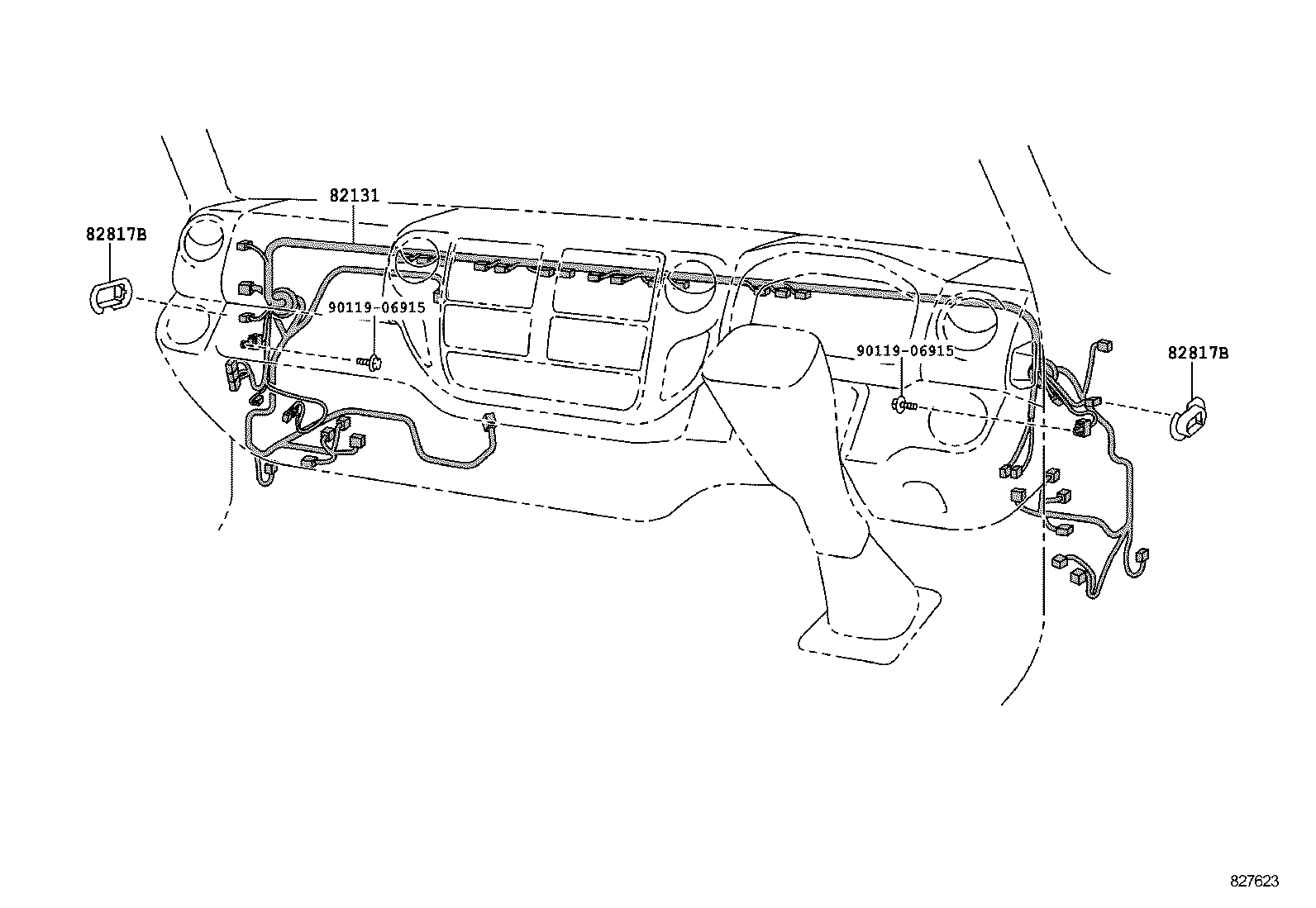

82131 Wire, Cowl
82132 Wire, Cowl, NO.2

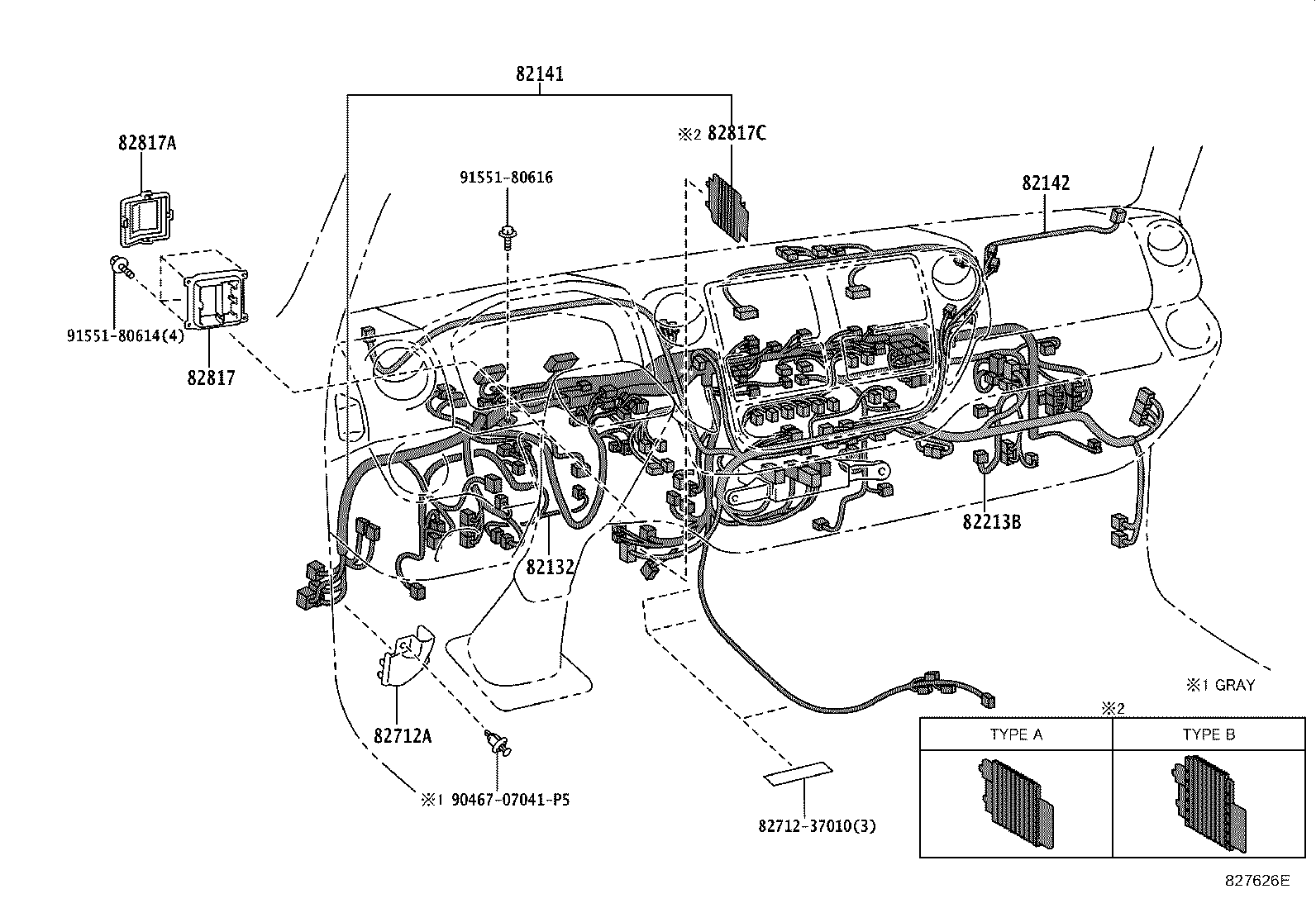

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2

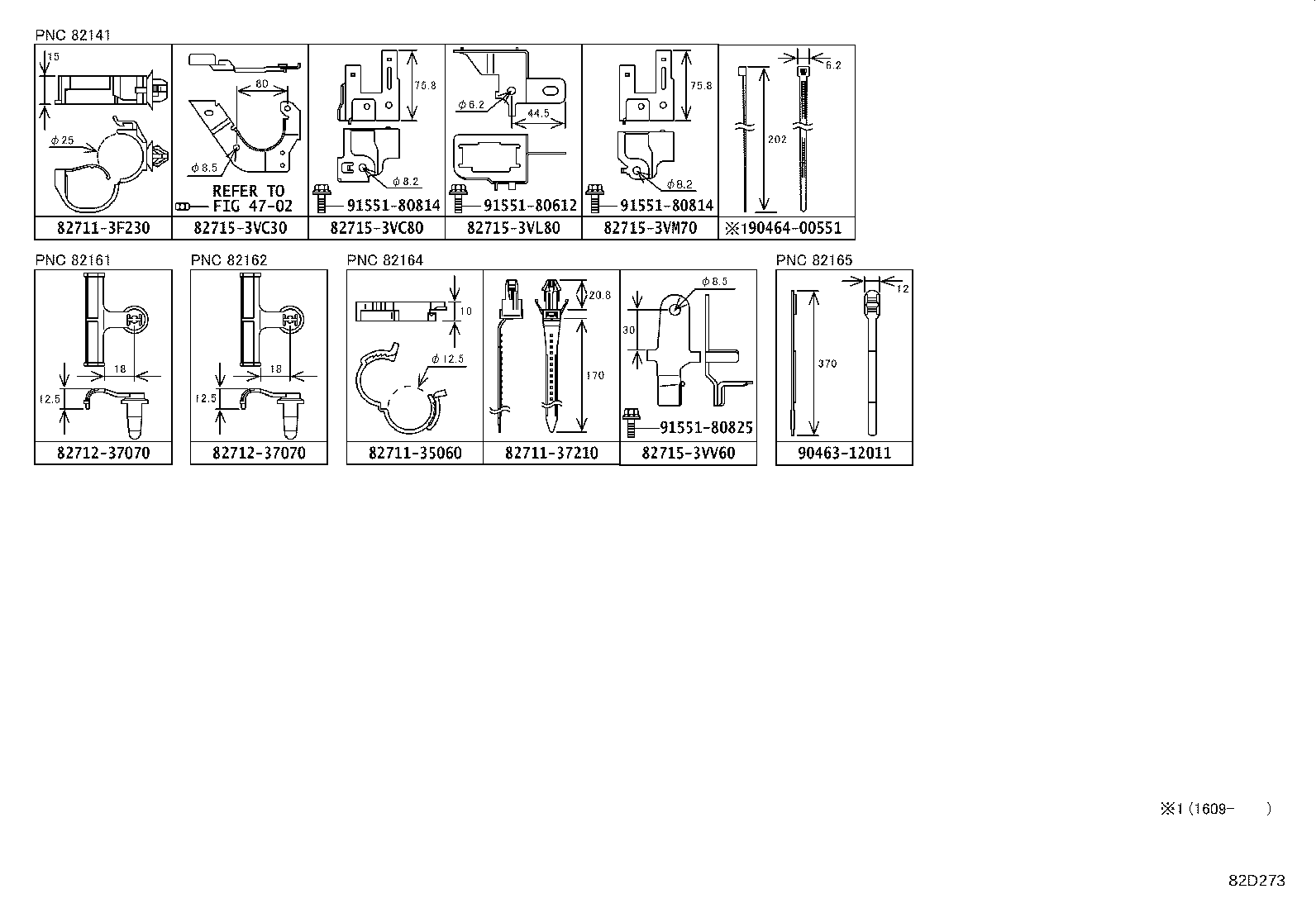

82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1

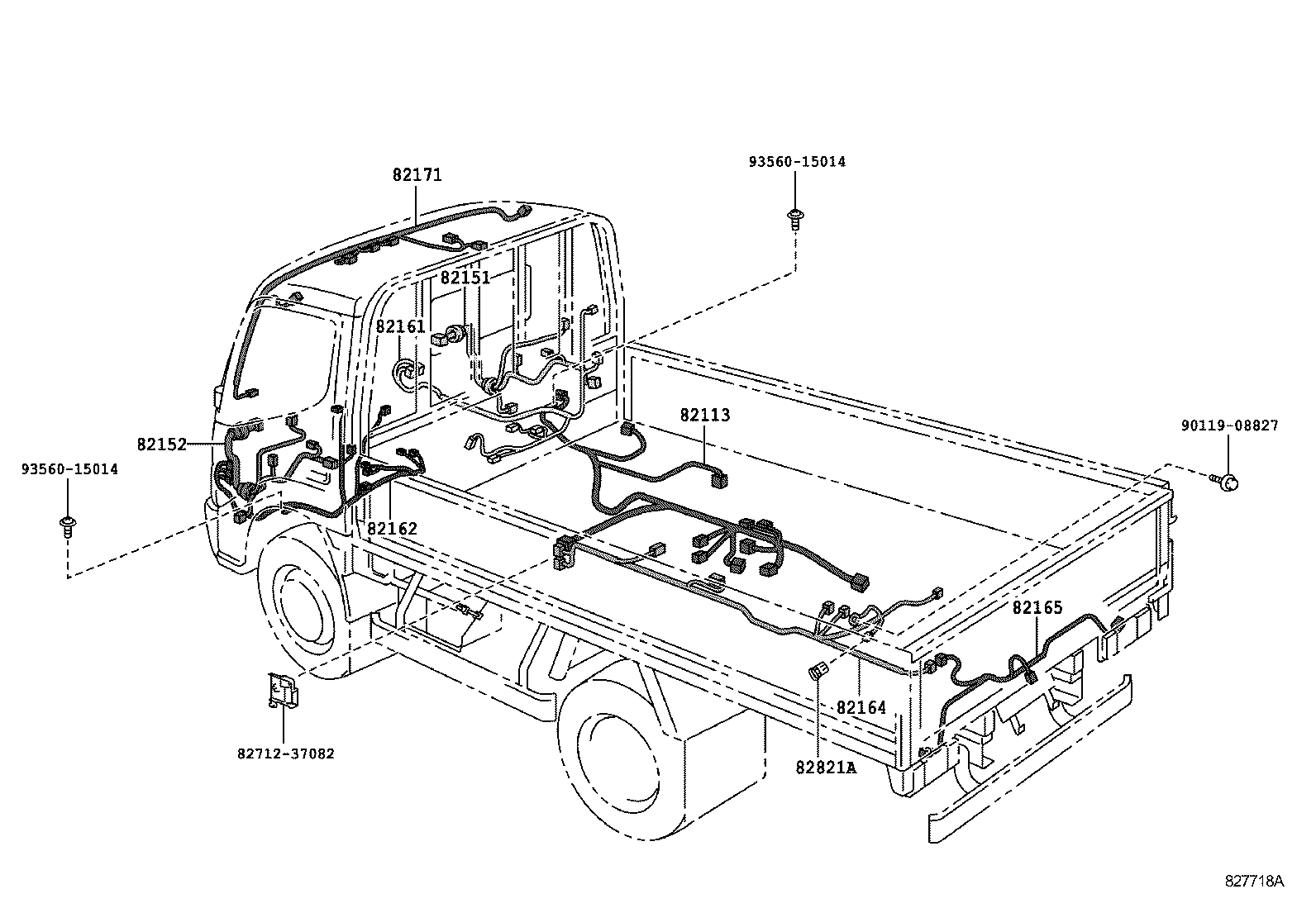

82171 Wire, Roof, NO.1
82213B Wire, Heater
82221 Wire, Oil Pressure Switch
82712A Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821A Cover, Connector
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
